The SLA52M is a high-force Φ52mm waterproof tubular / in-line linear actuator for skylights, smoke vents, yacht hatches and heavy outdoor OEM motion. Up to 6000N with speeds up to ~88mm/s (force option dependent) and IP66 / IP67M sealing. Optional Hall feedback and stainless rod options support demanding outdoor installs.
방수 IP68 튜뷸러 리니어 액추에이터

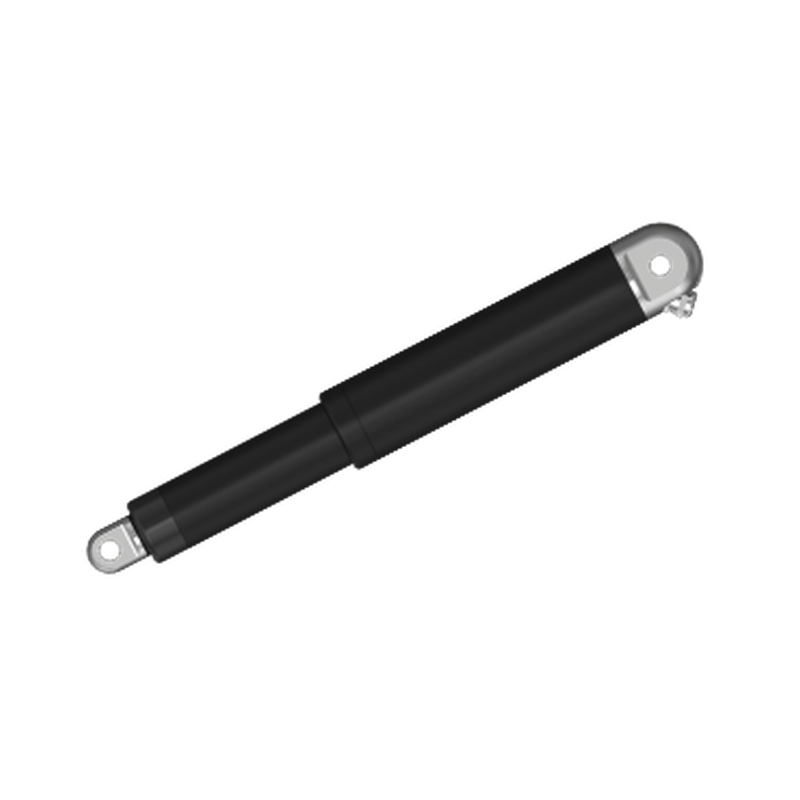

12V 24V SLA52M 6000N IP68 waterproof tubular linear actuator for skylights, smoke vents and yacht automation
SLA52M Φ52mm waterproof tubular / in-line linear actuator — up to 6000N / 600 kg / 1349 lbs, 12V / 24V DC, max 88mm/s, IP66 / IP67M. Ideal for skylights, smoke vents and yacht automation.
Manufactured and supplied by Elerover — 리니어 액추에이터 manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
주요 사양
- Model
- SLA52M
- Working Voltage
- 12V / 24V DC
- Stroke
- 20–500mm
- Protection Class
- IP66 / IP67M
- Installation Length
- L + stroke (retracted); +20mm for IP67M/IP69K
- Max Speed
- 88mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- skylights, smoke vents and yacht automation
제품 개요
주요 특징
- Φ52mm in-line tubular waterproof linear actuator
- Max dynamic force up to 6000N / 600 kg / 1349 lbs
- Voltage: 12V / 24V DC
- Protection: IP66 / IP67M (IP68-class tubular family)
- Stroke: 20–500mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: skylights, smoke vents and yacht automation
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
기술 사양
| Model | SLA52M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ52mm |
| Working Voltage | 12V / 24V DC |
| Max Dynamic Load | 6000N / 600 kg / 1349 lbs |
| Self-locking Force | Up to 8000N |
| Stroke | 20–500mm |
| Installation Length | L + stroke (retracted); +20mm for IP67M/IP69K |
| Protection Class | IP66 / IP67M |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | skylights, smoke vents and yacht automation |
| Max Speed | 88mm/s |
적용 분야
- Skylight systems
- Smoke vent systems
- Yacht automation
- Agricultural machinery
추가 세부 정보
Waterproof IP68 Tubular Linear Actuator
12V 24V SLA52M 6000N IP68 waterproof tubular linear actuator for skylights, smoke vents and yacht automation
Powerful Φ52mm in-line tubular actuator up to 6000N with clean visible design for outdoor architecture and marine systems. Rated up to 6000N / 600 kg / 1349 lbs, 12V / 24V DC, with in-line tubular packaging for visible outdoor installs such as skylights, smoke vents and yacht automation.
Model
SLA52M
SLA52M
Tube Diameter
Φ52mm
Φ52mm
Max Force
6000N
6000N
Voltage
12V / 24V DC
12V / 24V DC
Max Speed
88mm/s
88mm/s
Protection
IP66 / IP67M
IP66 / IP67M
External Dimensions
Dimensional drawing from the SLA52M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ52mm
- Typical install length: L + stroke (retracted); +20mm for IP67M/IP69K
- Stroke range: 20–500mm
- Dimensional tolerance (where not marked): ISO2768-mk
Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 300N | 600N | 88mm/s | 55mm/s |
| 1200N | 2400N | 24mm/s | 15mm/s |
| 1800N | 3600N | 16mm/s | 10mm/s |
| 3000N | 6000N | 9.6mm/s | 6mm/s |
| 4500N | 8000N | 6.4mm/s | 4.5mm/s |
| 5000N | 7500N | 4.8mm/s | 3.3mm/s |
| 6000N | 8000N | 4.8mm/s | 3mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
