The SLA45M is a 230V AC Φ45mm waterproof tubular / in-line linear actuator for dynamic façades and sun shading. Constant-speed AC drive suits building power supplies; IP66 / IP67M sealing supports outdoor architectural duty. In-line tubular form keeps the actuator compact on curtain-wall and shading frames.
방수 IP68 튜뷸러 리니어 액추에이터

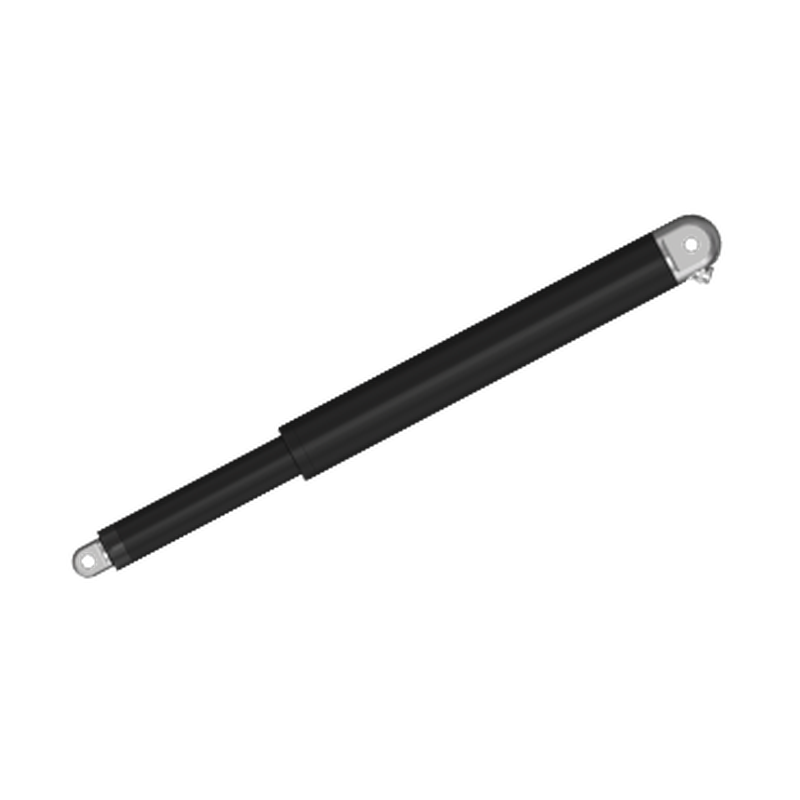

230V AC SLA45M 1500N IP68 waterproof tubular linear actuator for dynamic facades and sun shading systems
SLA45M Φ45mm waterproof tubular / in-line linear actuator — up to 1500N / 150 kg / 337 lbs, 230V AC, max 9mm/s, IP66 / IP67M. Ideal for dynamic facades and sun shading systems.
Manufactured and supplied by Elerover — 리니어 액추에이터 manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
주요 사양
- Model
- SLA45M
- Working Voltage
- 230V AC
- Stroke
- 100–600mm
- Protection Class
- IP66 / IP67M
- Installation Length
- Approx. 410mm + stroke (minimum)
- Max Speed
- 9mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- dynamic facades and sun shading systems
제품 개요
주요 특징
- Φ45mm in-line tubular waterproof linear actuator
- Max dynamic force up to 1500N / 150 kg / 337 lbs
- Voltage: 230V AC
- Protection: IP66 / IP67M
- Stroke: 100–600mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: dynamic facades and sun shading systems
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
기술 사양
| Model | SLA45M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ45mm |
| Working Voltage | 230V AC |
| Max Dynamic Load | 1500N / 150 kg / 337 lbs |
| Self-locking Force | Up to 1500N |
| Stroke | 100–600mm |
| Installation Length | Approx. 410mm + stroke (minimum) |
| Protection Class | IP66 / IP67M |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | dynamic facades and sun shading systems |
| Max Speed | 9mm/s |
적용 분야
- Dynamic facades
- Sun shading systems
- Window adjustment
- Ventilation systems
추가 세부 정보
Waterproof IP68 Tubular Linear Actuator
230V AC SLA45M 1500N IP68 waterproof tubular linear actuator for dynamic facades and sun shading systems
230VAC Φ45mm in-line tubular actuator for constant-speed facade, shading and ventilation projects. Rated up to 1500N / 150 kg / 337 lbs, 230V AC, with in-line tubular packaging for visible outdoor installs such as dynamic facades and sun shading systems.
Model
SLA45M
SLA45M
Tube Diameter
Φ45mm
Φ45mm
Max Force
1500N
1500N
Voltage
230V AC
230V AC
Max Speed
9mm/s
9mm/s
Protection
IP66 / IP67M
IP66 / IP67M
External Dimensions
Dimensional drawing from the SLA45M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ45mm
- Typical install length: Approx. 410mm + stroke (minimum)
- Stroke range: 100–600mm
- Dimensional tolerance (where not marked): ISO2768-mk
Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 400N | 400N | 9mm/s | 8.5mm/s |
| 650N | 650N | 9mm/s | 8mm/s |
| 800N | 800N | 9mm/s | 7.5mm/s |
| 1500N | 1500N | 4.5mm/s | 4mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
