리니어 액추에이터
모델 SLA38MP

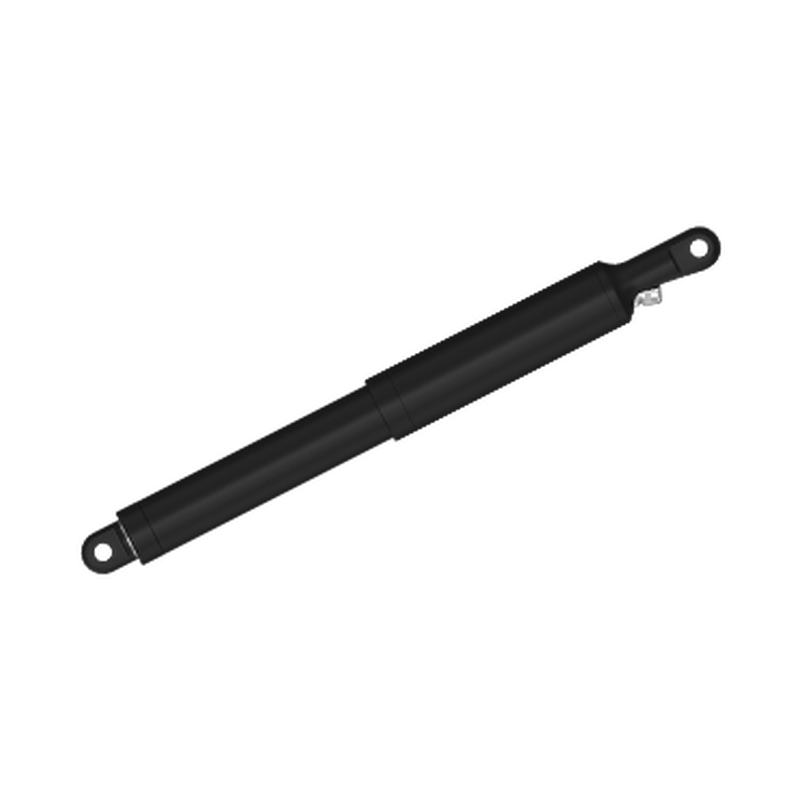

12 V DC 24 V DC SLA38MP 2,500 N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control
12V 24V SLA38MP 2500N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control from Elerover.
핵심 사양
- 최대 하중
- 2500 N / 250 kg / 562 lbs
- 스트로크
- 20–400 mm
- 속도
- 13 mm/s
- 전압
- 12 V / 24 V DC
제품 개요
12V 24V SLA38MP 2500N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- 최대 하중
- 2500 N / 250 kg / 562 lbs
- 스트로크
- 20–400 mm
- 속도
- 13 mm/s
- 전압
- 12 V / 24 V DC
- IP 등급
- IP67M / IP69K
- 듀티 사이클
- S2 ≈ 2 min / 18 min
적용 분야
- Bioclimatic pergola louvres
- Outdoor architectural shading
- Harsh-weather facade motion
- Premium outdoor OEM systems
주요 이점
- Φ38mm in-line tubular waterproof linear actuator
- Max dynamic force up to 2500N / 250 kg / 562 lbs
- Voltage: 12V / 24V DC
- Protection: IP67M / IP69K
- Stroke: Custom (pergola-optimized)
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: bioclimatic pergola louvre control
기술 사양
| 최대 하중 | 2500 N / 250 kg / 562 lbs |
|---|---|
| 스트로크 | 20–400 mm |
| 속도 | 13 mm/s |
| 전압 | 12 V / 24 V DC |
| IP 등급 | IP67M / IP69K |
| 듀티 사이클 | S2 ≈ 2 min / 18 min |
| Retracted length | Approx. 300 mm + stroke (center-to-center) |
Performance matrix
| Speed | Thrust | Self-locking force |
|---|---|---|
| 13 mm/s | 2500 N | 2500 N |
