The SLA35M is a Φ35mm waterproof tubular / in-line linear actuator for motorized pergolas, yacht fittings and outdoor OEM systems. Up to 2300N with IP66 / IP67M protection and optional stainless housing for harsh or marine-adjacent environments. In-line packaging keeps the actuator looking intentional on architectural structures.
방수 IP68 튜뷸러 리니어 액추에이터

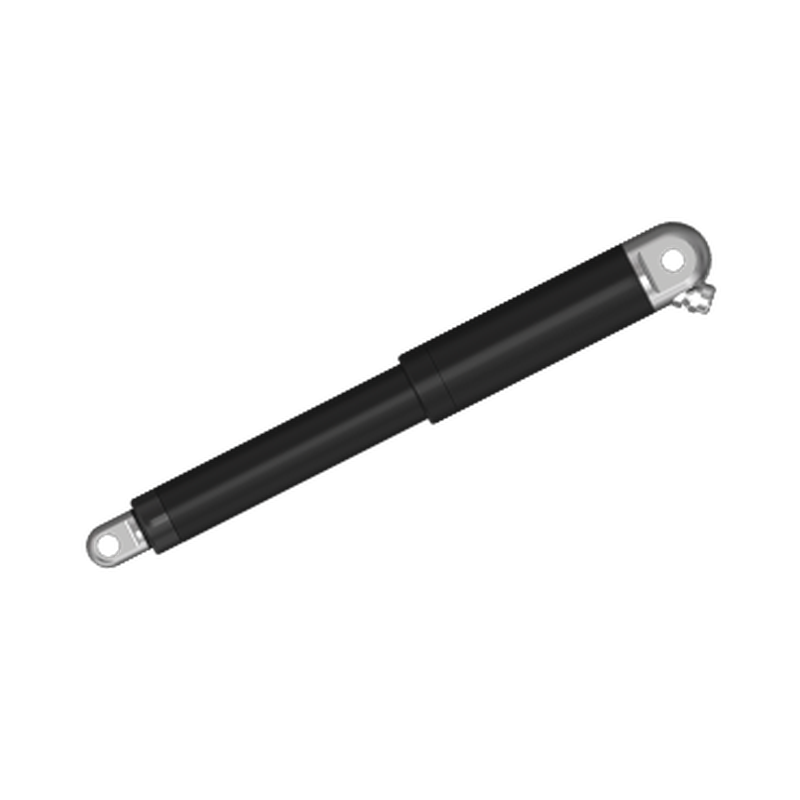

12V 24V SLA35M 2300N IP68 waterproof tubular linear actuator for motorized pergolas and yacht automation
SLA35M Φ35mm waterproof tubular / in-line linear actuator — up to 2300N / 230 kg / 517 lbs, 12V / 24V DC, max 25mm/s, IP66 / IP67M. Ideal for motorized pergolas and yacht automation.
Manufactured and supplied by Elerover — 리니어 액추에이터 manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
주요 사양
- Model
- SLA35M
- Working Voltage
- 12V / 24V DC
- Stroke
- 20–500mm
- Protection Class
- IP66 / IP67M
- Installation Length
- L + stroke (retracted); +13mm for IP67M/IP69K
- Max Speed
- 25mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- motorized pergolas and yacht automation
제품 개요
주요 특징
- Φ35mm in-line tubular waterproof linear actuator
- Max dynamic force up to 2300N / 230 kg / 517 lbs
- Voltage: 12V / 24V DC
- Protection: IP67M (IP69K optional)
- Stroke: 20–500mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: motorized pergolas and yacht automation
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
기술 사양
| Model | SLA35M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ35mm |
| Working Voltage | 12V / 24V DC |
| Max Dynamic Load | 2300N / 230 kg / 517 lbs |
| Self-locking Force | Up to 3450N |
| Stroke | 20–500mm |
| Installation Length | L + stroke (retracted); +13mm for IP67M/IP69K |
| Protection Class | IP66 / IP67M |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | motorized pergolas and yacht automation |
| Max Speed | 25mm/s |
적용 분야
- Motorized pergolas
- Yacht automation
- Special vehicles
- Rehabilitation equipment
추가 세부 정보
Waterproof IP68 Tubular Linear Actuator
12V 24V SLA35M 2300N IP68 waterproof tubular linear actuator for motorized pergolas and yacht automation
Compact Φ35mm in-line actuator up to 2300N with optional stainless steel housing for harsh environments. Rated up to 2300N / 230 kg / 517 lbs, 12V / 24V DC, with in-line tubular packaging for visible outdoor installs such as motorized pergolas and yacht automation.
Model
SLA35M
SLA35M
Tube Diameter
Φ35mm
Φ35mm
Max Force
2300N
2300N
Voltage
12V / 24V DC
12V / 24V DC
Max Speed
25mm/s
25mm/s
Protection
IP66 / IP67M
IP66 / IP67M
External Dimensions
Dimensional drawing from the SLA35M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ35mm
- Typical install length: L + stroke (retracted); +13mm for IP67M/IP69K
- Stroke range: 20–500mm
- Dimensional tolerance (where not marked): ISO2768-mk
Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 100N | 150N | 35mm/s | 30mm/s |
| 300N | 600N | 25mm/s | 17mm/s |
| 600N | 1600N | 12mm/s | 9mm/s |
| 1200N | 1800N | 6.8mm/s | 5mm/s |
| 1800N | 3600N | 4.5mm/s | 3mm/s |
| 2300N | 3450N | 3.5mm/s | 2.5mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
