Synchronous Control System for Two Linear Actuators Introducing our Synchronous Control System for Two Linear Actuators, designed to provide precise and simultaneous operation of two electric linear actuators. This system is perfect for applications requiring synchronized movement, offering both wired and wireless control options for maximum flexibility. Item SCN02 Input Voltage 12~48VDC Output voltage Corresponding to input Maximum output current 10A/per motor Number of controlled DC brush motors 2 Synchronization accuracy within 3 pulse deviation (<1mm) Number of power failure data storage 40 million times Input power supply anti-reverse connection Yes Overcurrent and overload protection Yes,default 8A, can be modified Short circuit protection Yes Motor drop protection Yes Encoder abnormal protection Yes Signal anti-interference capability Yes, support cable more than 10 meters Housing material Aluminum alloy Color Black Ambient temperature -20°(~+65°C) communications protocol RS485，ModBus-RTU Pointing/self-locking Switchable Key Features 🔄 Synchronous Operation: Controls two electric linear actuators to run completely synchronously. 🎮 Dual Control Options: Wired Control: Via an easy-to-use control handle. Wireless Control: Via a convenient remote control. 🔘 Simple Functionality: Two function buttons for Up and Down movements. 🔄 Reset Button: Quickly reset the system for adjustments. Connection Instructions Power Connection: Connect the positive pole of the DC power supply to terminal + of the controller. Connect the negative pole of the DC power supply to terminal – of the controller. Actuator Connection: Connect the red and black power cables of the two linear actuators to the linear actuator terminals of the controller. Connect the hall signal cables of the two linear actuators to the hall signal terminals of the controller. Control Handle: Plug the control handle into the controller. Operation Instructions Via Control Handle: Extend Actuators: Press the ▲
컨트롤러

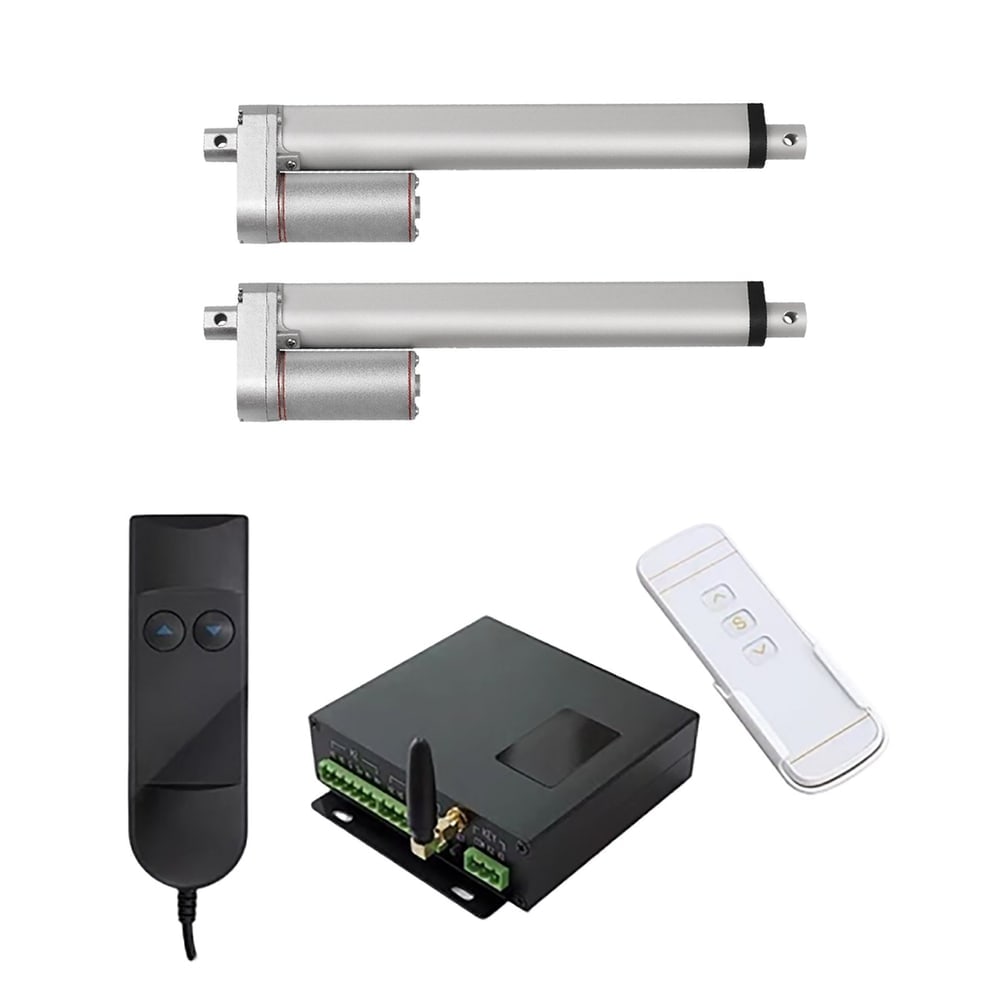

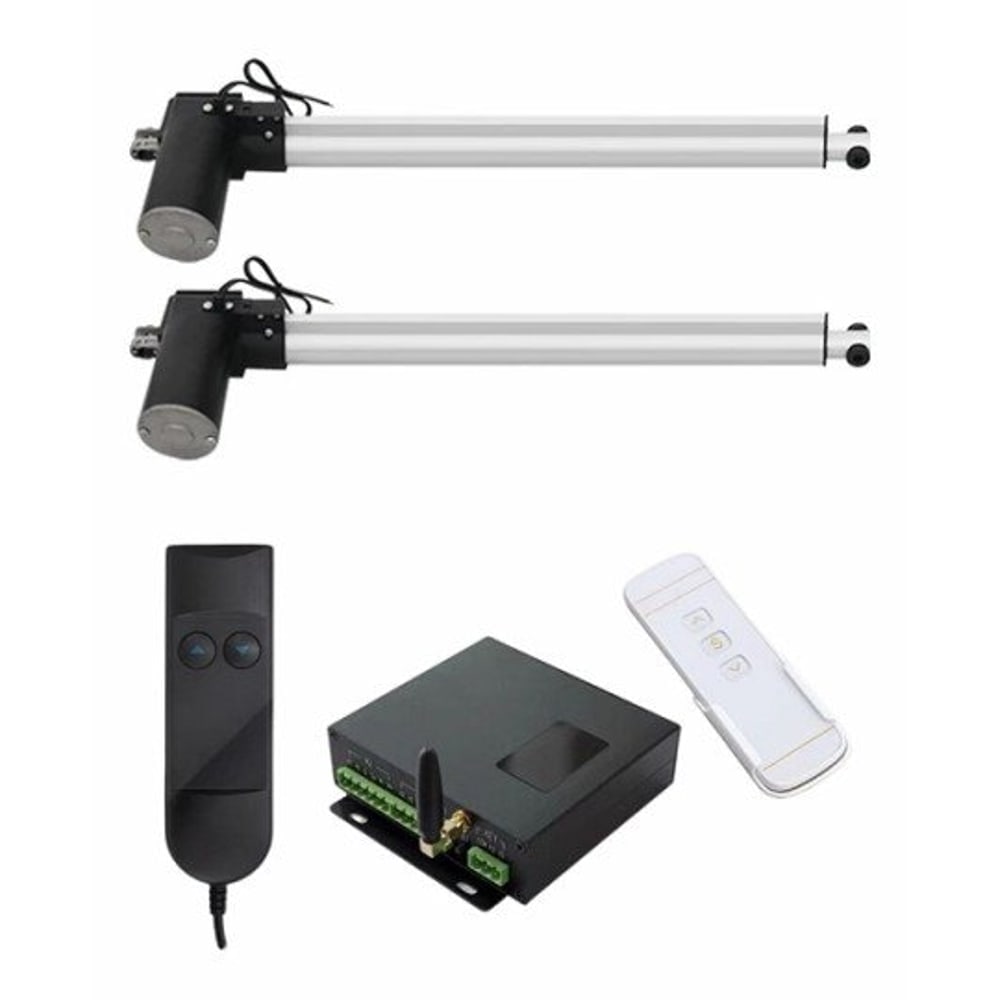

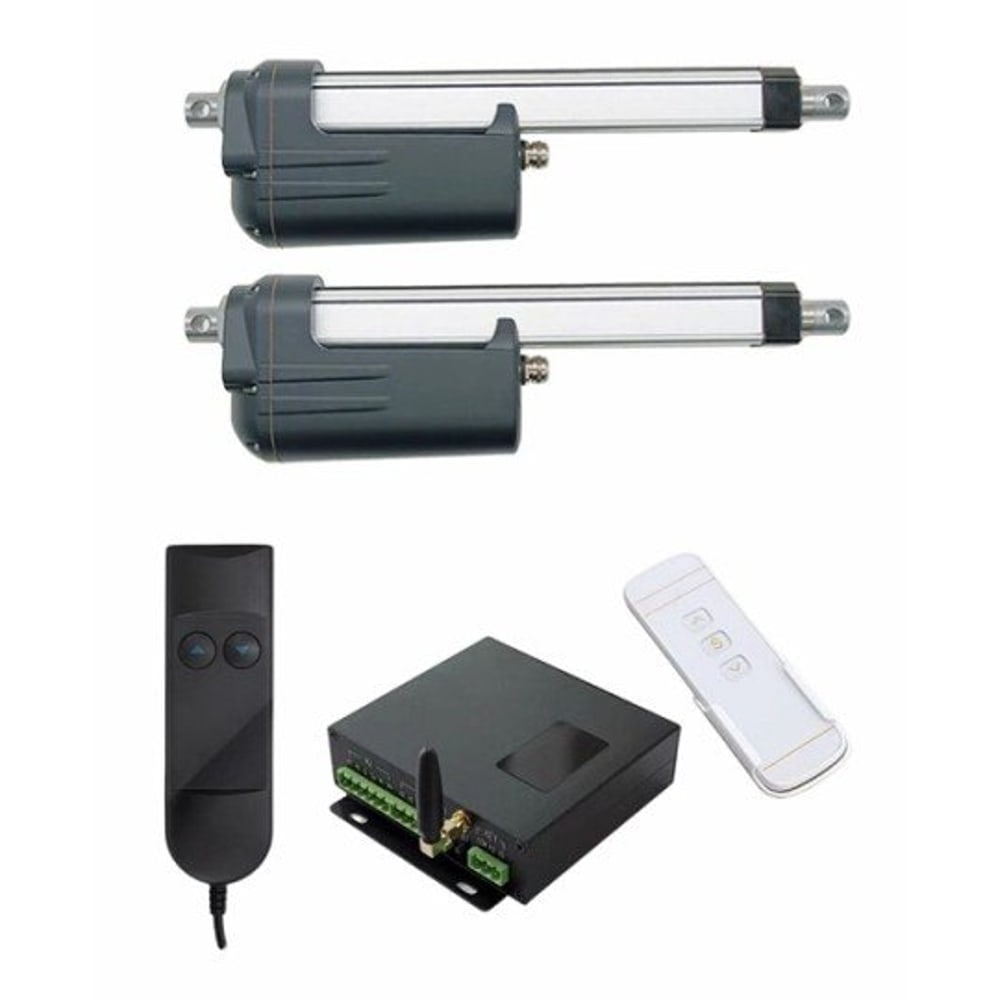

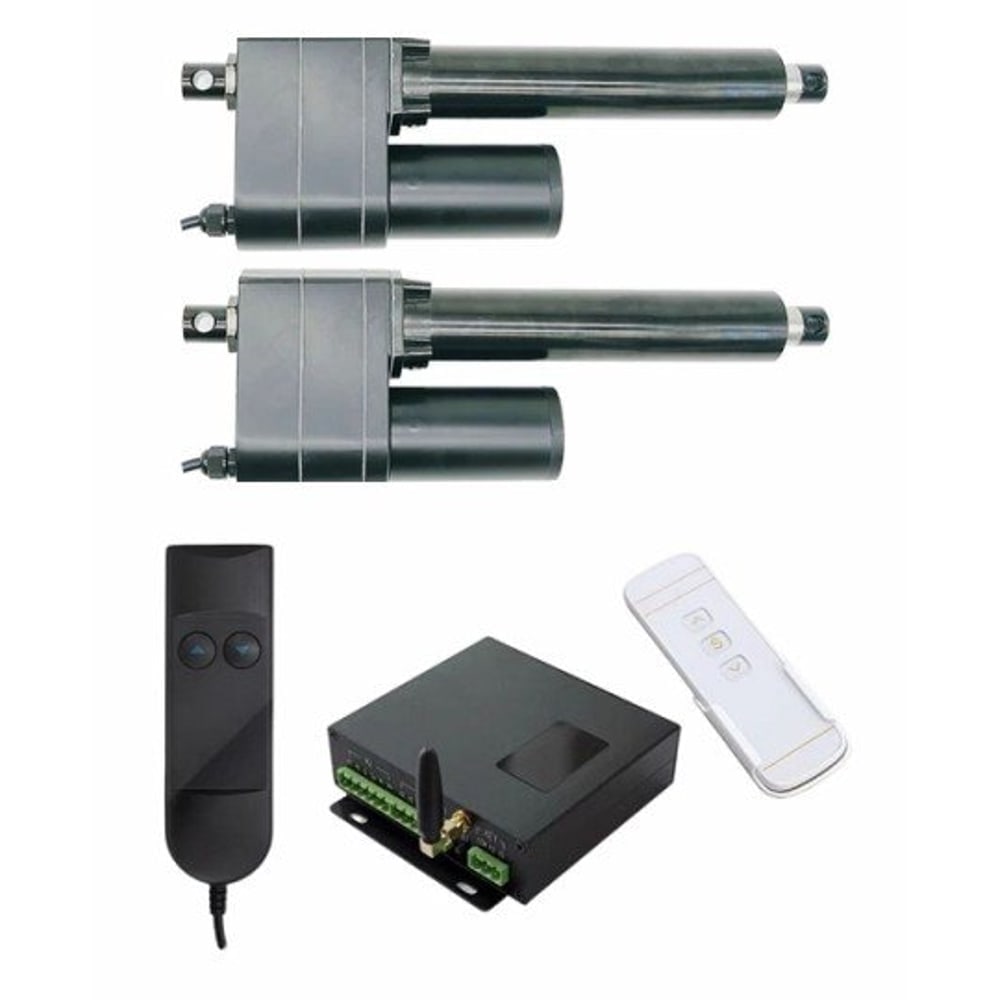

SLA-SCN02 One-Control-Two 동기 컨트롤러
전동 리니어 액추에이터 2대를 완전 동기 운전할 수 있습니다. 제어 핸들 유선 제어. 리모컨 무선 제어. 두 가지 fun...
Manufactured and supplied by Elerover — 컨트롤러 manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
주요 사양
- Color
- Black
- Input Voltage
- 12~48VDC
- Output voltage
- Corresponding to input
- Maximum output
- current 10A/per motor
- Housing material
- Aluminum alloy
- Ambient temperature
- -20°(~+65°C)
- Motor drop protection
- Yes
- Pointing/self-locking
- Switchable
제품 개요
기술 사양
| Item | SCN02 |
|---|---|
| Input Voltage | 12~48VDC |
| Output voltage | Corresponding to input |
| Maximum output | current 10A/per motor |
| Number of controlled DC brush motors | 2 |
| Synchronization accuracy | within 3 pulse deviation (<1mm) |
| Number of power failure data storage | 40 million times |
| Input power supply anti-reverse connection | Yes |
| Overcurrent and overload protection | Yes,default 8A, can be modified |
| Short circuit protection | Yes |
| Motor drop protection | Yes |
| Encoder abnormal protection | Yes |
| Signal anti-interference capability | Yes, support cable more than 10 meters |
| Housing material | Aluminum alloy |
| Color | Black |
| Ambient temperature | -20°(~+65°C) |
| communications protocol | RS485，ModBus-RTU |
| Pointing/self-locking | Switchable |
| Synchronous Operation | Controls two electric linear actuators to run completely synchronously. 🎮 Dual |
추가 세부 정보
Synchronous Control System for Two Linear Actuators
Introducing our Synchronous Control System for Two Linear Actuators, designed to provide precise and simultaneous operation of two electric linear actuators. This system is perfect for applications requiring synchronized movement, offering both wired and wireless control options for maximum flexibility.
|
Item
|
SCN02
|
||
|
Input Voltage
|
12~48VDC
|
||
|
Output voltage
|
Corresponding to input
|
||
|
Maximum output
|
current 10A/per motor
|
||
|
Number of controlled DC brush motors
|
2
|
||
|
Synchronization accuracy
|
within 3 pulse deviation (<1mm)
|
||
|
Number of power failure data storage
|
40 million times
|
||
|
Input power supply anti-reverse connection
|
Yes
|
||
|
Overcurrent and overload protection
|
Yes,default 8A, can be modified
|
||
|
Short circuit protection
|
Yes
|
||
|
Motor drop protection
|
Yes
|
||
|
Encoder abnormal protection
|
Yes
|
||
|
Signal anti-interference capability
|
Yes, support cable more than 10 meters
|
||
|
Housing material
|
Aluminum alloy
|
||
|
Color
|
Black
|
||
|
Ambient temperature
|
-20°(~+65°C)
|
||
|
communications protocol
|
RS485，ModBus-RTU
|
||
|
Pointing/self-locking
|
Switchable
|
||
Key Features
🔄 Synchronous Operation: Controls two electric linear actuators to run completely synchronously.
🎮 Dual Control Options:
Wired Control: Via an easy-to-use control handle.
Wireless Control: Via a convenient remote control.
🔘 Simple Functionality: Two function buttons for Up and Down movements.
🔄 Reset Button: Quickly reset the system for adjustments.
Connection Instructions
Power Connection:
Connect the positive pole of the DC power supply to terminal + of the controller.
Connect the negative pole of the DC power supply to terminal – of the controller.
Actuator Connection:
Connect the red and black power cables of the two linear actuators to the linear actuator terminals of the controller.
Connect the hall signal cables of the two linear actuators to the hall signal terminals of the controller.
Control Handle:
Plug the control handle into the controller.
Operation Instructions
Via Control Handle:
Extend Actuators:
Press the ▲ button to extend both actuators simultaneously. They will reach the maximum stroke and stop automatically.
Press the ▼ button at any time to stop both actuators.
Retract Actuators:
Press the ▼ button to retract both actuators simultaneously. They will fully retract and stop automatically.
Press the ▲ button at any time to stop both actuators.
Via Remote Control:
Extend Actuators:
Press the ▲ button on the remote to extend both actuators simultaneously. They will reach the maximum stroke and stop automatically.
Press the ▼ button at any time to stop both actuators.
Retract Actuators:
Press the ▼ button on the remote to retract both actuators simultaneously. They will fully retract and stop automatically.
Press the ▲ button at any time to stop both actuators.
Applications
Ideal for a variety of uses, including but not limited to:
🏥 Medical Devices
🏡 Home Automation Systems
🚪 Automotive Applications
🏢 Industrial Equipment
🖥️ Office Automation
🛠️ DIY Projects
Enhance your automation projects with our Synchronous Control System for Two Linear Actuators. Enjoy precise, simultaneous control with both wired and wireless options, ensuring flexibility and ease of use.
