The SLA26M is a Φ26mm waterproof tubular / in-line linear actuator built for motorized louvres, bio-climatic pergolas and outdoor shading. Up to 500N push/pull with IP67 / IP69K sealing keeps motion reliable in rain and wash-down. Optional Hall feedback supports synchronized multi-actuator façades and pergola bays.
방수 IP68 튜뷸러 리니어 액추에이터

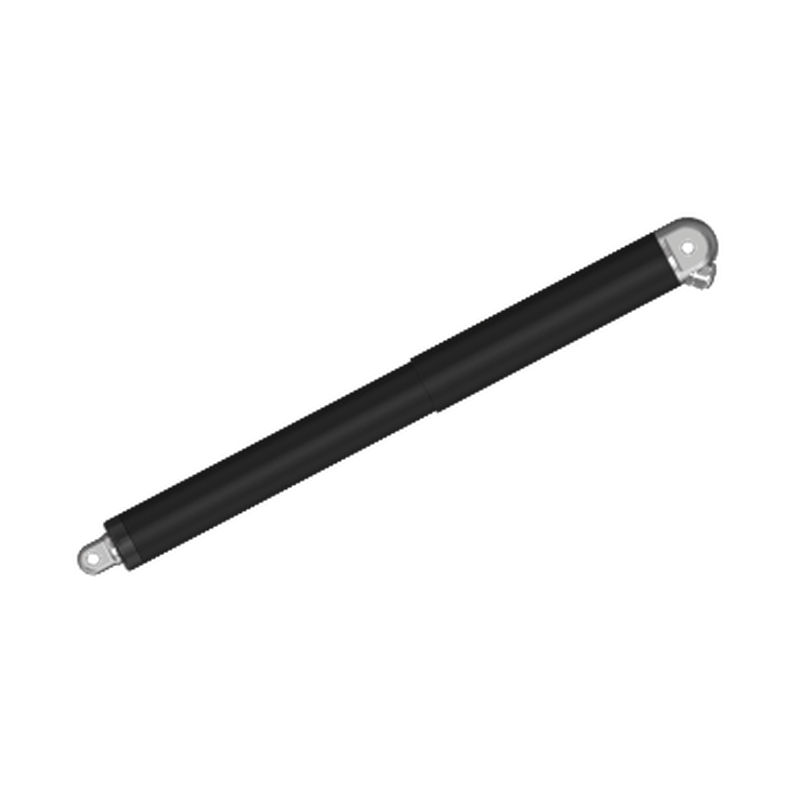

12V 24V SLA26M 500N IP68 waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas
SLA26M Φ26mm waterproof tubular / in-line linear actuator — up to 500N / 50 kg / 112 lbs, 12V / 24V DC, max 16mm/s, IP67 / IP69K. Ideal for motorized louvre windows and bio-climatic pergolas.
Manufactured and supplied by Elerover — 리니어 액추에이터 manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
주요 사양
- Model
- SLA26M
- Working Voltage
- 12V / 24V DC
- Stroke
- 20–200mm
- Protection Class
- IP67 / IP69K
- Installation Length
- Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K
- Max Speed
- 16mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- motorized louvre windows and bio-climatic pergolas
제품 개요
주요 특징
- Φ26mm in-line tubular waterproof linear actuator
- Max dynamic force up to 500N / 50 kg / 112 lbs
- Voltage: 12V / 24V DC
- Protection: IP66 / IP67 (IP69K optional)
- Stroke: 20–200mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: motorized louvre windows and bio-climatic pergolas
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
기술 사양
| Model | SLA26M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ26mm |
| Working Voltage | 12V / 24V DC |
| Max Dynamic Load | 500N / 50 kg / 112 lbs |
| Self-locking Force | Up to 500N |
| Stroke | 20–200mm |
| Installation Length | Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K |
| Protection Class | IP67 / IP69K |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | motorized louvre windows and bio-climatic pergolas |
| Max Speed | 16mm/s |
적용 분야
- Motorized louvre windows
- Bio-climatic pergolas
- Power wheelchair mechanisms
- Inspection robots
추가 세부 정보
Waterproof IP68 Tubular Linear Actuator
12V 24V SLA26M 500N IP68 waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas
Slim Φ26mm tubular actuator with up to 500N push/pull for space-limited outdoor motion. Rated up to 500N / 50 kg / 112 lbs, 12V / 24V DC, with in-line tubular packaging for visible outdoor installs such as motorized louvre windows and bio-climatic pergolas.
Model
SLA26M
SLA26M
Tube Diameter
Φ26mm
Φ26mm
Max Force
500N
500N
Voltage
12V / 24V DC
12V / 24V DC
Max Speed
16mm/s
16mm/s
Protection
IP67 / IP69K
IP67 / IP69K
External Dimensions
Dimensional drawing from the SLA26M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ26mm
- Typical install length: Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K
- Stroke range: 20–200mm
- Dimensional tolerance (where not marked): ISO2768-mk
Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 100N | 150N | 16mm/s | 11.5mm/s |
| 250N | 375N | 11mm/s | 7.5mm/s |
| 500N | 500N | 6mm/s | 4mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
