The SLA16M is Elerover’s ultra-compact Φ16mm waterproof tubular / in-line linear actuator for tight outdoor and OEM packages. Motor and drive sit in one slim cylinder for a clean visible install on inspection robots, navigation lights and compact mechanisms. Optional 316 stainless piston rod and sealed housing support wet and dusty duty.
방수 IP68 튜뷸러 리니어 액추에이터

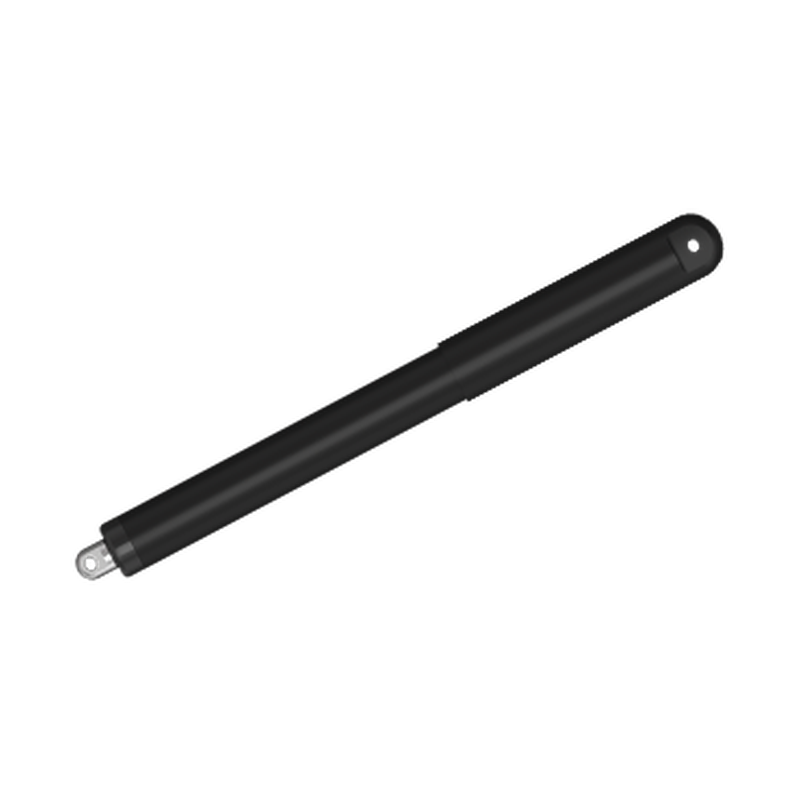

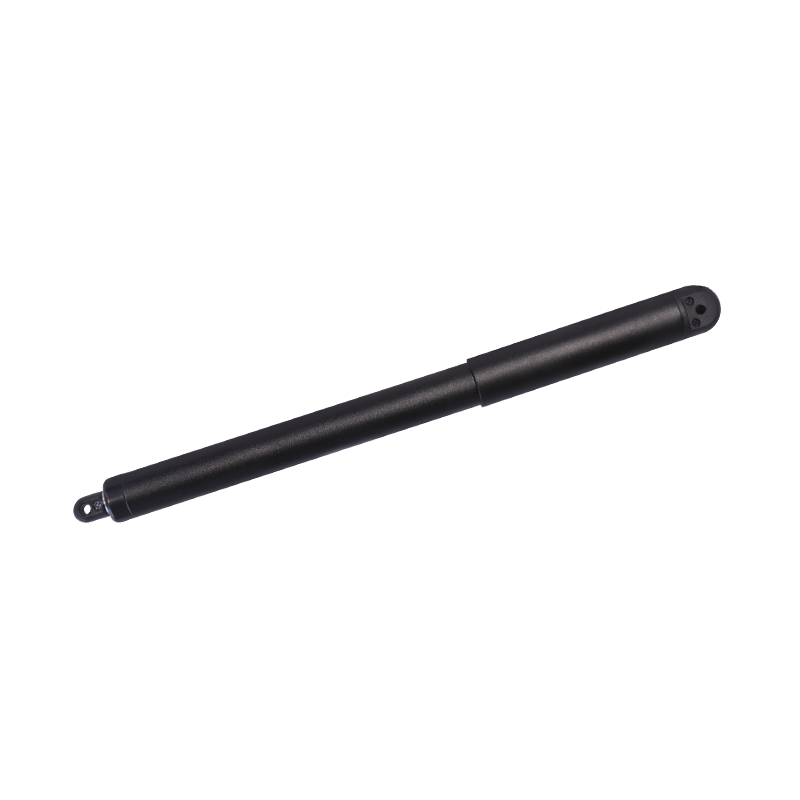

12V 24V SLA16M 50N IP68 waterproof tubular linear actuator for inspection robots and navigation lights
SLA16M Φ16mm waterproof tubular / in-line linear actuator — up to 50N / 5 kg / 11 lbs, 12V DC, max 15mm/s, IP65. Ideal for inspection robots and navigation lights.
Manufactured and supplied by Elerover — 리니어 액추에이터 manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
주요 사양
- Model
- SLA16M
- Working Voltage
- 12V DC
- Stroke
- 20–100mm
- Protection Class
- IP65
- Installation Length
- Approx. 100mm + stroke (limit switch); 120mm + stroke with Hall
- Max Speed
- 15mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- inspection robots and navigation lights
제품 개요
주요 특징
- Φ16mm in-line tubular waterproof linear actuator
- Max dynamic force up to 50N / 5 kg / 11 lbs
- Voltage: 12V DC
- Protection: IP65 (IP68-class tubular family)
- Stroke: 20–100mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: inspection robots and navigation lights
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
기술 사양
| Model | SLA16M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ16mm |
| Working Voltage | 12V DC |
| Max Dynamic Load | 50N / 5 kg / 11 lbs |
| Self-locking Force | Up to 75N |
| Stroke | 20–100mm |
| Installation Length | Approx. 100mm + stroke (limit switch); 120mm + stroke with Hall |
| Protection Class | IP65 |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | inspection robots and navigation lights |
| Max Speed | 15mm/s |
적용 분야
- Inspection robots
- Navigation lights
- Compact OEM mechanisms
- Laboratory automation
추가 세부 정보
Waterproof IP68 Tubular Linear Actuator
12V 24V SLA16M 50N IP68 waterproof tubular linear actuator for inspection robots and navigation lights
Ultra-compact Φ16mm in-line tubular actuator for extremely tight spaces. Rated up to 50N / 5 kg / 11 lbs, 12V DC, with in-line tubular packaging for visible outdoor installs such as inspection robots and navigation lights.
Model
SLA16M
SLA16M
Tube Diameter
Φ16mm
Φ16mm
Max Force
50N
50N
Voltage
12V DC
12V DC
Max Speed
15mm/s
15mm/s
Protection
IP65
IP65
External Dimensions
Dimensional drawing from the SLA16M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ16mm
- Typical install length: Approx. 100mm + stroke (limit switch); 120mm + stroke with Hall
- Stroke range: 20–100mm
- Dimensional tolerance (where not marked): ISO2768-mk

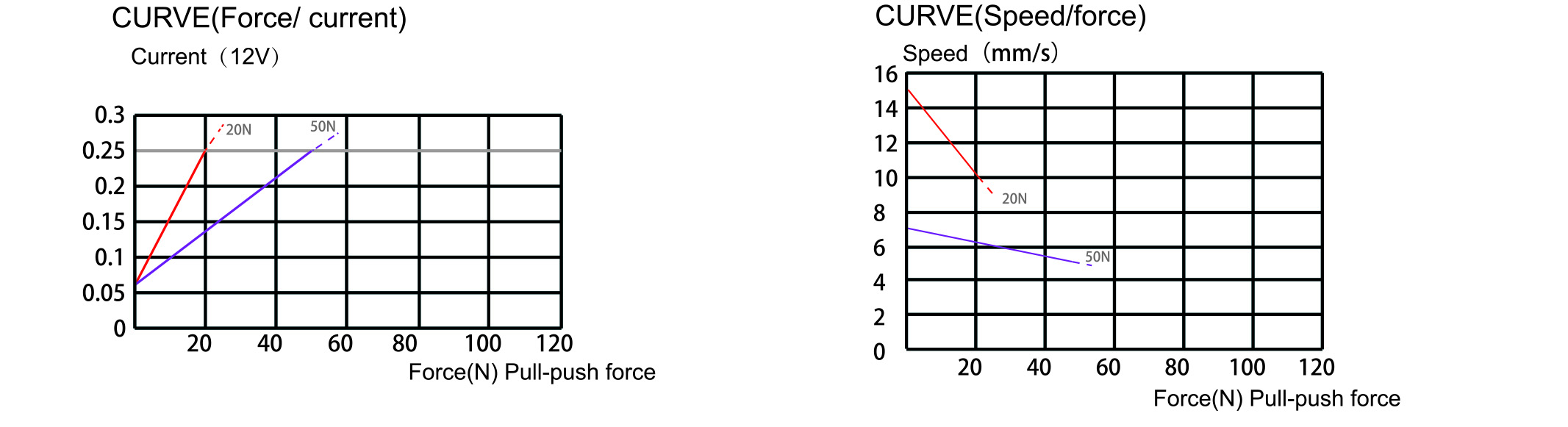

Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 20N | 30N | 15mm/s | 11mm/s |
| 50N | 75N | 7.5mm/s | 5.8mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
Manufacturer trust
Verified manufacturer identity for B2B sourcing — certificates and OEM capability without unverified capacity claims.
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
유사 제품

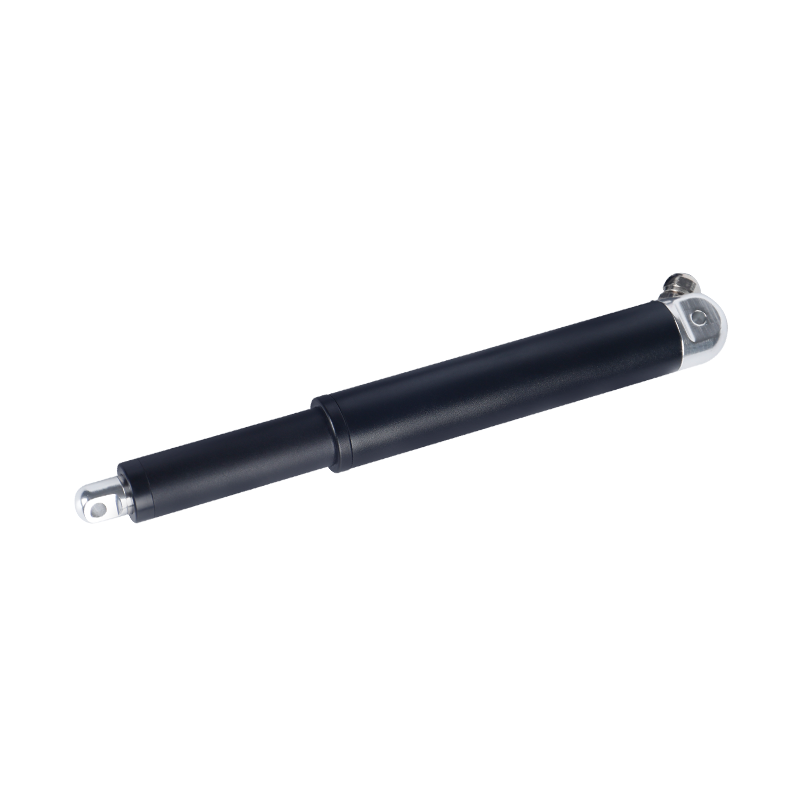

12V 24V SLA26M 500N IP68 waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas
SLA26M Φ26mm waterproof tubular / in-line linear actuator — up to 500N / 50 kg / 112 lbs, 12V / 24V DC, max 16mm/s, IP67 / IP69K. Ideal for motorized louvre windows and bio-climatic pergolas.
상세 보기 →

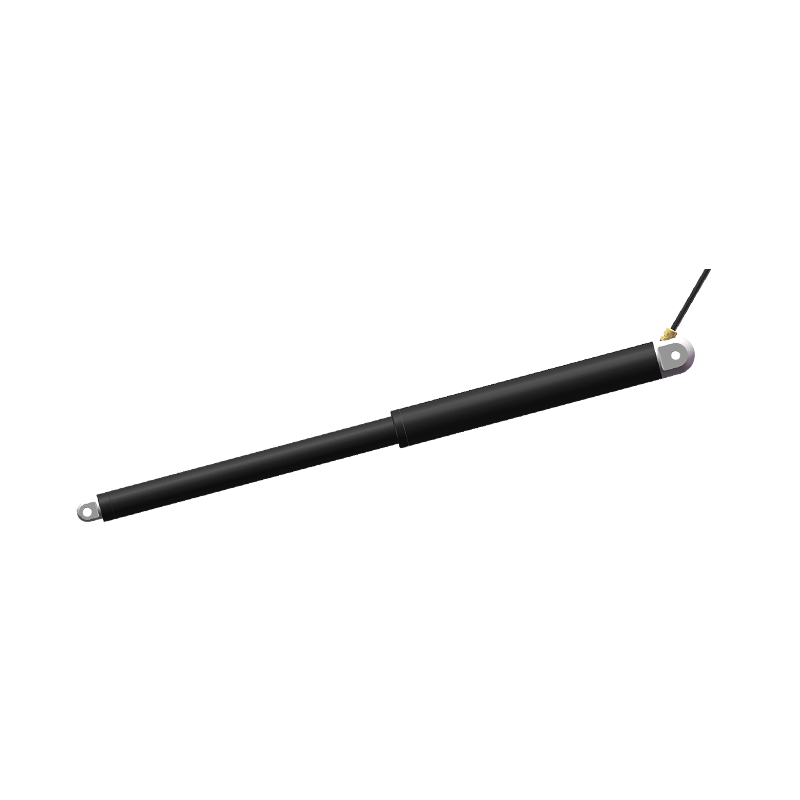

230V AC SLA45M 1500N IP68 waterproof tubular linear actuator for dynamic facades and sun shading systems
SLA45M Φ45mm waterproof tubular / in-line linear actuator — up to 1500N / 150 kg / 337 lbs, 230V AC, max 9mm/s, IP66 / IP67M. Ideal for dynamic facades and sun shading systems.
상세 보기 →
12V 24V SLA35M 2300N IP68 waterproof tubular linear actuator for motorized pergolas and yacht automation
SLA35M Φ35mm waterproof tubular / in-line linear actuator — up to 2300N / 230 kg / 517 lbs, 12V / 24V DC, max 25mm/s, IP66 / IP67M. Ideal for motorized pergolas and yacht automation.
상세 보기 →

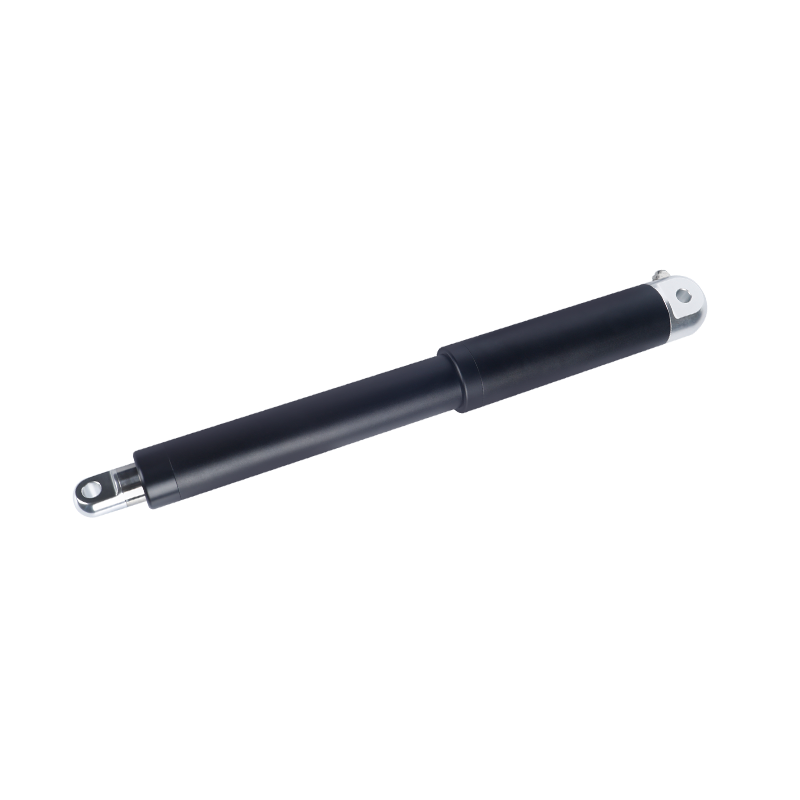

12V 24V SLA38M 2300N IP68 waterproof tubular linear actuator for sun shading systems and RV automation
SLA38M Φ38mm waterproof tubular / in-line linear actuator — up to 2300N / 230 kg / 517 lbs, 12V / 24V DC, max 25mm/s, IP66 / IP67M. Ideal for sun shading systems and RV automation.
상세 보기 →

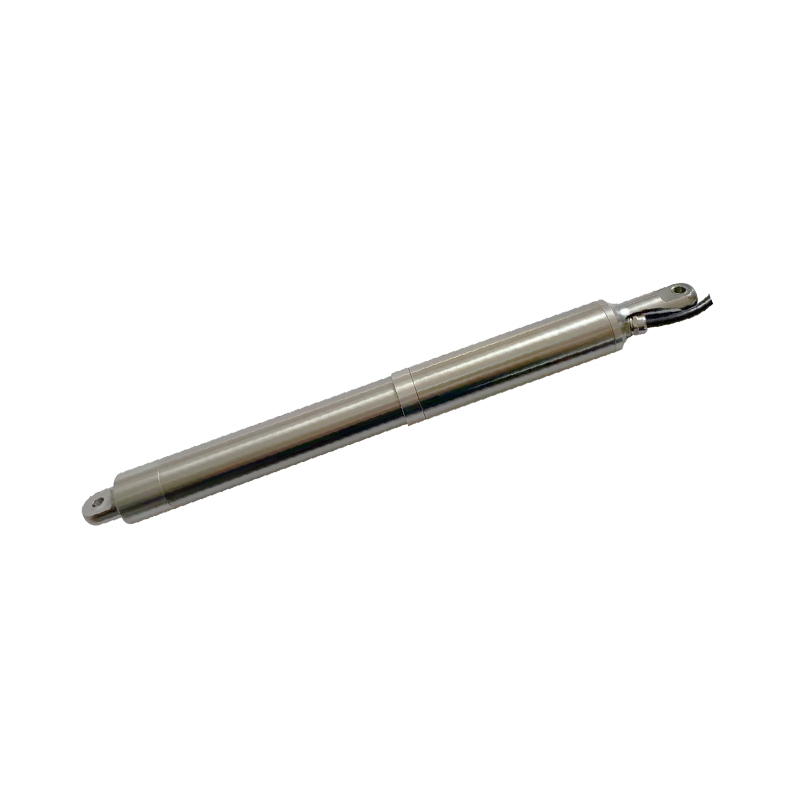

12V 24V SLA38MP 2500N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control
SLA38MP Φ38mm waterproof tubular / in-line linear actuator — up to 2500N / 250 kg / 562 lbs, 12V / 24V DC, max 13mm/s, IP67M / IP69K. Ideal for bioclimatic pergola louvre control.
상세 보기 →

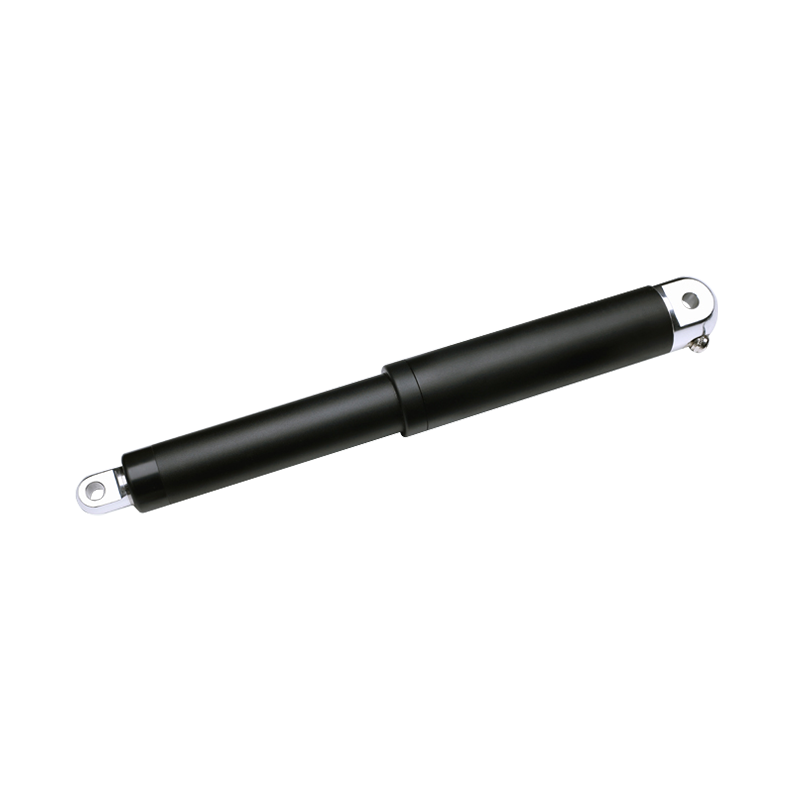

12V 24V SLA52M 6000N IP68 waterproof tubular linear actuator for skylights, smoke vents and yacht automation
