The SLA45M is a 230V AC Φ45mm waterproof tubular / in-line linear actuator for dynamic façades and sun shading. Constant-speed AC drive suits building power supplies; IP66 / IP67M sealing supports outdoor architectural duty. In-line tubular form keeps the actuator compact on curtain-wall and shading frames.
waterproof IP68 tubular linear actuator
230V AC SLA45M 1500N IP68 waterproof tubular linear actuator for dynamic facades and sun shading systems
SLA45M Φ45mm waterproof tubular / in-line linear actuator — up to 1500N / 150 kg / 337 lbs, 230V AC, max 9mm/s, IP66 / IP67M. Ideal for dynamic facades and sun shading systems.
Manufactured and supplied by Elerover — Linear Actuator manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Key Parameters
- Model
- SLA45M
- Working Voltage
- 230V AC
- Stroke
- 100–600mm
- Protection Class
- IP66 / IP67M
- Installation Length
- Approx. 410mm + stroke (minimum)
- Max Speed
- 9mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- dynamic facades and sun shading systems
Product Overview
Key Features
- Φ45mm in-line tubular waterproof linear actuator
- Max dynamic force up to 1500N / 150 kg / 337 lbs
- Voltage: 230V AC
- Protection: IP66 / IP67M
- Stroke: 100–600mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: dynamic facades and sun shading systems
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
Technical Specifications
| Model | SLA45M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ45mm |
| Working Voltage | 230V AC |
| Max Dynamic Load | 1500N / 150 kg / 337 lbs |
| Self-locking Force | Up to 1500N |
| Stroke | 100–600mm |
| Installation Length | Approx. 410mm + stroke (minimum) |
| Protection Class | IP66 / IP67M |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | dynamic facades and sun shading systems |
| Max Speed | 9mm/s |
Applications
- Dynamic facades
- Sun shading systems
- Window adjustment
- Ventilation systems
FAQ
What is the SLA45M?
SLA45M Φ45mm waterproof tubular / in-line linear actuator — up to 1500N / 150 kg / 337 lbs, 230V AC, max 9mm/s, IP66 / IP67M. Ideal for dynamic facades and sun shading systems.
Does Elerover manufacture the SLA45M?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA45M?
Key ratings from the product specifications include voltage 230V AC, load 1500N, stroke 100–600mm, protection IP66. See the Technical Specifications section on this page for the full table.
Which applications is the SLA45M used for?
Typical applications include Dynamic facades, Sun shading systems, Window adjustment, Ventilation systems.
How do I request a quote for the SLA45M?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Additional Details
Waterproof IP68 Tubular Linear Actuator
230V AC SLA45M 1500N IP68 waterproof tubular linear actuator for dynamic facades and sun shading systems
230VAC Φ45mm in-line tubular actuator for constant-speed facade, shading and ventilation projects. Rated up to 1500N / 150 kg / 337 lbs, 230V AC, with in-line tubular packaging for visible outdoor installs such as dynamic facades and sun shading systems.
Model
SLA45M
SLA45M
Tube Diameter
Φ45mm
Φ45mm
Max Force
1500N
1500N
Voltage
230V AC
230V AC
Max Speed
9mm/s
9mm/s
Protection
IP66 / IP67M
IP66 / IP67M

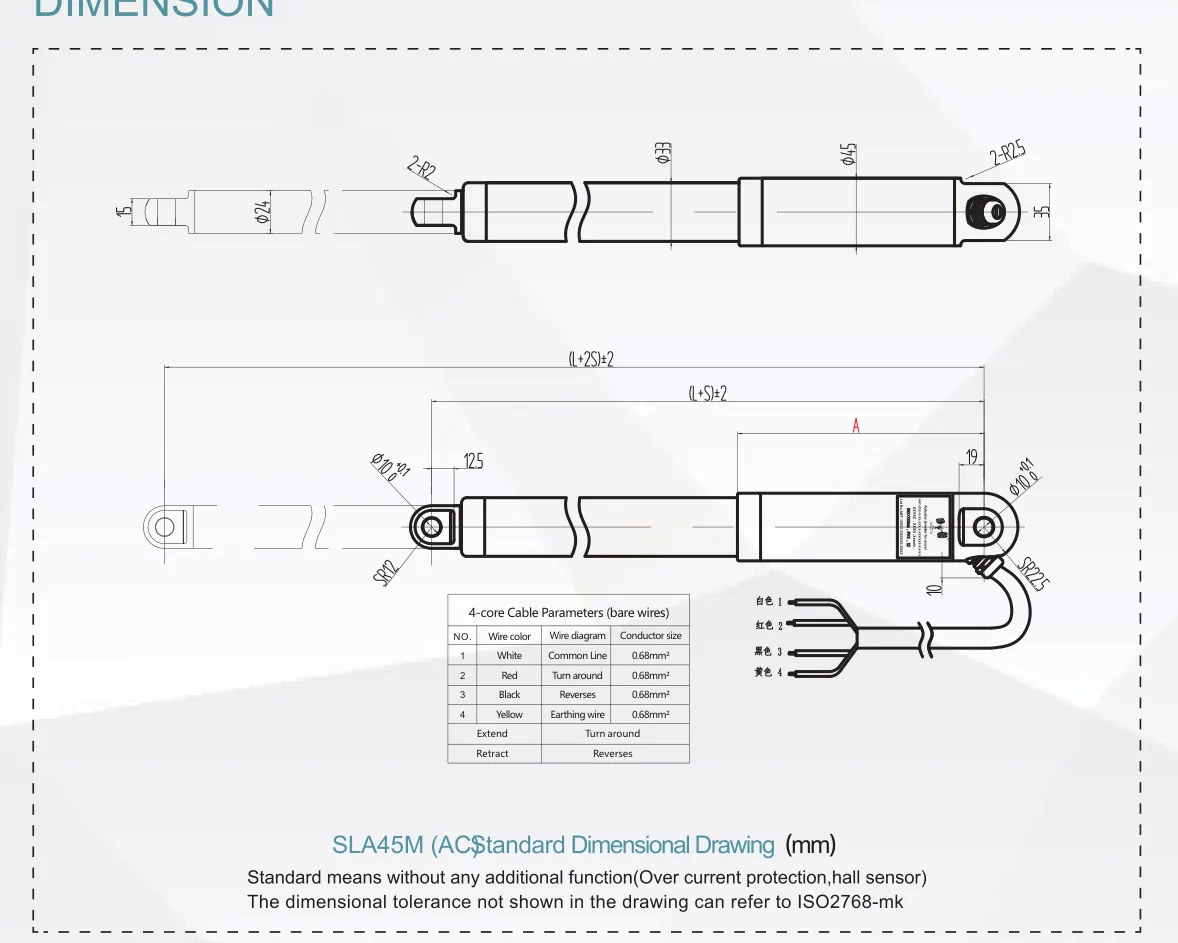

External Dimensions
Dimensional drawing from the SLA45M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ45mm
- Typical install length: Approx. 410mm + stroke (minimum)
- Stroke range: 100–600mm
- Dimensional tolerance (where not marked): ISO2768-mk
Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 400N | 400N | 9mm/s | 8.5mm/s |
| 650N | 650N | 9mm/s | 8mm/s |
| 800N | 800N | 9mm/s | 7.5mm/s |
| 1500N | 1500N | 4.5mm/s | 4mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
