The SLA26M is a Φ26mm waterproof tubular / in-line linear actuator built for motorized louvres, bio-climatic pergolas and outdoor shading. Up to 500N push/pull with IP67 / IP69K sealing keeps motion reliable in rain and wash-down. Optional Hall feedback supports synchronized multi-actuator façades and pergola bays.
waterproof IP68 tubular linear actuator
12V 24V SLA26M 500N IP68 waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas
SLA26M Φ26mm waterproof tubular / in-line linear actuator — up to 500N / 50 kg / 112 lbs, 12V / 24V DC, max 16mm/s, IP67 / IP69K. Ideal for motorized louvre windows and bio-climatic pergolas.
Manufactured and supplied by Elerover — Linear Actuator manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Key Parameters
- Model
- SLA26M
- Working Voltage
- 12V / 24V DC
- Stroke
- 20–200mm
- Protection Class
- IP67 / IP69K
- Installation Length
- Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K
- Max Speed
- 16mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- motorized louvre windows and bio-climatic pergolas
Product Overview
Key Features
- Φ26mm in-line tubular waterproof linear actuator
- Max dynamic force up to 500N / 50 kg / 112 lbs
- Voltage: 12V / 24V DC
- Protection: IP66 / IP67 (IP69K optional)
- Stroke: 20–200mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: motorized louvre windows and bio-climatic pergolas
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
Technical Specifications
| Model | SLA26M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ26mm |
| Working Voltage | 12V / 24V DC |
| Max Dynamic Load | 500N / 50 kg / 112 lbs |
| Self-locking Force | Up to 500N |
| Stroke | 20–200mm |
| Installation Length | Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K |
| Protection Class | IP67 / IP69K |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | motorized louvre windows and bio-climatic pergolas |
| Max Speed | 16mm/s |
Applications
- Motorized louvre windows
- Bio-climatic pergolas
- Power wheelchair mechanisms
- Inspection robots
FAQ
What is the SLA26M?
SLA26M Φ26mm waterproof tubular / in-line linear actuator — up to 500N / 50 kg / 112 lbs, 12V / 24V DC, max 16mm/s, IP67 / IP69K. Ideal for motorized louvre windows and bio-climatic pergolas.
Does Elerover manufacture the SLA26M?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA26M?
Key ratings from the product specifications include voltage 12V / 24V DC, load 500N, stroke 20–200mm, protection IP67. See the Technical Specifications section on this page for the full table.
Which applications is the SLA26M used for?
Typical applications include Motorized louvre windows, Bio-climatic pergolas, Power wheelchair mechanisms, Inspection robots.
How do I request a quote for the SLA26M?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Additional Details
Waterproof IP68 Tubular Linear Actuator
12V 24V SLA26M 500N IP68 waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas
Slim Φ26mm tubular actuator with up to 500N push/pull for space-limited outdoor motion. Rated up to 500N / 50 kg / 112 lbs, 12V / 24V DC, with in-line tubular packaging for visible outdoor installs such as motorized louvre windows and bio-climatic pergolas.
Model
SLA26M
SLA26M
Tube Diameter
Φ26mm
Φ26mm
Max Force
500N
500N
Voltage
12V / 24V DC
12V / 24V DC
Max Speed
16mm/s
16mm/s
Protection
IP67 / IP69K
IP67 / IP69K

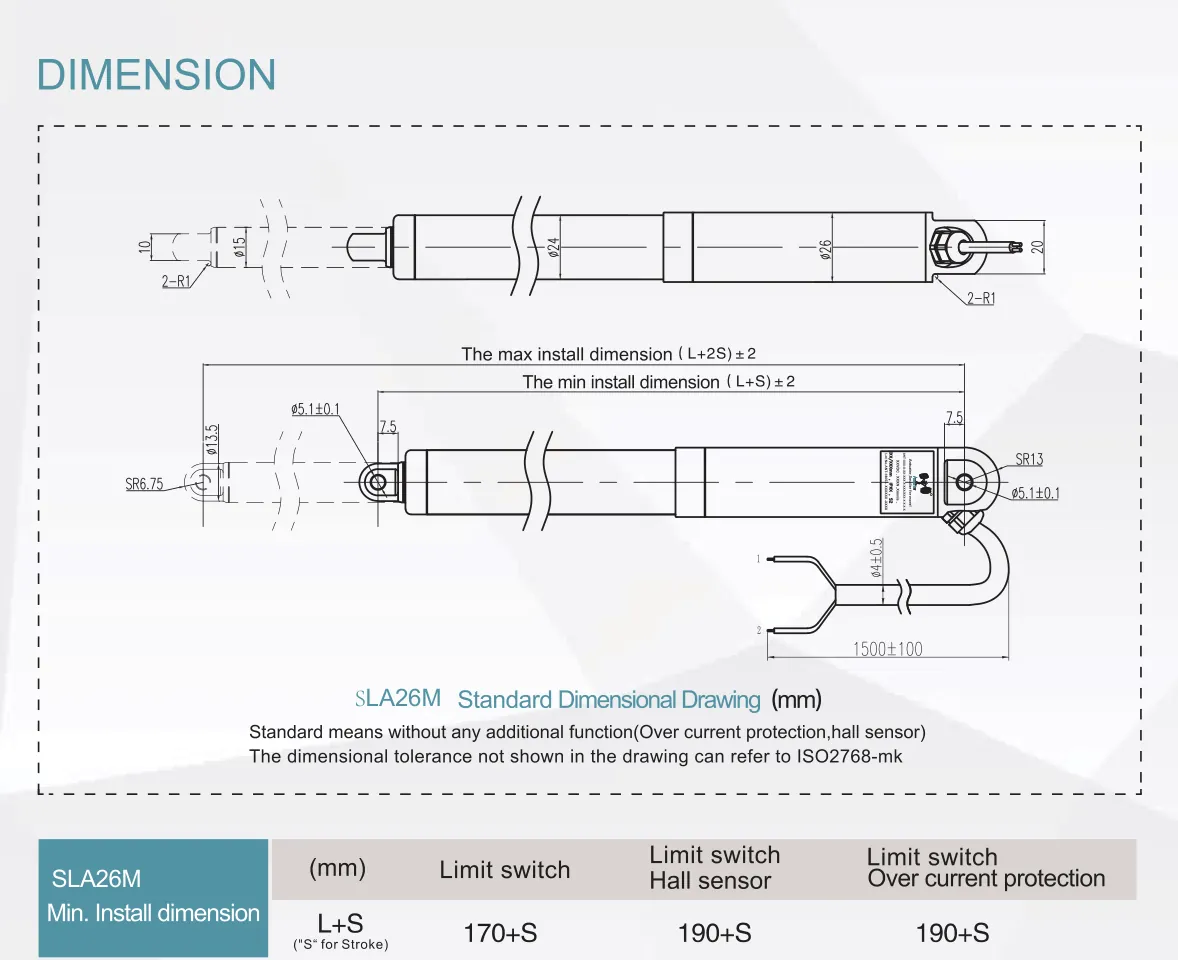

External Dimensions
Dimensional drawing from the SLA26M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ26mm
- Typical install length: Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K
- Stroke range: 20–200mm
- Dimensional tolerance (where not marked): ISO2768-mk
Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 100N | 150N | 16mm/s | 11.5mm/s |
| 250N | 375N | 11mm/s | 7.5mm/s |
| 500N | 500N | 6mm/s | 4mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
