The SLA38MP is a pergola-focused Φ38mm waterproof tubular / in-line linear actuator for bioclimatic louvre control. Rated up to 2500N with IP67M / IP69K protection and ~13mm/s max speed for smooth louvre motion. Designed for visible outdoor installs where weather sealing and long outdoor duty matter.
waterproof IP68 tubular linear actuator
12V 24V SLA38MP 2500N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control
SLA38MP Φ38mm waterproof tubular / in-line linear actuator — up to 2500N / 250 kg / 562 lbs, 12V / 24V DC, max 13mm/s, IP67M / IP69K. Ideal for bioclimatic pergola louvre control.
Manufactured and supplied by Elerover — Linear Actuator manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Key Parameters
- Model
- SLA38MP
- Working Voltage
- 12V / 24V DC
- Stroke
- 20–400mm
- Protection Class
- IP67M / IP69K
- Installation Length
- Approx. 300mm + stroke (center-to-center)
- Max Speed
- 13mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- bioclimatic pergola louvre control
Product Overview
Key Features
- Φ38mm in-line tubular waterproof linear actuator
- Max dynamic force up to 2500N / 250 kg / 562 lbs
- Voltage: 12V / 24V DC
- Protection: IP67M / IP69K
- Stroke: Custom (pergola-optimized)
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: bioclimatic pergola louvre control
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
Technical Specifications
| Model | SLA38MP |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ38mm |
| Working Voltage | 12V / 24V DC |
| Max Dynamic Load | 2500N / 250 kg / 562 lbs |
| Self-locking Force | Up to 2500N |
| Stroke | 20–400mm |
| Installation Length | Approx. 300mm + stroke (center-to-center) |
| Protection Class | IP67M / IP69K |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | bioclimatic pergola louvre control |
| Max Speed | 13mm/s |
Applications
- Bioclimatic pergola louvres
- Outdoor architectural shading
- Harsh-weather facade motion
- Premium outdoor OEM systems
FAQ
What is the SLA38MP?
SLA38MP Φ38mm waterproof tubular / in-line linear actuator — up to 2500N / 250 kg / 562 lbs, 12V / 24V DC, max 13mm/s, IP67M / IP69K. Ideal for bioclimatic pergola louvre control.
Does Elerover manufacture the SLA38MP?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA38MP?
Key ratings from the product specifications include voltage 12V / 24V DC, load 2500N, stroke 20–400mm, protection IP67M. See the Technical Specifications section on this page for the full table.
Which applications is the SLA38MP used for?
Typical applications include Bioclimatic pergola louvres, Outdoor architectural shading, Harsh-weather facade motion, Premium outdoor OEM systems.
How do I request a quote for the SLA38MP?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Additional Details
Waterproof IP68 Tubular Linear Actuator
12V 24V SLA38MP 2500N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control
Pergola-dedicated Φ38mm tubular actuator with IP67M/IP69K protection, up to 2500N and ~13mm/s max speed for bioclimatic louvre control. Rated up to 2500N / 250 kg / 562 lbs, 12V / 24V DC, with in-line tubular packaging for visible outdoor installs such as bioclimatic pergola louvre control.
Model
SLA38MP
SLA38MP
Tube Diameter
Φ38mm
Φ38mm
Max Force
2500N
2500N
Voltage
12V / 24V DC
12V / 24V DC
Max Speed
13mm/s
13mm/s
Protection
IP67M / IP69K
IP67M / IP69K

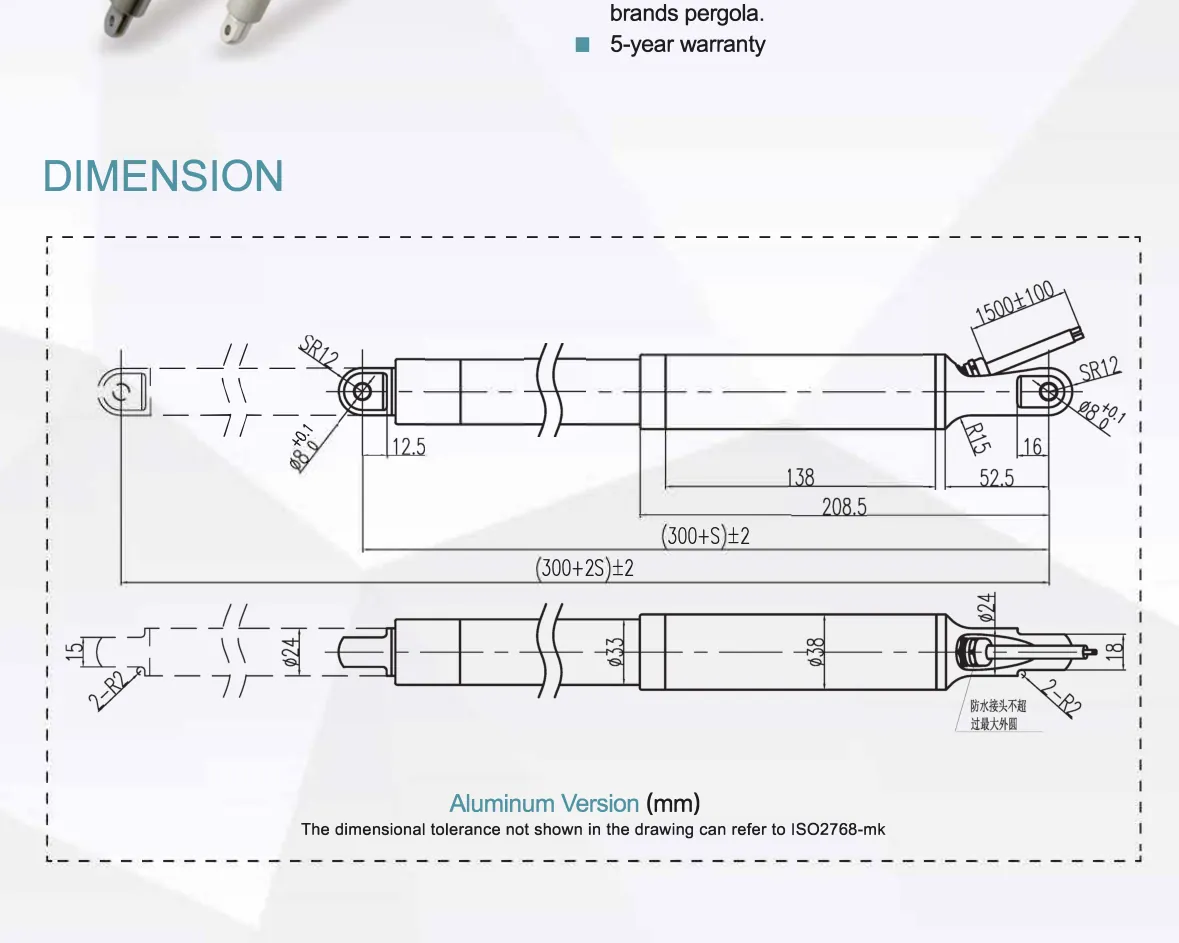

External Dimensions
Dimensional drawing from the SLA38MP tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ38mm
- Typical install length: Approx. 300mm + stroke (center-to-center)
- Stroke range: 20–400mm
- Dimensional tolerance (where not marked): ISO2768-mk
Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 2500N | 2500N | 13mm/s | ~13mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
