The SLA38M is a Φ38mm waterproof tubular / in-line linear actuator for sun shading, RV automation and outdoor motion. Up to 2300N, IP66 / IP67M sealing and integrated limit switches deliver controlled stroke outdoors. Optional Hall sensors enable multi-unit synchronization on larger shading or vehicle projects.
waterproof IP68 tubular linear actuator
12V 24V SLA38M 2300N IP68 waterproof tubular linear actuator for sun shading systems and RV automation
SLA38M Φ38mm waterproof tubular / in-line linear actuator — up to 2300N / 230 kg / 517 lbs, 12V / 24V DC, max 25mm/s, IP66 / IP67M. Ideal for sun shading systems and RV automation.
Manufactured and supplied by Elerover — Linear Actuator manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Key Parameters
- Model
- SLA38M
- Working Voltage
- 12V / 24V DC
- Stroke
- 20–500mm
- Protection Class
- IP66 / IP67M
- Installation Length
- L + stroke (retracted); +20mm for IP67M/IP69K
- Max Speed
- 25mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- sun shading systems and RV automation
Product Overview
Key Features
- Φ38mm in-line tubular waterproof linear actuator
- Max dynamic force up to 2300N / 230 kg / 517 lbs
- Voltage: 12V / 24V DC
- Protection: IP66 / IP67M
- Stroke: 20–500mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: sun shading systems and RV automation
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
Technical Specifications
| Model | SLA38M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ38mm |
| Working Voltage | 12V / 24V DC |
| Max Dynamic Load | 2300N / 230 kg / 517 lbs |
| Self-locking Force | Up to 3450N |
| Stroke | 20–500mm |
| Installation Length | L + stroke (retracted); +20mm for IP67M/IP69K |
| Protection Class | IP66 / IP67M |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | sun shading systems and RV automation |
| Max Speed | 25mm/s |
Applications
- Sun shading systems
- RV and camper mechanisms
- Rehabilitation equipment
- Industrial automation
FAQ
What is the SLA38M?
SLA38M Φ38mm waterproof tubular / in-line linear actuator — up to 2300N / 230 kg / 517 lbs, 12V / 24V DC, max 25mm/s, IP66 / IP67M. Ideal for sun shading systems and RV automation.
Does Elerover manufacture the SLA38M?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA38M?
Key ratings from the product specifications include voltage 12V / 24V DC, load 2300N, stroke 20–500mm, protection IP66. See the Technical Specifications section on this page for the full table.
Which applications is the SLA38M used for?
Typical applications include Sun shading systems, RV and camper mechanisms, Rehabilitation equipment, Industrial automation.
How do I request a quote for the SLA38M?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Additional Details
Waterproof IP68 Tubular Linear Actuator
12V 24V SLA38M 2300N IP68 waterproof tubular linear actuator for sun shading systems and RV automation
Φ38mm slim in-line actuator with integrated limit switches, optional Hall feedback and multi-actuator sync. Rated up to 2300N / 230 kg / 517 lbs, 12V / 24V DC, with in-line tubular packaging for visible outdoor installs such as sun shading systems and RV automation.
Model
SLA38M
SLA38M
Tube Diameter
Φ38mm
Φ38mm
Max Force
2300N
2300N
Voltage
12V / 24V DC
12V / 24V DC
Max Speed
25mm/s
25mm/s
Protection
IP66 / IP67M
IP66 / IP67M

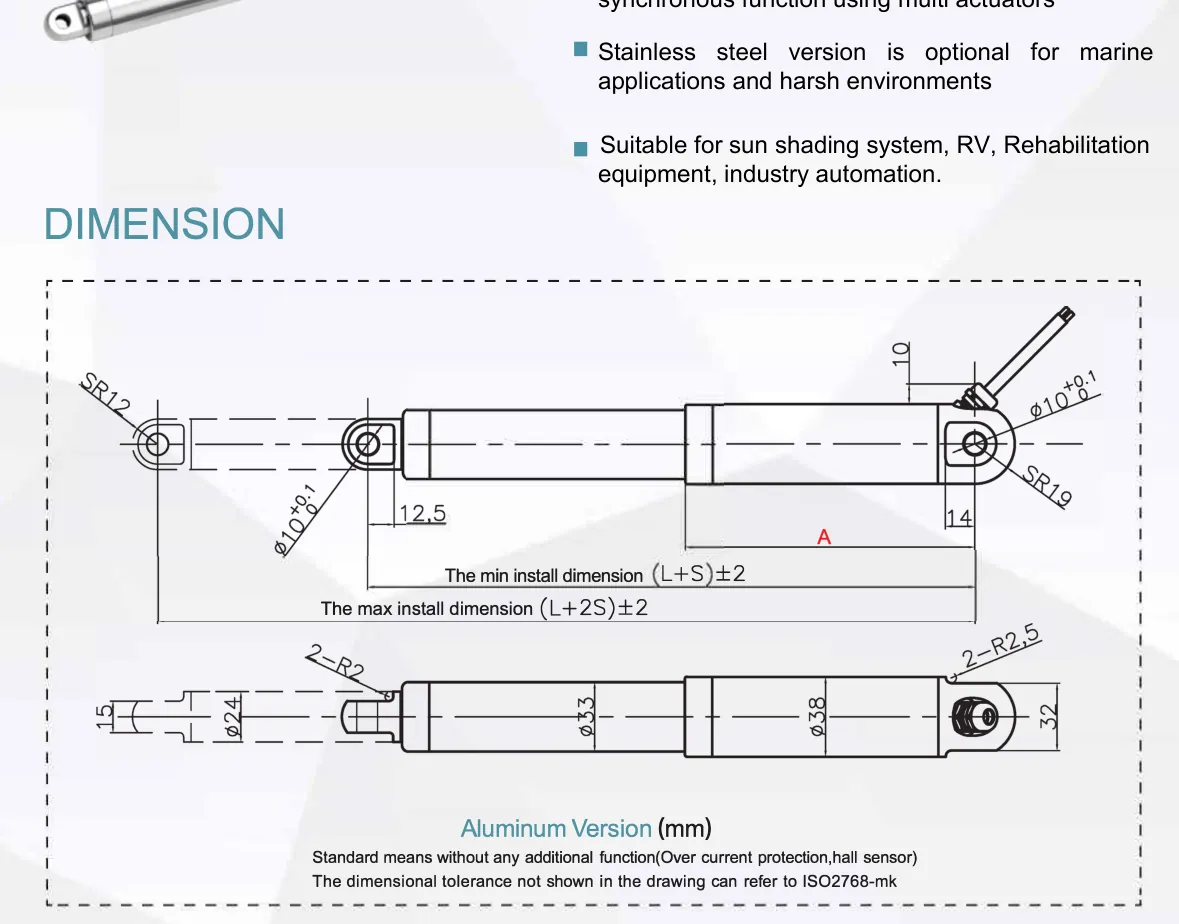

External Dimensions
Dimensional drawing from the SLA38M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ38mm
- Typical install length: L + stroke (retracted); +20mm for IP67M/IP69K
- Stroke range: 20–500mm
- Dimensional tolerance (where not marked): ISO2768-mk
Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 100N | 150N | 35mm/s | 30mm/s |
| 300N | 600N | 25mm/s | 17mm/s |
| 600N | 1600N | 12mm/s | 9mm/s |
| 1200N | 1800N | 6.8mm/s | 5mm/s |
| 1800N | 3600N | 4.5mm/s | 3mm/s |
| 2300N | 3450N | 3.5mm/s | 2.5mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
