The SLA16M is Elerover’s ultra-compact Φ16mm waterproof tubular / in-line linear actuator for tight outdoor and OEM packages. Motor and drive sit in one slim cylinder for a clean visible install on inspection robots, navigation lights and compact mechanisms. Optional 316 stainless piston rod and sealed housing support wet and dusty duty.
waterproof IP68 tubular linear actuator
12V 24V SLA16M 50N IP68 waterproof tubular linear actuator for inspection robots and navigation lights
SLA16M Φ16mm waterproof tubular / in-line linear actuator — up to 50N / 5 kg / 11 lbs, 12V DC, max 15mm/s, IP65. Ideal for inspection robots and navigation lights.
Manufactured and supplied by Elerover — Linear Actuator manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Key Parameters
- Model
- SLA16M
- Working Voltage
- 12V DC
- Stroke
- 20–100mm
- Protection Class
- IP65
- Installation Length
- Approx. 100mm + stroke (limit switch); 120mm + stroke with Hall
- Max Speed
- 15mm/s
- Duty Cycle
- S2 ≈ 2 min / 18 min
- Primary Application
- inspection robots and navigation lights
Product Overview
Key Features
- Φ16mm in-line tubular waterproof linear actuator
- Max dynamic force up to 50N / 5 kg / 11 lbs
- Voltage: 12V DC
- Protection: IP65 (IP68-class tubular family)
- Stroke: 20–100mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: inspection robots and navigation lights
- Sealed tubular housing for outdoor rain, dust and wash-down duty
- Optional Hall feedback for multi-actuator synchronization
- 316 stainless steel piston rod options for corrosion resistance
Technical Specifications
| Model | SLA16M |
|---|---|
| Design | In-line / tubular |
| Diameter | Φ16mm |
| Working Voltage | 12V DC |
| Max Dynamic Load | 50N / 5 kg / 11 lbs |
| Self-locking Force | Up to 75N |
| Stroke | 20–100mm |
| Installation Length | Approx. 100mm + stroke (limit switch); 120mm + stroke with Hall |
| Protection Class | IP65 |
| Duty Cycle | S2 ≈ 2 min / 18 min |
| Primary Application | inspection robots and navigation lights |
| Max Speed | 15mm/s |
Applications
- Inspection robots
- Navigation lights
- Compact OEM mechanisms
- Laboratory automation
FAQ
What is the SLA16M?
SLA16M Φ16mm waterproof tubular / in-line linear actuator — up to 50N / 5 kg / 11 lbs, 12V DC, max 15mm/s, IP65. Ideal for inspection robots and navigation lights.
Does Elerover manufacture the SLA16M?
Yes. Elerover is a linear actuator manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SLA16M?
Key ratings from the product specifications include voltage 12V DC, load 50N, stroke 20–100mm, protection IP65. See the Technical Specifications section on this page for the full table.
Which applications is the SLA16M used for?
Typical applications include Inspection robots, Navigation lights, Compact OEM mechanisms, Laboratory automation.
How do I request a quote for the SLA16M?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Additional Details
Waterproof IP68 Tubular Linear Actuator
12V 24V SLA16M 50N IP68 waterproof tubular linear actuator for inspection robots and navigation lights
Ultra-compact Φ16mm in-line tubular actuator for extremely tight spaces. Rated up to 50N / 5 kg / 11 lbs, 12V DC, with in-line tubular packaging for visible outdoor installs such as inspection robots and navigation lights.
Model
SLA16M
SLA16M
Tube Diameter
Φ16mm
Φ16mm
Max Force
50N
50N
Voltage
12V DC
12V DC
Max Speed
15mm/s
15mm/s
Protection
IP65
IP65

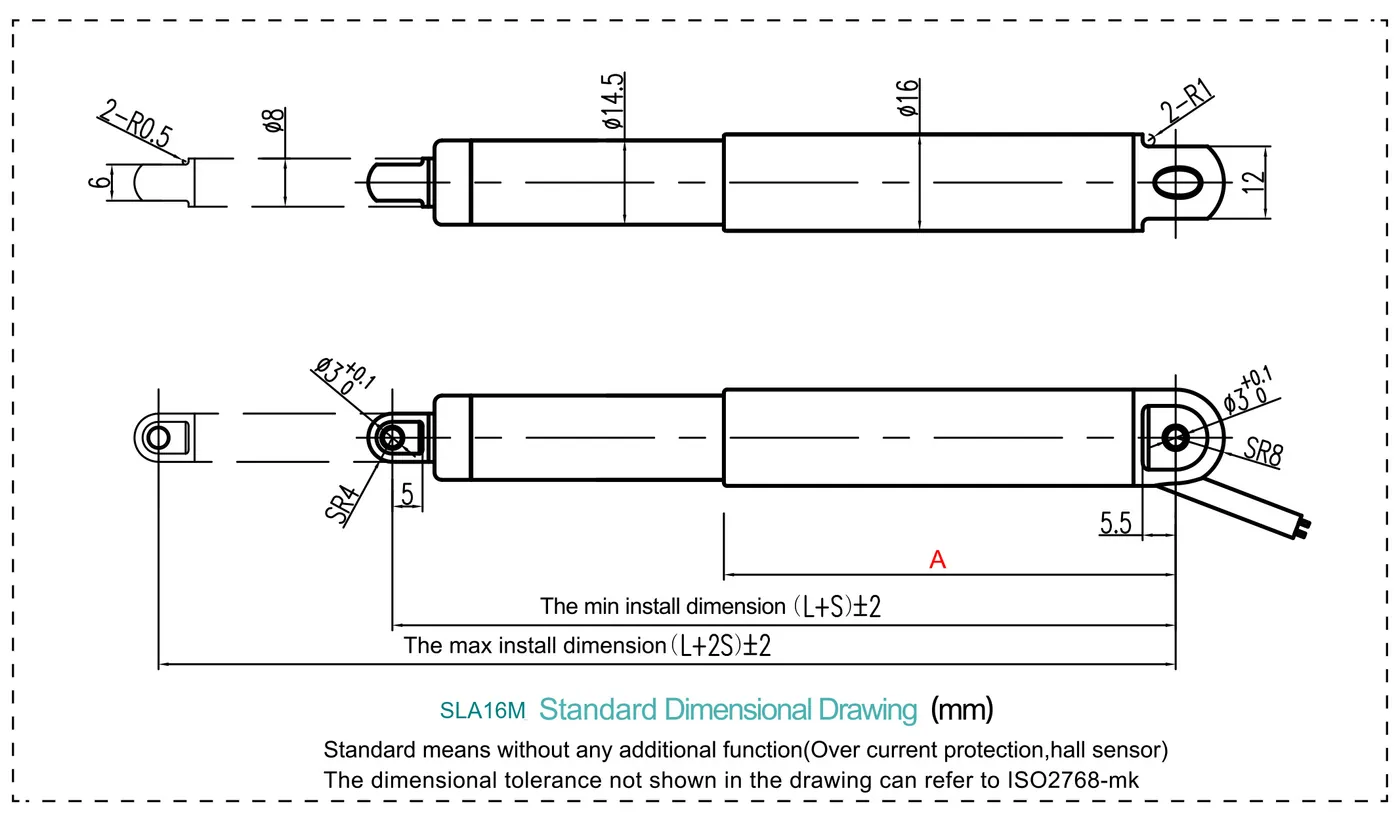

External Dimensions
Dimensional drawing from the SLA16M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).
- Outer tube diameter: Φ16mm
- Typical install length: Approx. 100mm + stroke (limit switch); 120mm + stroke with Hall
- Stroke range: 20–100mm
- Dimensional tolerance (where not marked): ISO2768-mk

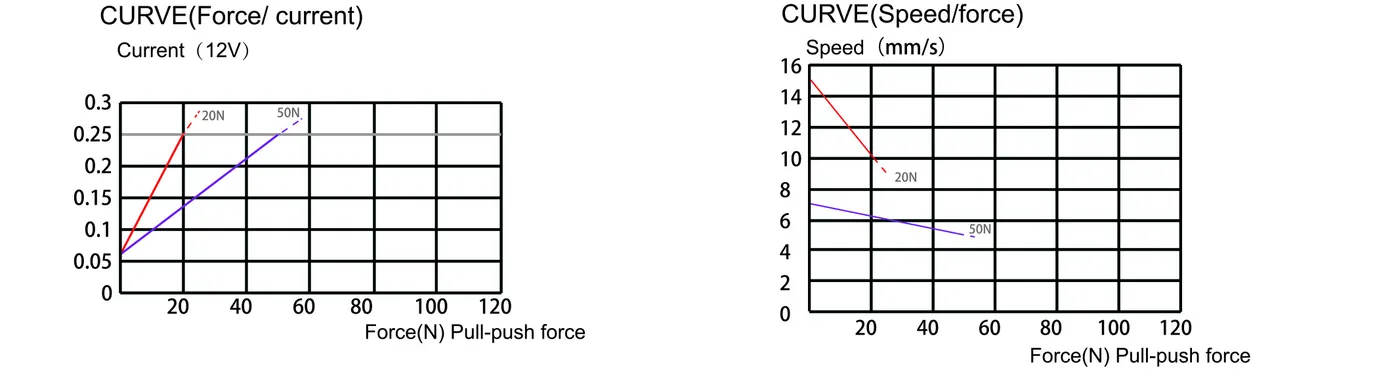

Speed vs Load
Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.
| Max Dynamic Force | Self-locking | No-load Speed | Full-load Speed |
|---|---|---|---|
| 20N | 30N | 15mm/s | 11mm/s |
| 50N | 75N | 7.5mm/s | 5.8mm/s |
Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
