Accionamiento de giro

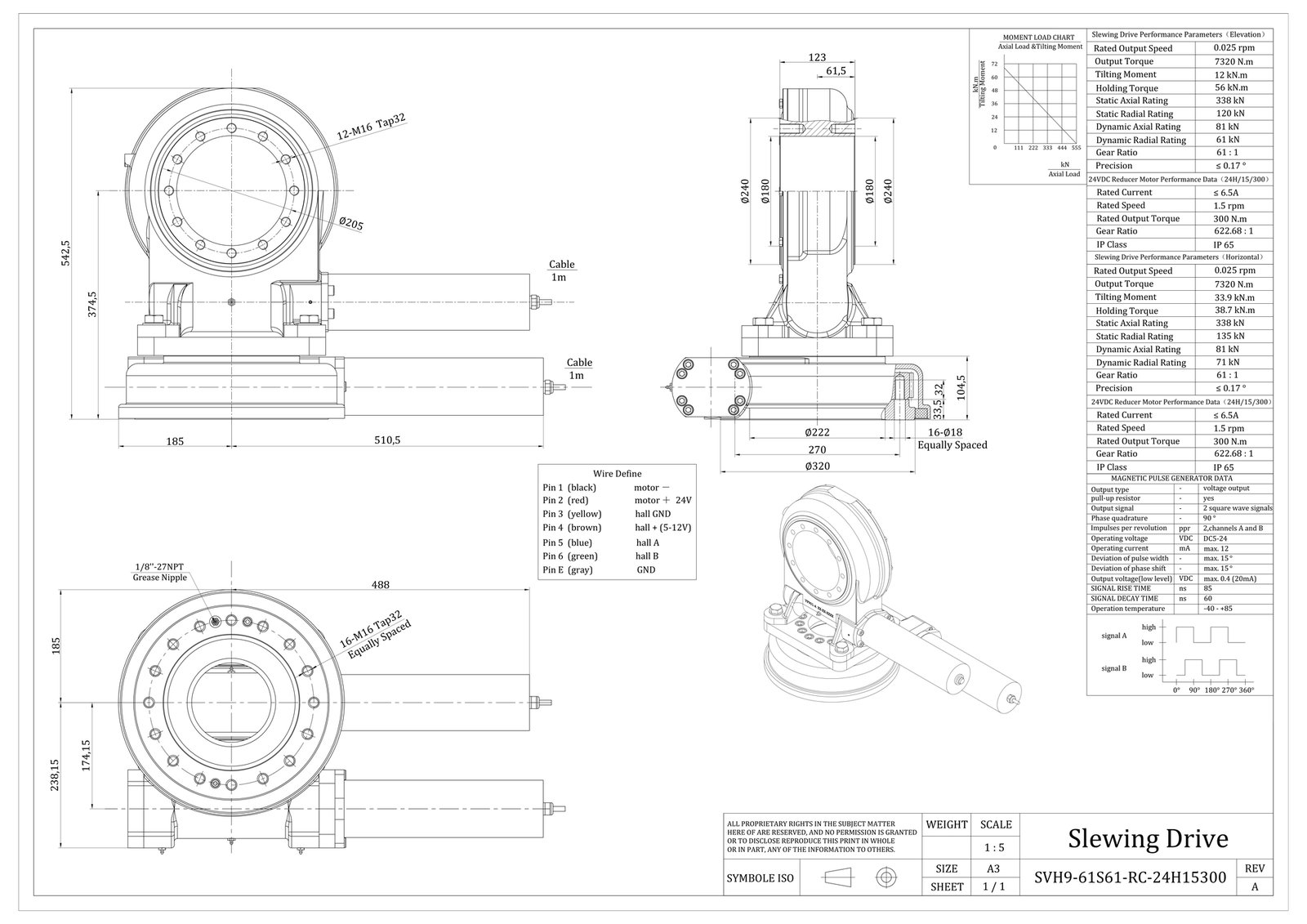

Modelo SVH9-61S61-RC-24H15300

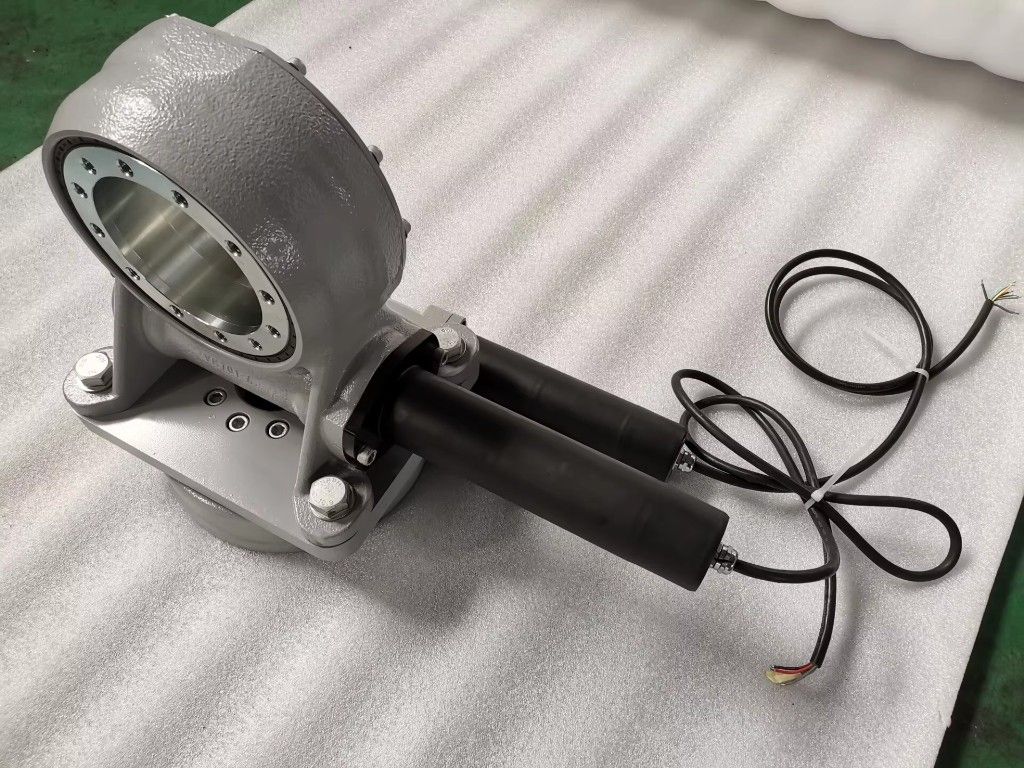

SVH9 9-Inch Dual Axis Slewing Drive | 24 V DC Solar Tracker Worm Gear Rotary Actuator
SVH9 9-Inch Dual Axis Slewing Drive | 24VDC Solar Tracker Worm Gear Rotary Actuator from Elerover.
Especificaciones clave
- Par de salida
- 7320 N·m (both axes)
- Par de retención
- Horizontal: 38.7 kN·m; Elevation: 56 kN·m
- Momento de inclinación
- Horizontal: 33.9 kN·m; Elevation: 12 kN·m
- Carga axial
- 338 kN
Descripción del producto
SVH9 9-Inch Dual Axis Slewing Drive | 24VDC Solar Tracker Worm Gear Rotary Actuator from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Par de salida
- 7320 N·m (both axes)
- Par de retención
- Horizontal: 38.7 kN·m; Elevation: 56 kN·m
- Momento de inclinación
- Horizontal: 33.9 kN·m; Elevation: 12 kN·m
- Carga axial
- 338 kN
- Relación de reducción
- 61:1 / 61:1
- Holgura
- ≤ 0.17°
Aplicaciones
- Large dual-axis solar trackers
- PV / CPV / CSP tracking systems
- Antenna and satellite positioning
- Industrial rotary platforms
- Heavy sensor and camera gimbals
Ventajas
- 9-inch dual-axis slewing drive for azimuth and elevation motion
- Output torque 7320 N·m on both axes
- Elevation holding torque 56 kN·m / horizontal holding 38.7 kN·m
- Gear ratio 61:1 on both axes with precision ≤ 0.17°
- 24VDC IP65 reducer motors (24H/15/300) with hall A/B feedback
- Rated output speed 0.025 rpm for precise tracking
Especificaciones técnicas
| Drive type | 9-inch dual-axis electric slewing drive |
|---|---|
| Par de salida | 7320 N·m (both axes) |
| Par de retención | Horizontal: 38.7 kN·m; Elevation: 56 kN·m |
| Momento de inclinación | Horizontal: 33.9 kN·m; Elevation: 12 kN·m |
| Carga axial | 338 kN |
| Relación de reducción | 61:1 / 61:1 |
| Holgura | ≤ 0.17° |
| Tensión del motor | 24 V DC |
| Grado IP | IP65 |
Configuration options
| Parameter | Horizontal Axis | Elevation Axis |
|---|---|---|
| Rated Output Speed | 0.025 rpm | 0.025 rpm |
| Output Torque | 7320 N·m | 7320 N·m |
| Tilting Moment | 33.9 kN·m | 12 kN·m |
| Holding Torque | 38.7 kN·m | 56 kN·m |
| Static Axial Rating | 338 kN | 338 kN |
| Static Radial Rating | 135 kN | 120 kN |
| Dynamic Axial Rating | 71 kN | 61 kN |
| Dynamic Radial Rating | 81 kN | 81 kN |
| Gear Ratio | 61:1 | 61:1 |
| Precision | ≤ 0.17° | ≤ 0.17° |
