Accionamiento de giro
Modelo SC3-62B-RC-24H3033

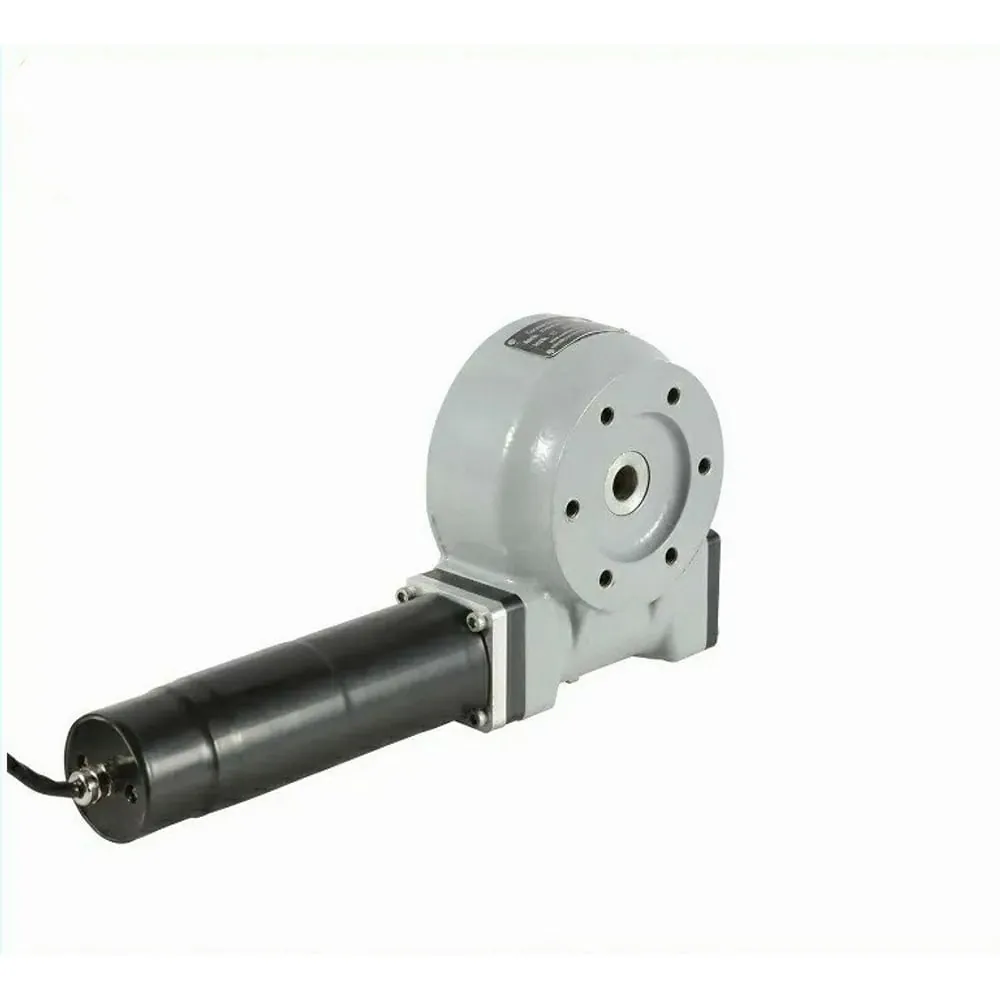

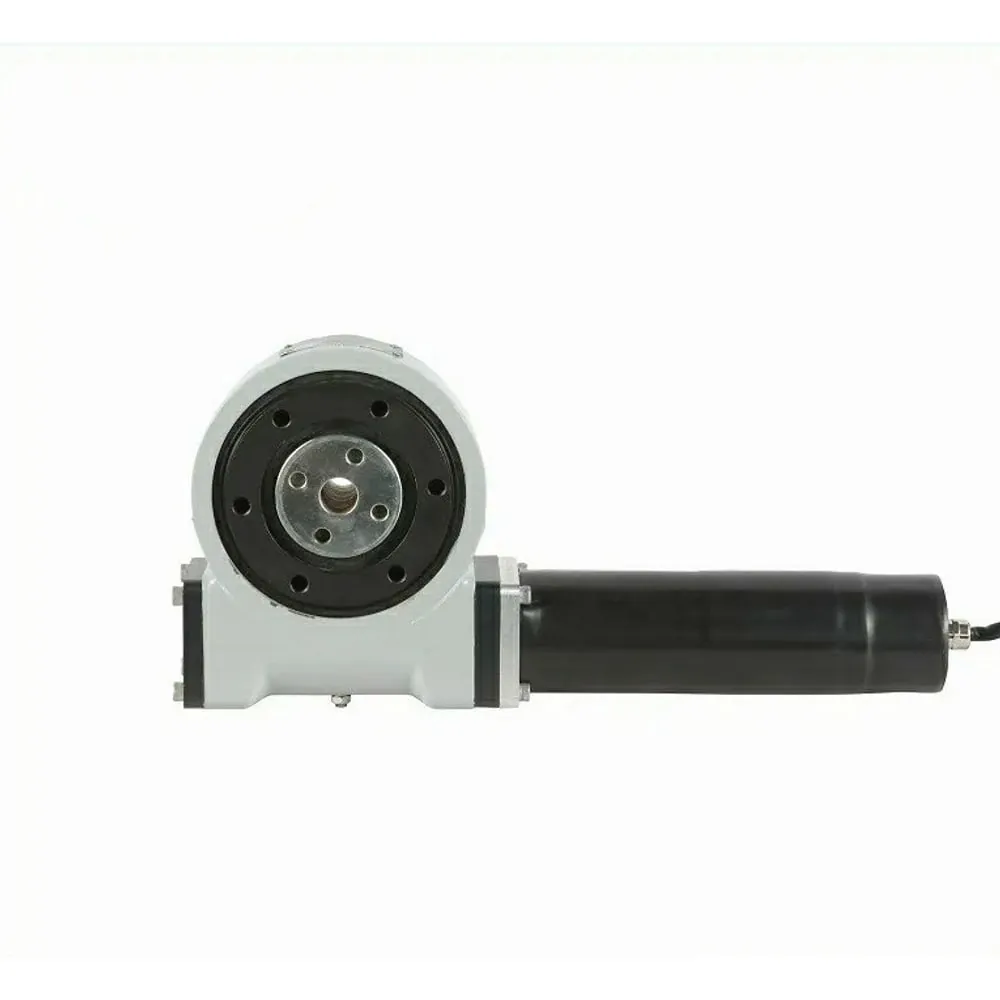

SC3 Accionamiento de giro con motor 24 V DC | Actuador rotativo compacto de tornillo sin fin
SC3 Slewing Drive with 24VDC Motor | Compact Worm Gear Rotary Actuator from Elerover.
Especificaciones clave
- Par de salida
- 818 N·m
- Par de retención
- 2200 N·m
- Momento de inclinación
- 1100 N·m
- Carga axial
- 30 kN
Descripción del producto
SC3 Slewing Drive with 24VDC Motor | Compact Worm Gear Rotary Actuator from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Par de salida
- 818 N·m
- Par de retención
- 2200 N·m
- Momento de inclinación
- 1100 N·m
- Carga axial
- 30 kN
- Carga radial
- 15 kN
- Relación de reducción
- 575:1
Aplicaciones
- Industrial Automation
- Solar Tracking
- Agricultural
Ventajas
- Rodamiento de giro y transmisión de tornillo sin fin integrados.
- Diseño compacto para aplicaciones rotativas con espacio limitado.
- Motorreductor planetario 24VDC para operación controlada a baja velocidad.
- Alto par de retención para posición estable.
- Clase de protección IP65 del motor para entornos exigentes.
- Adecuado para montaje personalizado y sistemas de control de movimiento.

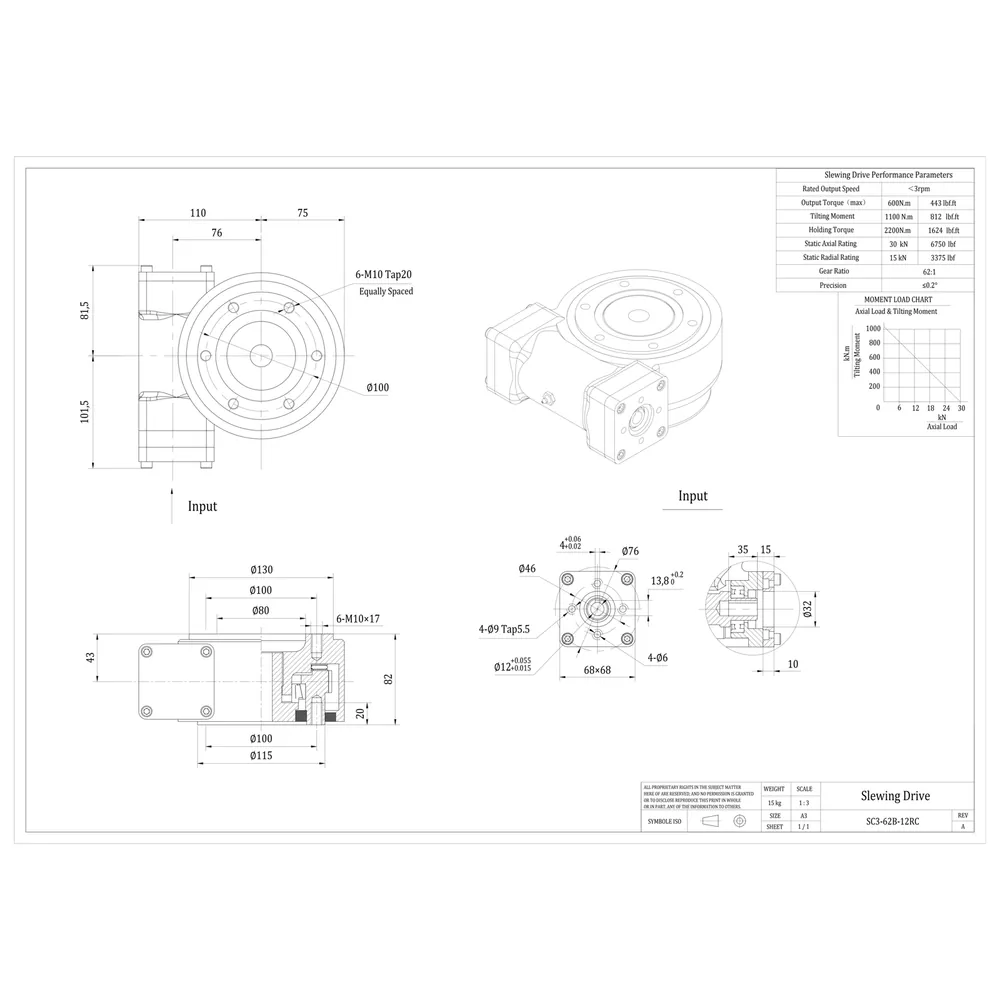

Especificaciones técnicas
| Drive type | Electric Slewing Drive |
|---|---|
| Par de salida | 818 N·m |
| Par de retención | 2200 N·m |
| Momento de inclinación | 1100 N·m |
| Carga axial | 30 kN |
| Carga radial | 15 kN |
| Relación de reducción | 575:1 |
| Holgura | ≤ 0.17° |
| Grado IP | IP65 |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.05 rpm | — |
| Output Torque | 818 N·m | 603 lbf·ft |
| Tilting Moment | 1100 N·m | 812 lbf·ft |
| Holding Torque | 2200 N·m | 1624 lbf·ft |
| Static Axial Rating | 30 kN | 6750 lbf |
| Static Radial Rating | 15 kN | 3375 lbf |
| Dynamic Axial Rating | 9.6 kN | 2160 lbf |
| Dynamic Radial Rating | 8.4 kN | 1890 lbf |
| Gear Ratio | 62:1 | — |
| Precision | ≤ 0.17° | — |
Configuration options
| Parameter | Unit | Value / Description |
|---|---|---|
| Output Type | Voltage output | — |
| Pull-up Resistor | Yes | — |
| Output Signal | 2 square wave signals | — |
| Phase Quadrature | 90° | — |
| Impulses per Revolution | ppr | 2 channels A and B |
| Operating Voltage | VDC | DC 5-24 |
| Operating Current | mA | Max. 12 |
| Deviation of Pulse Width | Max. 15° | — |
| Deviation of Phase Shift | Max. 15° | — |
| Output Voltage, Low Level | VDC | Max. 0.4 V, 20 mA |
| Signal Rise Time | ns | 85 |
| Signal Decay Time | ns | 60 |
| Operation Temperature | °C | -40 to +85 |
Solicitar documentos técnicos
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
