The SC32-154B-25RC is a 32-inch worm-gear slewing drive for low-speed rotary motion. It delivers 25 kN·m output torque, 190 kN·m holding torque, 347 kN·m tilting moment and ≤0.17° precision for large solar tracking, truck-mounted cranes, aerial platforms and OEM rotary systems.
Accionamiento de giro
SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery
SC32 32-inch heavy-duty worm-gear slewing drive. 25 kN·m output torque, 190 kN·m holding torque, 347 kN·m tilting moment, 154:1 ratio, ≤0.17° precision for large solar trackers and construction machinery.
Manufactured and supplied by Elerover — Accionamiento de giro manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Parámetros clave
- Drive Type
- 32-inch worm-gear slewing drive
- Gear Ratio
- 154:1
- Output Speed
- ≤ 2 rpm
- Product Model
- SC32-154B-25RC
- Output Torque
- 25 kN·m / 18.5×10³ lbf·ft
- Tilting Moment
- 347 kN·m / 256×10³ lbf·ft
- Holding Torque
- 190 kN·m / 140×10³ lbf·ft
- Outer Envelope
- Approx. Ø940 mm
Descripción general del producto
Características clave
- 32-inch worm-gear slewing drive for extra-heavy rotary loads
- Output torque 25 kN·m / holding torque 190 kN·m
- Tilting moment 347 kN·m
- Gear ratio 154:1 with precision ≤ 0.17°
- Output speed ≤ 2 rpm
- Motor-ready Ø25 keyed input for electric or hydraulic drives
Especificaciones técnicas
| Product Model | SC32-154B-25RC |
|---|---|
| Drive Type | 32-inch worm-gear slewing drive |
| Output Speed | ≤ 2 rpm |
| Output Torque | 25 kN·m / 18.5×10³ lbf·ft |
| Tilting Moment | 347 kN·m / 256×10³ lbf·ft |
| Holding Torque | 190 kN·m / 140×10³ lbf·ft |
| Static Axial Load Rating | 3021 kN / 680×10³ lbf |
| Static Radial Load Rating | 1210 kN / 272×10³ lbf |
| Gear Ratio | 154:1 |
| Precision | ≤ 0.17° |
| Input Interface | Ø25 mm keyed shaft |
| Outer Envelope | Approx. Ø940 mm |
| Housing Height | Approx. 162 mm |
Aplicaciones
- Large solar trackers
- PV / CSP tracking systems
- Truck-mounted cranes
- Aerial platforms and man lifts
- Industrial turntables
- Heavy construction machinery
Detalles adicionales
32-Inch Slewing Drive for Extra-Heavy Rotary Loads

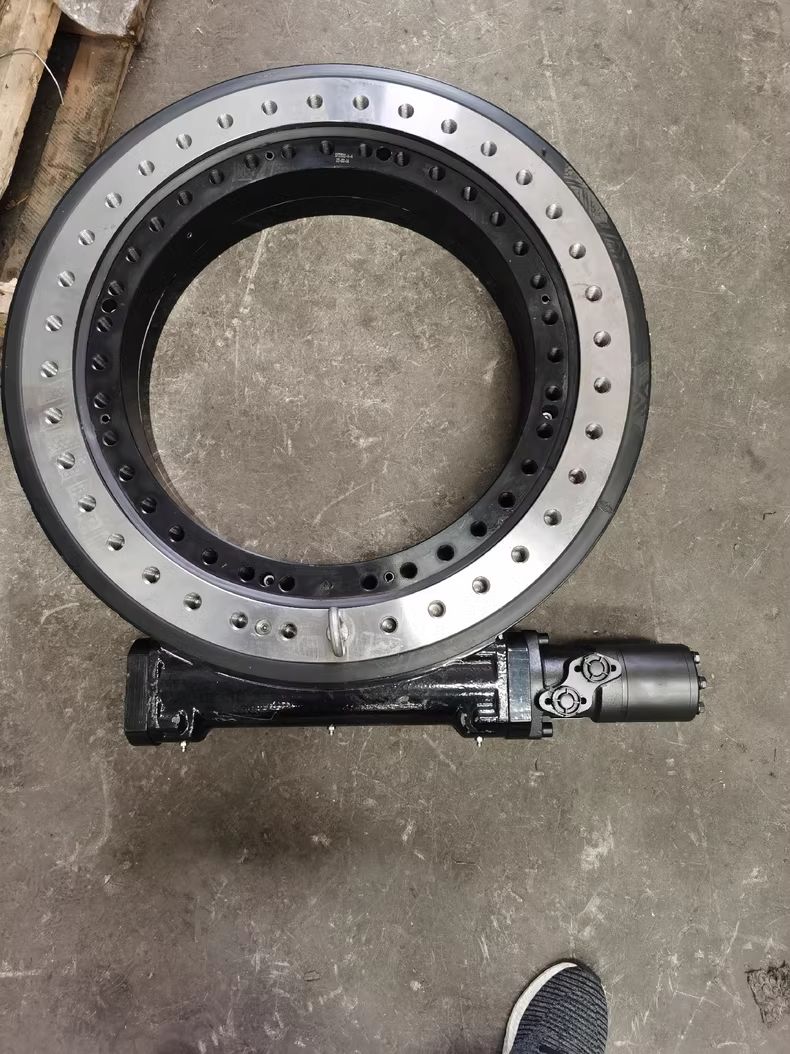

SC32-154B-25RC 32-Inch Slewing Drive
A heavy-duty 32-inch worm-gear slewing drive for low-speed, high-torque rotary motion.
The SC32-154B-25RC integrates a large slewing bearing and enclosed worm-gear transmission with a standard input interface,
making it suitable for large solar trackers, truck-mounted cranes, aerial platforms and OEM rotary systems.
Output Speed
≤ 2 rpm
≤ 2 rpm
Output Torque
25 kN·m
25 kN·m
Holding Torque
190 kN·m
190 kN·m
Tilting Moment
347 kN·m
347 kN·m
Gear Ratio
154:1
154:1
Output Torque
25 kN·m
25 kN·m
Holding Torque
190 kN·m
190 kN·m
Tilting Moment
347 kN·m
347 kN·m
Precision
≤ 0.17°
≤ 0.17°
Product Drawing
SC32 Dimensions & Performance Drawing
Official dimensional drawing for model SC32-154B-25RC Rev.A — mounting interfaces, input geometry, load chart and performance data.
Product Overview
32-Inch Worm Gear Slewing Drive for Extra-Heavy Rotation
The SC32 is sized for projects that outgrow the SC21 class—extra-large solar arrays, construction machinery and industrial turntables that need higher tilting and holding capacity.
This 32-inch slewing drive combines a large slewing bearing with an enclosed worm-gear stage and a keyed input for electric or hydraulic motors.
With 25 kN·m output torque, 190 kN·m holding torque, 347 kN·m tilting moment and ≤0.17° precision,
SC32 supports large single-axis solar trackers and heavy OEM rotary platforms.
Defined M20 mounting patterns, Ø940 envelope geometry and Ø25 input interface support repeatable mechanical integration for global B2B projects.
Product Highlights
- 32-inch worm-gear slewing drive for extra-heavy rotary loads.
- Output torque 25 kN·m and holding torque 190 kN·m.
- Tilting moment 347 kN·m for large structures and machinery.
- Gear ratio 154:1 with precision ≤ 0.17°.
- Motor-ready Ø25 input for electric or hydraulic drives.
- High static ratings: 3021 kN axial / 1210 kN radial.
Key Features
Built for Large Solar Tracking and Heavy Machinery Rotation
Designed for solar, crane and industrial systems that need reliable single-axis rotary motion with very high load capacity.
01
32-Inch Load Class
Higher torque and tilting ratings than SC17/SC21 for extra-large arrays, cranes and industrial turntables.
02
High Tilting Capacity
347 kN·m tilting moment supports large structures under wind and unbalanced machinery loads.
03
Low-Speed High Torque
Output speed ≤2 rpm with 25 kN·m torque and ≤0.17° precision for controlled positioning.
04
Motor-Ready Input
Keyed Ø25 input interface accepts electric or hydraulic motors matched to your duty cycle.
05
Strong Static Ratings
Static axial rating 3021 kN and static radial rating 1210 kN for demanding structures.
06
OEM Mounting Geometry
36×M20 / 35×M20 / Ø22 patterns and Ø940 envelope support repeatable machine design.
Technical Data
Slewing Drive Performance Parameters
Performance values from drawing SC32-154B-25RC Rev.A for product selection and early engineering review.
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Output Speed | ≤ 2 rpm | – |
| Output Torque | 25 kN·m | 18.5×10³ lbf·ft |
| Tilting Moment | 347 kN·m | 256×10³ lbf·ft |
| Holding Torque | 190 kN·m | 140×10³ lbf·ft |
| Static Axial Load Rating | 3021 kN | 680×10³ lbf |
| Static Radial Load Rating | 1210 kN | 272×10³ lbf |
| Gear Ratio | 154:1 | – |
| Precision | ≤ 0.17° | – |
Note: Values are for product selection reference from drawing SC32-154B-25RC Rev.A. Confirm motor package and final configuration for your load case.
Input & Mounting
Key Installation Dimensions
Selected envelope and input dimensions from the SC32 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC32-154B-25RC |
| Drive Type | 32-inch worm-gear slewing drive |
| Outer Envelope | Approx. Ø940 mm |
| Housing Height | Approx. 162 mm |
| Key Bolt Circles | Ø869 / Ø800 / Ø748 / Ø700 mm |
| Mounting Pattern | 36×M20 Deep 50 / 35×M20 Deep 50 / 35×Ø22 |
| Input Shaft | Ø25 mm keyed interface |
| Input Pilot | Ø82.55 mm with 2×M12 mounting |
| Oil / Grease Ports | 3× 1/8''-27 NPT |
Applications
Typical Application Areas
Ideal where extra-large single-axis slewing needs very high torque, high tilting capacity and flexible motor selection.
Selection Support
How to Confirm the Right Slewing Drive
1
Confirm Loads
Share axial / radial loads, tilting moment and holding requirements for your tracker or machine.
2
Confirm Motion Needs
Provide required speed, travel angle, duty cycle, tracking accuracy and environmental conditions.
3
Confirm Drive Package
Confirm electric or hydraulic motor preference, input interface, sensors and controller type.
FAQ
What does “32-inch” mean on SC32?
It refers to the slewing-drive size class. SC32 offers higher torque and tilting capacity than SC21 for extra-large solar trackers and heavy industrial rotary platforms.
Does SC32 include a motor?
The SC32-154B-25RC drawing defines the slewing drive with a keyed input interface. Electric or hydraulic motors can be supplied as a matched package—tell us your voltage, pressure and duty cycle.
Can SC32 be used on large solar trackers?
Yes. Output torque 25 kN·m, tilting moment 347 kN·m and ≤0.17° precision suit many large single-axis PV / CSP tracker designs — confirm panel area and wind load first.
Is SC32 suitable for cranes and aerial platforms?
Yes. The high tilting and holding ratings support truck-mounted cranes, man lifts and similar heavy rotary machinery when the load case matches the published limits.
Can mounting and motor packages be customized?
Yes. Flange interfaces, motor type, feedback options and cable / hose interfaces can be reviewed against your mechanical layout for OEM / ODM projects.
Need a Custom Slewing Drive?
Send load, tracker size, motor preference and mounting drawings. Elerover engineering will help size SC32 or a related slewing configuration.
