Accionamiento de giro
Modelo SC12-78-RC-24H30100

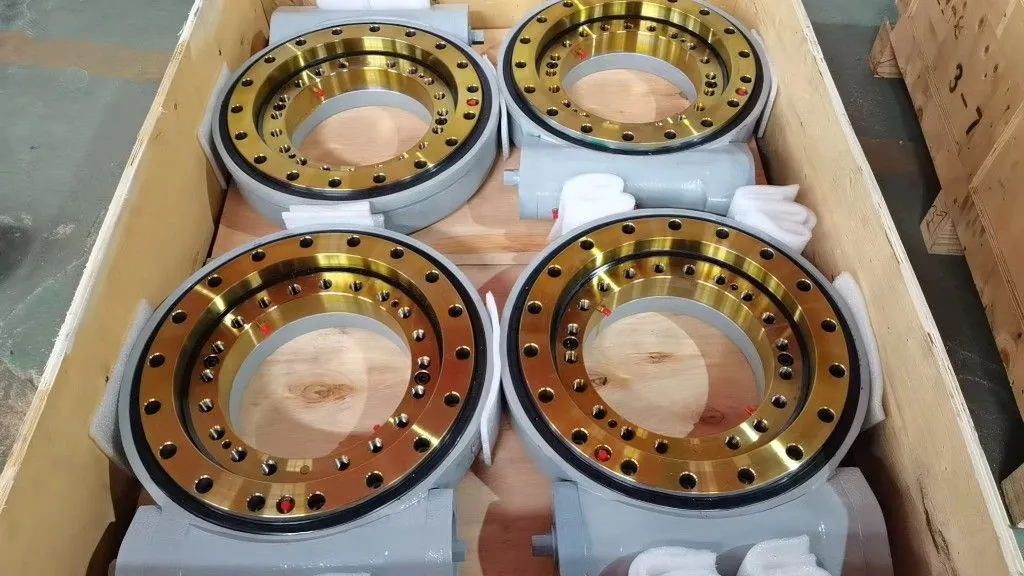

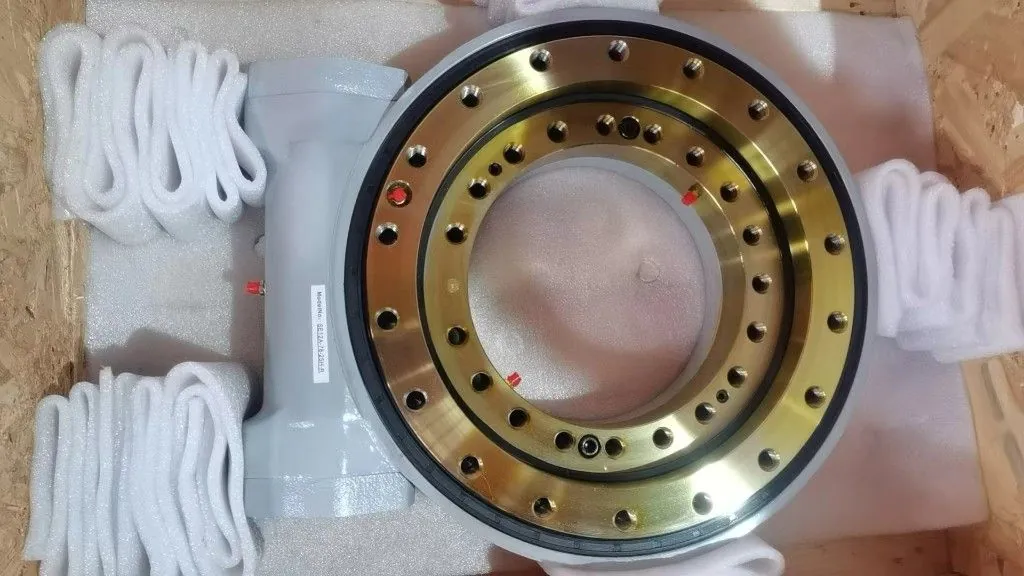

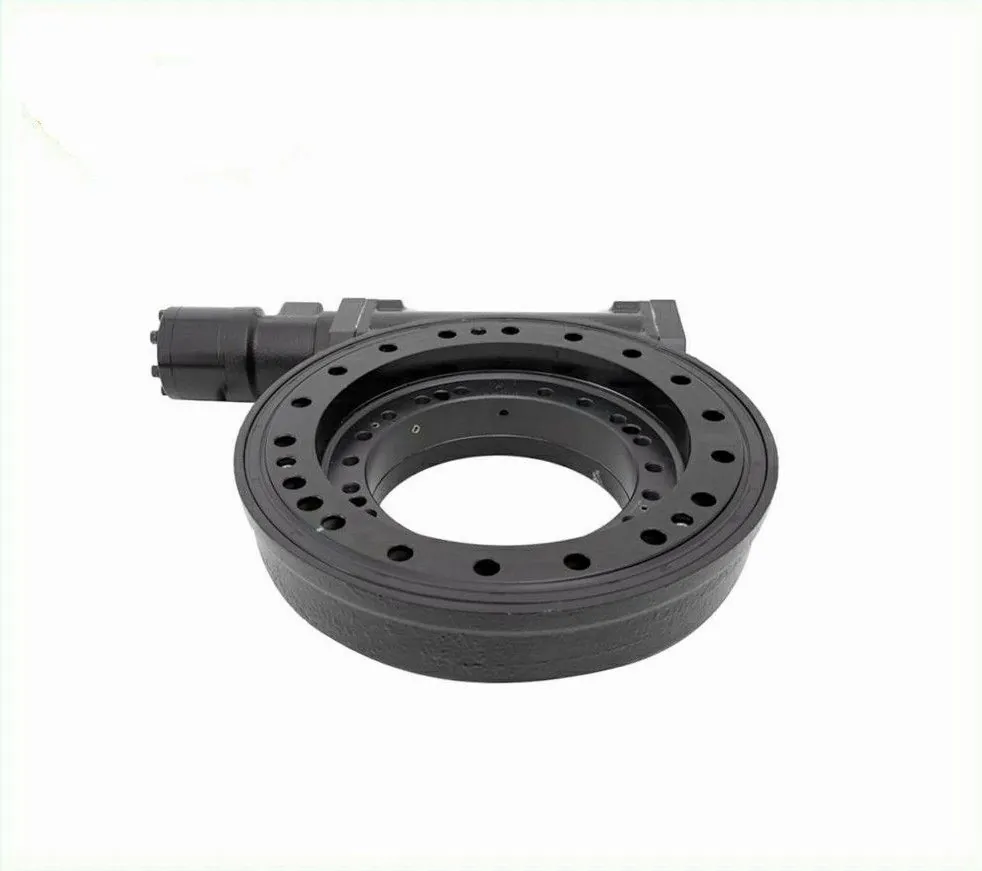

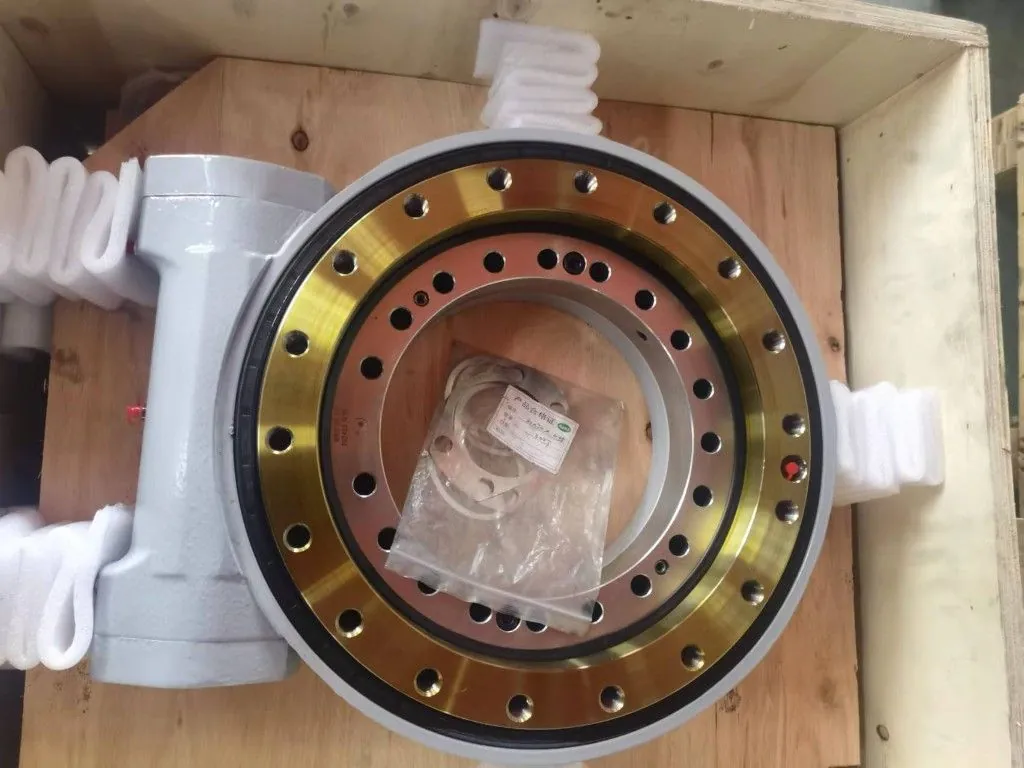

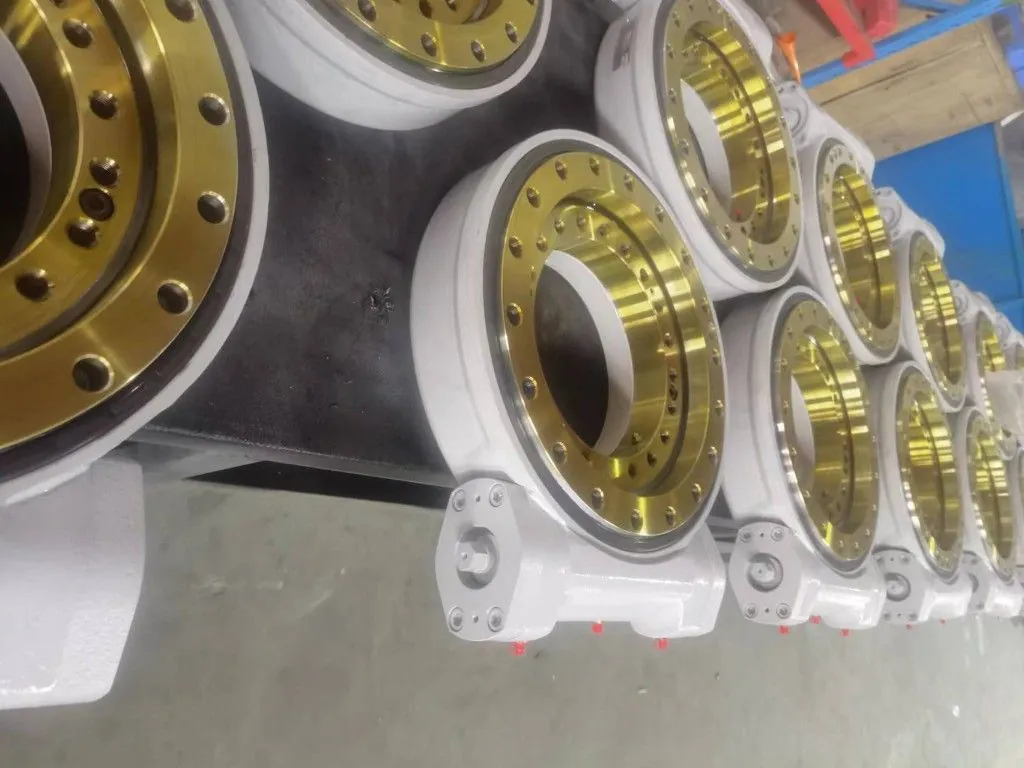

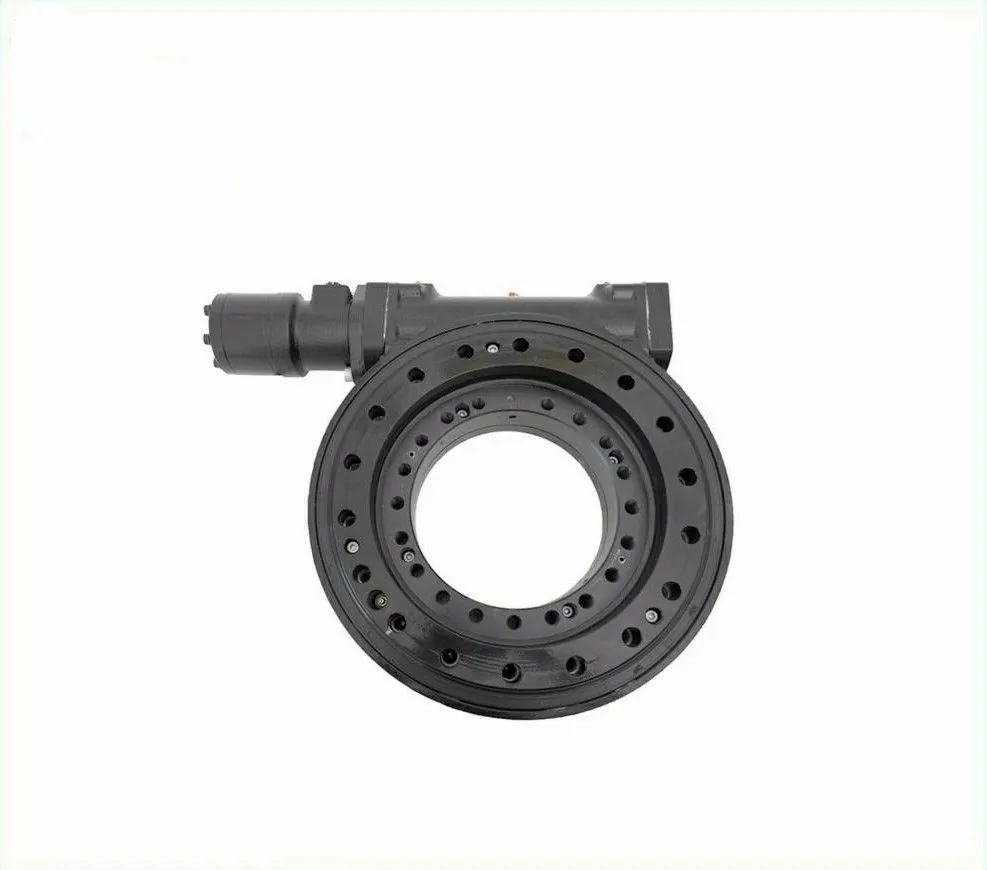

SC12 12-Inch Slewing Drive | 24 V DC Worm Gear Rotary Actuator for Solar Tracker
SC12 12-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover.
Especificaciones clave
- Par de salida
- 3120 N·m / 2302 lbf·ft
- Par de retención
- 43 kN·m / 31.7×10³ lbf·ft
- Momento de inclinación
- 54.3 kN·m / 40×10³ lbf·ft
- Carga axial
- 475 kN / 106.8×10³ lbf
Descripción del producto
SC12 12-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Par de salida
- 3120 N·m / 2302 lbf·ft
- Par de retención
- 43 kN·m / 31.7×10³ lbf·ft
- Momento de inclinación
- 54.3 kN·m / 40×10³ lbf·ft
- Carga axial
- 475 kN / 106.8×10³ lbf
- Carga radial
- 190 kN / 42.7×10³ lbf
- Relación de reducción
- 78:1
Aplicaciones
- Large solar trackers
- PV / CSP tracking systems
- Antenna positioning
- Industrial rotary actuation
- Aerial platforms and machinery
Ventajas
- 12-inch worm-gear slewing drive with 24VDC planetary reducer motor
- Output torque 3120 N·m / holding torque 43 kN·m
- Tilting moment 54.3 kN·m
- Gear ratio 78:1 with precision ≤ 0.17°
- Rated output speed 0.038 rpm
- Hall A/B feedback for closed-loop positioning

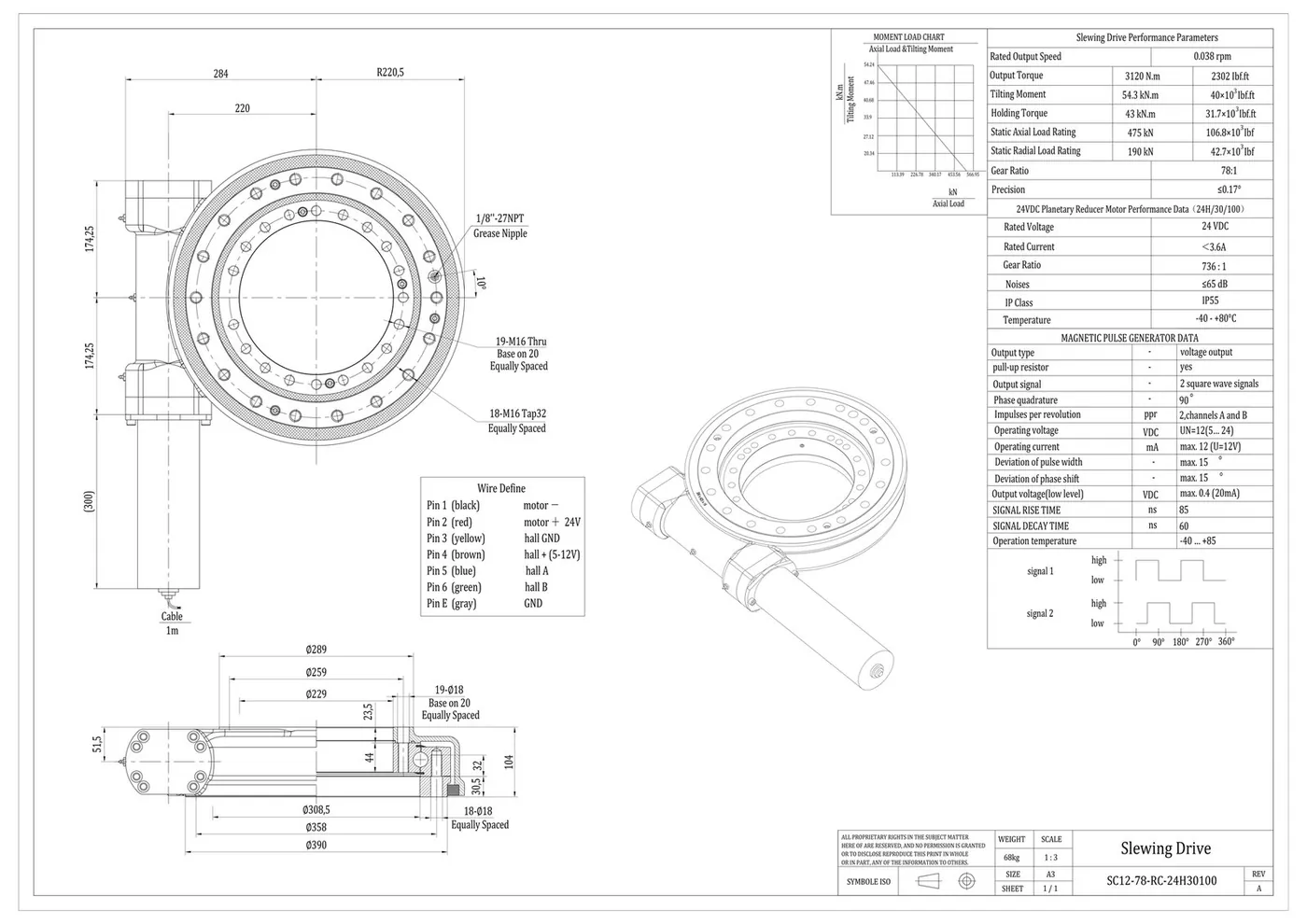

Especificaciones técnicas
| Drive type | 12-inch electric worm-gear slewing drive |
|---|---|
| Par de salida | 3120 N·m / 2302 lbf·ft |
| Par de retención | 43 kN·m / 31.7×10³ lbf·ft |
| Momento de inclinación | 54.3 kN·m / 40×10³ lbf·ft |
| Carga axial | 475 kN / 106.8×10³ lbf |
| Carga radial | 190 kN / 42.7×10³ lbf |
| Relación de reducción | 78:1 |
| Holgura | ≤ 0.17° |
| Tensión del motor | 24 V DC |
| Grado IP | IP55 |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.038 rpm | — |
| Output Torque | 3120 N·m | 2302 lbf·ft |
| Tilting Moment | 54.3 kN·m | 40×10³ lbf·ft |
| Holding Torque | 43 kN·m | 31.7×10³ lbf·ft |
| Static Axial Rating | 475 kN | 106.8×10³ lbf |
| Static Radial Rating | 190 kN | 42.7×10³ lbf |
| Gear Ratio | 78:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 68 kg | — |
Solicitar documentos técnicos
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
