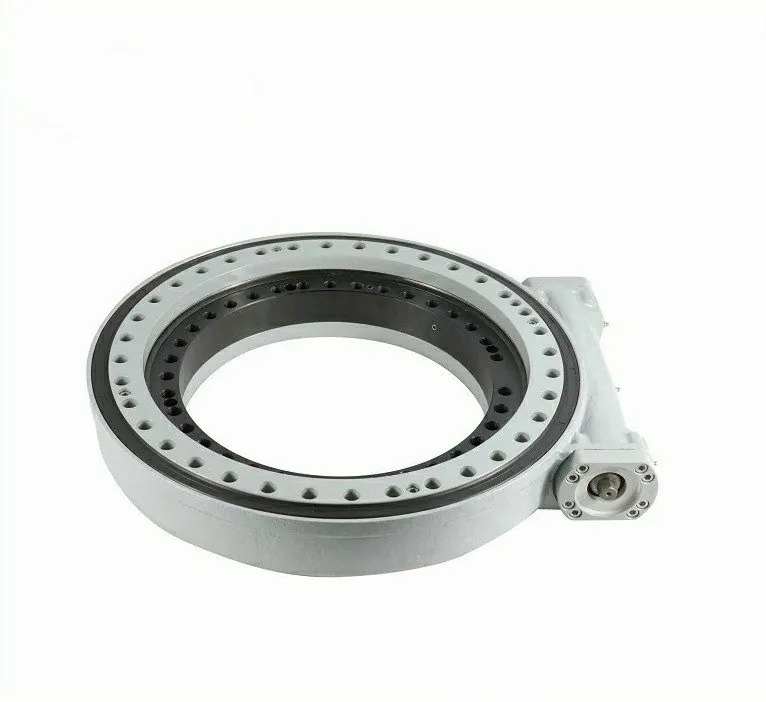

Accionamiento de giro
Modelo SC14-85-RC-24H15300
SC14 14-Inch Slewing Drive | 24 V DC Worm Gear Rotary Actuator for Solar Tracker
SC14 14-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover.
Especificaciones clave
- Par de salida
- 10.2 kN·m / 7.53×10³ lbf·ft
- Par de retención
- 48 kN·m / 35×10³ lbf·ft
- Momento de inclinación
- 67.8 kN·m / 50×10³ lbf·ft
- Carga axial
- 555 kN / 125×10³ lbf

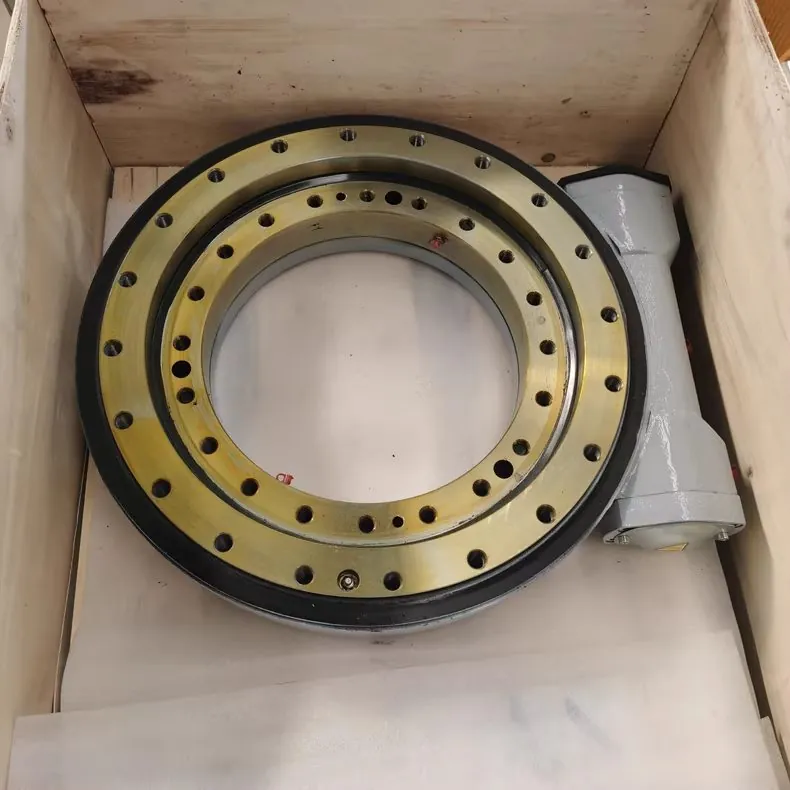

Descripción del producto
SC14 14-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Par de salida
- 10.2 kN·m / 7.53×10³ lbf·ft
- Par de retención
- 48 kN·m / 35×10³ lbf·ft
- Momento de inclinación
- 67.8 kN·m / 50×10³ lbf·ft
- Carga axial
- 555 kN / 125×10³ lbf
- Carga radial
- 222 kN / 50×10³ lbf
- Relación de reducción
- 85:1
Aplicaciones
- Large solar trackers
- PV / CSP tracking systems
- Antenna positioning
- Industrial rotary actuation
- Aerial platforms and machinery
Ventajas
- 14-inch worm-gear slewing drive with 24VDC IP65 reducer motor
- Output torque 10.2 kN·m / holding torque 48 kN·m
- Tilting moment 67.8 kN·m
- Gear ratio 85:1 with precision ≤ 0.17°
- Rated output speed 0.018 rpm
- Hall A/B feedback for closed-loop positioning

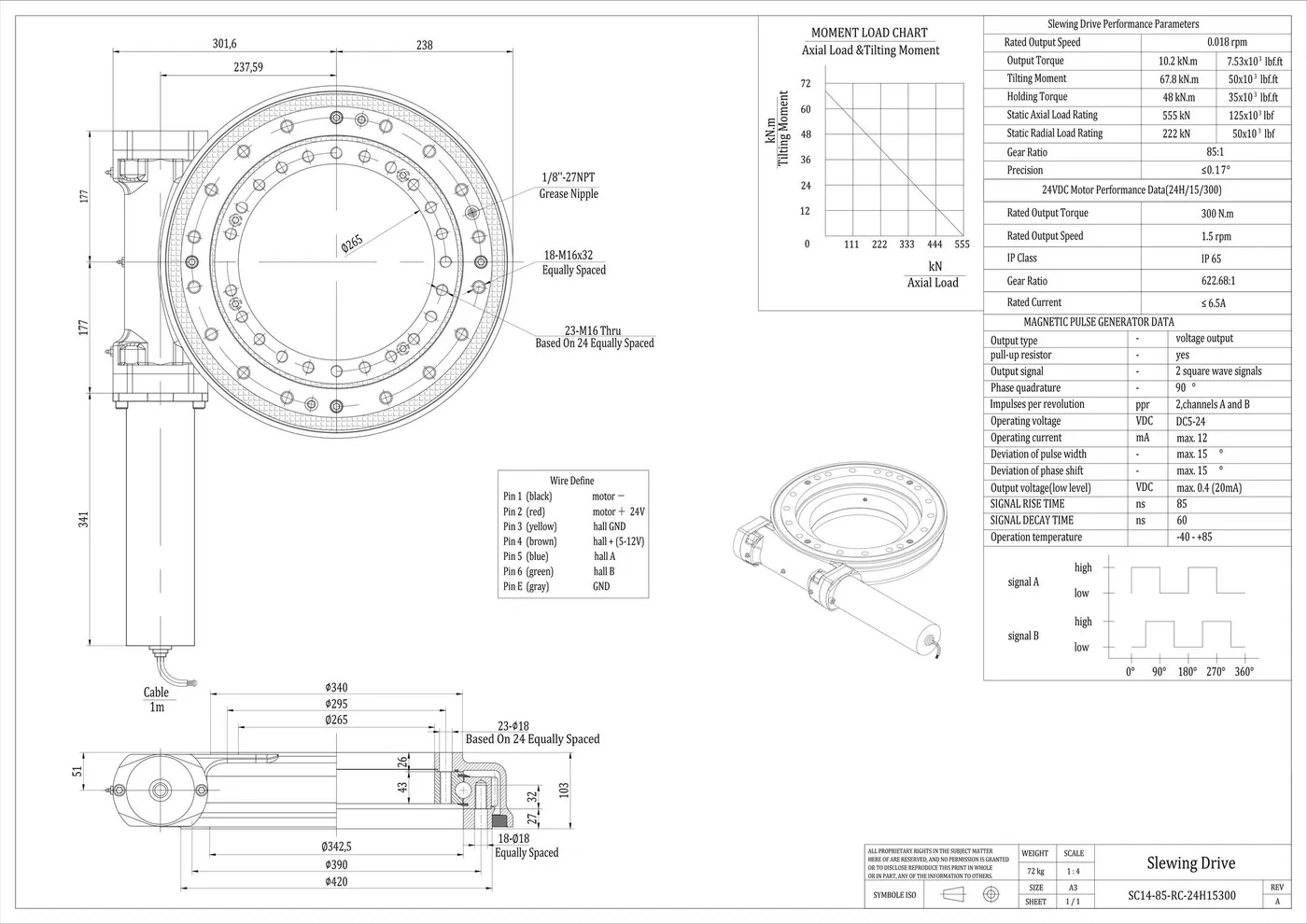

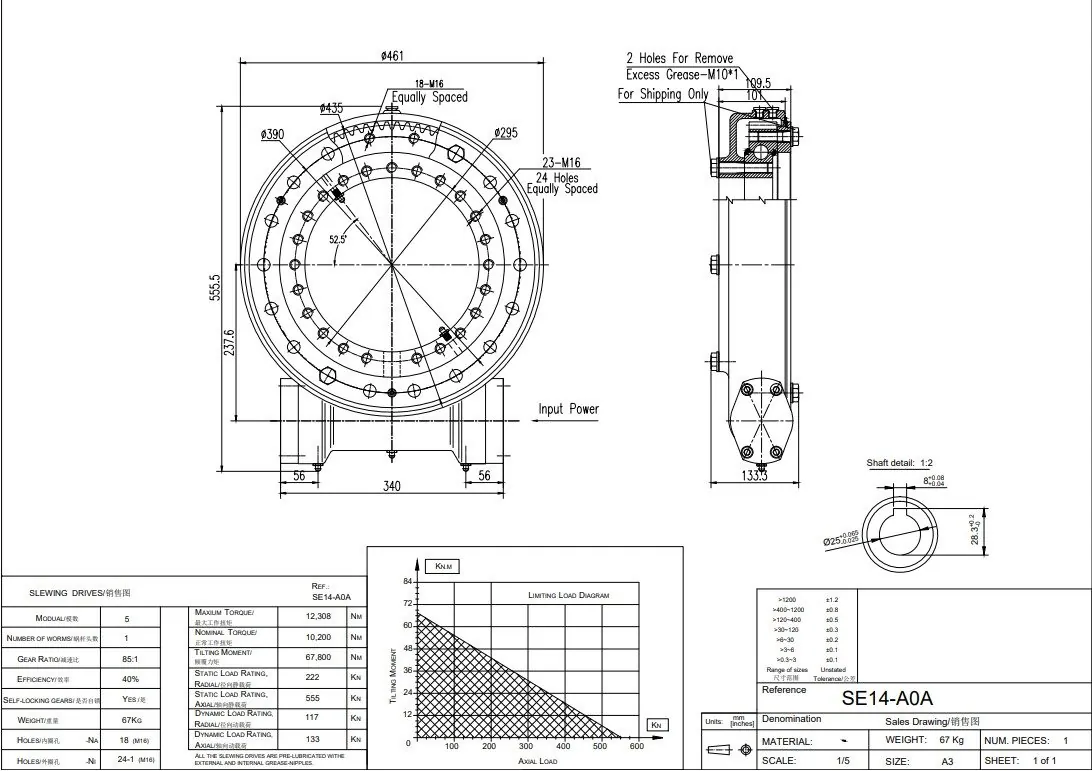

Especificaciones técnicas
| Drive type | 14-inch electric worm-gear slewing drive |
|---|---|
| Par de salida | 10.2 kN·m / 7.53×10³ lbf·ft |
| Par de retención | 48 kN·m / 35×10³ lbf·ft |
| Momento de inclinación | 67.8 kN·m / 50×10³ lbf·ft |
| Carga axial | 555 kN / 125×10³ lbf |
| Carga radial | 222 kN / 50×10³ lbf |
| Relación de reducción | 85:1 |
| Holgura | ≤ 0.17° |
| Tensión del motor | 24 V DC |
| Grado IP | IP65 |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.018 rpm | — |
| Output Torque | 10.2 kN·m | 7.53×10³ lbf·ft |
| Tilting Moment | 67.8 kN·m | 50×10³ lbf·ft |
| Holding Torque | 48 kN·m | 35×10³ lbf·ft |
| Static Axial Rating | 555 kN | 125×10³ lbf |
| Static Radial Rating | 222 kN | 50×10³ lbf |
| Gear Ratio | 85:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 72 kg | — |
