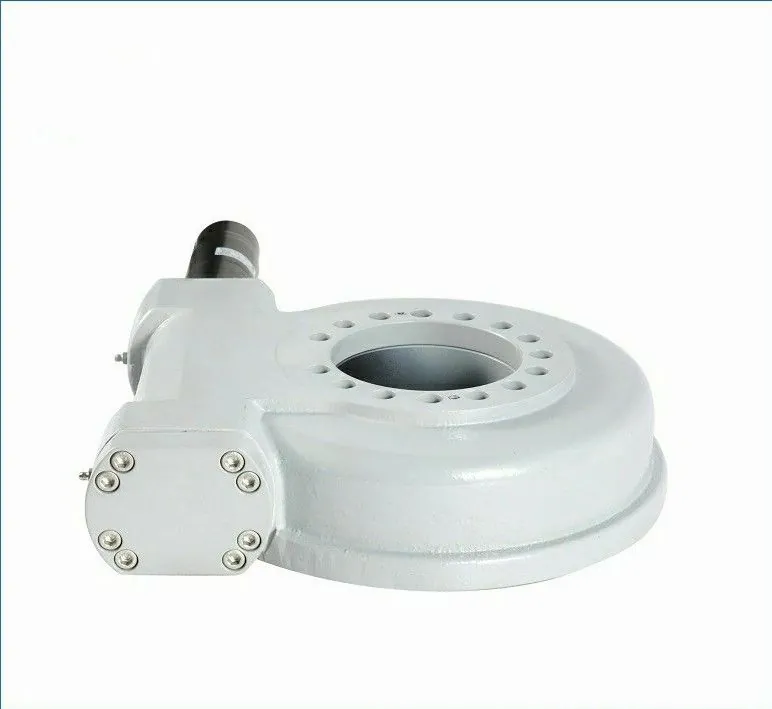

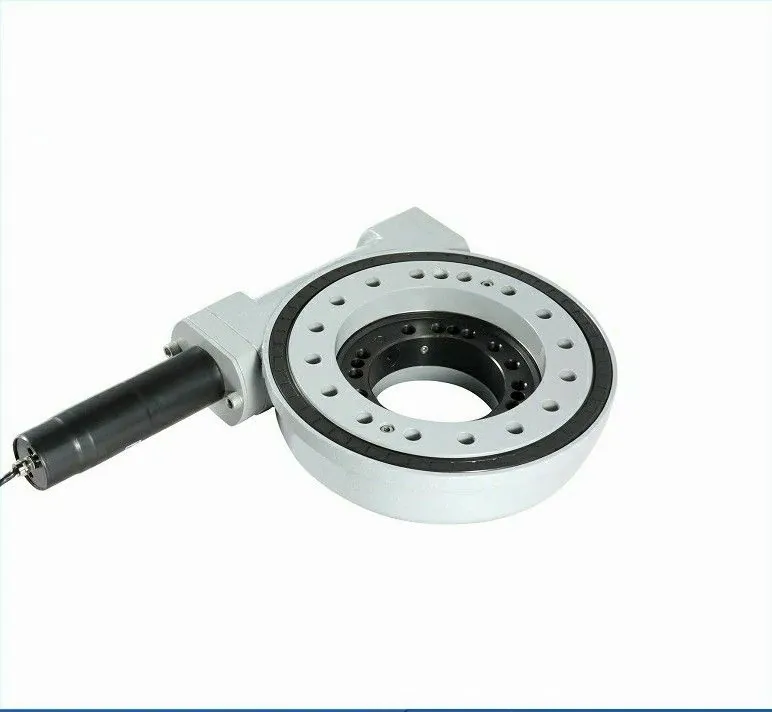

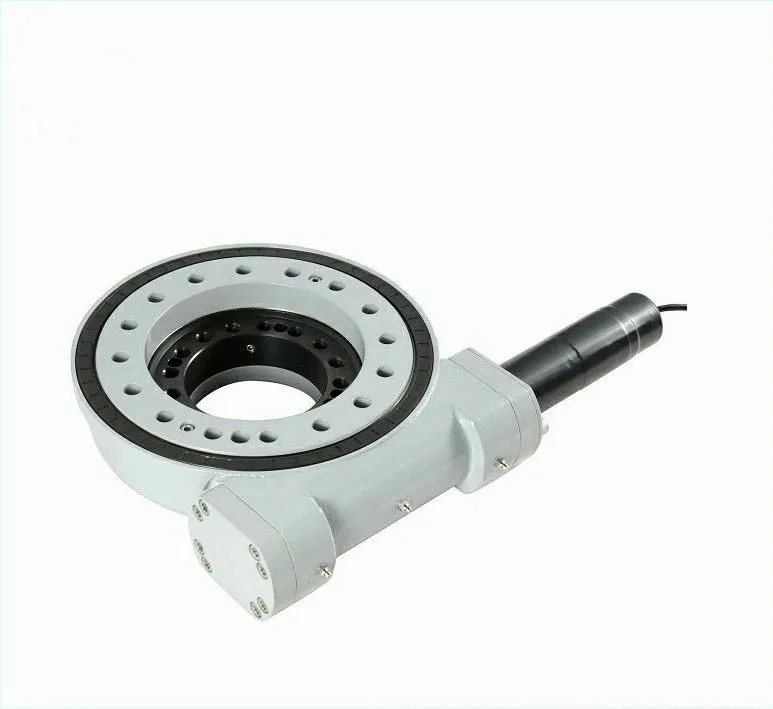

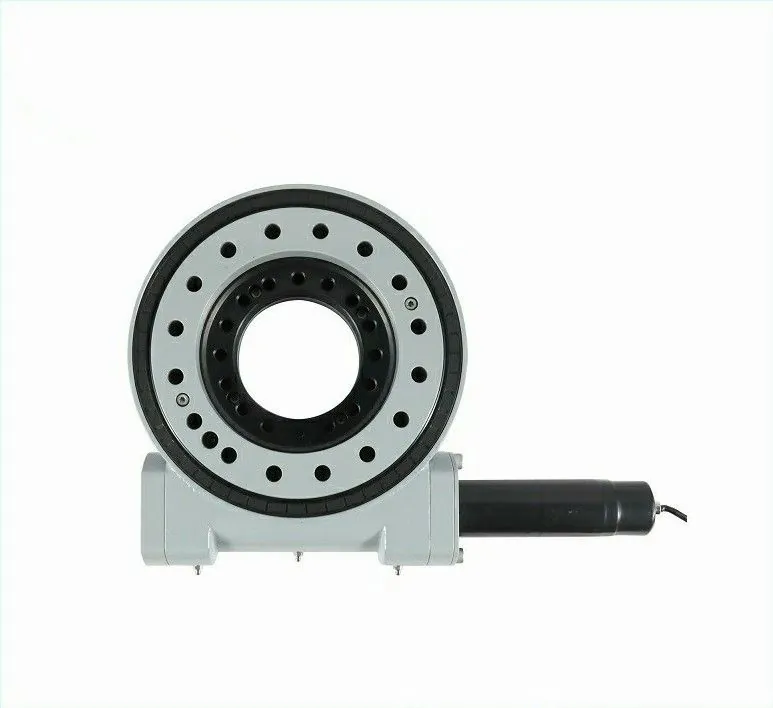

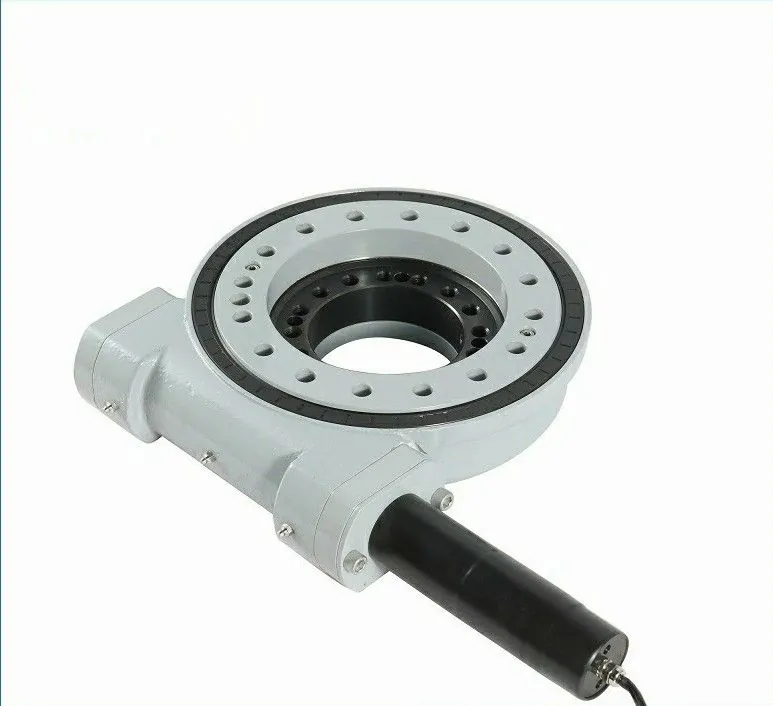

Accionamiento de giro
Modelo SC9-61-RC-24H30100
SC9 9-Inch Slewing Drive | 24 V DC Worm Gear Rotary Actuator for Solar Tracker
SC9 9-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover.
Especificaciones clave
- Par de salida
- 2.44 kN·m / 1.8×10³ lbf·ft
- Par de retención
- 38.7 kN·m / 29×10³ lbf·ft
- Momento de inclinación
- 33.9 kN·m / 25×10³ lbf·ft
- Carga axial
- 338 kN / 76×10³ lbf
Descripción del producto
SC9 9-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Par de salida
- 2.44 kN·m / 1.8×10³ lbf·ft
- Par de retención
- 38.7 kN·m / 29×10³ lbf·ft
- Momento de inclinación
- 33.9 kN·m / 25×10³ lbf·ft
- Carga axial
- 338 kN / 76×10³ lbf
- Carga radial
- 135 kN / 30×10³ lbf
- Relación de reducción
- 61:1
Aplicaciones
- Large solar trackers
- PV / CSP tracking systems
- Antenna positioning
- Industrial rotary actuation
- OEM motion platforms
Ventajas
- 9-inch worm-gear slewing drive with 24VDC IP65 motor
- Output torque 2.44 kN·m / holding torque 38.7 kN·m
- Tilting moment 33.9 kN·m
- Gear ratio 61:1 with precision ≤ 0.17°
- Rated output speed 0.049 rpm
- Hall A/B feedback for closed-loop positioning

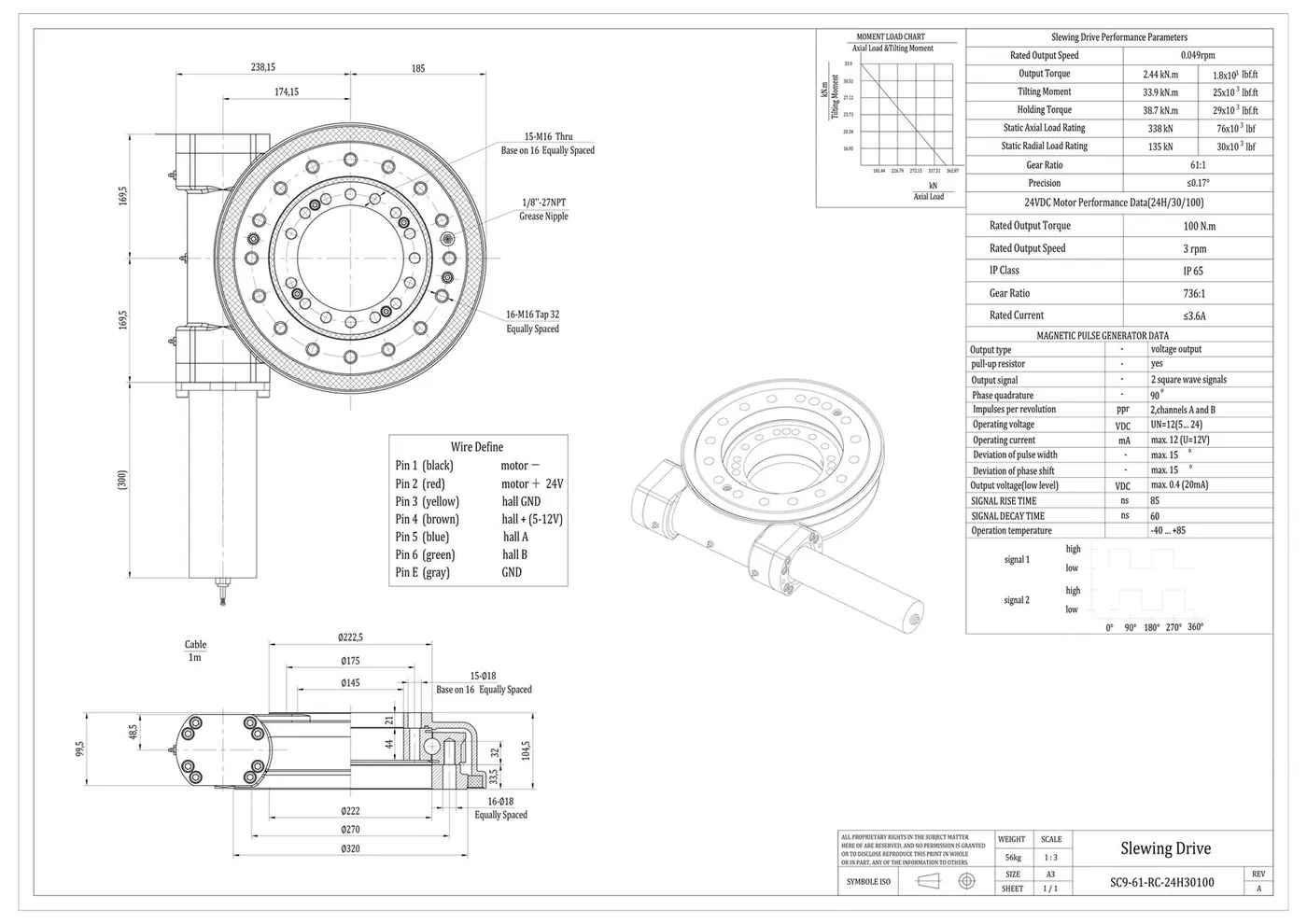

Especificaciones técnicas
| Drive type | 9-inch electric worm-gear slewing drive |
|---|---|
| Par de salida | 2.44 kN·m / 1.8×10³ lbf·ft |
| Par de retención | 38.7 kN·m / 29×10³ lbf·ft |
| Momento de inclinación | 33.9 kN·m / 25×10³ lbf·ft |
| Carga axial | 338 kN / 76×10³ lbf |
| Carga radial | 135 kN / 30×10³ lbf |
| Relación de reducción | 61:1 |
| Holgura | ≤ 0.17° |
| Tensión del motor | 24 V DC |
| Grado IP | IP65 |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.049 rpm | — |
| Output Torque | 2.44 kN·m | 1.8×10³ lbf·ft |
| Tilting Moment | 33.9 kN·m | 25×10³ lbf·ft |
| Holding Torque | 38.7 kN·m | 29×10³ lbf·ft |
| Static Axial Rating | 338 kN | 76×10³ lbf |
| Static Radial Rating | 135 kN | 30×10³ lbf |
| Gear Ratio | 61:1 | — |
| Precision | ≤ 0.17° | — |
| Approx. Weight | 56 kg | — |
Solicitar documentos técnicos
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
