SLA017 1200N 리니어 액추에이터

1 / 5

리니어 액추에이터

SLA017 1200N 리니어 액추에이터

The SLA017 is an Elerover 리니어 액추에이터 for OEM and industrial motion projects. Key ratings include 12V / 24V DC operation, up to 1200N load. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — 리니어 액추에이터 manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

주요 사양

Model
SLA017
Working Voltage
12V / 24V DC
Max Load
1200N
Motor Type
Brushed DC
Built-in Limit Switch
Yes
Applications
Furniture, light automation, OEM motion
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

제품 개요

The SLA017 1200N electric linear actuator is a compact DC motion solution for furniture, light automation and OEM assemblies that need reliable push/pull force without a large mechanical footprint. Designed around a brushed DC motor and metal gearbox, it delivers predictable travel with built-in limit switches that stop the stroke at fully extended and retracted positions.

주요 특징

  • Compact DC electric linear actuator up to 1200N thrust
  • 12V / 24V DC working voltage options
  • Built-in limit switches for end-of-travel protection
  • Quiet operation suitable for furniture and light automation
  • Clevis or custom mounting interfaces available
  • OEM customization for stroke, speed and cable length

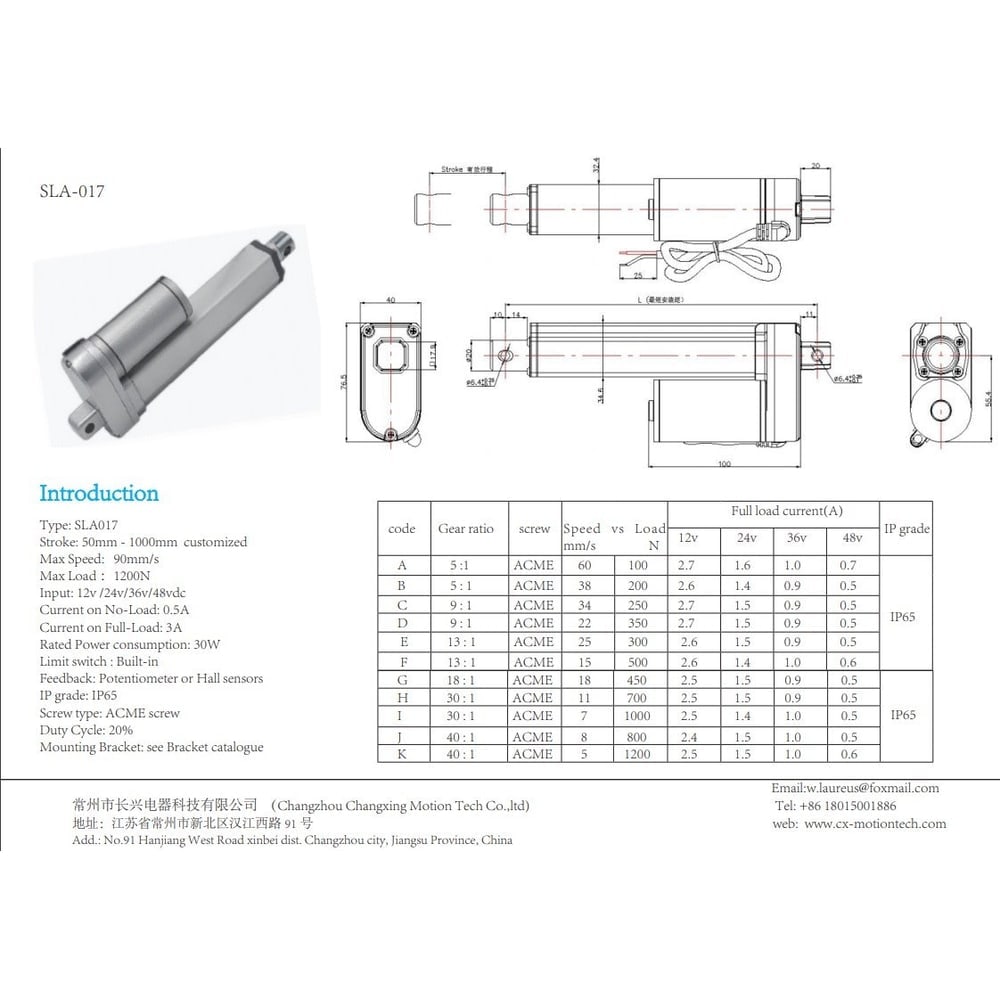

기술 사양

Model SLA017
Max Load 1200N
Working Voltage 12V / 24V DC
Built-in Limit Switch Yes
Motor Type Brushed DC
Applications Furniture, light automation, OEM motion

적용 분야

  • Furniture lift assists
  • Light industrial automation
  • OEM motion modules

추가 세부 정보

Linear Actuator

SLA017 1200N linear actuator

The SLA017 1200N electric linear actuator is a compact DC motion solution for furniture, light automation and OEM assemblies that need reliable push/pull force without a large mechanical footprint. Designed around a brushed DC motor and metal gearbox, it delivers predictable travel with built-in limit switches that stop the stroke at fully extended and retracted positions.

Operation

Apply DC power with one polarity to extend and reverse polarity to retract. Built-in limit switches cut motor current at end of travel to protect the gearbox and application structure.

Notes:

  • Select load and speed based on your duty cycle and mounting orientation.
  • Continuous operation at maximum rated load is not recommended.
  • Custom configurations are available for OEM projects.

Need a Custom Configuration?

Contact Elerover for voltage, stroke, speed, feedback, cable length and connector customization. Messages go to [email protected].
