SLA01 vérin linéaire 900N

Application:
Mainly used for doors, windows, cellars, trapdoors, solar tracking system, medical devices, agricultural machinery, vehicles,
ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other
electrical equipment. It can open, close, push, pull, lift and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments

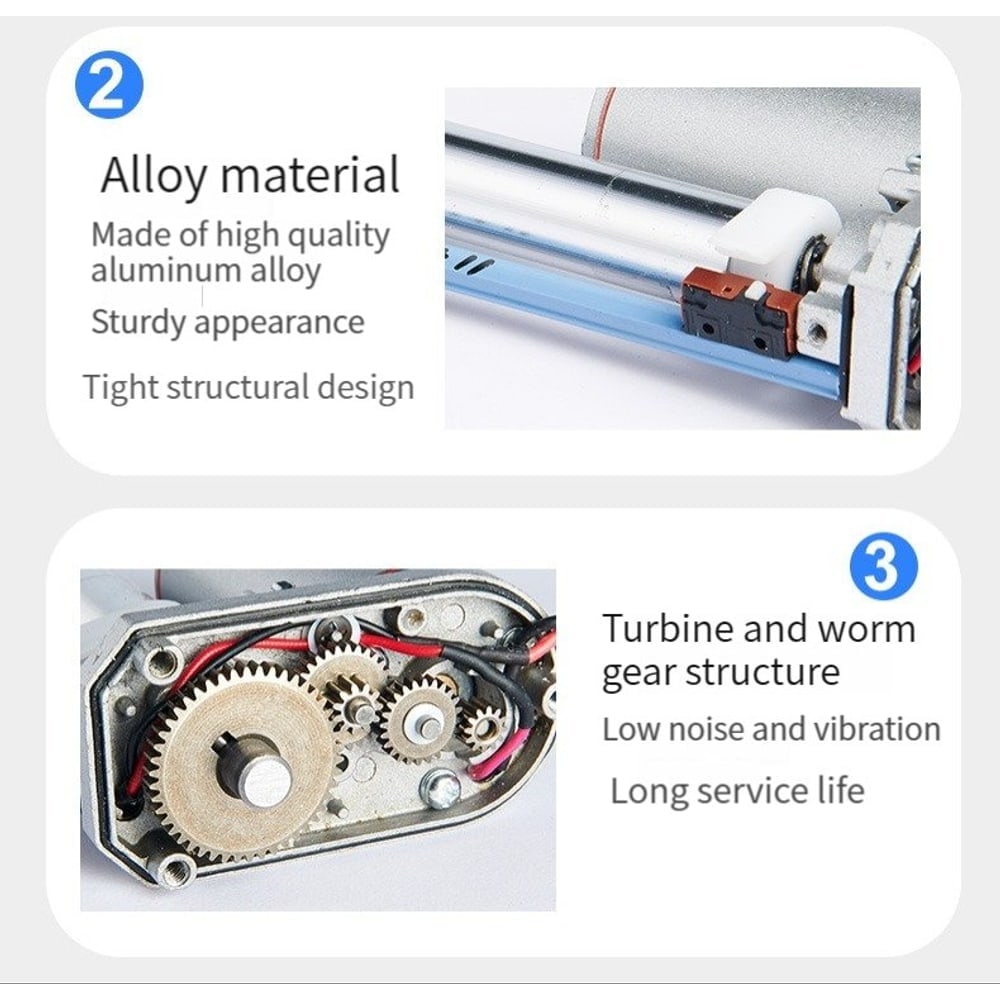

Metal gearbox, high strength wear-resistant gear

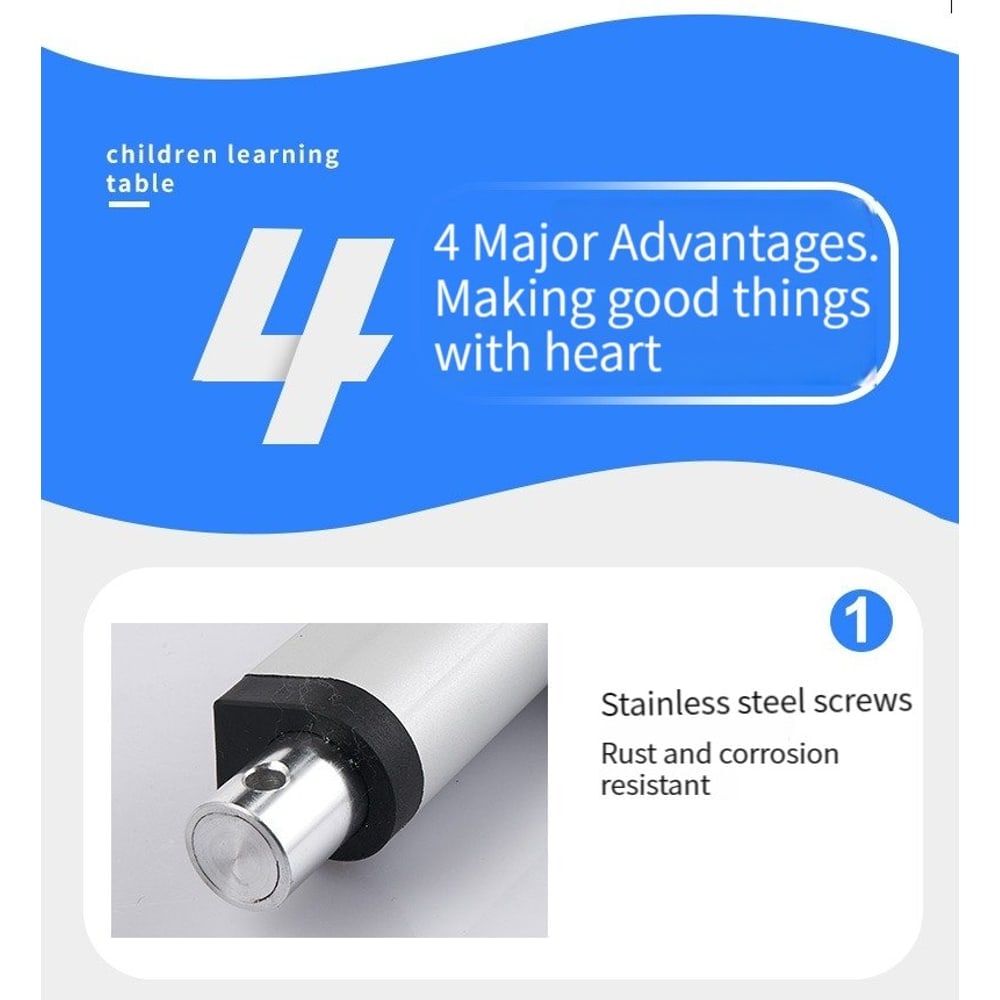

Stainless steel telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 900N / 90 Kgs / 200lbs
Multiple speed options, from 5 mm/second to 80 mm/second
Multiple stroke options, from 10 mm to 1000 mm
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in clutch to protect gears and motors
Built-in motor overload and overheat protection
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.

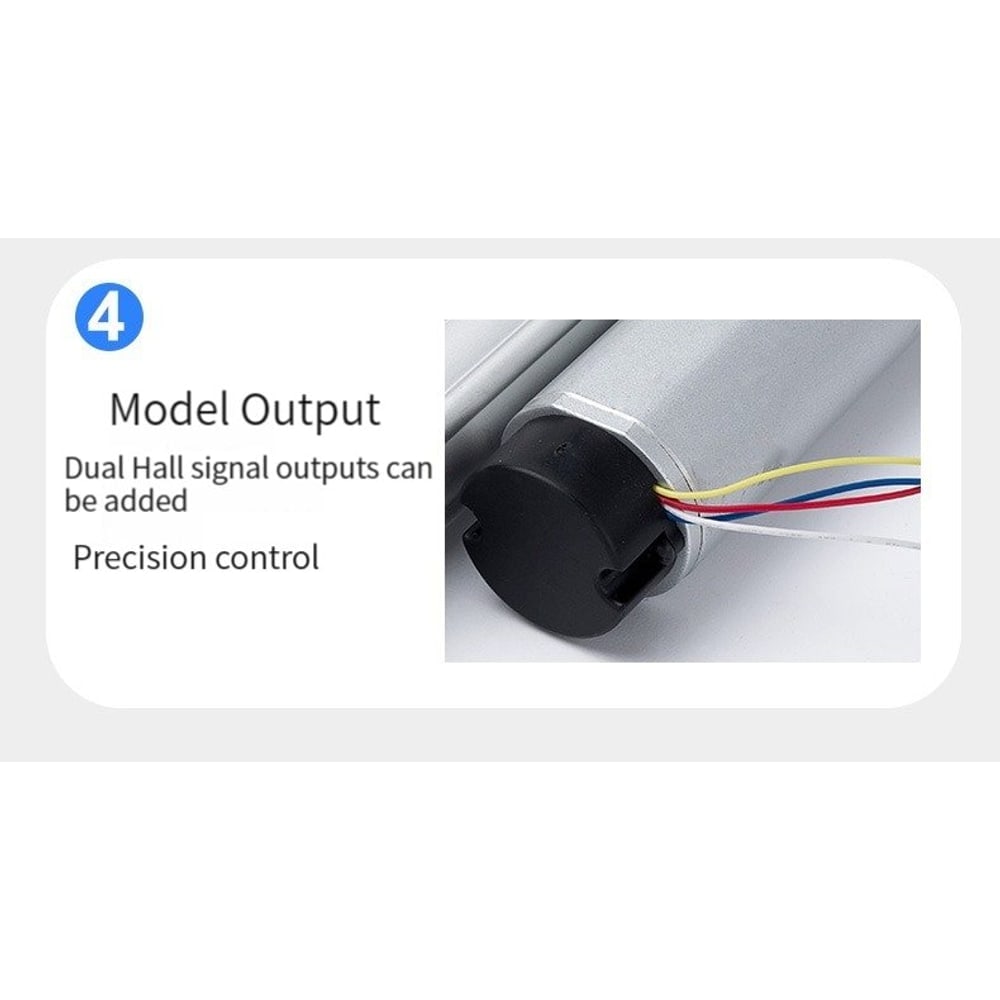

Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2 or 4 linear actuators fully
synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

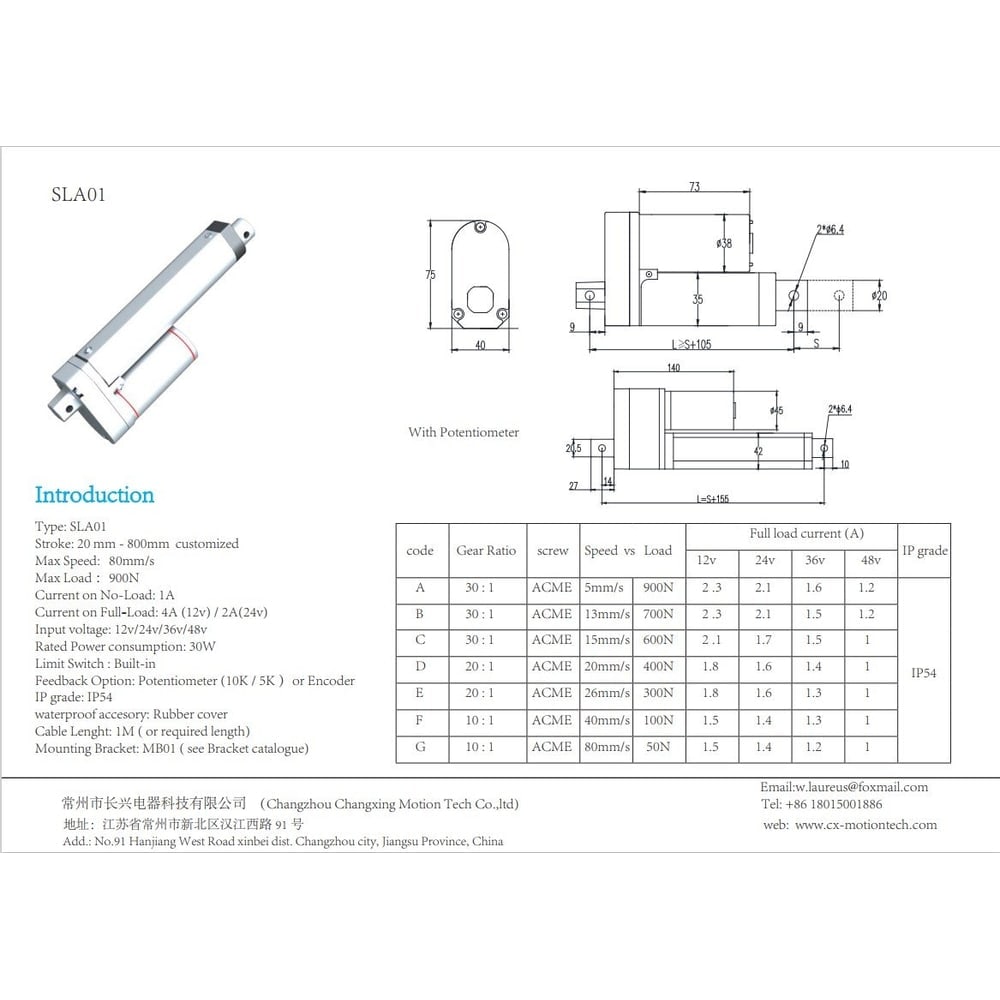

Specifications:
Optional working voltage: DC 12V, DC 24V, DC 36V or DC 48V, we recommend 24V working voltage.
Stroke range: 0.4 ~ 60 inches or 10 ~ 1500 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±6mm/s, 40±8mm/s, 60±12mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 900N / 90 Kgs / 200 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than
pushing force.
No-load current: 0.8~1A at 12V or 0.4~0.5A at 24V
Full load current: 2.5~3A at 12V or 1.4~1.6A at 24V
Please use a 12V/1.5A or 24V/1A power supply to power a linear actuator, or use a 12V/3A or 24V/2A power supply to power two
linear actuators, or use a 12V/6A or 24V/4A power supply to power four linear actuators.
Shaft diameter: 20mm
Mounting holes diameter: 6.5mm
Housing Material: Stainless steel
Stroke Rod Material: Stainless steel
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty Cycle: 10%, max 2mins continuous use
Plug Standard: Ordinary Two-core Wire, or Six-core Wire (with Hall effect sensor)
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 45dB~55dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65/Ip68
