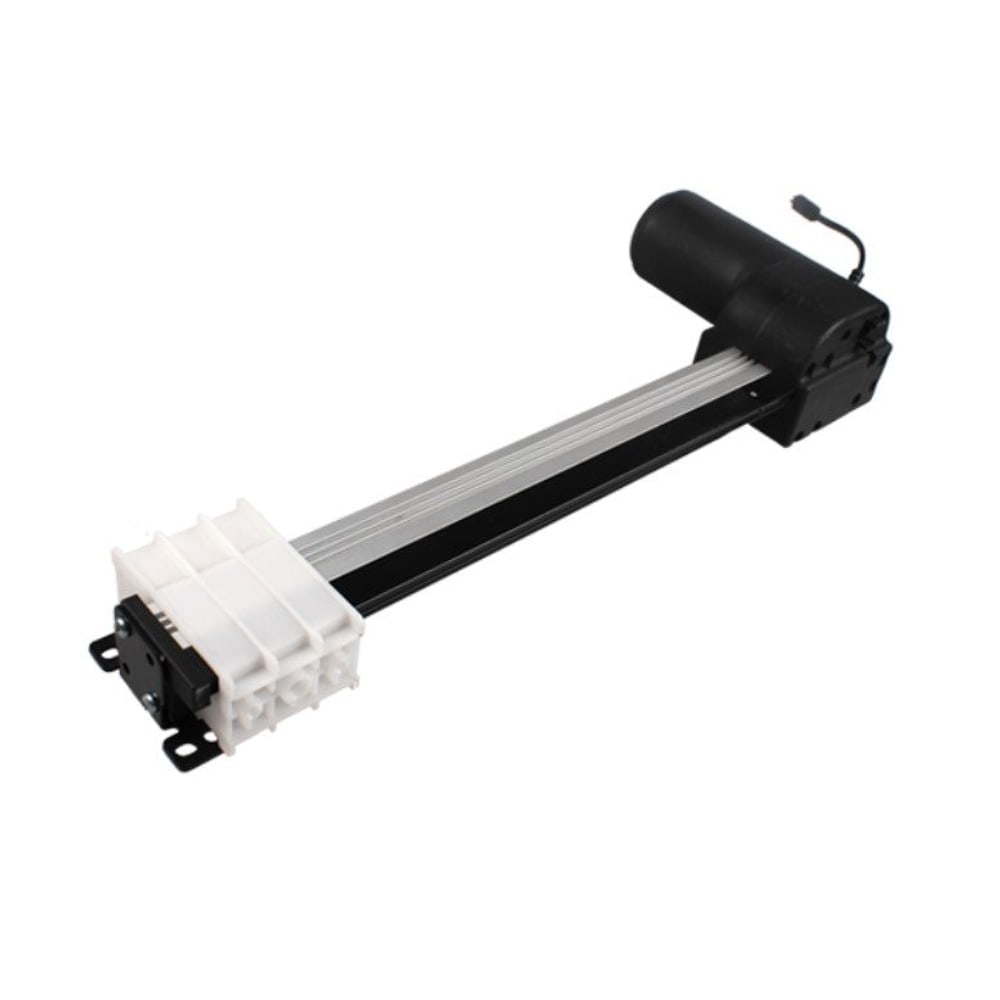

SLA-PT02 vérin linéaire pour lit

1 / 5

Vérin linéaire

SLA-PT02 vérin linéaire pour lit

1) Poussée jusqu’à 4000N. 2) Tension d’entrée 12V / 24V DC. 3) Dimension d’installation min. : S + 155mm. 4) Classe de protection standard IP43. 5) Boîtier plastique haute résistance...

Manufactured and supplied by Elerover — Vérin linéaire manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Paramètres clés

Name:
Slide Linear Actuator
Model:
SLA-PT02
Usage:
Electric Sofa, Recliner Sofa, Electric TV Lift, Electric Cabinet Lift, other Application use
Certificate:
CE / EMC + LVD, RoHS
Type of Duty:
S2 — 10 min (2 minutes work, 18 minutes rest)
Limit Switch:
Builtin / Inner (can not be adjust after left factory)
Input Voltage:
12v or 24v DC
Load Capacity:
750N, 1500N, 4000N
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Aperçu du produit

Electric Linear Actuator SLA-PT02 for Recliner Sofas and Chairs Overview The Electric Linear Actuator SLA-PT02 is specifically designed for recliner sofas and chairs, offering smooth and reliable performance for raising or lowering the backrest. This actuator operates by adjusting the white slider, ensuring a comfortable and customizable seating experience. Key Features High Thrust Capacity: Capable of up to 4000N thrust, providing powerful and stable movement. Voltage Options: Operates with 12V or 24V DC input voltage for versatile application. Compact Design: Minimum installation dimension of S + 155mm, making it ideal for space-constrained environments. Standard Protection: IP43 protection class ensures durability and safe operation. Durable Construction: High-strength plastic housing protects the motor and gears, with black plastic parts and an anodized aluminum profile for added strength. Low Noise Level: Operates at a noise level of 48 dB when not loaded, ensuring a quiet and comfortable user experience. Elegant Appearance: Combines black plastic components with a natural anodized aluminum profile for a sleek and modern look. Duty Cycle: Maximum duty cycle of 10%, allowing for 2 minutes of continuous use followed by 18 minutes of rest. Specifications Thrust: Up to 4000N Voltage: 12V / 24V DC Installation Dimension: S + 155mm Protection Class: IP43 Housing Material: High-strength plastic Color: Black plastic parts and natural anodized aluminum profile Noise Level: 48 dB (actuator not loaded) Duty Cycle: Max 10% (2 minutes continuous use followed by 18 minutes rest) Applications The SLA-PT02 Electric Linear Actuator is perfect for: Recliner Sofas: Smoothly adjusting the backrest position for optimal comfort. Recliner Chairs: Providing precise and quiet backrest adjustments. Home Furniture: Enhancing the functionality and comfort of various seating solutions. Benefits Powerful Performance: High thrust capacity ensures reliable operation even under heavy loads. Ve

Caractéristiques clés

  • Forte capacité de poussée : jusqu’à 4000N pour un mouvement puissant et stable.
  • Options de tension : 12V ou 24V DC pour une application polyvalente.
  • Conception compacte : dimension d’installation min. S + 155mm.
  • Protection standard : IP43 pour durabilité et sécurité.
  • Construction durable : boîtier plastique haute résistance et profilé aluminium anodisé.
  • Niveau de bruit faible : 48 dB à vide pour un confort acoustique.
  • Apparence élégante : composants plastiques noirs et profilé aluminium anodisé naturel.
  • Facteur de marche : 10 % max., 2 minutes de fonctionnement puis 18 minutes de repos.
  • Poussée : jusqu’à 4000N
  • Tension : 12V / 24V DC
  • Dimension d’installation : S + 155mm
  • Classe de protection : IP43

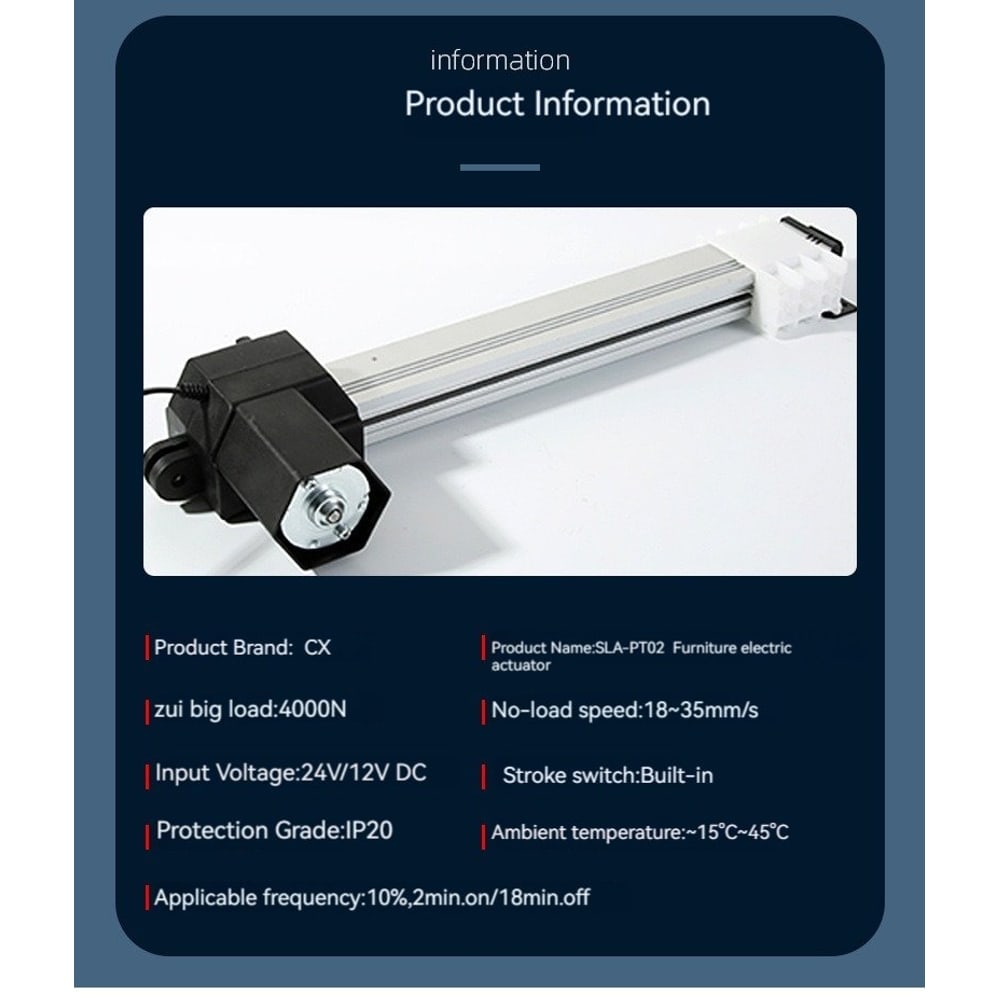

Spécifications techniques

Name: Slide Linear Actuator
Model: SLA-PT02
Usage: Electric Sofa, Recliner Sofa, Electric TV Lift, Electric Cabinet Lift, other Application use
Input Voltage: 12v or 24v DC
Load Capacity: 750N, 1500N, 4000N
Free Load Speed: 35mm/s, 18mm/s, 8mm/s
Standard Stroke: 50 mm — 1000mm (Optional)
Installation Dimension: S + 205mm
Type of Duty: S2 — 10 min (2 minutes work, 18 minutes rest)
Limit Switch: Builtin / Inner (can not be adjust after left factory)
Work Temp.: -26 to 65 centigrade
Protection Grade: IP43
Certificate: CE / EMC + LVD, RoHS

Applications

  • Canapés relax : réglage fluide du dossier pour un confort optimal.
  • Fauteuils relax : réglages précis et silencieux du dossier.
  • Mobilier domestique : améliore la fonctionnalité et le confort des solutions d’assise.

FAQ

Qu’est-ce que le SLA-PT02 ?

1) Poussée jusqu’à 4000N. 2) Tension d’entrée 12V / 24V DC. 3) Dimension d’installation min. : S + 155mm. 4) Classe de protection standard IP43. 5) Boîtier plastique haute résistance...

Elerover fabrique-t-il le SLA-PT02 ?

Oui. Elerover est fabricant et fournisseur de vérin linéaire. Ce modèle propose des options OEM indiquées dans les données produit — indiquez le cycle de service et la quantité pour un devis usine.

Quelles sont les caractéristiques clés du SLA-PT02 ?

Forte capacité de poussée : jusqu’à 4000N pour un mouvement puissant et stable. ; Options de tension : 12V ou 24V DC pour une application polyvalente. ; Conception compacte : dimension d’installation min. S + 155mm.. Voir Caractéristiques clés sur cette page.

Pour quelles applications le SLA-PT02 est-il prévu ?

Applications typiques : Canapés relax : réglage fluide du dossier pour un confort optimal., Fauteuils relax : réglages précis et silencieux du dossier., Mobilier domestique : améliore la fonctionnalité et le confort des solutions d’assise..

Comment demander un devis pour le SLA-PT02 ?

Indiquez charge, course, tension, indice IP, cycle de service, quantité et options OEM via le formulaire de contact ou WhatsApp.

Détails supplémentaires

Electric Linear Actuator SLA-PT02 for Recliner Sofas and Chairs

The Electric Linear Actuator SLA-PT02 is specifically designed for recliner sofas and chairs, offering smooth and reliable performance for raising or lowering the backrest. This actuator operates by adjusting the white slider, ensuring a comfortable and customizable seating experience.

  • High Thrust Capacity: Capable of up to 4000N thrust, providing powerful and stable movement.
  • Voltage Options: Operates with 12V or 24V DC input voltage for versatile application.
  • Compact Design: Minimum installation dimension of S + 155mm, making it ideal for space-constrained environments.
  • Standard Protection: IP43 protection class ensures durability and safe operation.
  • Durable Construction: High-strength plastic housing protects the motor and gears, with black plastic parts and an anodized aluminum profile for added strength.
  • Low Noise Level: Operates at a noise level of 48 dB when not loaded, ensuring a quiet and comfortable user experience.
  • Elegant Appearance: Combines black plastic components with a natural anodized aluminum profile for a sleek and modern look.
  • Duty Cycle: Maximum duty cycle of 10%, allowing for 2 minutes of continuous use followed by 18 minutes of rest.
  • Thrust: Up to 4000N
  • Voltage: 12V / 24V DC
  • Installation Dimension: S + 155mm
  • Protection Class: IP43
  • Housing Material: High-strength plastic
  • Color: Black plastic parts and natural anodized aluminum profile
  • Noise Level: 48 dB (actuator not loaded)
  • Duty Cycle: Max 10% (2 minutes continuous use followed by 18 minutes rest)

The SLA-PT02 Electric Linear Actuator is perfect for:

  • Recliner Sofas: Smoothly adjusting the backrest position for optimal comfort.
  • Recliner Chairs: Providing precise and quiet backrest adjustments.
  • Home Furniture: Enhancing the functionality and comfort of various seating solutions.

Benefits

  • Powerful Performance: High thrust capacity ensures reliable operation even under heavy loads.
  • Versatile Voltage: Compatible with both 12V and 24V DC inputs for flexible use.
  • Space-Saving Design: Compact installation dimensions make it suitable for various furniture designs.
  • Durability: Built with high-quality materials to withstand regular use and ensure a long lifespan.
  • Quiet Operation: Low noise level enhances the user experience, especially in quiet environments.
  • Stylish Look: Modern and elegant design fits seamlessly with contemporary furniture aesthetics.

Contact Us

For more information about the Electric Linear Actuator SLA-PT02 and how it can enhance your recliner sofas and chairs, please contact us.

Name: Slide Linear Actuator
Model: SLA-PT02
Usage: Electric Sofa, Recliner Sofa, Electric TV Lift, Electric Cabinet Lift,

other Application use
Input Voltage: 12v or 24v DC
Load Capacity: 750N, 1500N, 4000N
Free Load Speed: 35mm/s, 18mm/s, 8mm/s
Standard Stroke: 50 mm — 1000mm (Optional)
Installation Dimension: S + 205mm
Type of Duty: S2 — 10 min (2 minutes work, 18 minutes rest)
Limit Switch: Builtin / Inner (can not be adjust after left factory)
Work Temp.: -26 to 65 centigrade
Protection Grade: IP43
Certificate: CE / EMC + LVD, RoHS
