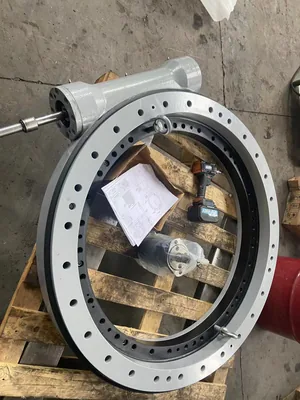

Accionamiento de giro
Modelo WH37-150-RH-250A
WH37 37-Inch Slewing Drive | Heavy-Duty Hydraulic Worm Gear Industrial Rotary Drive
WH37 37-Inch Slewing Drive | Heavy-Duty Hydraulic Worm Gear Industrial Rotary Drive from Elerover.
Especificaciones clave
- Par de salida
- 26,820 N·m / 19,793 lbf·ft
- Par de retención
- 230 kN·m / 170×10³ lbf·ft
- Momento de inclinación
- 450 kN·m / 332×10³ lbf·ft
- Carga axial
- 2,100 kN / 472×10³ lbf
Descripción del producto
WH37 37-Inch Slewing Drive | Heavy-Duty Hydraulic Worm Gear Industrial Rotary Drive from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- Par de salida
- 26,820 N·m / 19,793 lbf·ft
- Par de retención
- 230 kN·m / 170×10³ lbf·ft
- Momento de inclinación
- 450 kN·m / 332×10³ lbf·ft
- Carga axial
- 2,100 kN / 472×10³ lbf
- Carga radial
- 900 kN / 202×10³ lbf
- Relación de reducción
- 150:1
Aplicaciones
- Industrial turntables
- Heavy lifting and positioning
- Construction machinery
- Mining and material handling
- Precision CNC / index tables
- OEM heavy rotary platforms
Ventajas
- 37-inch hydraulic worm-gear slewing drive for industrial use
- Output torque 26,820 N·m / holding torque 230 kN·m
- Tilting moment 450 kN·m
- Gear ratio 150:1 with precision ≤ 0.15°
- Rated output speed 0.88 rpm
- BMR250-class hydraulic motor interface (RH-250A)

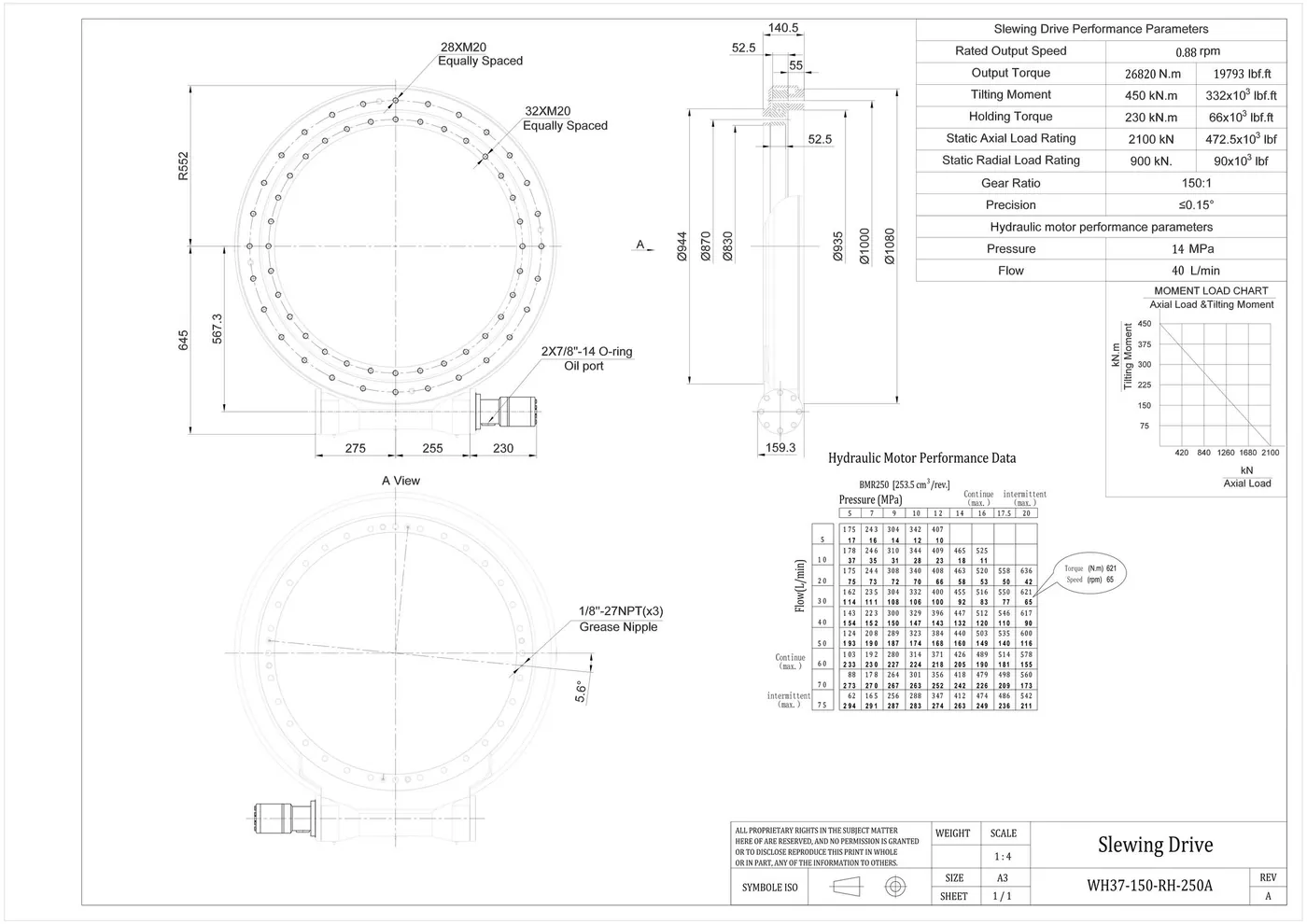

Especificaciones técnicas
| Drive type | 37-inch hydraulic worm-gear slewing drive |
|---|---|
| Par de salida | 26,820 N·m / 19,793 lbf·ft |
| Par de retención | 230 kN·m / 170×10³ lbf·ft |
| Momento de inclinación | 450 kN·m / 332×10³ lbf·ft |
| Carga axial | 2,100 kN / 472×10³ lbf |
| Carga radial | 900 kN / 202×10³ lbf |
| Relación de reducción | 150:1 |
| Holgura | ≤ 0.15° |
Configuration options
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.88 rpm | — |
| Output Torque | 26,820 N·m | 19,793 lbf·ft |
| Tilting Moment | 450 kN·m | 332×10³ lbf·ft |
| Holding Torque | 230 kN·m | 170×10³ lbf·ft |
| Static Axial Load Rating | 2,100 kN | 472×10³ lbf |
| Static Radial Load Rating | 900 kN | 202×10³ lbf |
| Gear Ratio | 150:1 | — |
| Precision | ≤ 0.15° | — |
