SLA-TG20S 4000N actuador hidroeléctrico

1 / 5

Actuador hidroeléctrico

SLA-TG20S 4000N actuador hidroeléctrico

SLA-TG20S 4000N actuador hidroeléctrico is supplied by Elerover as a actuador hidroeléctrico for OEM and industrial motion projects. Key ratings include DC12V/24V/48V operation, up to 4000N load, 50~800mm stroke. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Actuador hidroeléctrico manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Parámetros clave

Voltage
DC12V/24V/48V
Stroke
50~800mm
Push force
4000N
Pull force
1100N
Max Speed
26-30mm/s
Power
300W
Temperature
-20~60℃
Frequency
4min/each time
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Descripción general del producto

High-Force Small Hydraulic Linear Actuator for Industrial Applications Introducing the SLA-TG-20S small hydraulic linear actuator, designed for exceptional performance and reliability in a variety of industrial applications. With a jacking force of 4000N and a retracting force of 1100N, this actuator is perfect for lifting platforms and industrial automation equipment. Equipped with a 12V/24V/48V DC motor and offering optional stroke lengths from 50mm to 800mm, our hydraulic linear actuator combines strength, stability, and convenience at an attractive price point. Key Features High Force Capability : Provides a robust 4000N jacking force and 1100N retracting force, ideal for demanding applications. Integrated Protection Mechanisms : Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system. High Stability and Performance : Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability. Ease of Use : Ready to use upon connection to a power supply, with no need for additional hydraulic components. Customizable Options : Pressure output interface and mounting dimensions can be tailored to specific requirements. Specifications Model : SLA-TG-20S Input Voltage : 12V / 24V / 48V DC Power : 300W / 800W Stroke Length : Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 800mm (Customizable within 50mm-800mm range) Jacking Force : 4000N Retracting Force : 1100N Speed : 26-30mm/s, 50-58mm/s Protection Grade : IPx6 Operating Temperature : -30°C to +70°C Duty Cycle : Long-term continuous use, up to 6 minutes at a time Weight : 5-15 kg Item TG20 Customized TG20 Customized Voltage DC12V/24V/48V DC24V/48V Power 300W 800W Stroke 50~800mm 50~800mm Push force 4000N 4000N Pull force 1100N 1100N Max Speed 26-30mm/s 50-58mm/s Temperature -20~60℃ -20~60℃ Frequency 4min/each time 4min/each time Waterproof rate IP6X IP6X Applications Our hydraulic linear actuators are ideal for a va

Características clave

  • Alta capacidad de fuerza : Fuerza de elevación 4000N y retracción 1100N, ideal para aplicaciones exigentes.
  • Mecanismos de protección integrados : Protección contra sobrecorriente, sobrecarga y sobrecalentamiento, con autobloqueo bidireccional del cilindro hidráulico.
  • Alta estabilidad y rendimiento : Válvula de autobloqueo, válvula inversora y válvula de sobrepresión para mayor estabilidad.
  • Facilidad de uso : Listo para usar al conectar la alimentación, sin componentes hidráulicos adicionales.
  • Opciones personalizables : Interfaz de salida de presión y dimensiones de montaje adaptables a requisitos específicos.
  • Modelo : SLA-TG-20S
  • Tensión de entrada : 12V / 24V / 48V DC
  • Potencia : 300W / 800W
  • Longitud de carrera : Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 800mm (Customizable within 50mm-800mm range)
  • Fuerza de elevación : 4000N
  • Fuerza de retracción : 1100N
  • Velocidad : 26-30mm/s, 50-58mm/s

Especificaciones técnicas

Item TG20 Customized
Voltage DC12V/24V/48V
Power 300W
Stroke 50~800mm
Push force 4000N
Pull force 1100N
Max Speed 26-30mm/s
Temperature -20~60℃
Frequency 4min/each time
Waterproof rate IP6X
nced stability. Ease of Use Ready to use upon connection to a power supply, with no need for additional hydr
aulic components. Customizable Options Pressure output interface and mounting dimensions can be tailored to specific re

Aplicaciones

  • Plataformas elevadoras
  • Equipos de automatización industrial
  • Maquinaria pesada
  • Equipos de construcción
  • Maquinaria agrícola
  • Dispositivos médicos

Detalles adicionales

High-Force Small Hydraulic Linear Actuator for Industrial Applications

Introducing the SLA-TG-20S small hydraulic linear actuator, designed for exceptional performance and reliability in a variety of industrial applications. With a jacking force of 4000N and a retracting force of 1100N, this actuator is perfect for lifting platforms and industrial automation equipment. Equipped with a 12V/24V/48V DC motor and offering optional stroke lengths from 50mm to 800mm, our hydraulic linear actuator combines strength, stability, and convenience at an attractive price point.Electric Hydraulic Actuator - SLA-TG20S 4000N Electric hydraulic linear actuator - Detail view 1

  • High Force Capability: Provides a robust 4000N jacking force and 1100N retracting force, ideal for demanding applications.

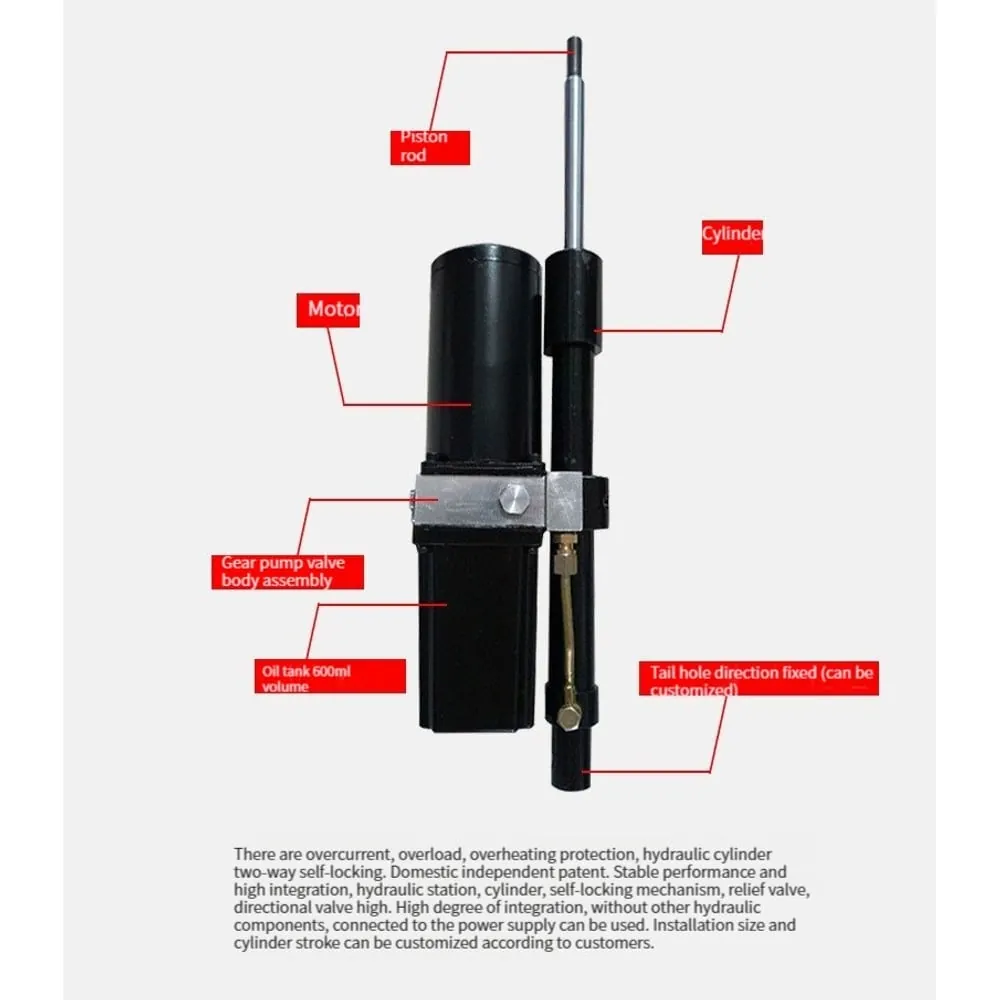

  • Integrated Protection Mechanisms: Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
  • High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
  • Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components.
  • Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements.
  • Model: SLA-TG-20S
  • Input Voltage: 12V / 24V / 48V DC
  • Power: 300W / 800W
  • Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 800mm (Customizable within 50mm-800mm range)
  • Jacking Force: 4000N
  • Retracting Force: 1100N
  • Speed: 26-30mm/s, 50-58mm/s
  • Protection Grade: IPx6
  • Operating Temperature: -30°C to +70°C
  • Duty Cycle: Long-term continuous use, up to 6 minutes at a time
  • Weight: 5-15 kg
Item
TG20 Customized
TG20 Customized
Voltage
DC12V/24V/48V
 DC24V/48V
Power
300W
800W
Stroke
50~800mm
50~800mm
Push force
4000N
4000N
Pull force
1100N
1100N
Max Speed
26-30mm/s
50-58mm/s
Temperature
-20~60℃
-20~60℃
Frequency
4min/each time
4min/each time
Waterproof rate
IP6X
IP6X

Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to:

  • Lifting Platforms
  • Industrial Automation Equipment
  • Heavy Machinery
  • Construction Equipment
  • Agricultural Machinery
  • Medical Devices

Why Choose Our Hydraulic Linear Actuator?

Our hydraulic linear actuators provide a powerful, reliable, and easy-to-install solution for your lifting and automation needs. With high force capabilities, integrated protection mechanisms, and customizable options, they are designed to meet the specific demands of your projects. Whether you need to lift, push, or pull, our actuators offer the performance and durability you need to get the job done efficiently.

Enhance your systems with our high-force hydraulic linear actuators and experience superior performance and reliability. Contact us today to learn more about how our actuators can meet your specific application requirements.
