SLA-NH63S 50000N actuador hidroeléctrico

1 / 5

Actuador hidroeléctrico

SLA-NH63S 50000N actuador hidroeléctrico

SLA-NH63S 50000N actuador hidroeléctrico is supplied by Elerover as a actuador hidroeléctrico for OEM and industrial motion projects. Key ratings include DC24V/48V operation, up to 50000N load, 100-600mm stroke. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Actuador hidroeléctrico manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Parámetros clave

voltage
DC24V/48V
stroke
100-600mm
push force
50000N
pull force
35000N
power
800W
temperature
-30-70℃
speed
6-7mm/s
frequency
6min/ each time
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Descripción general del producto

High-Force Small Hydraulic Linear Actuator for Industrial Applications Introducing the SLA-NH-63S small hydraulic linear actuator, designed for exceptional performance and reliability in demanding environments. With a jacking force of 5T and a retracting force of 3.2T, this actuator is ideal for lifting platforms and industrial automation equipment. Equipped with a 24V/48V DC motor and offering optional stroke lengths from 50mm to 500mm, our hydraulic linear actuator combines power, stability, and convenience at a competitive price. Key Features: High Force Capability : Delivers a robust 5T jacking force and 3.2T retracting force, perfect for heavy-duty applications. Integrated Protection Mechanisms : Features over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system. High Stability and Performance : Includes a self-locking valve, reversing valve, and over-pressure valve for enhanced stability. Ease of Use : Ready to use upon connection to a power supply, eliminating the need for additional hydraulic components. Customizable Options : Pressure output interface and mounting dimensions can be tailored to specific requirements. Specifications: Model : SLA-NH-63S Input Voltage : 24V / 48V DC Power : 800W / 1000W / 1200W Stroke Length : Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm (Customizable within 50mm-500mm range) Jacking Force : 5T Retracting Force : 3.2T Speed : 6-7mm/s, 10-11mm/s, 16-17mm/s Protection Grade : IP6X Operating Temperature : -20°C to +60°C Duty Cycle : Long-term continuous use, up to 6 minutes at a time Weight : 5-15 kg Item NH63 Customize NH63 Customize NH63 Customize voltage DC24V/48V DC24V/48V DC24V/48V power 800W 1000W 1200W displacement 0.38CC 0.6CC 0.88CC stroke 100-600mm 100-600mm 100-600mm push force 50000N 50000N 50000N pull force 35000N 35000N 35000N speed 6-7mm/s 10-11mm/s 14-15mm/s temperature -30-70℃ -30-70℃ -30-70℃ frequency 6min/ each time 6min/ each time 6min/ each

Características clave

  • Alta capacidad de fuerza : Fuerza de elevación 5T y retracción 3,2T, ideal para aplicaciones de alta carga.
  • Mecanismos de protección integrados : Features over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
  • Alta estabilidad y rendimiento : Incluye válvula de autobloqueo, inversora y de sobrepresión para mayor estabilidad.
  • Facilidad de uso : Listo para usar al conectar la alimentación, sin componentes hidráulicos adicionales.
  • Opciones personalizables : Interfaz de salida de presión y dimensiones de montaje adaptables a requisitos específicos.
  • Modelo : SLA-NH-63S
  • Tensión de entrada : 24V / 48V DC
  • Potencia : 800W / 1000W / 1200W
  • Longitud de carrera : Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm (Customizable within 50mm-500mm range)
  • Fuerza de elevación : 5T
  • Fuerza de retracción : 3.2T
  • Velocidad : 6-7mm/s, 10-11mm/s, 16-17mm/s

Especificaciones técnicas

Item NH63 Customize
voltage DC24V/48V
power 800W
displacement 0.38CC
stroke 100-600mm
push force 50000N
pull force 35000N
speed 6-7mm/s
temperature -30-70℃
frequency 6min/ each time
waterproof rate IPX6
nced stability. Ease of Use Ready to use upon connection to a power supply, eliminating the need for additio

Aplicaciones

  • Plataformas elevadoras
  • Equipos de automatización industrial
  • Maquinaria pesada
  • Equipos de construcción
  • Maquinaria agrícola
  • Dispositivos médicos

Detalles adicionales

High-Force Small Hydraulic Linear Actuator for Industrial Applications

Introducing the SLA-NH-63S small hydraulic linear actuator, designed for exceptional performance and reliability in demanding environments. With a jacking force of 5T and a retracting force of 3.2T, this actuator is ideal for lifting platforms and industrial automation equipment. Equipped with a 24V/48V DC motor and offering optional stroke lengths from 50mm to 500mm, our hydraulic linear actuator combines power, stability, and convenience at a competitive price.

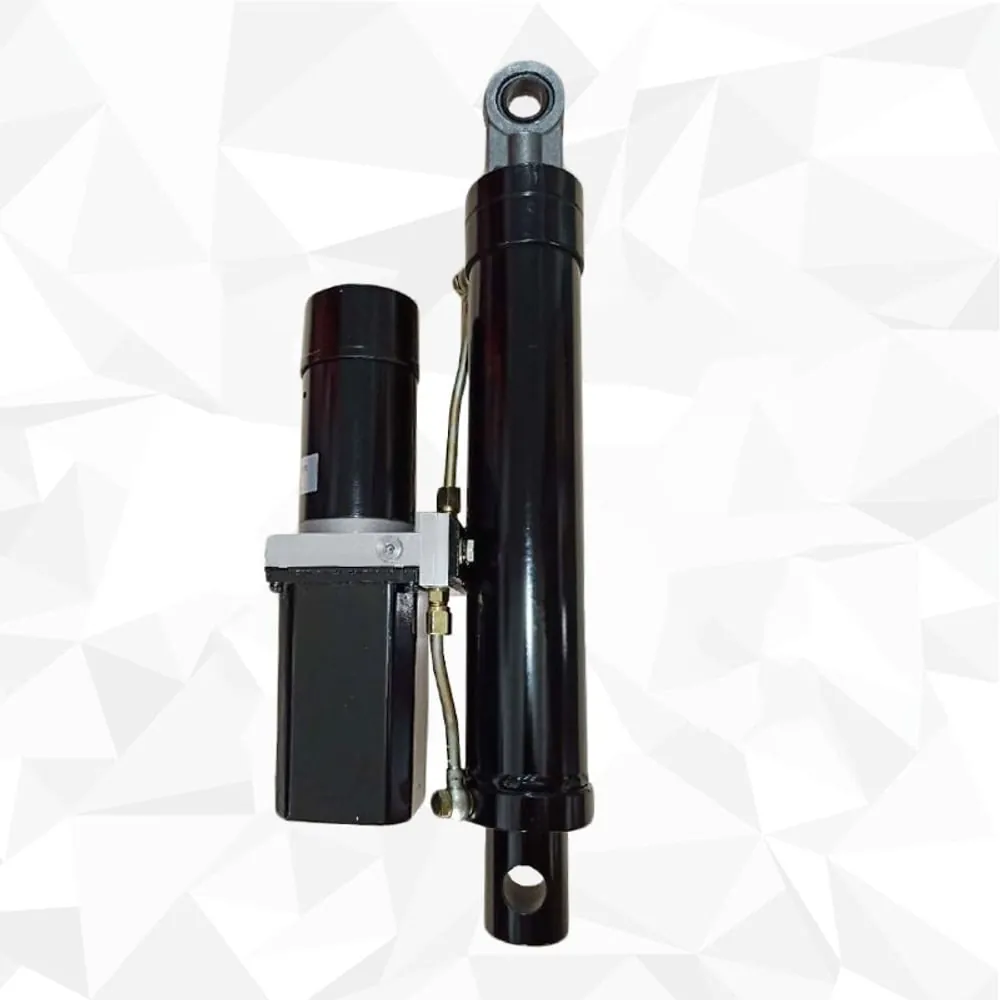

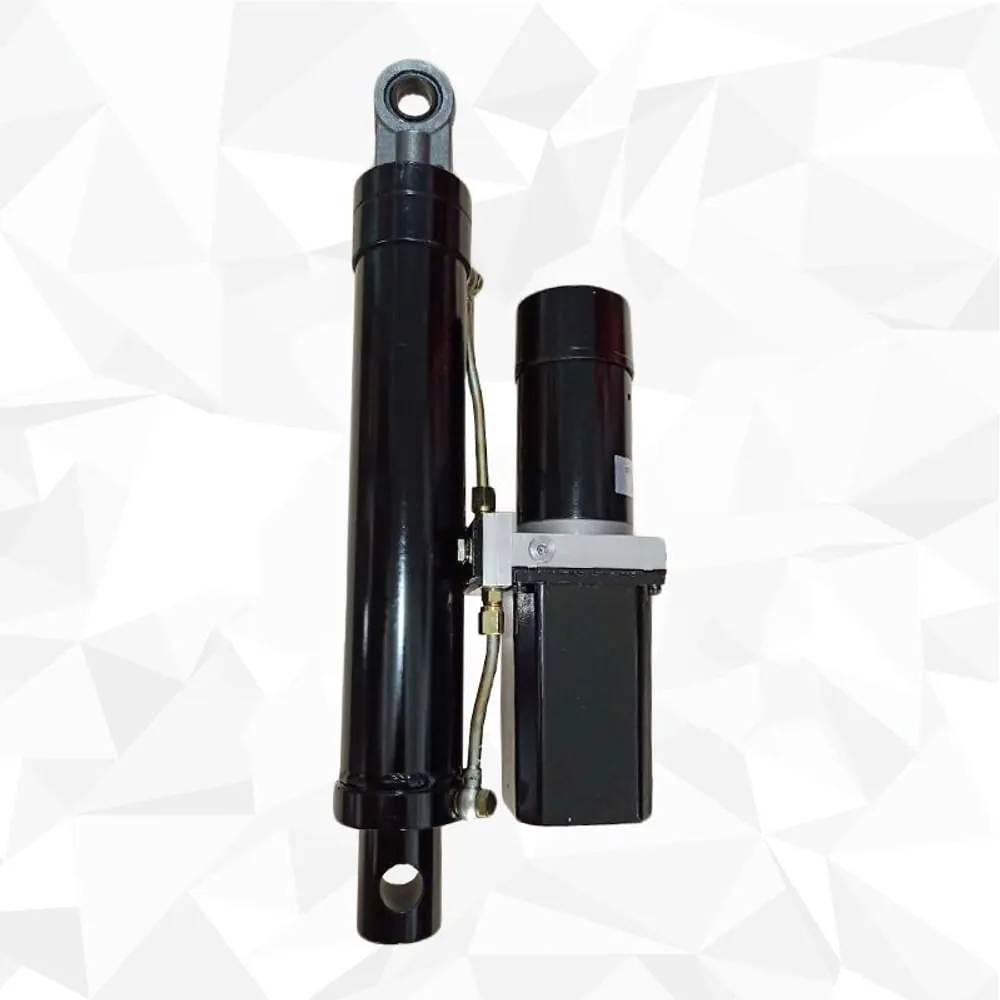

Electric Hydraulic Actuator - SLA-NH63S 50000N load electric hydraulic linear actuator - Detail view 1

  • High Force Capability: Delivers a robust 5T jacking force and 3.2T retracting force, perfect for heavy-duty applications.
  • Integrated Protection Mechanisms: Features over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
  • High Stability and Performance: Includes a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
  • Ease of Use: Ready to use upon connection to a power supply, eliminating the need for additional hydraulic components.
  • Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements.
  • Model: SLA-NH-63S
  • Input Voltage: 24V / 48V DC
  • Power: 800W / 1000W / 1200W
  • Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm (Customizable within 50mm-500mm range)
  • Jacking Force: 5T
  • Retracting Force: 3.2T
  • Speed: 6-7mm/s, 10-11mm/s, 16-17mm/s
  • Protection Grade: IP6X
  • Operating Temperature: -20°C to +60°C
  • Duty Cycle: Long-term continuous use, up to 6 minutes at a time
  • Weight: 5-15 kg
Item
NH63 Customize
NH63 Customize
NH63 Customize
voltage
DC24V/48V
DC24V/48V
DC24V/48V
power
800W
1000W
1200W
displacement
0.38CC
0.6CC
0.88CC
stroke
100-600mm
100-600mm
100-600mm
push force
50000N
50000N
50000N
pull force
35000N
35000N
35000N
speed
6-7mm/s
10-11mm/s
14-15mm/s
temperature
-30-70℃
-30-70℃
-30-70℃
frequency
6min/ each time
6min/ each time
6min/ each time
waterproof rate
IPX6
IPX6
IPX6

Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to:

  • Lifting Platforms
  • Industrial Automation Equipment
  • Heavy Machinery
  • Construction Equipment
  • Agricultural Machinery
  • Medical Devices

Why Choose Our Hydraulic Linear Actuator?

Our hydraulic linear actuators provide a powerful, reliable, and easy-to-install solution for your lifting and automation needs. With high force capabilities, integrated protection mechanisms, and customizable options, they are designed to meet the specific demands of your projects. Whether you need to lift, push, or pull, our actuators offer the performance and durability you need to get the job done efficiently.

Enhance your systems with our high-force hydraulic linear actuators and experience superior performance and reliability. Contact us today to learn more about how our actuators can meet your specific application requirements.
