20MPa Central hidráulica

1 / 2

Actuador hidroeléctrico

20MPa Central hidráulica

The 20 MPa Hydraulic Station is an Elerover actuador hidroeléctrico for OEM and industrial motion projects. Key ratings include AC220V / AC380V operation. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Actuador hidroeléctrico manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Parámetros clave

Model
20 MPa Hydraulic Station
Voltage
AC220V / AC380V
10
Noise level
No
Item
Use
Heavy electric hydraulic systems
Pressure
20 MPa
Customization
Flow, pressure and reservoir available
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Descripción general del producto

No Item Data 1 Voltage AC220v/AC380v 2 Power 500W 3 Oil Volume 600ml 4 Max Pressure 20MPa 5 Displacement 0.38CC/0.63CC/0.88CC 6 Pump type Bi-directional gear pump 7 Hydraulic Oil L-HV46# 8 waterproof level IPX6 9 Frequency of use Use it continuously for 6 minutes for a long period of time 10 Noise level ＜80DB

Características clave

  • Industrial 20 MPa hydraulic power station
  • AC 220V / 380V supply for factory systems
  • High pressure capability for heavy actuators
  • Integrated hydraulic power unit design
  • Stable output for continuous industrial duty
  • Custom flow and reservoir configurations

Especificaciones técnicas

1 Voltage
2 Power
3 Oil Volume
4 Max Pressure
5 Displacement
6 Pump type
7 Hydraulic Oil
8 waterproof level
9 Frequency of use
10 Noise level
No Item
Model 20 MPa Hydraulic Station
Pressure 20 MPa
Voltage AC220V / AC380V
Use Heavy electric hydraulic systems
Customization Flow, pressure and reservoir available

Aplicaciones

  • Heavy lifting systems
  • Industrial hydraulics
  • Factory OEM equipment

Detalles adicionales

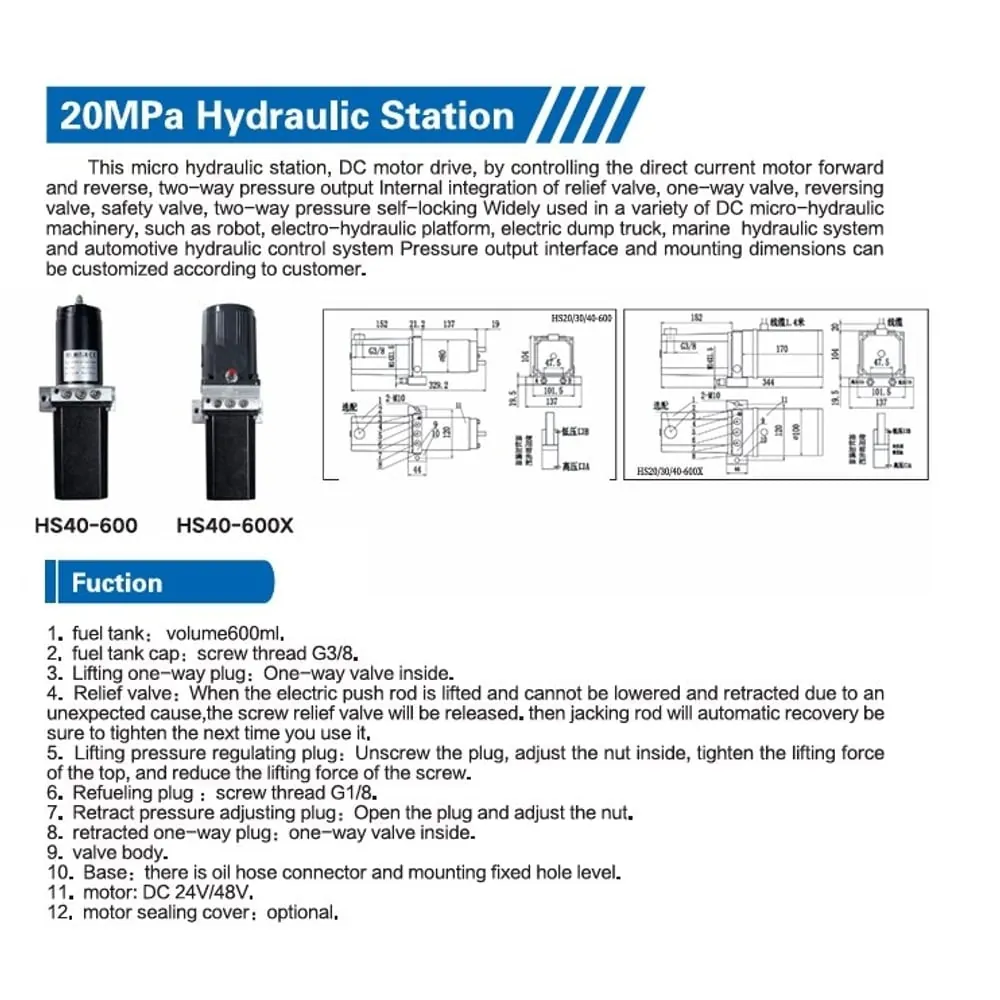

Electric Hydraulic Actuator - 20MPa Hydraulic Station - Detail view 1

Electric Hydraulic Actuator

20MPa Hydraulic Station

No Item Data 1 Voltage AC220v/AC380v 2 Power 500W 3 Oil Volume 600ml 4 Max Pressure 20MPa 5 Displacement 0.38CC/0.63CC/0.88CC 6 Pump type Bi-directional gear pump 7 Hydraulic Oil L-HV46# 8 waterproof level IPX6 9 Frequency of use Use it continuously for 6 minutes for a long period of time 10 Noise level ＜80DB

Need a Custom Configuration?

Contact Elerover for voltage, stroke, speed, feedback, cable length and connector customization. Messages go to [email protected].
