230V AC SLA45M 1500N IP68 waterproof tubular linear actuator for dynamic facades and sun shading systems

1 / 3

مشغل خطي أنبوبي مقاوم للماء IP68

230V AC SLA45M 1500N IP68 waterproof tubular linear actuator for dynamic facades and sun shading systems

SLA45M Φ45mm waterproof tubular / in-line linear actuator — up to 1500N / 150 kg / 337 lbs, 230V AC, max 9mm/s, IP66 / IP67M. Ideal for dynamic facades and sun shading systems.

Manufactured and supplied by Elerover — مشغل خطي manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

المعلمات الرئيسية

Model
SLA45M
Working Voltage
230V AC
Stroke
100–600mm
Protection Class
IP66 / IP67M
Installation Length
Approx. 410mm + stroke (minimum)
Max Speed
9mm/s
Duty Cycle
S2 ≈ 2 min / 18 min
Primary Application
dynamic facades and sun shading systems
Request OEM Quote واتساب
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

نظرة عامة على المنتج

The SLA45M is a 230V AC Φ45mm waterproof tubular / in-line linear actuator for dynamic façades and sun shading. Constant-speed AC drive suits building power supplies; IP66 / IP67M sealing supports outdoor architectural duty. In-line tubular form keeps the actuator compact on curtain-wall and shading frames.

الميزات الرئيسية

  • Φ45mm in-line tubular waterproof linear actuator
  • Max dynamic force up to 1500N / 150 kg / 337 lbs
  • Voltage: 230V AC
  • Protection: IP66 / IP67M
  • Stroke: 100–600mm
  • 316 stainless steel piston rod (typical)
  • Optional Hall / over-current / limit signal feedback
  • Primary focus: dynamic facades and sun shading systems
  • Sealed tubular housing for outdoor rain, dust and wash-down duty
  • Optional Hall feedback for multi-actuator synchronization
  • 316 stainless steel piston rod options for corrosion resistance

المواصفات الفنية

Model SLA45M
Design In-line / tubular
Diameter Φ45mm
Working Voltage 230V AC
Max Dynamic Load 1500N / 150 kg / 337 lbs
Self-locking Force Up to 1500N
Stroke 100–600mm
Installation Length Approx. 410mm + stroke (minimum)
Protection Class IP66 / IP67M
Duty Cycle S2 ≈ 2 min / 18 min
Primary Application dynamic facades and sun shading systems
Max Speed 9mm/s

التطبيقات

  • Dynamic facades
  • Sun shading systems
  • Window adjustment
  • Ventilation systems

تفاصيل إضافية

Waterproof IP68 Tubular Linear Actuator

230V AC SLA45M 1500N IP68 waterproof tubular linear actuator for dynamic facades and sun shading systems

230VAC Φ45mm in-line tubular actuator for constant-speed facade, shading and ventilation projects. Rated up to 1500N / 150 kg / 337 lbs, 230V AC, with in-line tubular packaging for visible outdoor installs such as dynamic facades and sun shading systems.

Model
SLA45M
Tube Diameter
Φ45mm
Max Force
1500N
Voltage
230V AC
Max Speed
9mm/s
Protection
IP66 / IP67M

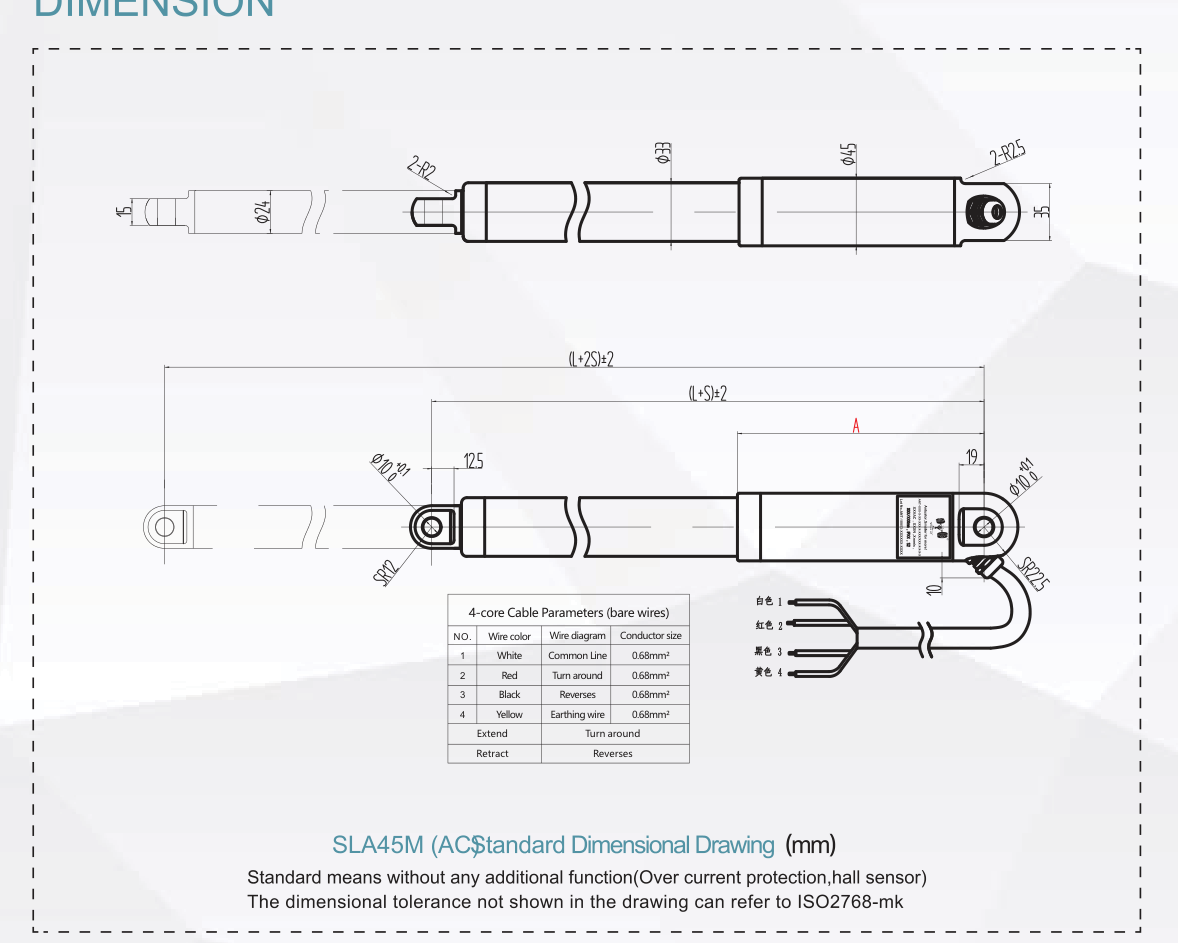

External Dimensions

Dimensional drawing from the SLA45M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).

SLA45M waterproof IP68 tubular linear actuator dimensions drawing

  • Outer tube diameter: Φ45mm
  • Typical install length: Approx. 410mm + stroke (minimum)
  • Stroke range: 100–600mm
  • Dimensional tolerance (where not marked): ISO2768-mk

Speed vs Load

Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.

Max Dynamic ForceSelf-lockingNo-load SpeedFull-load Speed
400N400N9mm/s8.5mm/s
650N650N9mm/s8mm/s
800N800N9mm/s7.5mm/s
1500N1500N4.5mm/s4mm/s

Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.

Need a Custom Configuration?

Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
