12V 24V SLA38MP 2500N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control

1 / 3

مشغل خطي أنبوبي مقاوم للماء IP68

12V 24V SLA38MP 2500N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control

SLA38MP Φ38mm waterproof tubular / in-line linear actuator — up to 2500N / 250 kg / 562 lbs, 12V / 24V DC, max 13mm/s, IP67M / IP69K. Ideal for bioclimatic pergola louvre control.

Manufactured and supplied by Elerover — مشغل خطي manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

المعلمات الرئيسية

Model
SLA38MP
Working Voltage
12V / 24V DC
Stroke
20–400mm
Protection Class
IP67M / IP69K
Installation Length
Approx. 300mm + stroke (center-to-center)
Max Speed
13mm/s
Duty Cycle
S2 ≈ 2 min / 18 min
Primary Application
bioclimatic pergola louvre control
Request OEM Quote واتساب
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

نظرة عامة على المنتج

The SLA38MP is a pergola-focused Φ38mm waterproof tubular / in-line linear actuator for bioclimatic louvre control. Rated up to 2500N with IP67M / IP69K protection and ~13mm/s max speed for smooth louvre motion. Designed for visible outdoor installs where weather sealing and long outdoor duty matter.

الميزات الرئيسية

  • Φ38mm in-line tubular waterproof linear actuator
  • Max dynamic force up to 2500N / 250 kg / 562 lbs
  • Voltage: 12V / 24V DC
  • Protection: IP67M / IP69K
  • Stroke: Custom (pergola-optimized)
  • 316 stainless steel piston rod (typical)
  • Optional Hall / over-current / limit signal feedback
  • Primary focus: bioclimatic pergola louvre control
  • Sealed tubular housing for outdoor rain, dust and wash-down duty
  • Optional Hall feedback for multi-actuator synchronization
  • 316 stainless steel piston rod options for corrosion resistance

المواصفات الفنية

Model SLA38MP
Design In-line / tubular
Diameter Φ38mm
Working Voltage 12V / 24V DC
Max Dynamic Load 2500N / 250 kg / 562 lbs
Self-locking Force Up to 2500N
Stroke 20–400mm
Installation Length Approx. 300mm + stroke (center-to-center)
Protection Class IP67M / IP69K
Duty Cycle S2 ≈ 2 min / 18 min
Primary Application bioclimatic pergola louvre control
Max Speed 13mm/s

التطبيقات

  • Bioclimatic pergola louvres
  • Outdoor architectural shading
  • Harsh-weather facade motion
  • Premium outdoor OEM systems

تفاصيل إضافية

Waterproof IP68 Tubular Linear Actuator

12V 24V SLA38MP 2500N IP68 waterproof tubular linear actuator for bioclimatic pergola louvre control

Pergola-dedicated Φ38mm tubular actuator with IP67M/IP69K protection, up to 2500N and ~13mm/s max speed for bioclimatic louvre control. Rated up to 2500N / 250 kg / 562 lbs, 12V / 24V DC, with in-line tubular packaging for visible outdoor installs such as bioclimatic pergola louvre control.

Model
SLA38MP
Tube Diameter
Φ38mm
Max Force
2500N
Voltage
12V / 24V DC
Max Speed
13mm/s
Protection
IP67M / IP69K

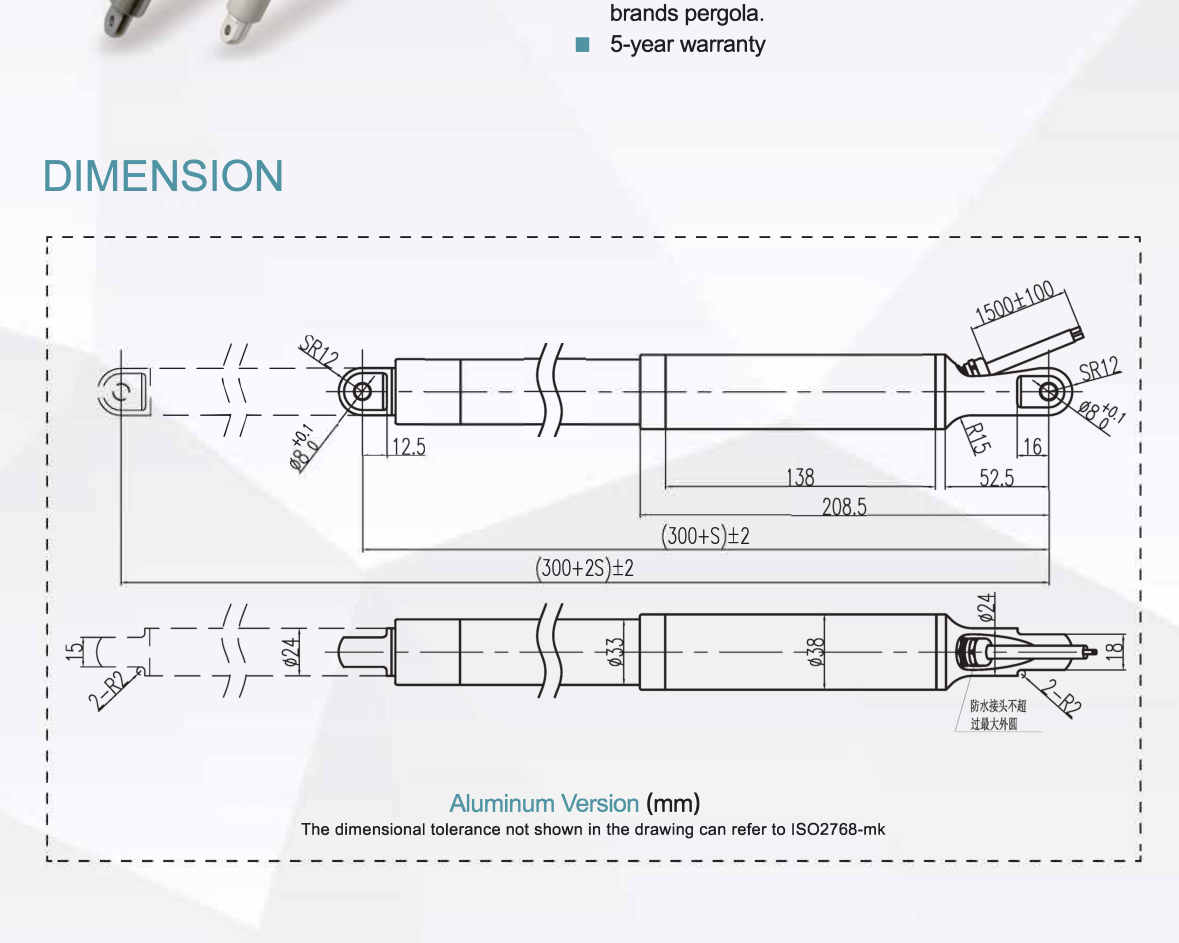

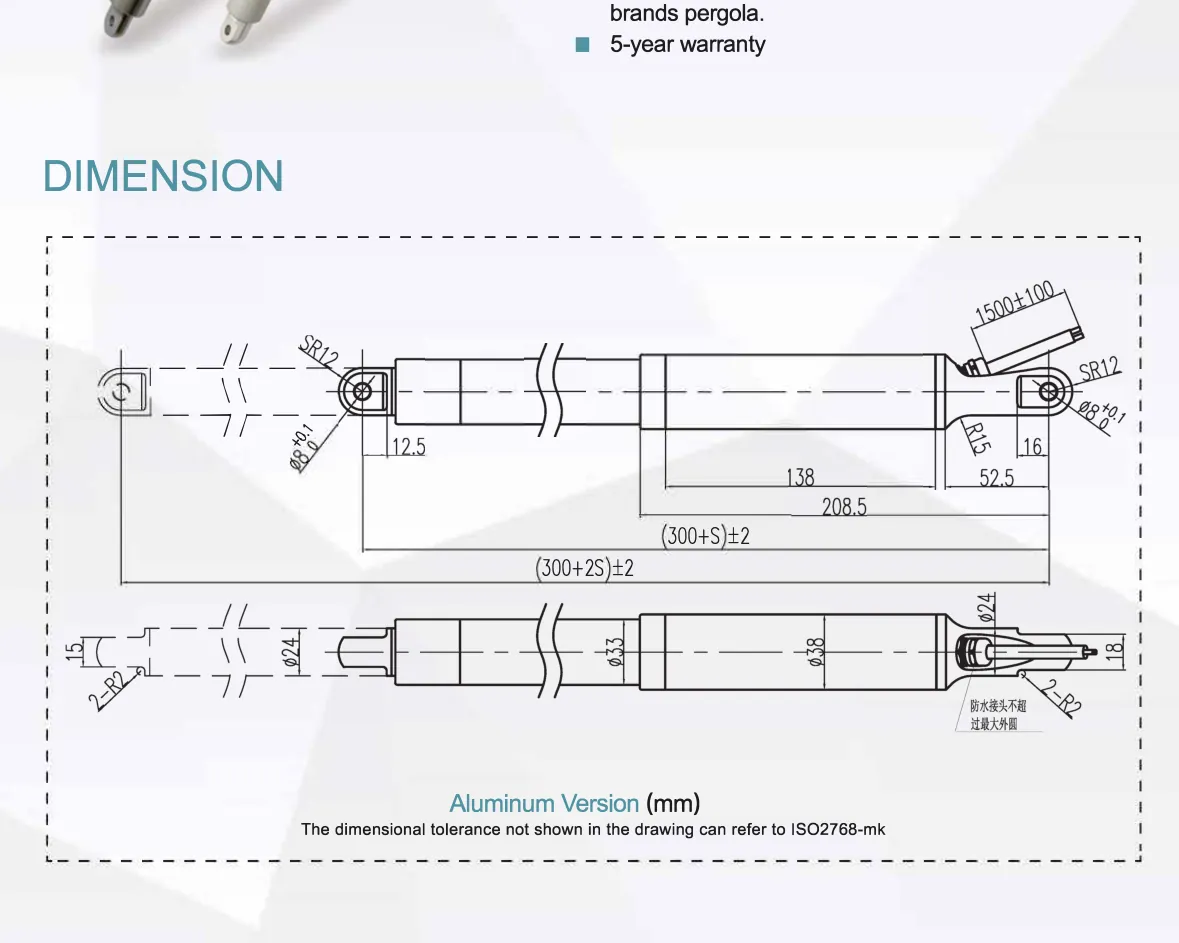

External Dimensions

Dimensional drawing from the SLA38MP tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).

SLA38MP waterproof IP68 tubular linear actuator dimensions drawing

  • Outer tube diameter: Φ38mm
  • Typical install length: Approx. 300mm + stroke (center-to-center)
  • Stroke range: 20–400mm
  • Dimensional tolerance (where not marked): ISO2768-mk

Speed vs Load

Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.

Max Dynamic ForceSelf-lockingNo-load SpeedFull-load Speed
2500N2500N13mm/s~13mm/s

Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.

Need a Custom Configuration?

Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
