12V 24V SLA26M 500N IP68 waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas

1 / 3

مشغل خطي أنبوبي مقاوم للماء IP68

12V 24V SLA26M 500N IP68 waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas

SLA26M Φ26mm waterproof tubular / in-line linear actuator — up to 500N / 50 kg / 112 lbs, 12V / 24V DC, max 16mm/s, IP67 / IP69K. Ideal for motorized louvre windows and bio-climatic pergolas.

Manufactured and supplied by Elerover — مشغل خطي manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

المعلمات الرئيسية

Model
SLA26M
Working Voltage
12V / 24V DC
Stroke
20–200mm
Protection Class
IP67 / IP69K
Installation Length
Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K
Max Speed
16mm/s
Duty Cycle
S2 ≈ 2 min / 18 min
Primary Application
motorized louvre windows and bio-climatic pergolas
Request OEM Quote واتساب
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

نظرة عامة على المنتج

The SLA26M is a Φ26mm waterproof tubular / in-line linear actuator built for motorized louvres, bio-climatic pergolas and outdoor shading. Up to 500N push/pull with IP67 / IP69K sealing keeps motion reliable in rain and wash-down. Optional Hall feedback supports synchronized multi-actuator façades and pergola bays.

الميزات الرئيسية

  • Φ26mm in-line tubular waterproof linear actuator
  • Max dynamic force up to 500N / 50 kg / 112 lbs
  • Voltage: 12V / 24V DC
  • Protection: IP66 / IP67 (IP69K optional)
  • Stroke: 20–200mm
  • 316 stainless steel piston rod (typical)
  • Optional Hall / over-current / limit signal feedback
  • Primary focus: motorized louvre windows and bio-climatic pergolas
  • Sealed tubular housing for outdoor rain, dust and wash-down duty
  • Optional Hall feedback for multi-actuator synchronization
  • 316 stainless steel piston rod options for corrosion resistance

المواصفات الفنية

Model SLA26M
Design In-line / tubular
Diameter Φ26mm
Working Voltage 12V / 24V DC
Max Dynamic Load 500N / 50 kg / 112 lbs
Self-locking Force Up to 500N
Stroke 20–200mm
Installation Length Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K
Protection Class IP67 / IP69K
Duty Cycle S2 ≈ 2 min / 18 min
Primary Application motorized louvre windows and bio-climatic pergolas
Max Speed 16mm/s

التطبيقات

  • Motorized louvre windows
  • Bio-climatic pergolas
  • Power wheelchair mechanisms
  • Inspection robots

تفاصيل إضافية

Waterproof IP68 Tubular Linear Actuator

12V 24V SLA26M 500N IP68 waterproof tubular linear actuator for motorized louvre windows and bio-climatic pergolas

Slim Φ26mm tubular actuator with up to 500N push/pull for space-limited outdoor motion. Rated up to 500N / 50 kg / 112 lbs, 12V / 24V DC, with in-line tubular packaging for visible outdoor installs such as motorized louvre windows and bio-climatic pergolas.

Model
SLA26M
Tube Diameter
Φ26mm
Max Force
500N
Voltage
12V / 24V DC
Max Speed
16mm/s
Protection
IP67 / IP69K

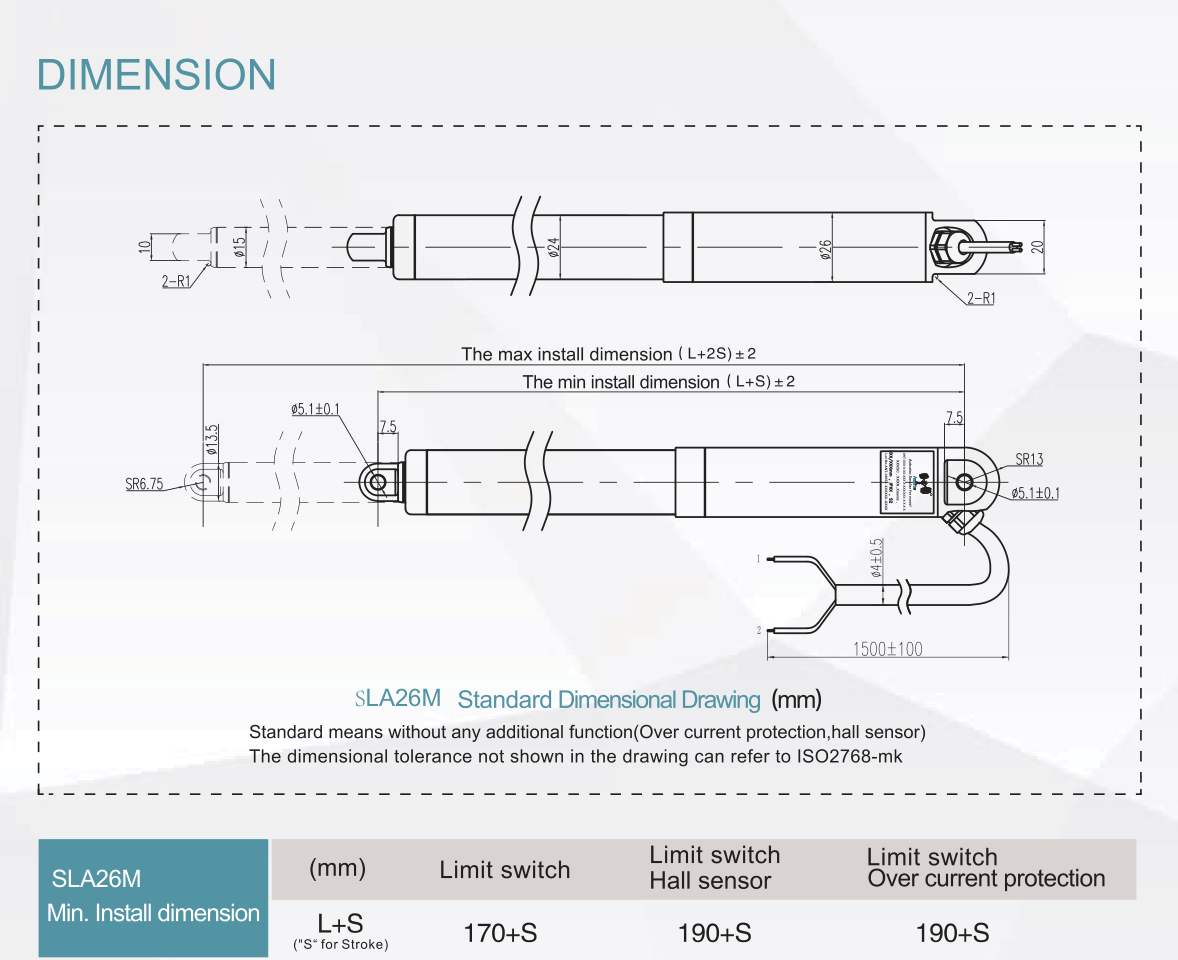

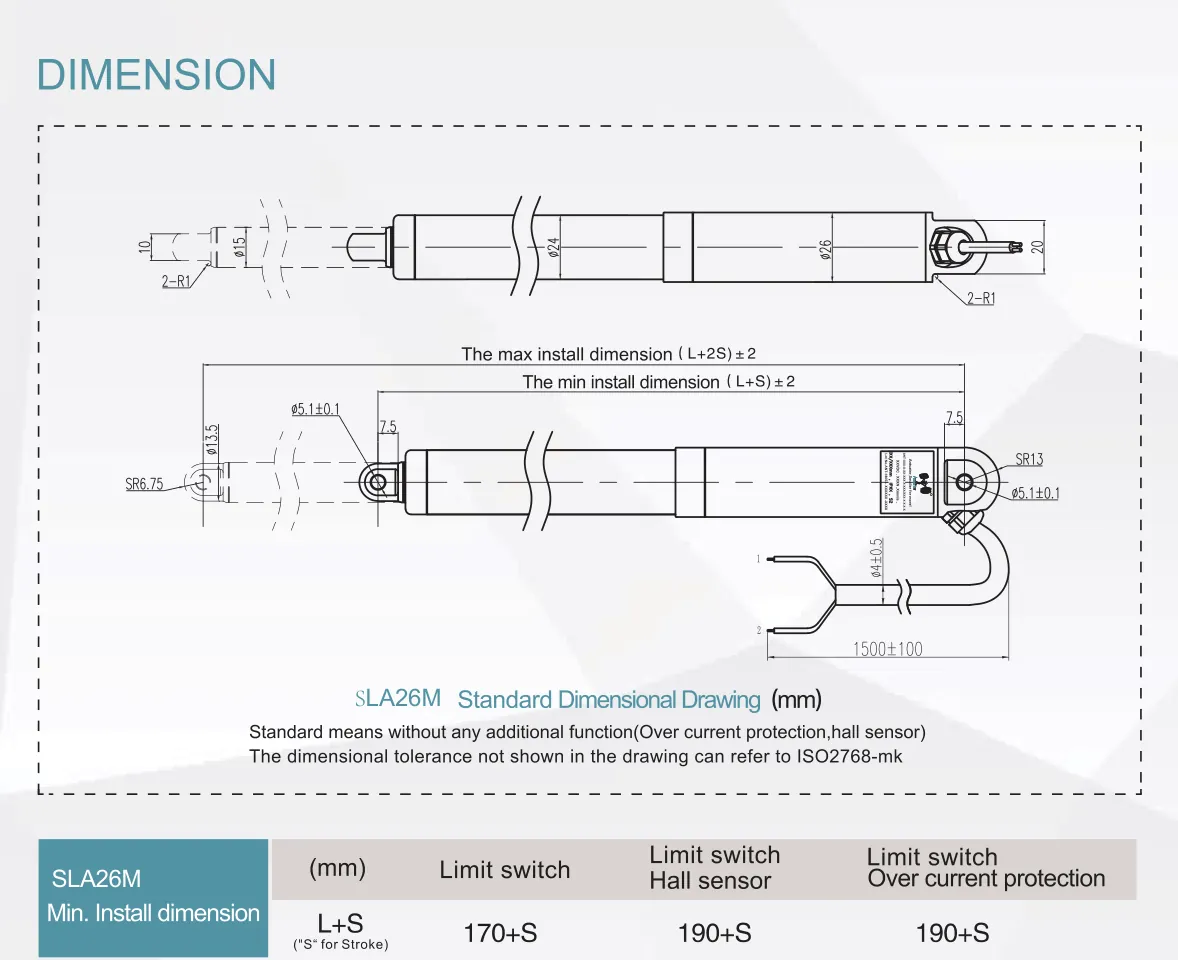

External Dimensions

Dimensional drawing from the SLA26M tubular in-line catalog. Retracted / extended install length follows the L + S / L + 2S convention (stroke = S).

SLA26M waterproof IP68 tubular linear actuator dimensions drawing

  • Outer tube diameter: Φ26mm
  • Typical install length: Approx. 170mm + stroke (limit switch); +15mm for IP67/IP69K
  • Stroke range: 20–200mm
  • Dimensional tolerance (where not marked): ISO2768-mk

Speed vs Load

Select the force / speed option that matches your duty. Speeds are typical no-load / full-load values from the tubular in-line catalog.

Max Dynamic ForceSelf-lockingNo-load SpeedFull-load Speed
100N150N16mm/s11.5mm/s
250N375N11mm/s7.5mm/s
500N500N6mm/s4mm/s

Notes: Continuous full-load running is limited by S2 duty (typically about 2 minutes work / 18 minutes rest). Custom stroke, mounts, cable and feedback options are available.

Need a Custom Configuration?

Contact Elerover for stroke, force, voltage, IP rating, Hall feedback, mounts, cable length and color customization. Messages go to [email protected].
