The SC7-71-RC-24H3033 is a 7-inch electric worm-gear slewing drive for low-speed rotary motion. It delivers 937 N·m output torque, 10400 N·m holding torque, 13500 N·m tilting moment and ≤0.17° precision for solar tracking, antenna positioning and OEM rotary platforms.
Slewing Drive

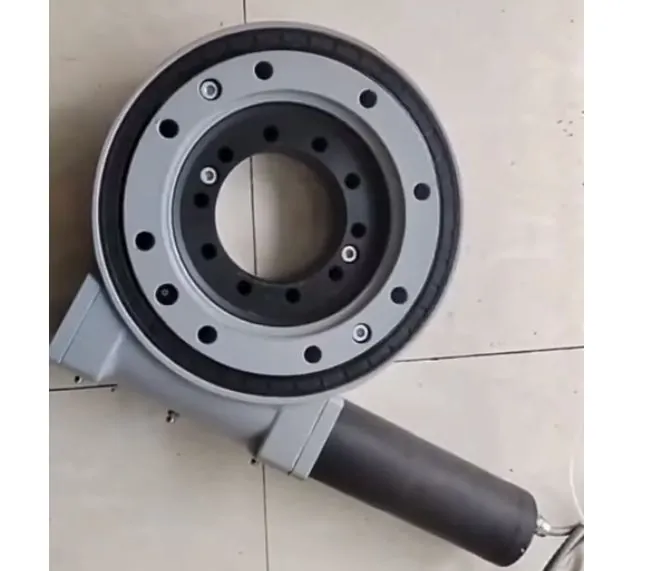

SC7 7-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC7 7-inch slewing drive with 24VDC IP65 motor. 937 N·m output torque, 10400 N·m holding torque, 13500 N·m tilting moment, 71:1 ratio, ≤0.17° precision for solar trackers and rotary platforms.
Manufactured and supplied by Elerover — Slewing Drive manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Key Parameters
- Drive Type
- 7-inch electric worm-gear slewing drive
- Gear Ratio
- 71:1
- Motor Code
- 24H/30/33 (24H3033)
- Product Model
- SC7-71-RC-24H3033
- Output Torque
- 937 N·m / 691 lbf·ft
- Motor Voltage
- 24 VDC
- Tilting Moment
- 13500 N·m / 9958 lbf·ft
- Holding Torque
- 10400 N·m / 7671 lbf·ft
Product Overview
Key Features
- 7-inch worm-gear slewing drive with 24VDC IP65 motor
- Output torque 937 N·m / holding torque 10400 N·m
- Tilting moment 13500 N·m
- Gear ratio 71:1 with precision ≤ 0.17°
- Rated output speed 0.042 rpm
- Hall A/B feedback for closed-loop positioning
Technical Specifications
| Product Model | SC7-71-RC-24H3033 |
|---|---|
| Drive Type | 7-inch electric worm-gear slewing drive |
| Rated Output Speed | 0.042 rpm |
| Output Torque | 937 N·m / 691 lbf·ft |
| Tilting Moment | 13500 N·m / 9958 lbf·ft |
| Holding Torque | 10400 N·m / 7671 lbf·ft |
| Static Axial Rating | 133 kN / 29925 lbf |
| Static Radial Rating | 53 kN / 11925 lbf |
| Dynamic Axial Rating | 32 kN / 7200 lbf |
| Dynamic Radial Rating | 28 kN / 6300 lbf |
| Gear Ratio | 71:1 |
| Precision | ≤ 0.17° |
| Motor Voltage | 24 VDC |
| Motor Code | 24H/30/33 (24H3033) |
| Motor Protection | IP65 |
| Approx. Weight | 24 kg |
Applications
- Solar trackers
- PV tracking systems
- Antenna positioning
- Industrial rotary actuation
- OEM motion platforms
FAQ
What is the SC7?
SC7 7-inch slewing drive with 24VDC IP65 motor. 937 N·m output torque, 10400 N·m holding torque, 13500 N·m tilting moment, 71:1 ratio, ≤0.17° precision for solar trackers and rotary platforms.
Does Elerover manufacture the SC7?
Yes. Elerover is a slewing drive manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SC7?
Key ratings from the product specifications include voltage 24VDC, load 937N. See the Technical Specifications section on this page for the full table.
Which applications is the SC7 used for?
Typical applications include Solar trackers, PV tracking systems, Antenna positioning, Industrial rotary actuation.
How do I request a quote for the SC7?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Additional Details
7-Inch Slewing Drive for Motion Control
SC7-71-RC-24H3033 7-Inch Slewing Drive
A heavy-duty 7-inch electric slewing drive for low-speed, high-torque rotary motion.
The SC7-71-RC-24H3033 integrates a slewing bearing, worm-gear transmission and 24VDC IP65 gear motor with hall feedback,
making it suitable for solar tracking, industrial positioning and OEM rotary systems.
Rated Output Speed
0.042 rpm
0.042 rpm
Output Torque
937 N·m
937 N·m
Holding Torque
10400 N·m
10400 N·m
Tilting Moment
13500 N·m
13500 N·m
Gear Ratio
71:1
71:1
Output Torque
937 N·m
937 N·m
Holding Torque
10400 N·m
10400 N·m
Precision
≤ 0.17°
≤ 0.17°
Motor / Weight
24V · 24 kg
24V · 24 kg

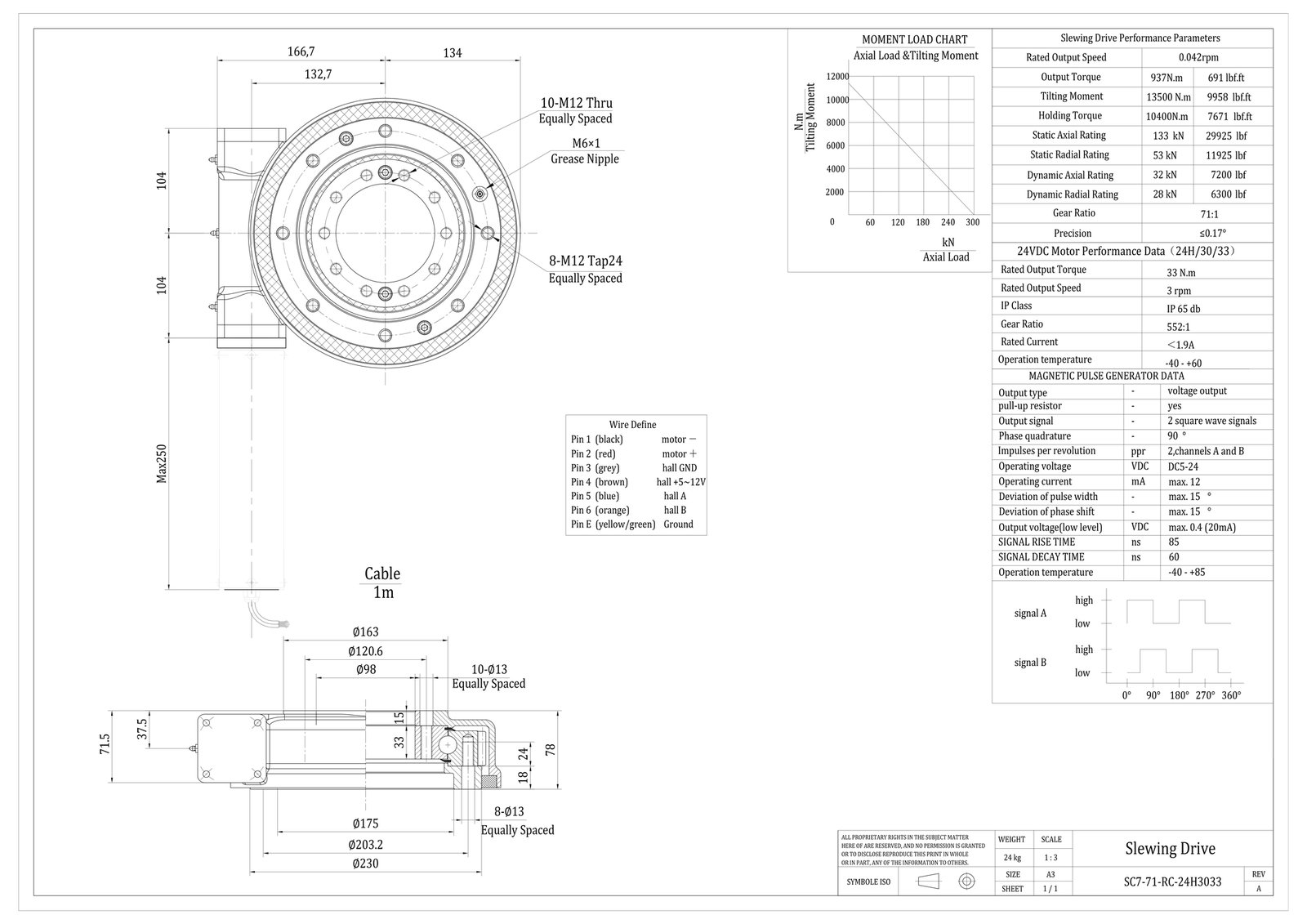

Product Drawing
SC7 Dimensions & Performance Drawing
Official dimensional drawing for model SC7-71-RC-24H3033 Rev.A — mounting interfaces, motor data, load chart and wiring.
Product Overview
7-Inch Rotary Drive for Controlled Slewing Motion
The SC7 is engineered for solar and industrial applications that need high tilting moment, strong holding torque and outdoor-ready 24VDC drive.
This slewing drive combines a worm-gear slewing mechanism with a 24VDC IP65 gear motor (24H/30/33) and magnetic pulse feedback.
With 937 N·m output torque, 10400 N·m holding torque, 13500 N·m tilting moment and ≤0.17° precision,
SC7 is a practical 7-inch solution for single-axis solar trackers and OEM rotary platforms.
Defined M12 mounting patterns, Ø230 flange geometry and hall A/B wiring support repeatable mechanical and electrical integration.
Product Highlights
- 7-inch worm-gear slewing drive with integrated 24VDC motor.
- Output torque 937 N·m and holding torque 10400 N·m.
- Tilting moment 13500 N·m for larger tracker structures.
- Gear ratio 71:1 with precision ≤ 0.17°.
- IP65 motor protection with hall A/B quadrature feedback.
- Approx. weight 24 kg for mid-to-large solar and industrial use.
Key Features
Built for Solar Tracking and Stable Position Hold
Designed for solar, antenna and industrial systems that need reliable single-axis rotary motion with high load capacity.
01
7-Inch Load Class
Higher tilting and holding ratings than compact SC3/SC5 units for larger panel arrays and platforms.
02
High Holding Torque
10400 N·m holding torque helps maintain position when the motor is stopped under wind load.
03
Low-Speed Precision
Rated output speed 0.042 rpm with ≤0.17° precision for smooth tracking movement.
04
24VDC IP65 Motor
Outdoor-ready gear motor with hall feedback for solar sites and industrial controllers.
05
Strong Static Ratings
Static axial rating 133 kN and static radial rating 53 kN for demanding structures.
06
OEM Mounting Geometry
10×M12 thru / 8×M12 tap patterns and Ø230 flange support repeatable machine design.
Technical Data
Slewing Drive Performance Parameters
Performance values from drawing SC7-71-RC-24H3033 Rev.A for product selection and early engineering review.
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.042 rpm | – |
| Output Torque | 937 N·m | 691 lbf·ft |
| Tilting Moment | 13500 N·m | 9958 lbf·ft |
| Holding Torque | 10400 N·m | 7671 lbf·ft |
| Static Axial Rating | 133 kN | 29925 lbf |
| Static Radial Rating | 53 kN | 11925 lbf |
| Dynamic Axial Rating | 32 kN | 7200 lbf |
| Dynamic Radial Rating | 28 kN | 6300 lbf |
| Gear Ratio | 71:1 | – |
| Precision | ≤ 0.17° | – |
| Approx. Weight | 24 kg | – |
Note: Values are for product selection reference from drawing SC7-71-RC-24H3033 Rev.A. Confirm final configuration for your load case.
Motor & Feedback
24VDC Motor Performance & Wiring
SC7 uses a 24H/30/33 IP65 gear motor with magnetic pulse generator for closed-loop positioning.
| Item | Value |
|---|---|
| Motor Code | 24H/30/33 (24H3033) |
| Rated Output Torque | 33 N·m |
| Rated Output Speed | 3 rpm |
| Motor Gear Ratio | 552:1 |
| IP Class | IP65 |
| Rated Current | < 1.9 A |
| Operating Temperature | -40°C ~ +60°C |
| Cable Length | 1 m (drawing reference) |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + |
| 3 | Grey | Hall GND |
| 4 | Brown | Hall + (5–12V) |
| 5 | Blue | Hall A |
| 6 | Orange | Hall B |
| E | Yellow/Green | Ground |
Hall feedback: 2 square-wave channels with 90° phase quadrature, operating voltage DC 5–24 V.
Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SC7 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC7-71-RC-24H3033 |
| Drive Type | 7-inch electric worm-gear slewing drive |
| Motor Interface | 24VDC IP65 with hall encoder |
| Outer Diameter | Ø230 mm |
| Bolt Circles | Ø203.2 mm / Ø120.6 mm |
| Inner Bore | Ø98 mm |
| Housing Height | Approx. 78 mm |
| Mounting Pattern | 10×M12 Thru / 8×M12 Tap 24 |
| Through Holes | 10×Ø13 / 8×Ø13 equally spaced |
| Grease Nipple | M6×1 |
Applications
Typical Application Areas
Ideal where mid-to-large single-axis slewing needs high tilting moment and 24V closed-loop drive.
Selection Support
How to Confirm the Right Slewing Drive
1
Confirm Loads
Share axial / radial loads, tilting moment and holding requirements for your tracker or platform.
2
Confirm Motion Needs
Provide required speed, travel angle, duty cycle, tracking accuracy and environmental conditions.
3
Confirm Electrical Interface
Confirm 24V supply, current capacity, hall wiring, cable length and controller type.
FAQ
What does “7-inch” mean on SC7?
It refers to the slewing-drive size class. SC7 offers higher tilting and holding capacity than SC3/SC5 for larger single-axis applications.
Can SC7 be used on solar trackers?
Yes. Output torque, holding torque, tilting moment and ≤0.17° precision suit many single-axis PV tracker designs — confirm panel area and wind load first.
Does SC7 include motor feedback?
Yes. The 24VDC motor includes a magnetic pulse generator with Hall A/B quadrature signals for position feedback.
Can mounting and cables be customized?
Yes. Flange interfaces, motor packages, cable length and feedback options can be reviewed against your mechanical layout.
Need a Custom Slewing Drive?
Send load, tracker size, voltage and mounting drawings. Elerover engineering will help size SC7 or a related slewing configuration.
