The SC5-62B-12RC is a compact 5-inch electric worm-gear slewing drive for low-speed rotary motion. It delivers 720 N·m output torque, 5450 N·m holding torque and ≤0.17° precision for solar tracking, antenna positioning and OEM rotary platforms.
Slewing Drive
SC5 5-Inch Slewing Drive | 12VDC Compact Worm Gear Rotary Actuator for Solar Tracker
SC5 5-inch slewing drive with 12VDC motor interface. 720 N·m output torque, 5450 N·m holding torque, 62:1 ratio, ≤0.17° precision for solar trackers and compact rotary platforms.
Manufactured and supplied by Elerover — Slewing Drive manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Key Parameters
- Drive Type
- 5-inch electric worm-gear slewing drive
- Gear Ratio
- 62:1
- Product Model
- SC5-62B-12RC
- Output Torque
- 720 N·m / 531.4 lbf·ft
- Motor Voltage
- 12 VDC (12RC family)
- Tilting Moment
- 3160 N·m / 2322 lbf·ft
- Holding Torque
- 5450 N·m / 4022 lbf·ft
- Rated Output Speed
- < 3 rpm
Product Overview
Key Features
- Compact 5-inch worm-gear slewing drive
- Output torque 720 N·m / holding torque 5450 N·m
- Tilting moment 3160 N·m
- Gear ratio 62:1 with precision ≤ 0.17°
- Rated output speed under 3 rpm
- 12VDC motor interface family (12RC)
Technical Specifications
| Product Model | SC5-62B-12RC |
|---|---|
| Drive Type | 5-inch electric worm-gear slewing drive |
| Rated Output Speed | < 3 rpm |
| Output Torque | 720 N·m / 531.4 lbf·ft |
| Tilting Moment | 3160 N·m / 2322 lbf·ft |
| Holding Torque | 5450 N·m / 4022 lbf·ft |
| Static Axial Rating | 52 kN / 11700 lbf |
| Static Radial Rating | 28 kN / 6300 lbf |
| Dynamic Axial Rating | 19.8 kN / 4455 lbf |
| Dynamic Radial Rating | 13.6 kN / 3060 lbf |
| Gear Ratio | 62:1 |
| Precision | ≤ 0.17° |
| Motor Voltage | 12 VDC (12RC family) |
| Approx. Weight | 18 kg |
Applications
- Solar trackers
- PV tracking systems
- Antenna positioning
- Industrial rotary actuation
- Light machinery and OEM platforms
FAQ
What is the SC5?
SC5 5-inch slewing drive with 12VDC motor interface. 720 N·m output torque, 5450 N·m holding torque, 62:1 ratio, ≤0.17° precision for solar trackers and compact rotary platforms.
Does Elerover manufacture the SC5?
Yes. Elerover is a slewing drive manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SC5?
Key ratings from the product specifications include voltage 12VDC, load 720N. See the Technical Specifications section on this page for the full table.
Which applications is the SC5 used for?
Typical applications include Solar trackers, PV tracking systems, Antenna positioning, Industrial rotary actuation.
How do I request a quote for the SC5?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Additional Details
5-Inch Slewing Drive for Motion Control
SC5-62B-12RC 5-Inch Slewing Drive
A compact 5-inch electric slewing drive for low-speed, high-torque rotary motion.
The SC5-62B-12RC integrates a slewing bearing and worm-gear transmission with a 12VDC motor interface,
making it suitable for solar tracking, industrial positioning, light machinery and OEM rotary systems.
Rated Output Speed
< 3 rpm
< 3 rpm
Output Torque
720 N·m
720 N·m
Holding Torque
5450 N·m
5450 N·m
Tilting Moment
3160 N·m
3160 N·m
Gear Ratio
62:1
62:1
Output Torque
720 N·m
720 N·m
Holding Torque
5450 N·m
5450 N·m
Precision
≤ 0.17°
≤ 0.17°
Approx. Weight
18 kg
18 kg

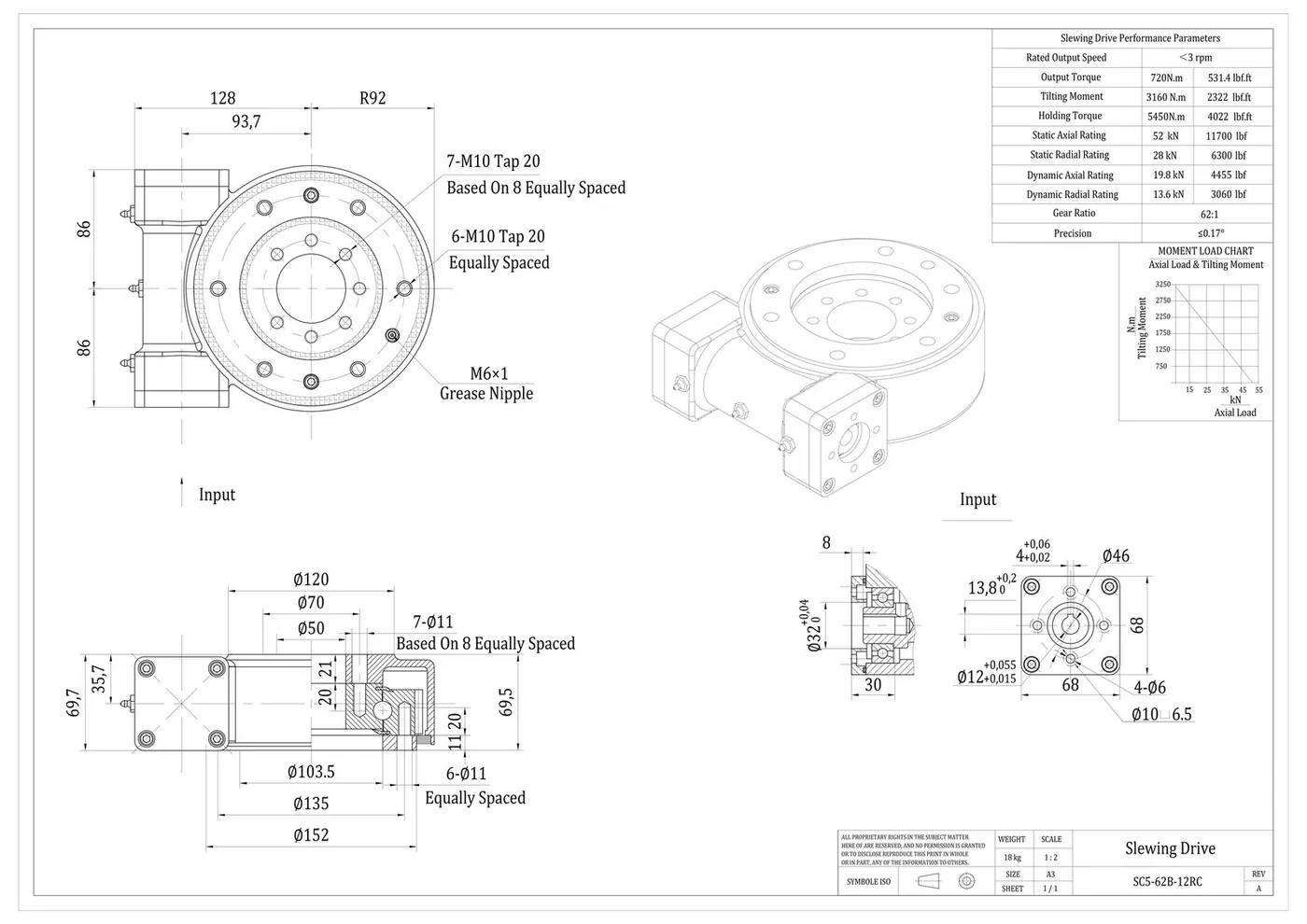

Product Drawing
SC5 Dimensions & Performance Drawing
Official dimensional drawing for model SC5-62B-12RC Rev.A — mounting interfaces, input flange, load chart and performance data.
Product Overview
Compact Rotary Drive for Controlled Slewing Motion
The SC5 is engineered for applications that need precise rotary positioning, stable load holding and a compact 5-inch installation envelope.
This slewing drive combines a worm-gear slewing mechanism with a 12VDC motor interface for controlled low-speed rotation.
With 720 N·m output torque, 5450 N·m holding torque and ≤0.17° precision,
SC5 is a practical choice for solar trackers, antenna platforms and custom OEM rotary equipment.
Compared with larger SE-series drives, SC5 offers a smaller envelope while still delivering strong holding torque
for position retention under load — useful when space and weight are constrained.
Product Highlights
- Compact 5-inch worm-gear slewing drive design.
- Output torque 720 N·m with holding torque 5450 N·m.
- Gear ratio 62:1 and precision ≤ 0.17°.
- 12VDC motor interface (12RC family) for DC-powered systems.
- Clear M10 mounting patterns for OEM integration.
- Approx. weight 18 kg for mid-size tracker and machinery use.
Key Features
Built for Compact Tracking and Stable Position Hold
Designed for solar, antenna and industrial systems that need reliable single-axis rotary motion in a small package.
01
Compact 5-Inch Envelope
Space-efficient housing for solar trackers, light machinery and OEM platforms with limited mounting room.
02
High Holding Torque
5450 N·m holding torque helps maintain position when the motor is stopped under load.
03
Low-Speed Precision
Rated output speed under 3 rpm with ≤0.17° precision for smooth controlled rotation.
04
12VDC Drive Ready
12RC motor interface suits off-grid, vehicle and DC-powered automation systems.
05
Strong Load Ratings
Static axial rating 52 kN and static radial rating 28 kN for demanding platform loads.
06
OEM Mounting Options
Defined flange hole patterns and 68×68 mm input geometry support customized machine design.
Technical Data
Slewing Drive Performance Parameters
Performance values from drawing SC5-62B-12RC Rev.A for product selection and early engineering review.
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | < 3 rpm | – |
| Output Torque | 720 N·m | 531.4 lbf·ft |
| Tilting Moment | 3160 N·m | 2322 lbf·ft |
| Holding Torque | 5450 N·m | 4022 lbf·ft |
| Static Axial Rating | 52 kN | 11700 lbf |
| Static Radial Rating | 28 kN | 6300 lbf |
| Dynamic Axial Rating | 19.8 kN | 4455 lbf |
| Dynamic Radial Rating | 13.6 kN | 3060 lbf |
| Gear Ratio | 62:1 | – |
| Precision | ≤ 0.17° | – |
| Approx. Weight | 18 kg | – |
Note: Values are for product selection reference from drawing SC5-62B-12RC Rev.A. Confirm final motor package and load case with engineering.
Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SC5 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC5-62B-12RC |
| Drive Type | 5-inch electric worm-gear slewing drive |
| Motor Interface | 12VDC (12RC family) |
| Housing Height | Approx. 69.7 mm |
| Outer Diameter | Ø152 mm |
| Inner Bore | Ø50 mm |
| Output Mounting | 6×M10 / 7×M10 Tap 20 patterns |
| Through Holes | 6×Ø11 / 7×Ø11 equally spaced |
| Motor Input Flange | 68×68 mm, 4-Ø6 on Ø46 |
| Input Shaft Bore | Ø12 with keyway |
| Grease Nipple | M6×1 |
Applications
Typical Application Areas
Ideal where compact single-axis slewing is needed with strong holding torque and DC motor drive.
Selection Support
How to Confirm the Right Slewing Drive
1
Confirm Loads
Share axial / radial loads, tilting moment and holding requirements for your tracker or platform.
2
Confirm Motion Needs
Provide required speed, travel angle, duty cycle, tracking accuracy and environmental conditions.
3
Confirm Electrical Interface
Confirm 12V/24V preference, current limit, feedback needs, controller type and cable length.
FAQ
What does “5-inch” mean on SC5?
It refers to the compact slewing-drive size class. SC5 is designed for mid-compact single-axis rotary applications versus larger SE/SC models.
Can SC5 be used on solar trackers?
Yes. Output torque, holding torque and ≤0.17° precision make it suitable for many single-axis PV tracker designs — confirm panel area and wind load first.
Is the motor voltage fixed at 12V?
This drawing configuration is the 12RC family. Other voltages or motor packages can be discussed for OEM projects.
Can mounting and cables be customized?
Yes. Flange interfaces, motor options, cable length and feedback can be reviewed against your mechanical layout.
Need a Custom Slewing Drive?
Send load, tracker size, voltage and mounting drawings. Elerover engineering will help size SC5 or a related slewing configuration.
