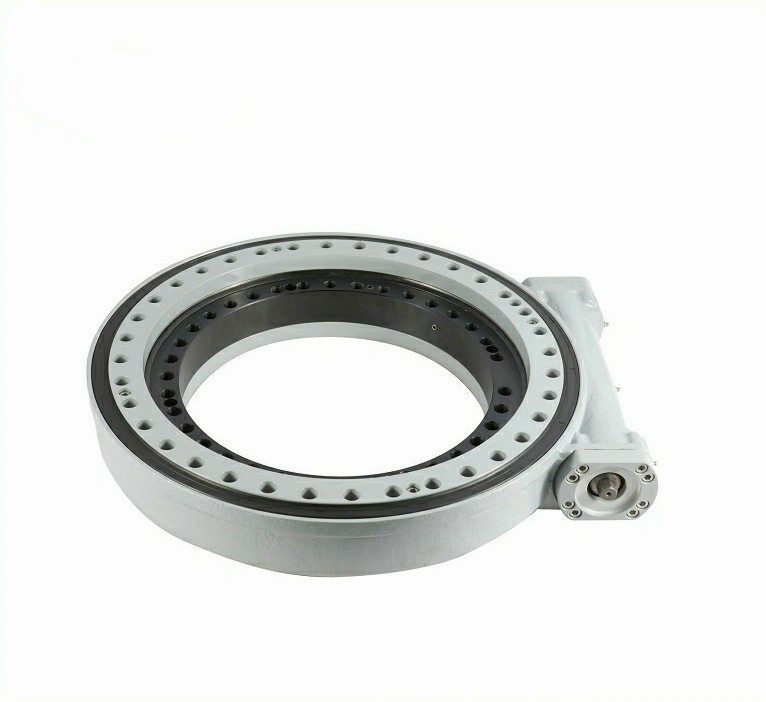

The SC14-85-RC-24H15300 is a 14-inch electric worm-gear slewing drive for low-speed rotary motion. It delivers 10.2 kN·m output torque, 48 kN·m holding torque, 67.8 kN·m tilting moment and ≤0.17° precision for large solar tracking, antenna positioning and OEM rotary platforms.
Slewing Drive
SC14 14-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC14 14-inch slewing drive with 24VDC IP65 motor. 10.2 kN·m output torque, 48 kN·m holding torque, 67.8 kN·m tilting moment, 85:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
Manufactured and supplied by Elerover — Slewing Drive manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Key Parameters
- Drive Type
- 14-inch electric worm-gear slewing drive
- Gear Ratio
- 85:1
- Motor Code
- 24H/15/300 (24H15300)
- Product Model
- SC14-85-RC-24H15300
- Output Torque
- 10.2 kN·m / 7.53×10³ lbf·ft
- Motor Voltage
- 24 VDC
- Tilting Moment
- 67.8 kN·m / 50×10³ lbf·ft
- Holding Torque
- 48 kN·m / 35×10³ lbf·ft
Product Overview
Key Features
- 14-inch worm-gear slewing drive with 24VDC IP65 reducer motor
- Output torque 10.2 kN·m / holding torque 48 kN·m
- Tilting moment 67.8 kN·m
- Gear ratio 85:1 with precision ≤ 0.17°
- Rated output speed 0.018 rpm
- Hall A/B feedback for closed-loop positioning
Technical Specifications
| Product Model | SC14-85-RC-24H15300 |
|---|---|
| Drive Type | 14-inch electric worm-gear slewing drive |
| Rated Output Speed | 0.018 rpm |
| Output Torque | 10.2 kN·m / 7.53×10³ lbf·ft |
| Tilting Moment | 67.8 kN·m / 50×10³ lbf·ft |
| Holding Torque | 48 kN·m / 35×10³ lbf·ft |
| Static Axial Rating | 555 kN / 125×10³ lbf |
| Static Radial Rating | 222 kN / 50×10³ lbf |
| Gear Ratio | 85:1 |
| Precision | ≤ 0.17° |
| Motor Voltage | 24 VDC |
| Motor Code | 24H/15/300 (24H15300) |
| Motor Protection | IP65 |
| Motor Rated Current | ≤ 6.5 A |
| Approx. Weight | 72 kg |
Applications
- Large solar trackers
- PV / CSP tracking systems
- Antenna positioning
- Industrial rotary actuation
- Aerial platforms and machinery
FAQ
What is the SC14?
SC14 14-inch slewing drive with 24VDC IP65 motor. 10.2 kN·m output torque, 48 kN·m holding torque, 67.8 kN·m tilting moment, 85:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
Does Elerover manufacture the SC14?
Yes. Elerover is a slewing drive manufacturer and supplier. This model supports OEM configuration options listed in the product data—share your duty cycle and quantity for a factory quote.
What are the key specifications of the SC14?
Key ratings from the product specifications include voltage 24VDC, load 10.2 kN·m / 7.53×10³ lbf·ft. See the Technical Specifications section on this page for the full table.
Which applications is the SC14 used for?
Typical applications include Large solar trackers, PV / CSP tracking systems, Antenna positioning, Industrial rotary actuation.
How do I request a quote for the SC14?
Send load, stroke, voltage, IP rating, duty cycle, quantity and any OEM options you need via the contact form or WhatsApp.
Additional Details

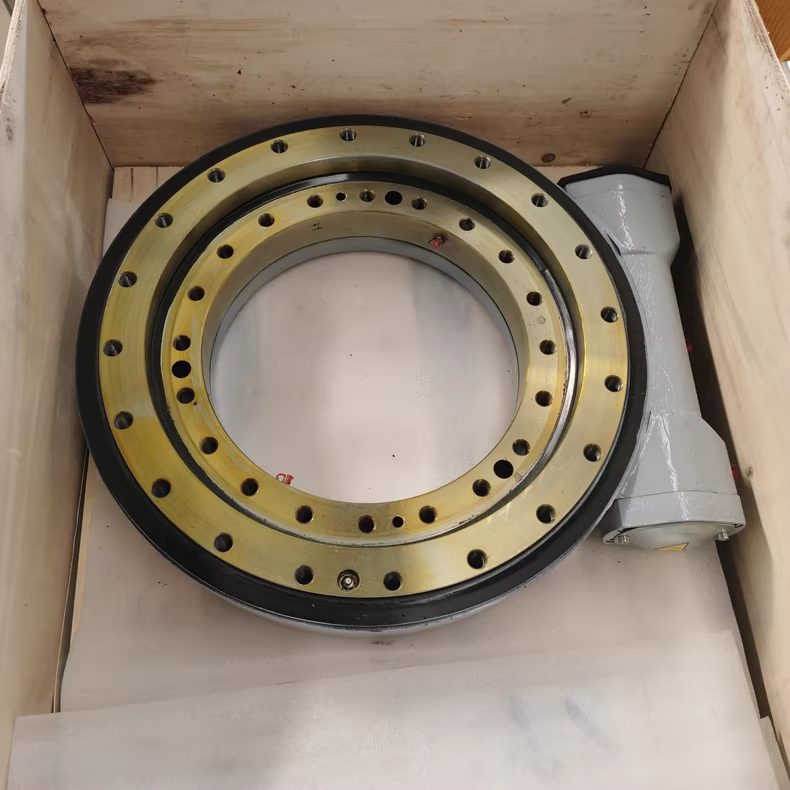

14-Inch Slewing Drive for Heavy Tracking Loads
SC14-85-RC-24H15300 14-Inch Slewing Drive
A heavy-duty 14-inch electric slewing drive for low-speed, high-torque rotary motion.
The SC14-85-RC-24H15300 integrates a slewing bearing, worm-gear transmission and 24VDC IP65 reducer motor with hall feedback,
making it suitable for large solar trackers, industrial positioning and OEM rotary platforms.
Rated Output Speed
0.018 rpm
0.018 rpm
Output Torque
10.2 kN·m
10.2 kN·m
Holding Torque
48 kN·m
48 kN·m
Tilting Moment
67.8 kN·m
67.8 kN·m
Gear Ratio
85:1
85:1
Output Torque
10.2 kN·m
10.2 kN·m
Holding Torque
48 kN·m
48 kN·m
Precision
≤ 0.17°
≤ 0.17°
Motor / Weight
24V IP65 · 72 kg
24V IP65 · 72 kg
Product Drawing

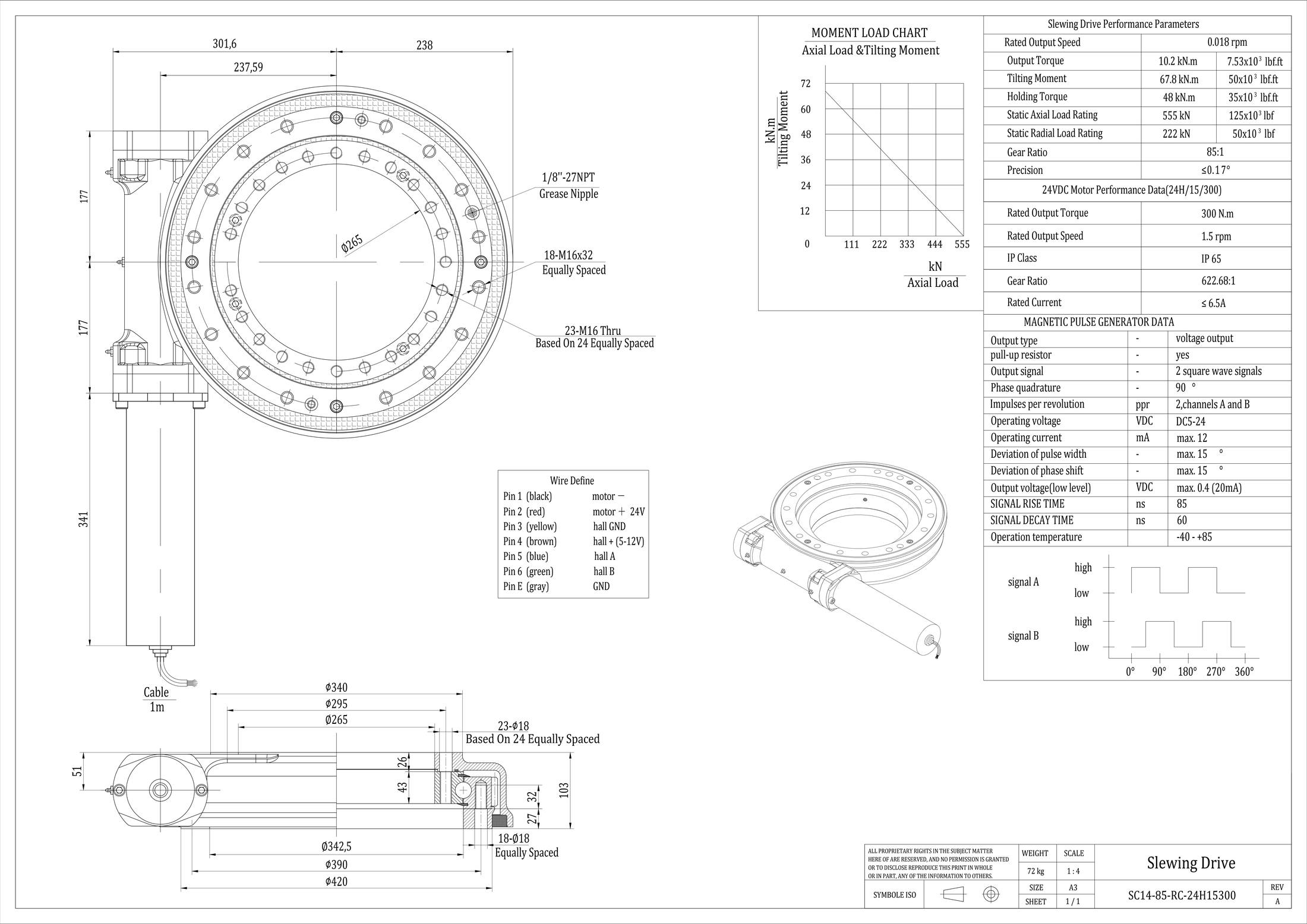

SC14 Dimensions & Performance Drawing
Official dimensional drawing for model SC14-85-RC-24H15300 Rev.A — mounting interfaces, motor data, load chart and wiring.
Product Overview
14-Inch Worm Gear Slewing Drive for High-Load Tracking
The SC14 is sized for large solar and industrial projects that need higher torque and tilting capacity than the SC12 class, with outdoor-ready 24VDC drive.
This 14-inch slewing drive combines a worm-gear rotary mechanism with a 24VDC IP65 reducer motor (24H/15/300) and magnetic pulse feedback.
With 10.2 kN·m output torque, 48 kN·m holding torque, 67.8 kN·m tilting moment and ≤0.17° precision,
SC14 is a practical choice for large single-axis solar trackers and OEM rotary platforms.
Defined M16 mounting patterns, Ø420 envelope geometry and hall A/B wiring support repeatable mechanical and electrical integration for global B2B projects.
Product Highlights
- 14-inch worm-gear slewing drive with integrated 24VDC motor.
- Output torque 10.2 kN·m and holding torque 48 kN·m.
- Tilting moment 67.8 kN·m for large tracker structures.
- Gear ratio 85:1 with precision ≤ 0.17°.
- 24VDC IP65 reducer motor with hall A/B feedback.
- Approx. weight 72 kg for heavy solar and industrial use.
Key Features
Built for Large Solar Tracking and Stable Position Hold
Designed for solar, antenna and industrial systems that need reliable single-axis rotary motion with high load capacity.
01
14-Inch Load Class
Higher torque and tilting ratings than SC9/SC12 for larger panel arrays and heavy rotary platforms.
02
High Tilting Capacity
67.8 kN·m tilting moment supports larger structures under wind and unbalanced loads.
03
Low-Speed Precision
Rated output speed 0.018 rpm with ≤0.17° precision for smooth tracking movement.
04
24VDC IP65 Drive
Outdoor-ready 24H/15/300 reducer motor with hall feedback for solar sites and industrial controllers.
05
Strong Static Ratings
Static axial rating 555 kN and static radial rating 222 kN for demanding structures.
06
OEM Mounting Geometry
18×M16 / 23×M16 patterns and Ø420 envelope support repeatable machine design.
Technical Data
Slewing Drive Performance Parameters
Performance values from drawing SC14-85-RC-24H15300 Rev.A for product selection and early engineering review.
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.018 rpm | – |
| Output Torque | 10.2 kN·m | 7.53×10³ lbf·ft |
| Tilting Moment | 67.8 kN·m | 50×10³ lbf·ft |
| Holding Torque | 48 kN·m | 35×10³ lbf·ft |
| Static Axial Rating | 555 kN | 125×10³ lbf |
| Static Radial Rating | 222 kN | 50×10³ lbf |
| Gear Ratio | 85:1 | – |
| Precision | ≤ 0.17° | – |
| Approx. Weight | 72 kg | – |
Note: Values are for product selection reference from drawing SC14-85-RC-24H15300 Rev.A. Confirm final configuration for your load case. Bare-drive envelope (SC14-85-25RH) lists higher max output torque before motor selection.
Motor & Feedback
24VDC Motor Performance & Wiring
SC14 uses a 24H/15/300 IP65 reducer motor with magnetic pulse generator for closed-loop positioning.
| Item | Value |
|---|---|
| Motor Code | 24H/15/300 (24H15300) |
| Rated Voltage | 24 VDC |
| Rated Current | ≤ 6.5 A |
| Motor Output Torque | 300 N·m |
| Motor Output Speed | 1.5 rpm |
| Motor Gear Ratio | 622.68:1 |
| IP Class | IP65 |
| Operating Temperature | -40°C ~ +85°C |
| Wire / Pin | Color | Function |
|---|---|---|
| 1 | Black | Motor − |
| 2 | Red | Motor + 24V |
| 3 | Yellow | Hall GND |
| 4 | Brown | Hall + (5–12V) |
| 5 | Blue | Hall A |
| 6 | Green | Hall B |
| E | Gray | GND |
Hall feedback: 2 square-wave channels with 90° phase quadrature, operating voltage DC 5–24 V.

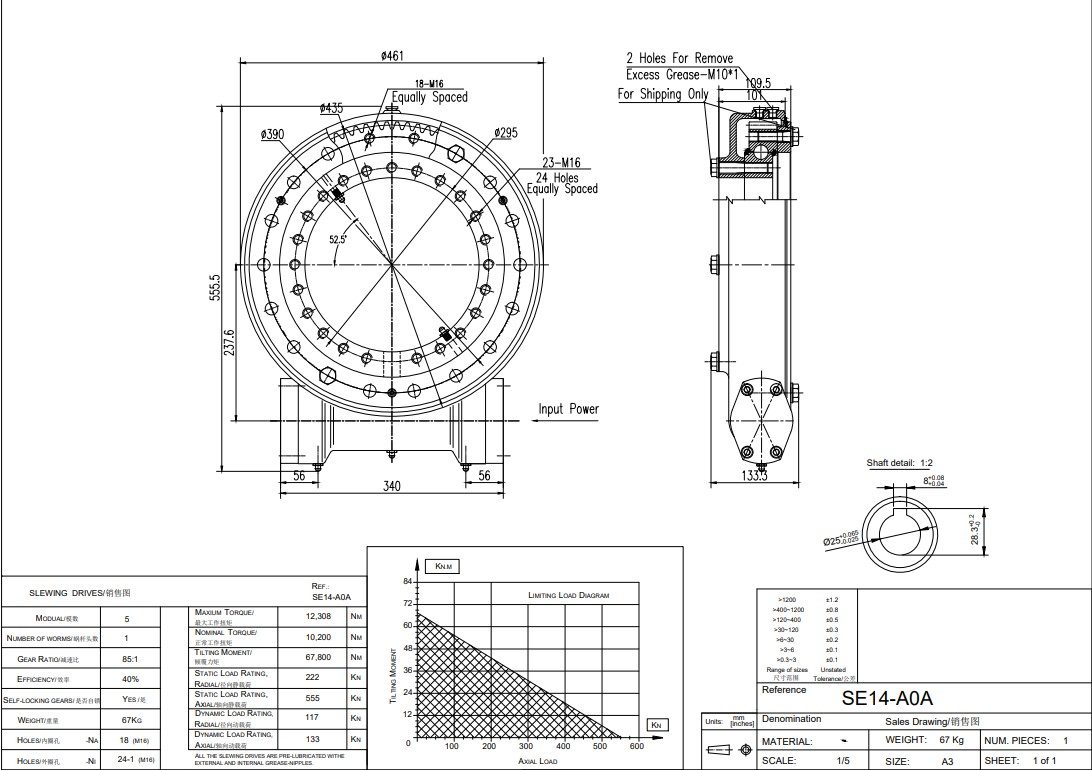

Mounting Snapshot
Key Installation Dimensions
Selected envelope dimensions from the SC14 drawing for early mechanical layout.
| Item | Value |
|---|---|
| Product Model | SC14-85-RC-24H15300 |
| Drive Type | 14-inch electric worm-gear slewing drive |
| Motor Interface | 24VDC IP65 with hall encoder |
| Outer Diameter | Ø420 mm |
| Housing Height | 103 mm |
| Inner Mounting | 18×M16×32 equally spaced |
| Outer Mounting | 23×M16 thru (on 24-hole pattern) |
| Grease Nipple | 1/8''-27 NPT |
| Cable Length | Approx. 1 m (standard) |
Applications
Typical Application Areas
Ideal where large single-axis slewing needs high torque, high tilting capacity and 24V closed-loop drive.
Selection Support
How to Confirm the Right Slewing Drive
1
Confirm Loads
Share axial / radial loads, tilting moment and holding requirements for your tracker or platform.
2
Confirm Motion Needs
Provide required speed, travel angle, duty cycle, tracking accuracy and environmental conditions.
3
Confirm Electrical Interface
Confirm 24V supply, current capacity, hall wiring, cable length and controller type.
FAQ
What does “14-inch” mean on SC14?
It refers to the slewing-drive size class. SC14 offers higher torque and tilting capacity than SC12 for larger single-axis solar tracker and industrial rotary applications.
Can SC14 be used on large solar trackers?
Yes. Output torque 10.2 kN·m, tilting moment 67.8 kN·m and ≤0.17° precision suit many large single-axis PV / CSP tracker designs — confirm panel area and wind load first.
Does SC14 include motor feedback?
Yes. The 24VDC IP65 motor includes a magnetic pulse generator with Hall A/B quadrature signals for position feedback.
Is the motor outdoor-ready?
The standard motor package is IP65 for dust and water-jet protection. Final enclosure and cable glands should still match your site conditions.
Can mounting and cables be customized?
Yes. Flange interfaces, motor packages, cable length and feedback options can be reviewed against your mechanical layout for OEM / ODM projects.
Need a Custom Slewing Drive?
Send load, tracker size, voltage and mounting drawings. Elerover engineering will help size SC14 or a related slewing configuration.
