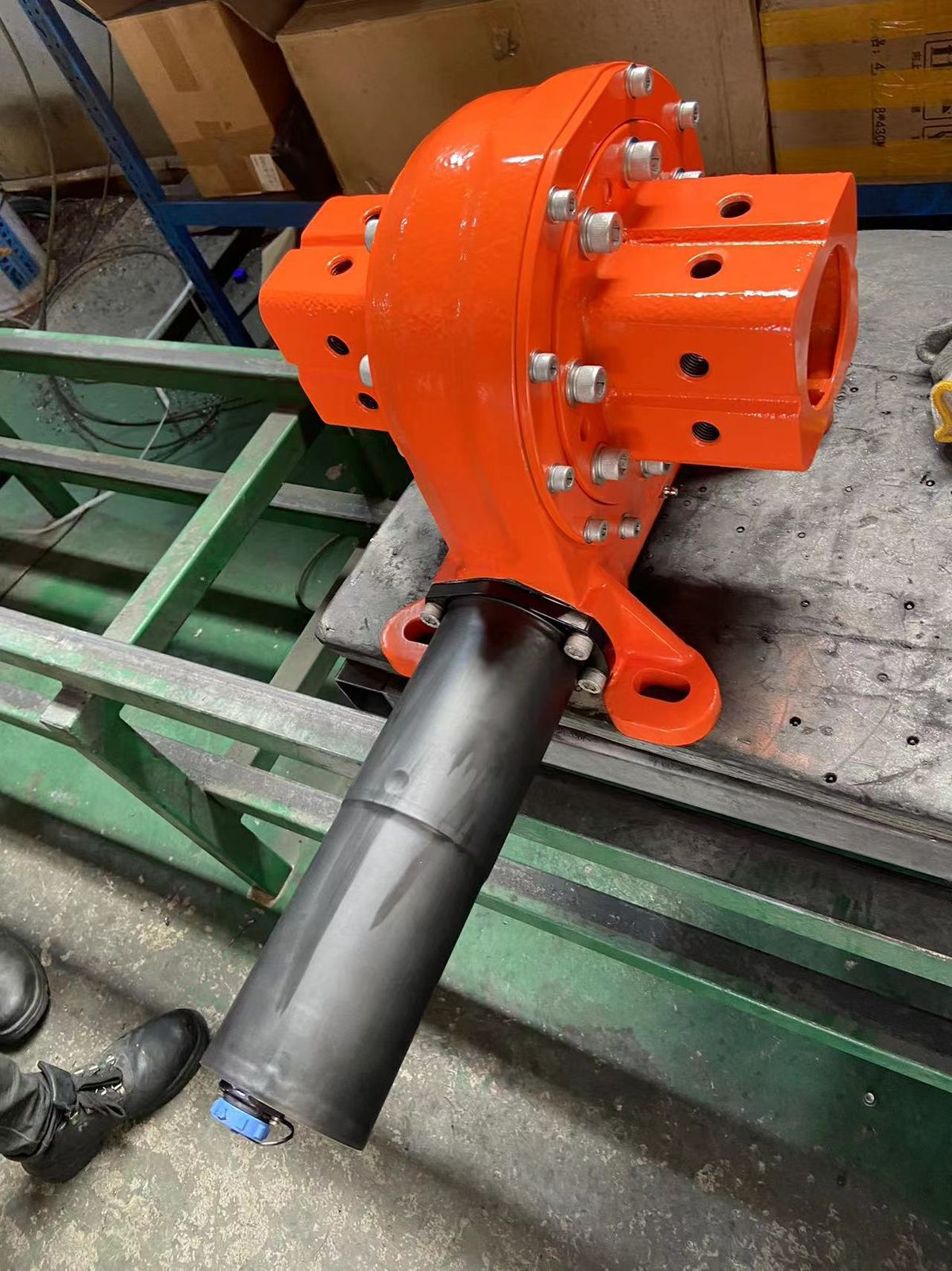

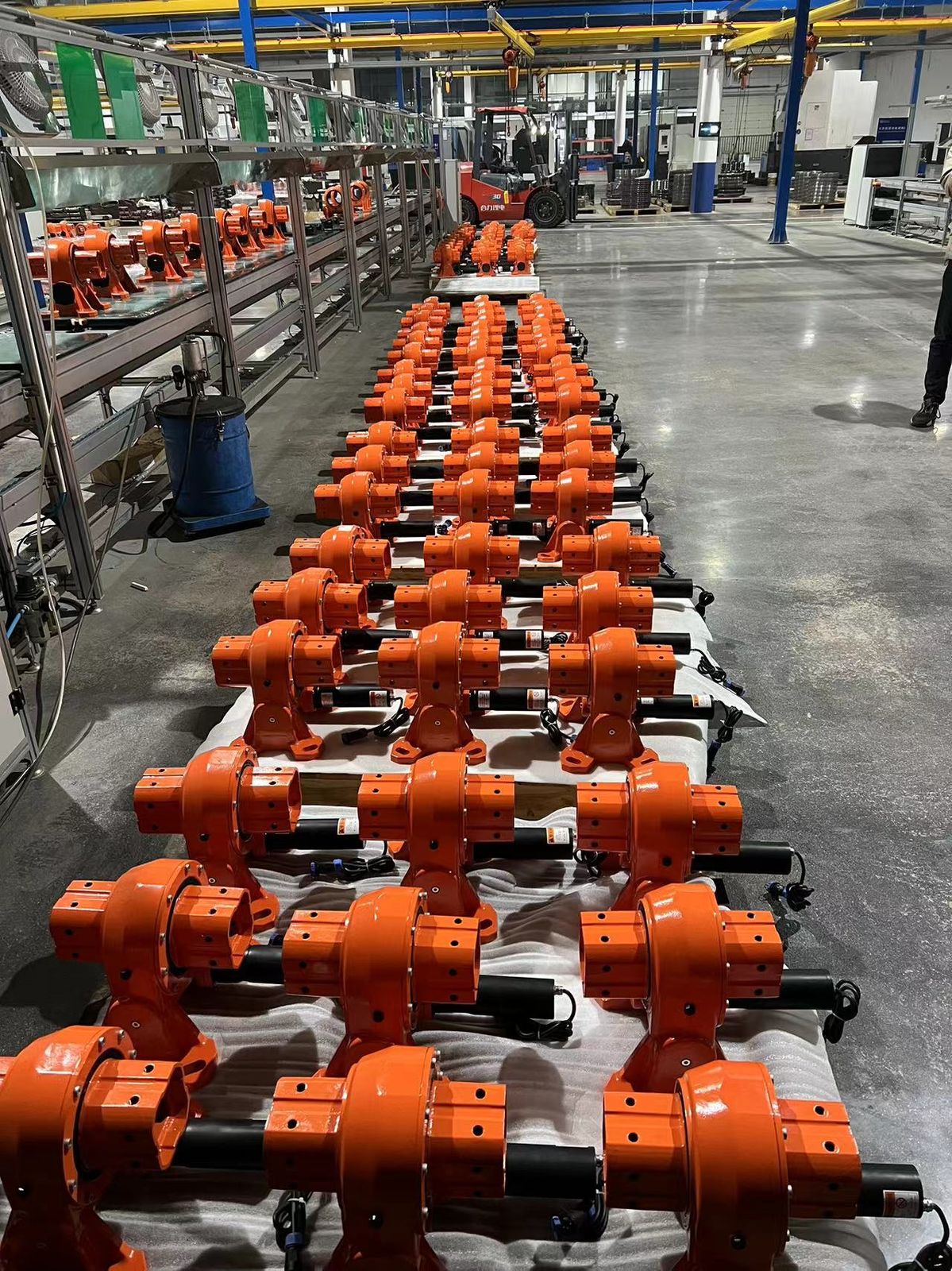

9-Inch Vertical Slewing Drive for Solar Trackers

VH9-61S130-RC-2415300 9-Inch Slewing Drive

A vertical 9-inch electric slewing drive engineered for single-axis solar tracking.
The VH9-61S130-RC-2415300 combines a worm-gear slewing stage with a 24VDC IP65 planetary reducer motor,
hard travel limits and outdoor C3/IP65 protection for utility-scale and commercial PV trackers.

Request a Quote
Contact Engineering Team

Rated Output Speed
0.025 rpm

Output Torque
6405 N·m

Holding Torque
56 kN·m

Tilting Moment
12 kN·m

Gear Ratio
61:1

Output Torque
6405 N·m

Holding Torque
56 kN·m

Hard Limit
±60°

Protection
IP65 · C3

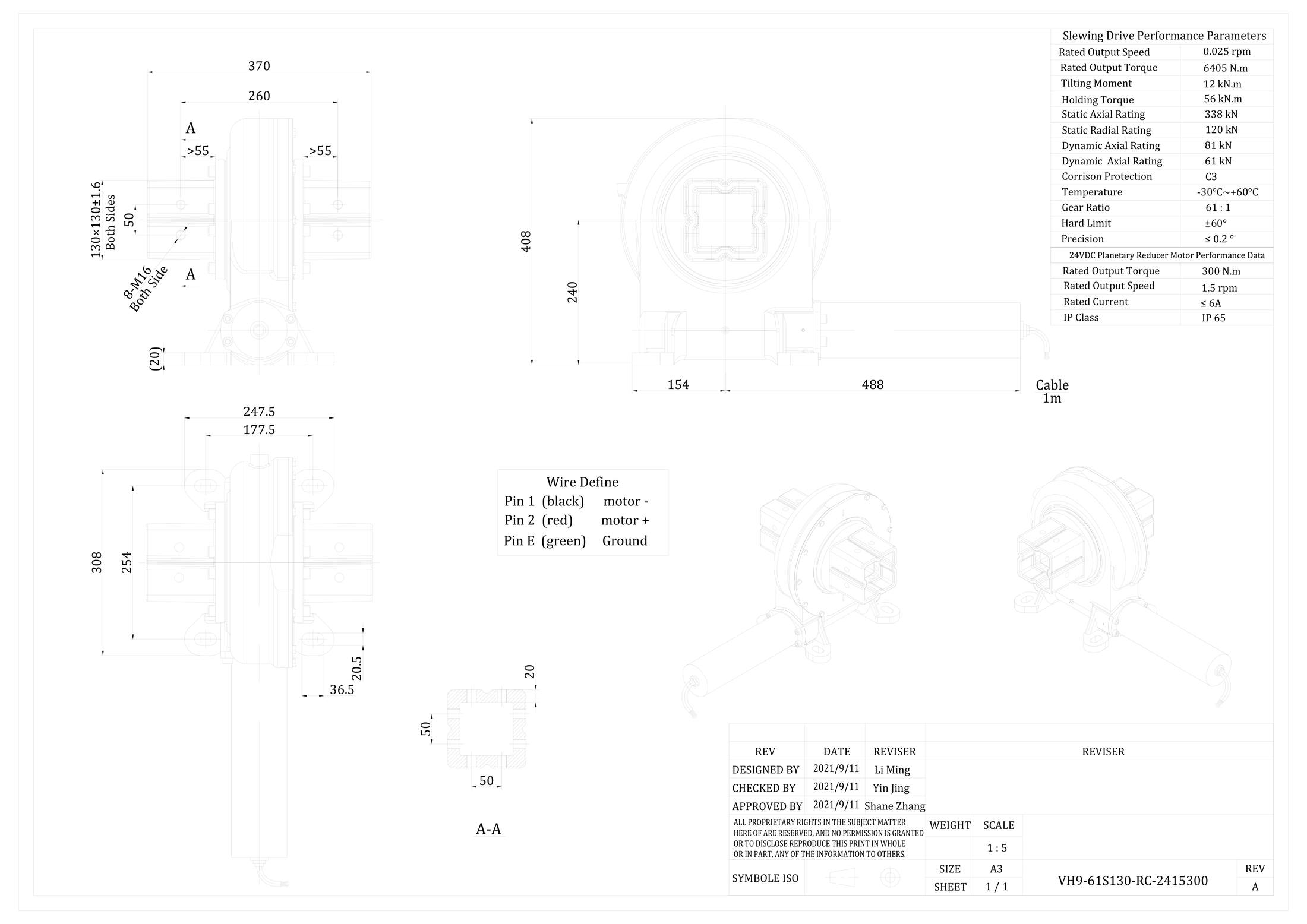

Product Drawing

VH9 Dimensions & Performance Drawing

Official dimensional drawing for model VH9-61S130-RC-2415300 Rev.A — mounting interfaces, motor data, hard limits and wiring.

Product Overview

Larger Vertical Drive for Single-Axis Solar Tracking

VH9 steps up from VH7 for longer tracker rows and higher holding demand, while keeping the same vertical solar-tracker mounting style.

This 9-inch vertical slewing drive delivers 6405 N·m rated output torque, 56 kN·m holding torque and 12 kN·m tilting moment,
with a 61:1 worm-gear ratio, ±60° hard limit and ≤0.2° precision.
A 24VDC IP65 planetary reducer motor and 1 m cable simplify field wiring for solar EPC and OEM tracker builders.

Slotted base feet, 8×M16 side mounting on a 130×130 mm pattern and a square output interface support repeatable installation on torque-tube tracker structures.

Product Highlights

9-inch vertical slewing drive for solar trackers.
Rated output torque 6405 N·m / holding torque 56 kN·m.
Hard travel limit ±60° for tracker safety.
Gear ratio 61:1 with precision ≤ 0.2°.
Standard 24VDC IP65 motor; 36V / 48V / AC options available.
Static axial rating 338 kN for heavier tracker structures.

Technology

What Is a Slewing Drive?

A compact rotary gearbox built around a slewing bearing for high integration, large reduction ratio and easier field use.

A slewing drive is a specialized reduction product derived from the slewing bearing. It integrates the bearing, gearing, seals, housing and drive interface into one assembly,
so the unit can carry radial and axial loads while transmitting torque for rotation. Because the slewing ring’s inner and outer races form the structural base and the rotating path,
the drive can provide continuous 360° motion and accept a power source mounted on the same frame—often called a rotary reducer, turntable reducer or drive turntable.

By transmission type, slewing drives are commonly gear-driven or worm-gear driven; by enclosure they may be open or closed.
Open gear turntables are familiar on excavators and tower cranes as the final stage of a reduction chain, usually paired with a planetary reducer upstream.
Integrated worm-gear slewing drives—especially enveloping-worm designs—raise torque capacity and positioning accuracy, and are well suited to digital control on solar and wind tracking,
as well as robots, radar, heavy lifting and precision CNC turntables.

Rotation may be on a single axis or coordinated across multiple axes. Elerover’s VH9 is a closed worm-gear vertical slewing drive for single-axis solar tracker systems.
The standard drawing package uses a 24VDC IP65 planetary reducer motor; VH9 can also be configured with 36V, 48V or AC motors to match site power and controller design.

Key Features

Built for Utility-Scale Solar Tracking Outdoors

Designed for field PV projects that need higher holding capacity than VH7 with outdoor-ready sealing.

9-Inch Solar Geometry

Vertical VH layout with square output interface for torque-tube single-axis trackers.

Higher Holding Capacity

56 kN·m holding torque supports longer rows and stronger wind-load cases than VH7.

Hard Limit ±60°

Mechanical travel limits support safer tracker motion envelopes during commissioning and operation.

Outdoor Protection

IP65 sealing with C3 corrosion protection for humid, dusty and coastal solar sites.

Flexible Motor Options

Standard 24VDC IP65 motor; 36V, 48V and AC motor packages available for single-axis solar trackers.

OEM Mounting Pattern

8×M16 on 130×130 mm side mounts and slotted base feet for repeatable pier design.

Technical Data

Slewing Drive Performance Parameters

Performance values from drawing VH9-61S130-RC-2415300 Rev.A for product selection and early engineering review.

Parameter	Value
Rated Output Speed	0.025 rpm
Rated Output Torque	6405 N·m
Tilting Moment	12 kN·m
Holding Torque	56 kN·m
Static Axial Rating	338 kN
Static Radial Rating	120 kN
Dynamic Axial Rating	81 kN
Dynamic Radial Rating	61 kN
Gear Ratio	61:1
Hard Limit	±60°
Precision	≤ 0.2°
IP Class	IP65
Corrosion Protection	C3
Operating Temperature	-30°C ~ +60°C

Note: Values are for product selection reference from drawing VH9-61S130-RC-2415300 Rev.A. Confirm final configuration for your tracker load case.

Motor & Wiring

Motor Options & Standard 24V Wiring

Standard drawing package: 24VDC IP65 planetary reducer motor. VH9 can also be mounted with 36V, 48V or AC motors for single-axis solar tracker systems.

Item	Value
Standard Motor	24VDC planetary reducer motor (drawing package)
Optional Motors	36V / 48V DC or AC motor packages
Motor Output Torque	300 N·m (24V standard)
Motor Output Speed	1.5 rpm (24V standard)
Rated Current	≤ 6 A (24V standard)
Motor IP Class	IP65
Cable Length	Approx. 1 m

Wire / Pin	Color	Function
1	Black	Motor −
2	Red	Motor +
E	Green	Ground

Mounting Snapshot

Key Installation Dimensions

Selected envelope dimensions from the VH9 drawing for early tracker structural layout.

Item	Value
Product Model	VH9-61S130-RC-2415300
Drive Type	9-inch vertical slewing drive for solar tracker
Side Mounting	8×M16 on 130×130 mm pattern (both sides)
Base Feet	Slotted holes approx. 20.5 × 36.5 mm
Motor Interface	24VDC IP65 planetary reducer
Cable	Approx. 1 m

Applications

Typical Application Areas

Ideal for single-axis solar tracking where outdoor sealing, higher holding torque and hard limits matter.

Selection Support

How to Confirm the Right Slewing Drive

Confirm Tracker Loads

Share panel area, wind region, axial / radial loads and required holding torque.

Confirm Motion Envelope

Provide tracking angle, hard-limit needs, duty cycle and target tracking accuracy.

Confirm Electrical Interface

Confirm 24V supply, current capacity, cable length and controller type.

FAQ

Is VH9 the same as SVH9?

No. VH9 is a vertical single-axis slewing drive for solar trackers. SVH9 is a dual-axis drive for azimuth and elevation control. Choose based on your tracker architecture.

How does VH9 compare with VH7?

VH9 offers higher output and holding torque (6405 N·m / 56 kN·m) and a larger 130 mm side mounting pattern for heavier single-axis tracker rows. Share your load case and we will confirm the best size.

Can VH9 be used on utility-scale solar trackers?

Yes. 6405 N·m output torque, 56 kN·m holding torque, IP65/C3 protection and ±60° hard limits suit many horizontal single-axis PV tracker designs — confirm wind load and row length first.

What motor voltages are available on VH9?

The standard drawing package uses a 24VDC IP65 planetary reducer motor. For single-axis solar tracker projects, VH9 can also be configured with 36V, 48V or AC motors—confirm controller and site power first.

Can mounting and cables be customized?

Yes. Base feet, side mounting, cable length and motor packages can be reviewed for OEM tracker programs.
