선회 드라이브
모델 VH7-60S110-RC-2415300

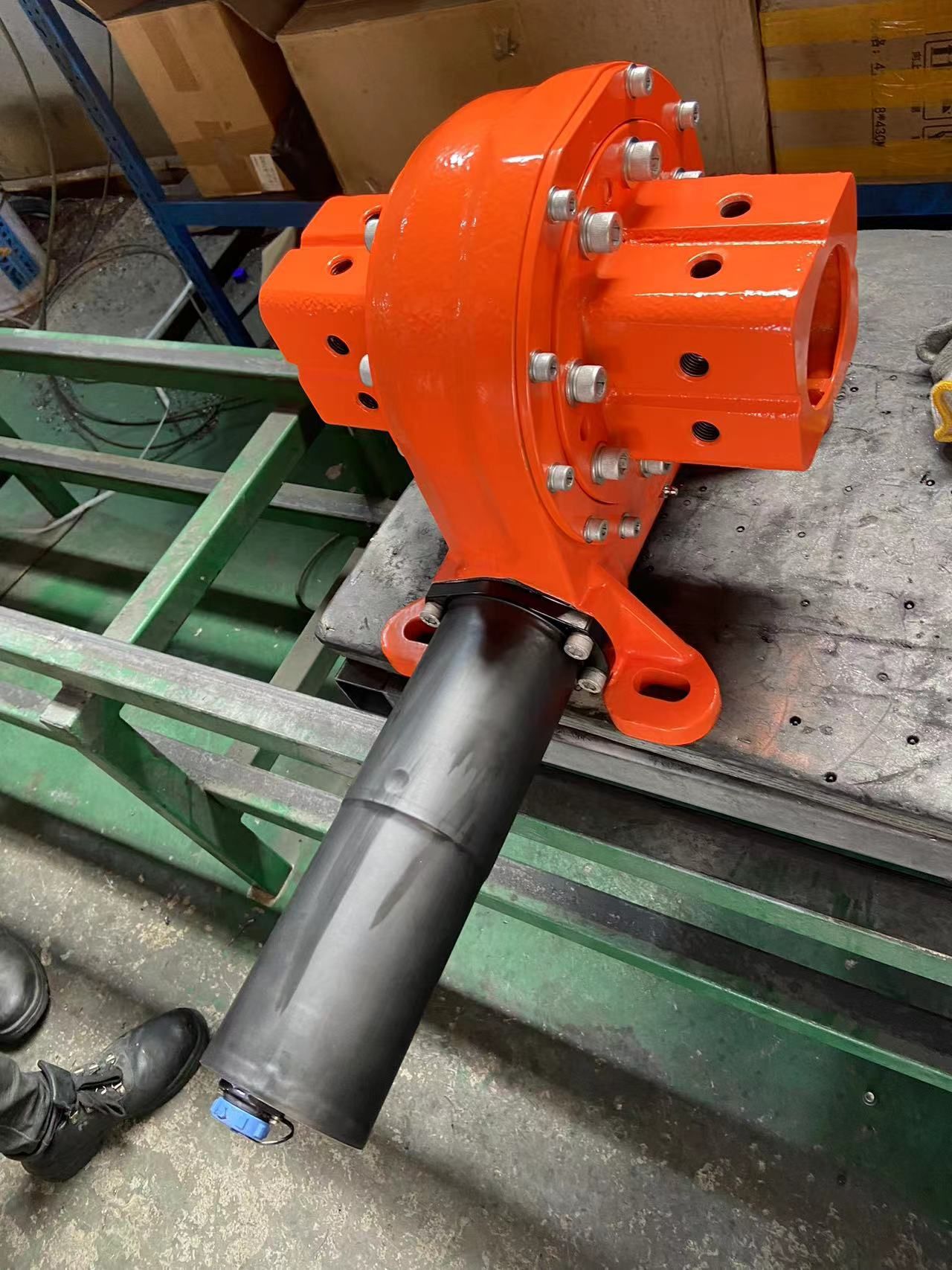

VH7 7-Inch Slewing Drive for Solar Tracker | 24 V DC Vertical Worm Gear Drive
VH7 7-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive from Elerover.
핵심 사양
- 출력 토크
- 6300 N·m
- 유지 토크
- 45 kN·m
- 틸팅 모멘트
- 10 kN·m
- 축 하중
- 100 kN
제품 개요

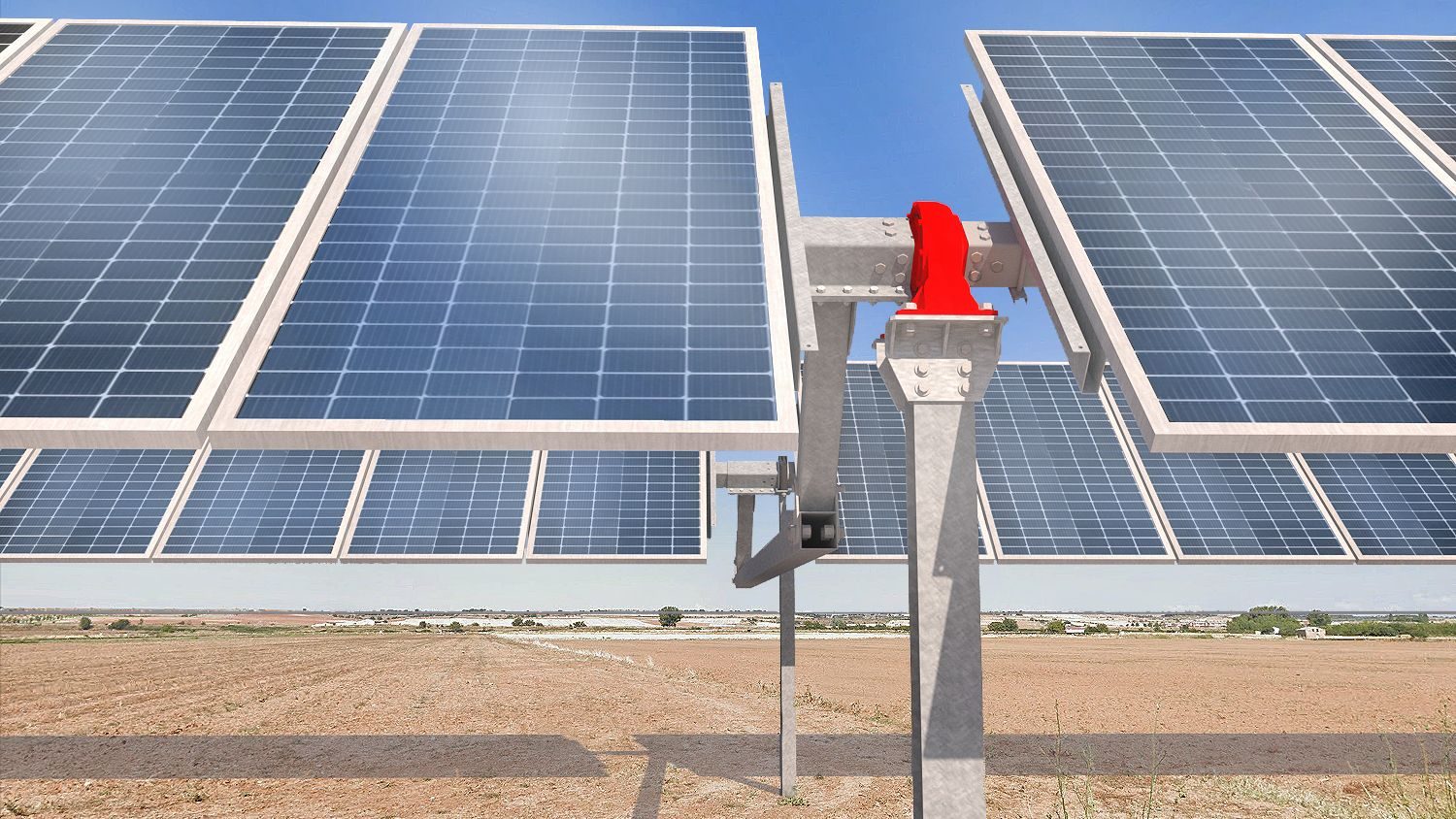

VH7 7-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive from Elerover. This slewing drive provides controlled rotary torque for tracking, positioning and heavy rotary platforms.
- 출력 토크
- 6300 N·m
- 유지 토크
- 45 kN·m
- 틸팅 모멘트
- 10 kN·m
- 축 하중
- 100 kN
- 반경 하중
- 65 kN
- 감속비
- 60:1
적용 분야

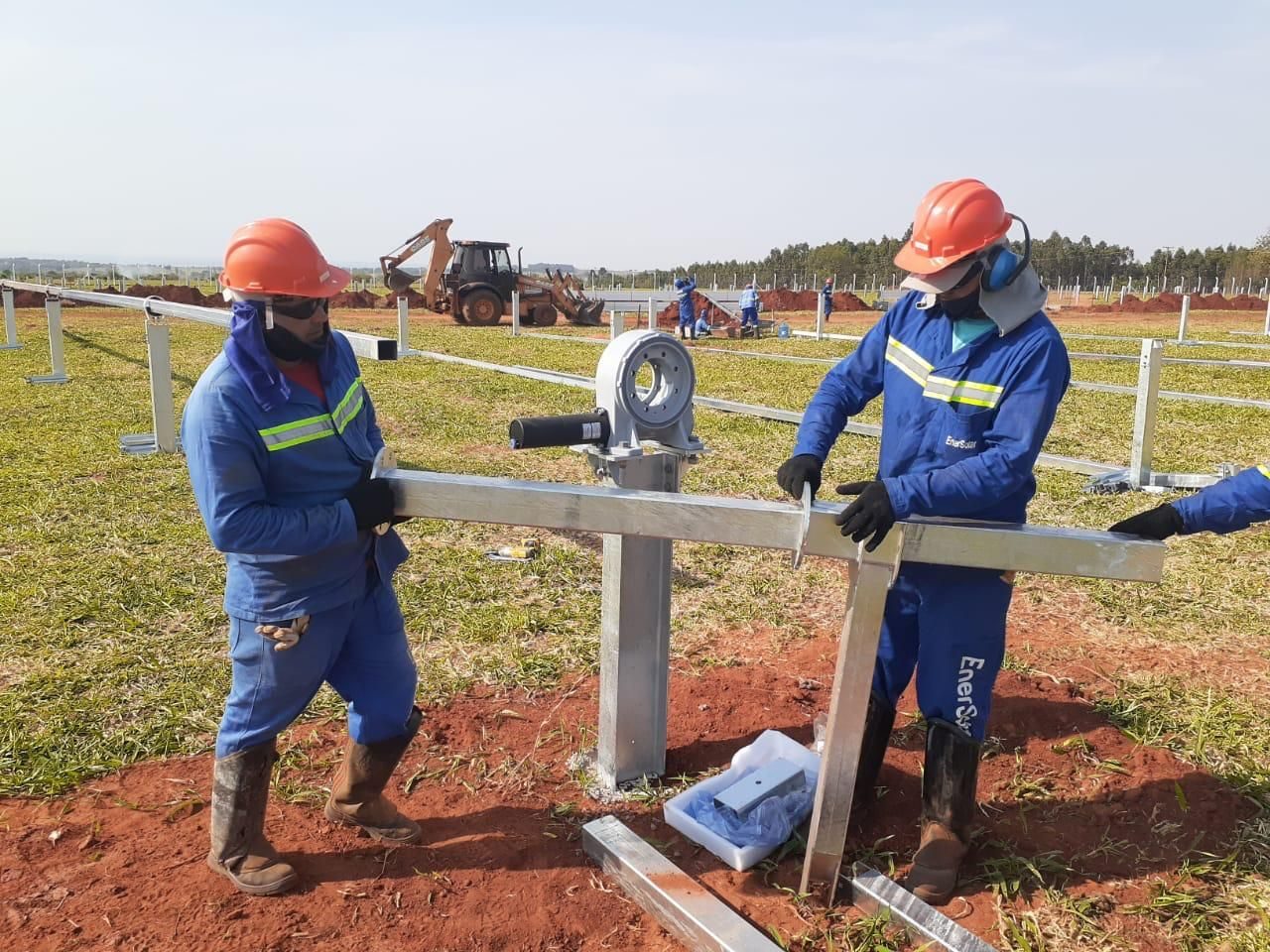

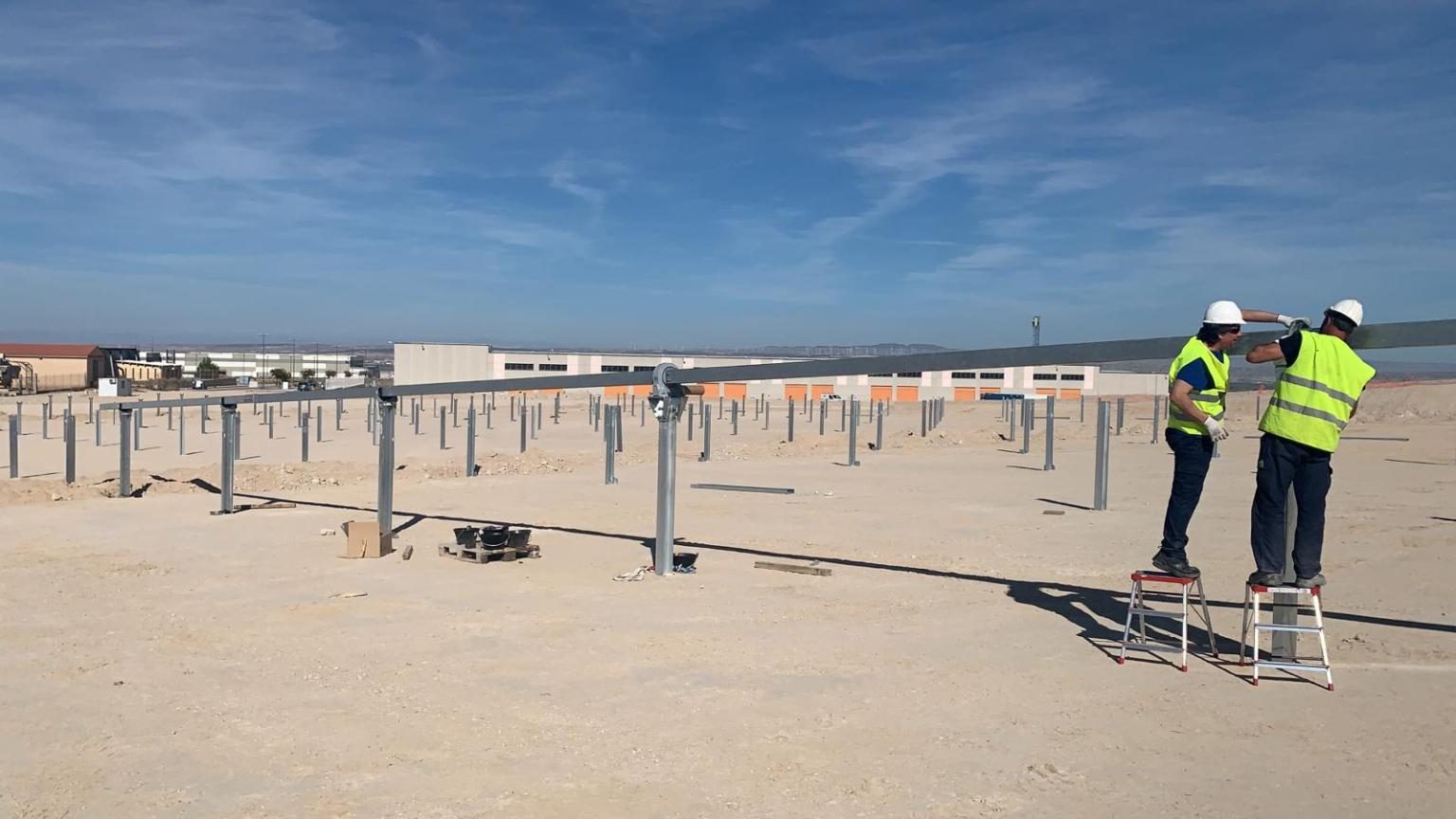

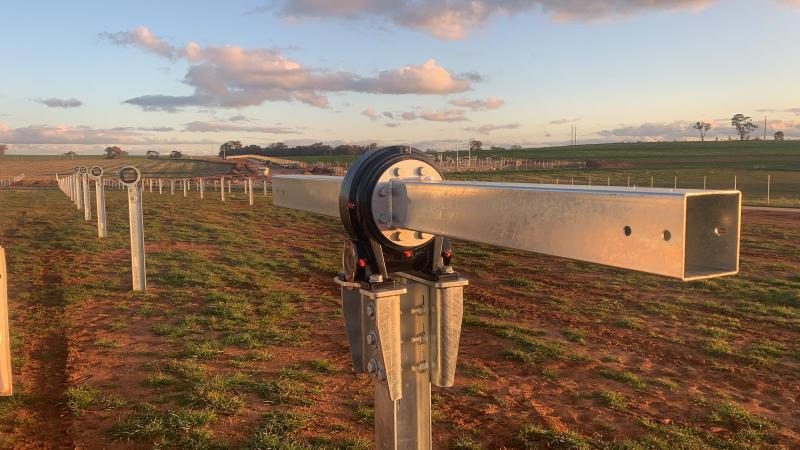

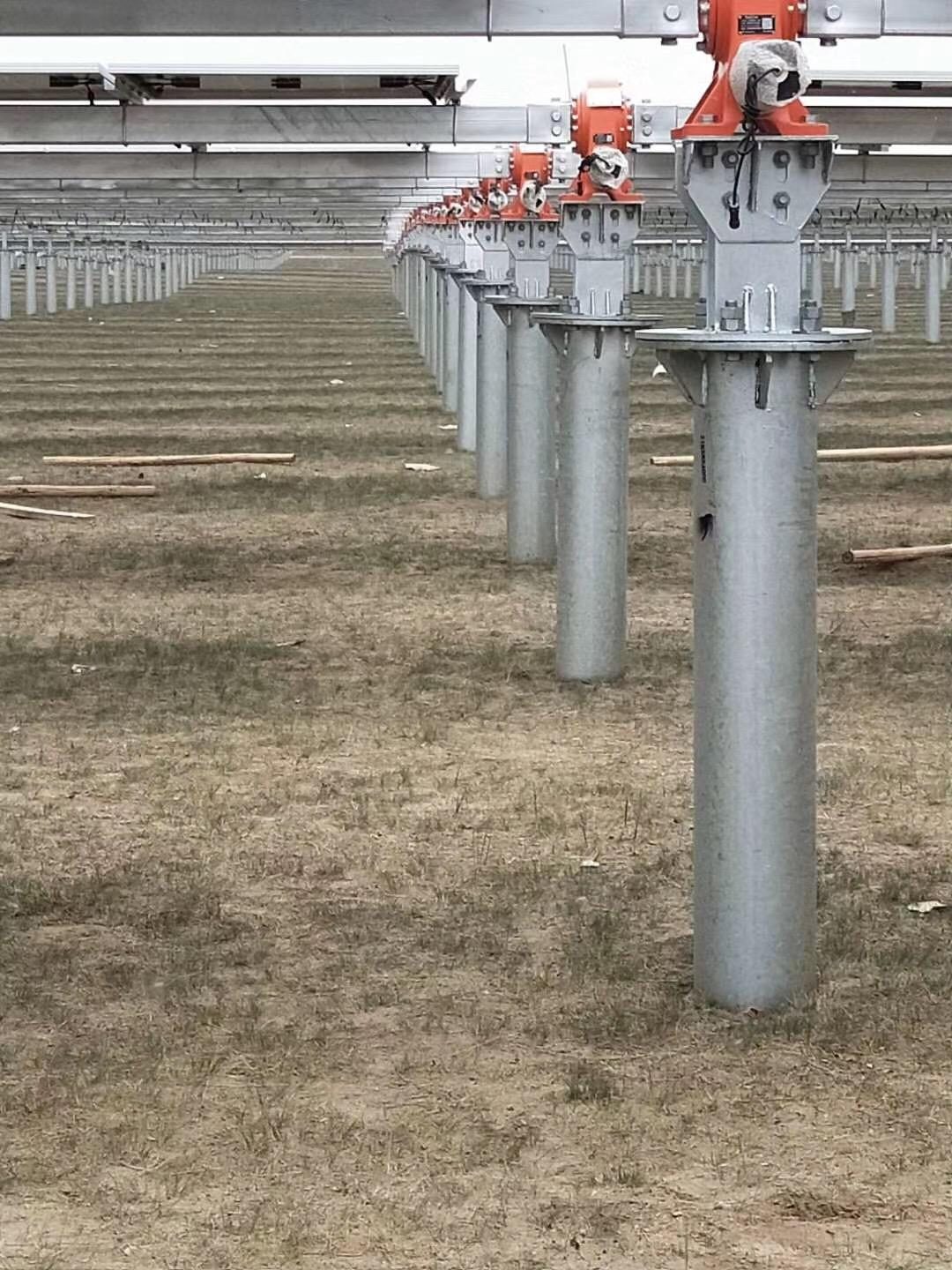

- Horizontal single-axis solar trackers
- Utility-scale PV plants
- Commercial and industrial solar farms
- Desert and outdoor tracking systems
- OEM solar tracker platforms
주요 이점
- 7-inch vertical slewing drive for solar trackers
- Rated output torque 6300 N·m / holding torque 45 kN·m
- Hard travel limit ±60°
- Gear ratio 60:1 with precision ≤ 0.2°
- 24VDC IP65 motor with Weipu SP21 connector
- C3 corrosion protection for outdoor solar sites

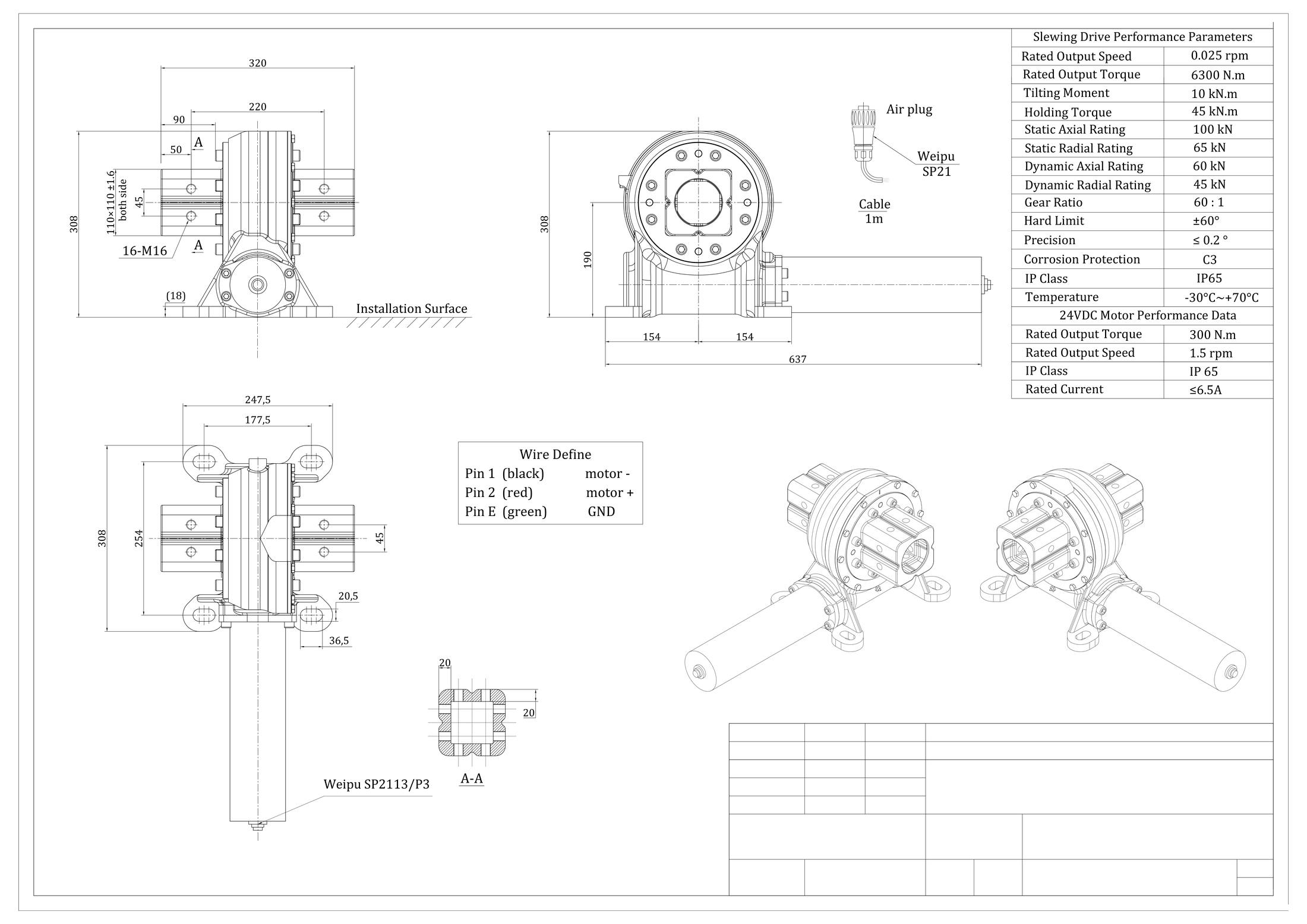

기술 사양
| Drive type | 7-inch vertical slewing drive for solar tracker |
|---|---|
| 출력 토크 | 6300 N·m |
| 유지 토크 | 45 kN·m |
| 틸팅 모멘트 | 10 kN·m |
| 축 하중 | 100 kN |
| 반경 하중 | 65 kN |
| 감속비 | 60:1 |
| 백래시 | ≤ 0.2° |
| 모터 전압 | 24 V DC |
| IP 등급 | IP65 |
기술 문서 요청
Request an OEM quote
Share force, stroke, voltage and quantity. Elerover will map your RFQ to a published series or OEM configuration.
Quote context
관련 제품

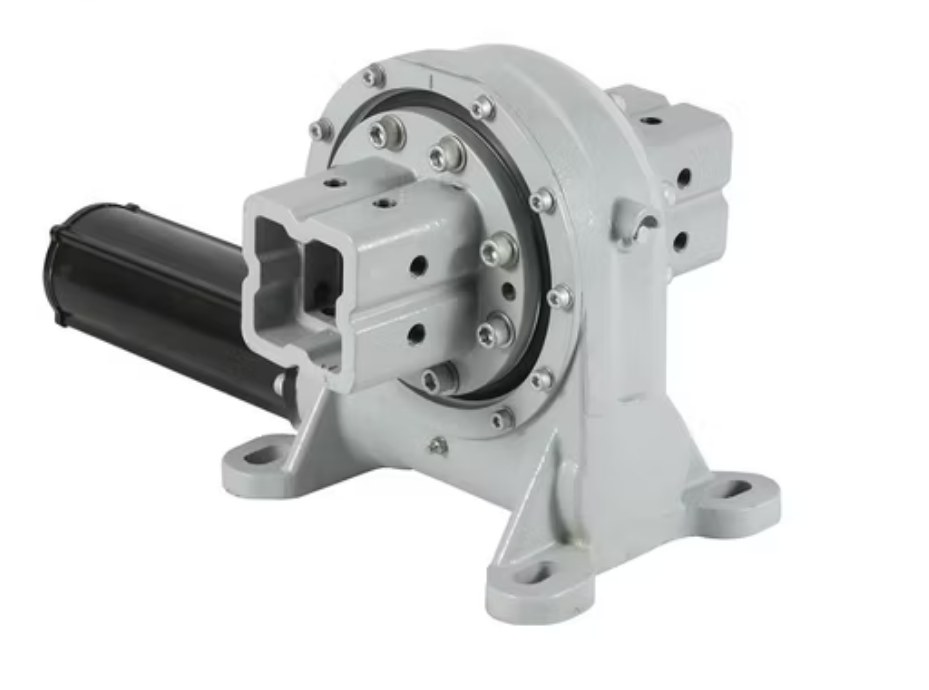

VH9 9-Inch Slewing Drive for Solar Tracker | 24VDC Vertical Worm Gear Drive
VH9 9-inch vertical slewing drive for solar trackers. 6405 N·m torque, 56 kN·m holding, 61:1, ±60° hard limit. Standard 24VDC IP65 motor; 36V / 48V / AC options for single-axis PV systems.
상세 보기 →

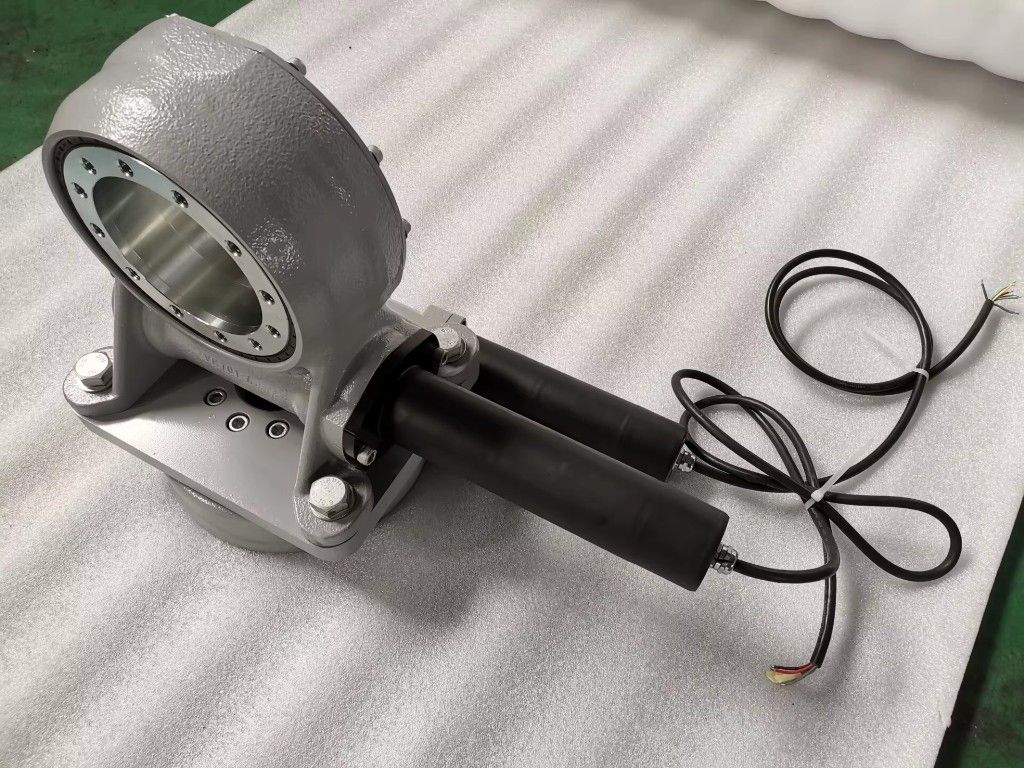

SVH9 9-Inch Dual Axis Slewing Drive | 24VDC Solar Tracker Worm Gear Rotary Actuator
SVH9 9-inch dual-axis slewing drive with 24VDC IP65 motors. 7320 N·m output torque, elevation holding up to 56 kN·m, 61:1 ratios, ≤0.17° precision for large solar trackers and rotary platforms.
상세 보기 →

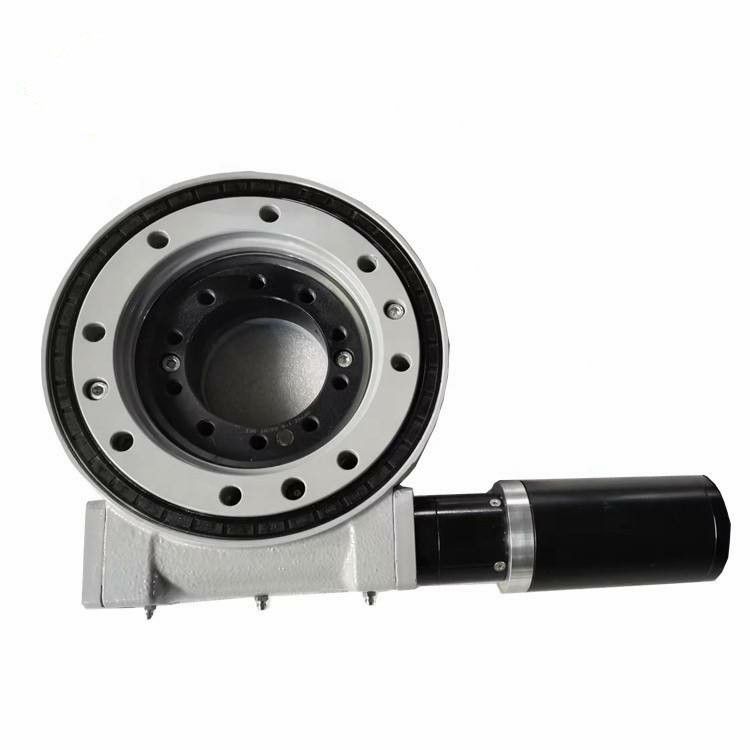

SC7 7-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC7 7-inch slewing drive with 24VDC IP65 motor. 937 N·m output torque, 10400 N·m holding torque, 13500 N·m tilting moment, 71:1 ratio, ≤0.17° precision for solar trackers and rotary platforms.
상세 보기 →

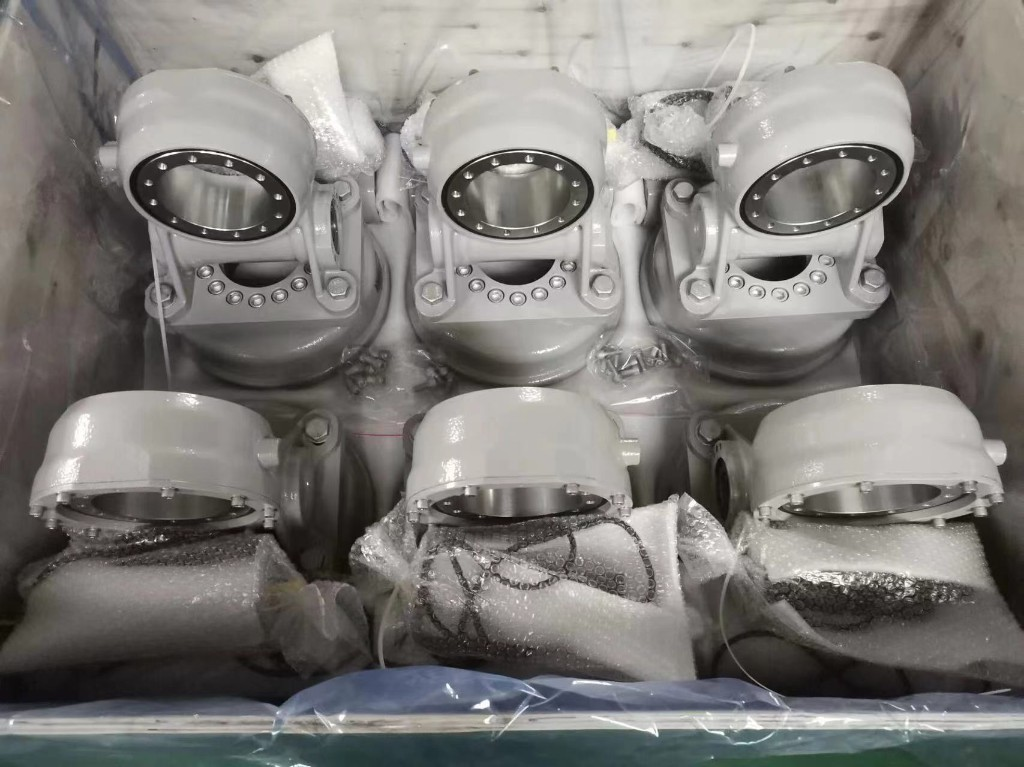

SVH7 7-Inch Dual Axis Slewing Drive | 24VDC Solar Tracker Worm Gear Rotary Actuator
