리니어 액추에이터
모델 SLA-17K

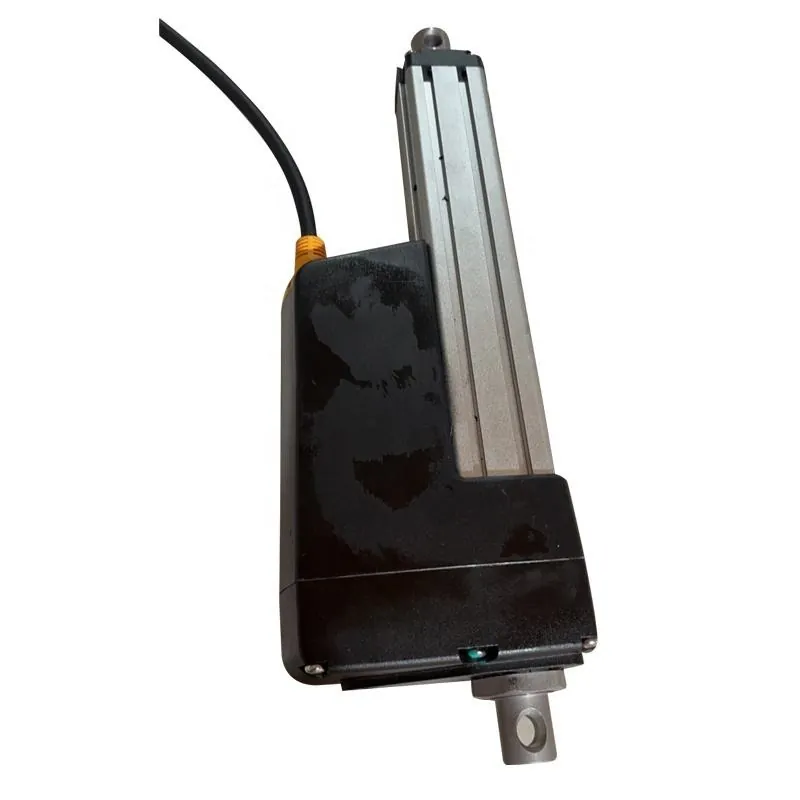

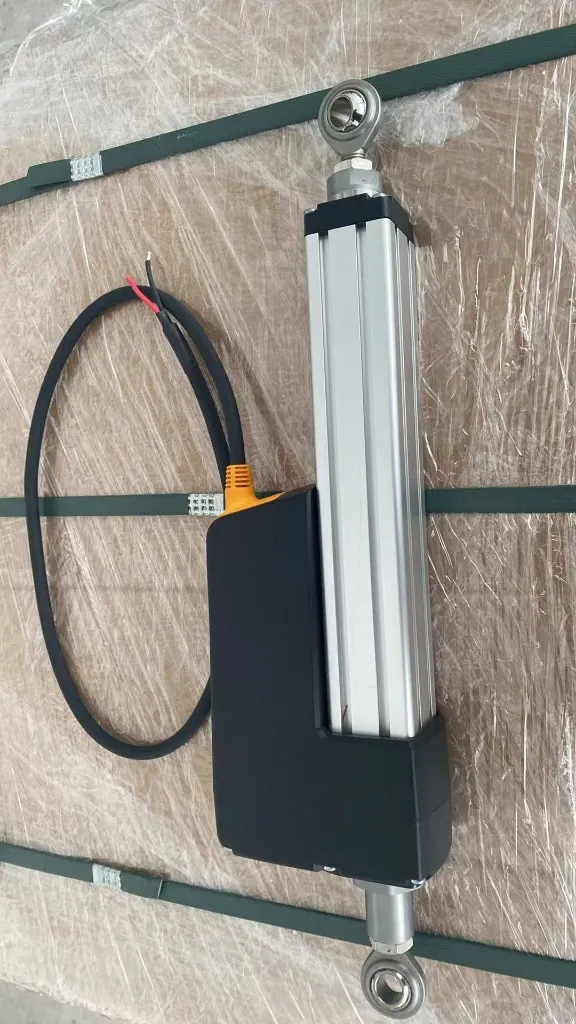

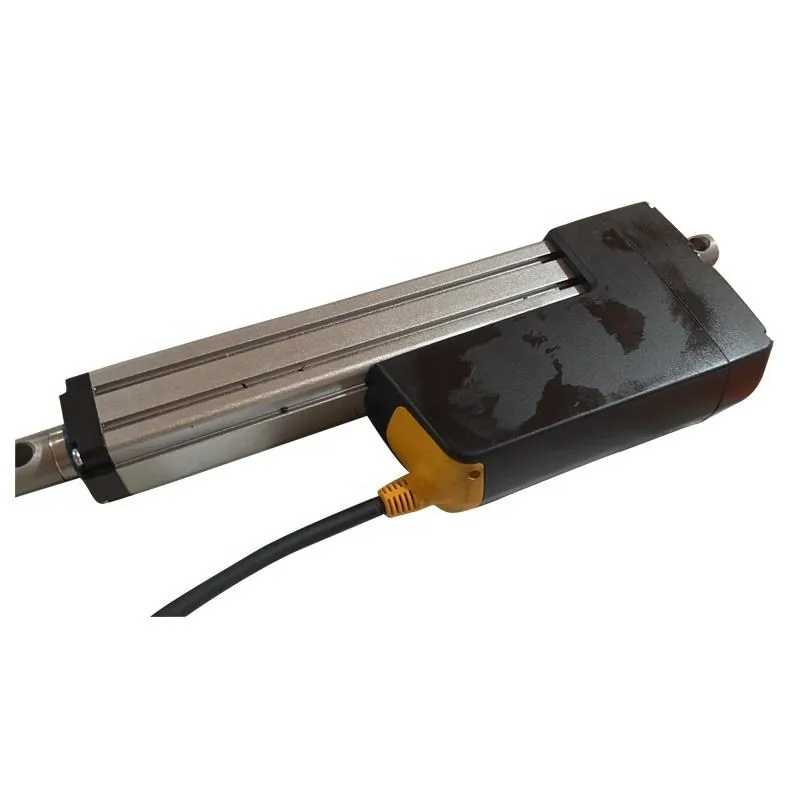

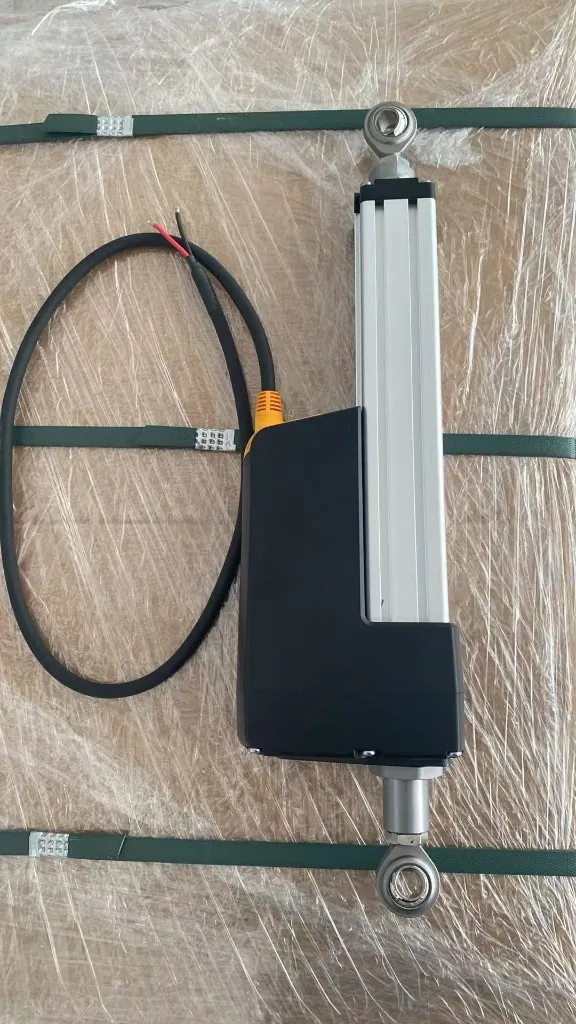

12 V DC 24 V DC SLA-17K 17,000 N industrial linear actuator
12V 24V SLA-17K 17000N industrial linear actuator from Elerover.
핵심 사양
- 최대 하중
- 17000 N / 1700 kg / 3800 lbs
- 스트로크
- 50–1000mm (customizable)
- 속도
- 6.5 mm/s – 35 mm/s
- 전압
- 12 V / 24 V / 36 V / 48 V DC
제품 개요
12V 24V SLA-17K 17000N industrial linear actuator from Elerover. This DC linear actuator is built for OEM equipment that needs repeatable push/pull motion under industrial duty.
- 최대 하중
- 17000 N / 1700 kg / 3800 lbs
- 스트로크
- 50–1000mm (customizable)
- 속도
- 6.5 mm/s – 35 mm/s
- 전압
- 12 V / 24 V / 36 V / 48 V DC
- IP 등급
- IP67
- 피드백
- Optional Hall / potentiometer / end-stop / magnetic / analog
적용 분야
- Construction vehicles and machinery
- Agricultural machinery
- Industrial automation
- PV solar and CSP plants
- Outdoor power equipment
- Medical bed and accessibility equipment
- Ventilation and animal husbandry
주요 이점
- Heavy-duty industrial electric linear actuator up to 17000N dynamic force
- Working voltage: 12V / 24V / 36V / 48V DC
- IP67 weather protection for outdoor and harsh environments
- Ball screw and ACME screw transmission options (codes A–J)

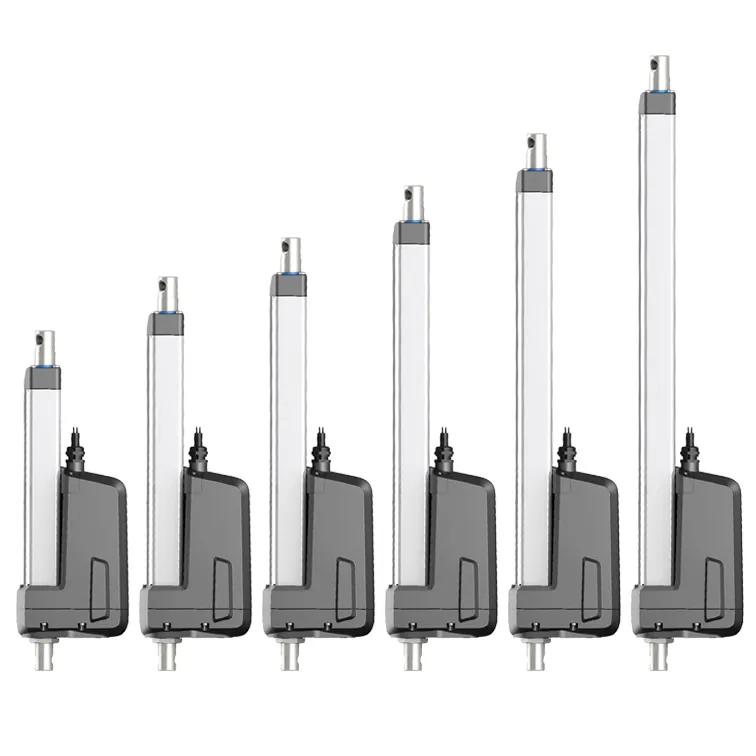

- Stroke range 50–1000mm (customizable)

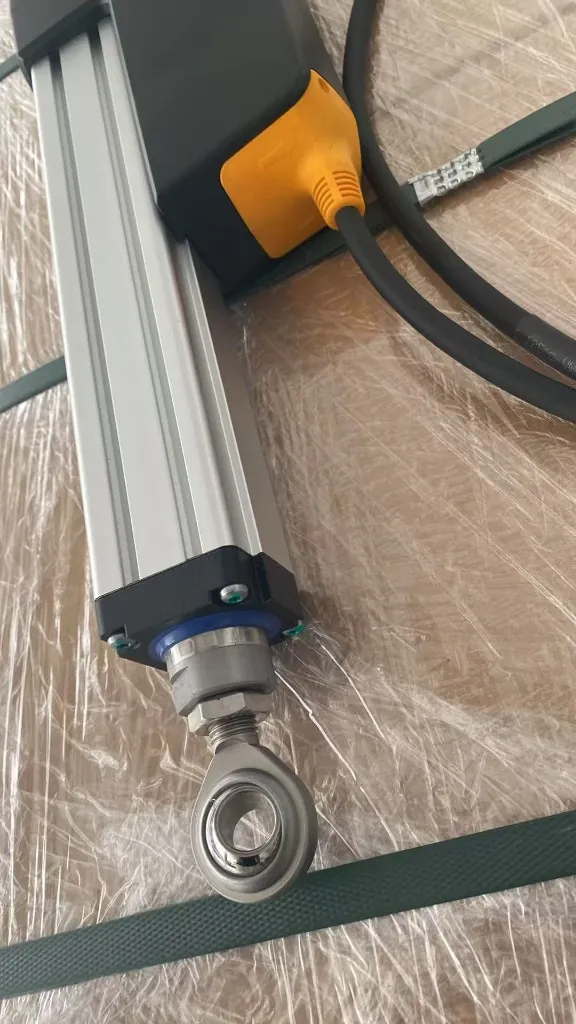

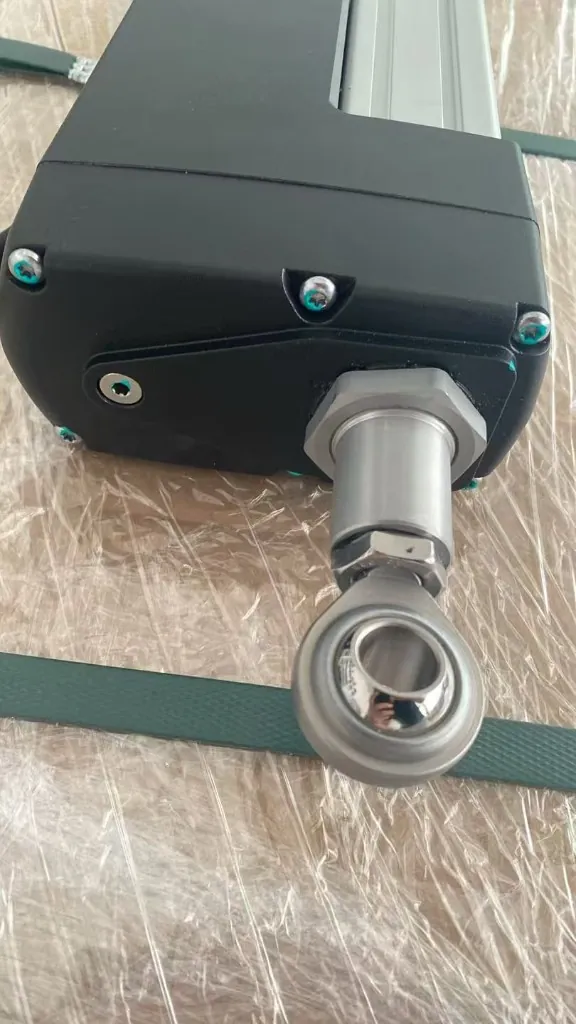

- Spherical rod-end mounts with Ø20mm mounting holes
- Aluminum alloy housing with stainless steel piston rod
- Standard manual override for emergency operation without power
기술 사양
| 최대 하중 | 17000 N / 1700 kg / 3800 lbs |
|---|---|
| 스트로크 | 50–1000mm (customizable) |
| Stroke options | 50–1000mm (customizable) |
| 속도 | 6.5 mm/s – 35 mm/s |
| 전압 | 12 V / 24 V / 36 V / 48 V DC |
| IP 등급 | IP67 |
| 듀티 사이클 | 20–35% (by transmission code) |
| 피드백 | Optional Hall / potentiometer / end-stop / magnetic / analog |
| Mounting type | Ø20mm spherical rod ends |
| Noise level | ≤65 dB |
| 모터 유형 | Brushed DC |
| Manual override | Yes (standard) |
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 6.5 mm/s | 5 mm/s | 17000 N | 20000 N |
| 7 mm/s | 5 mm/s | 12000 N | 15000 N |
| 9 mm/s | 6.5 mm/s | 13500 N | 15000 N |
| 10 mm/s | 7 mm/s | 10000 N | 12000 N |
| 14 mm/s | 9 mm/s | 10000 N | 12000 N |
| 18 mm/s | 13 mm/s | 7500 N | 10000 N |
| 23 mm/s | 13 mm/s | 5000 N | 8000 N |
| 28 mm/s | 20 mm/s | 5000 N | 8000 N |
| 35 mm/s | 23 mm/s | 3500 N | 5000 N |
