SLA-TG50S actionneur linéaire hydro-électrique 25000N

1 / 5

Actionneur hydro-électrique

SLA-TG50S actionneur linéaire hydro-électrique 25000N

SLA-TG50S actionneur linéaire hydro-électrique 25000N is supplied by Elerover as a actionneur hydro-électrique for OEM and industrial motion projects. Key ratings include DC24V/48V operation, up to 2.5T load, 50~800mm stroke, IP6X protection. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Actionneur hydro-électrique manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Paramètres clés

Voltage
DC24V/48V
Stroke
50~800mm
Push force
2.5T
Pull force
1.5T
waterproof
IP6X
Max speed
5-6mm/s
Power
300W
Temperature
-20-60℃
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Aperçu du produit

High-Force Small Hydraulic Linear Actuator for Industrial Applications Introducing our small hydraulic linear actuator, designed for high performance and reliability in demanding environments. With a jacking force of 2.5T and a retracting force of 1.5T, this actuator is perfect for lifting platforms and industrial automation equipment. Equipped with a 24V/48V DC motor and offering optional stroke lengths from 50mm to 400mm, our hydraulic linear actuator combines power, stability, and convenience at a competitive price. Key Features: High Force Capability: Delivers 2.5T jacking force and 1.5T retracting force, ideal for heavy-duty applications. Integrated Protection Mechanisms: Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system. High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability. Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components. Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements. Specifications: Model: SLA-TG-50S Input Voltage: 24V / 48V DC Power: 300W / 800W Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm (Customizable within 50mm-400mm range) Jacking Force: 2.5T Retracting Force: 1.5T Speed: 5-6mm/s, 10-12mm/s Protection Grade: IPx6 Operating Temperature: -30°C to +70°C Duty Cycle: Long-term continuous use, up to 6 minutes at a time Weight: 5-15 kg Item TG50 Customize TG50 Customize Voltage DC24V/48V DC 24V/48V Power 300W 800W Stroke 50~800mm 50~800mm Push force 2.5T 2.5T Pull force 1.5T 1.5T Max speed 5-6mm/s 10-12mm/s Temperature -20-60℃ -20-60℃ Frequency 4min/each time 4min/each time waterproof IP6X IP6X Applications: Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to: Lifting Platforms Industrial Automation Equipment

Spécifications techniques

Item TG50 Customize
Voltage DC24V/48V
Power 300W
Stroke 50~800mm
Push force 2.5T
Pull force 1.5T
Max speed 5-6mm/s
Temperature -20-60℃
Frequency 4min/each time
waterproof IP6X
nced stability. Ease of Use Ready to use upon connection to a power supply, with no need for additional hydr
aulic components. Customizable Options Pressure output interface and mounting dimensions can be tailored to specific re

Applications

  • Automatisation industrielle
  • Agriculture
  • Construction
  • Levage

FAQ

Qu’est-ce que le SLA-TG50S ?

Modèle : SLA-TG-50S. Tension d’entrée : 24V / 48V DC. Puissance : 300W / 800W. Longueur de course : 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm en option (personnalisable...

Elerover fabrique-t-il le SLA-TG50S ?

Oui. Elerover est fabricant et fournisseur de actionneur hydro-électrique. Ce modèle propose des options OEM indiquées dans les données produit — indiquez le cycle de service et la quantité pour un devis usine.

Quelles sont les spécifications clés du SLA-TG50S ?

Les valeurs issues des spécifications produit incluent tension DC24V/48V, charge 2.5T, course 50~800mm, protection IP6X. Consultez le tableau Spécifications techniques sur cette page.

Pour quelles applications le SLA-TG50S est-il prévu ?

Applications typiques : Automatisation industrielle, Agriculture, Construction, Levage.

Comment demander un devis pour le SLA-TG50S ?

Indiquez charge, course, tension, indice IP, cycle de service, quantité et options OEM via le formulaire de contact ou WhatsApp.

Détails supplémentaires

High-Force Small Hydraulic Linear Actuator for Industrial Applications
Introducing our small hydraulic linear actuator, designed for high performance and reliability in demanding environments. With a jacking force of 2.5T and a retracting force of 1.5T, this actuator is perfect for lifting platforms and industrial automation equipment. Equipped with a 24V/48V DC motor and offering optional stroke lengths from 50mm to 400mm, our hydraulic linear actuator combines power, stability, and convenience at a competitive price.

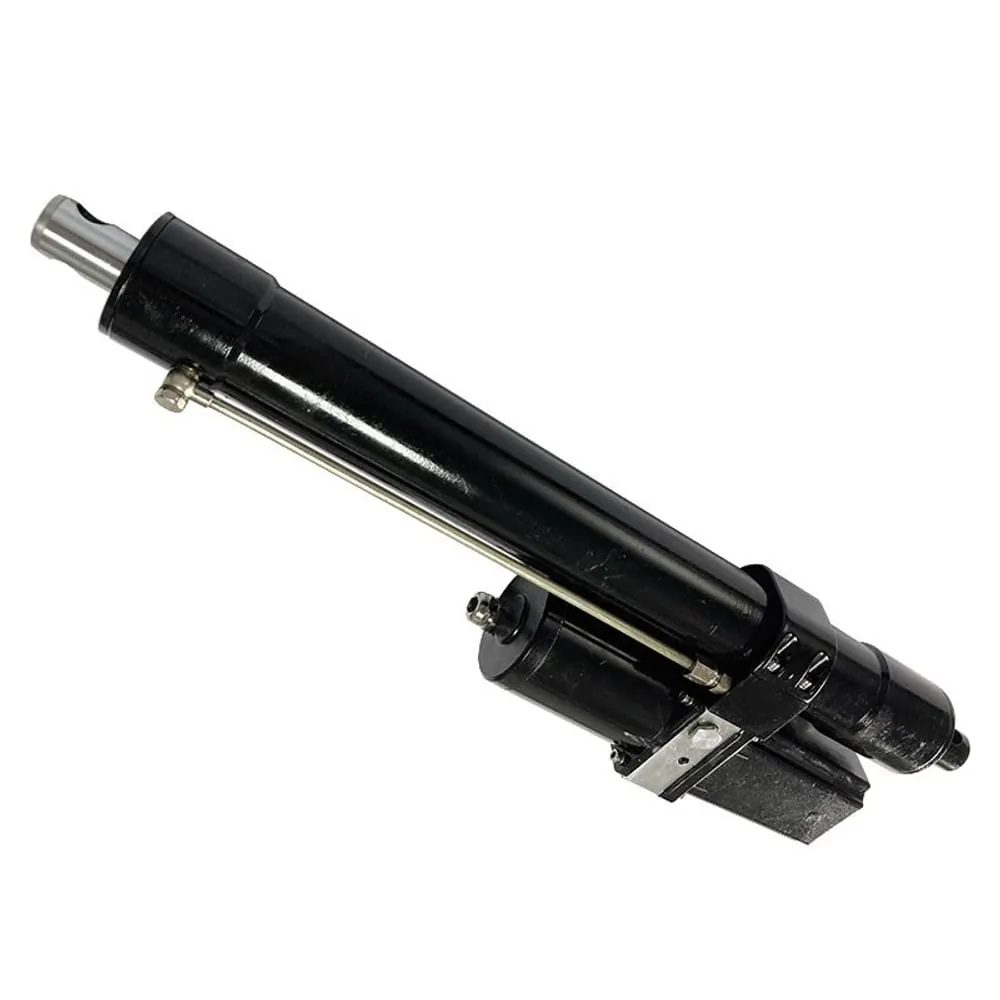

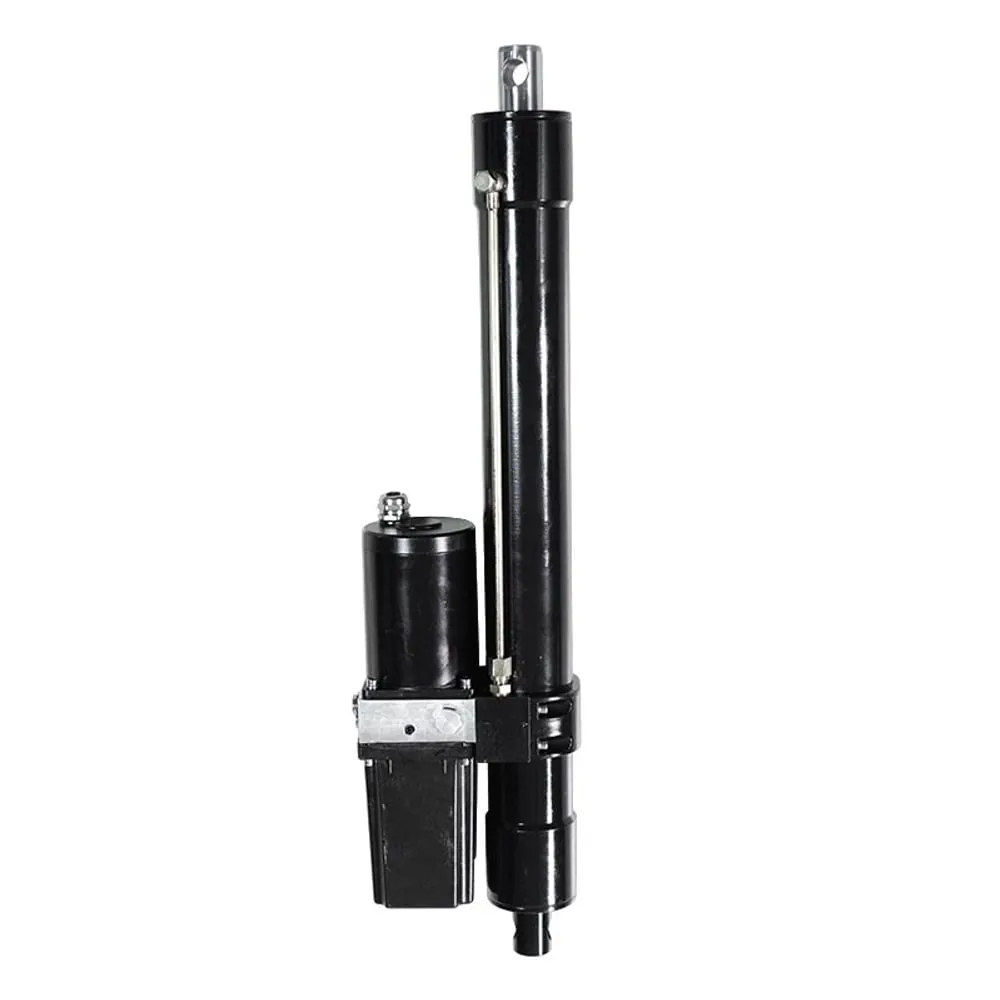

Electric Hydraulic Actuator - SLA-TG50S 25000N electric Hydraulic linear actuator - Detail view 1

Key Features:
High Force Capability: Delivers 2.5T jacking force and 1.5T retracting force, ideal for heavy-duty applications.
Integrated Protection Mechanisms: Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components.
Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements.
Specifications:
Model: SLA-TG-50S
Input Voltage: 24V / 48V DC
Power: 300W / 800W
Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm (Customizable within 50mm-400mm range)
Jacking Force: 2.5T
Retracting Force: 1.5T
Speed: 5-6mm/s, 10-12mm/s
Protection Grade: IPx6
Operating Temperature: -30°C to +70°C
Duty Cycle: Long-term continuous use, up to 6 minutes at a time
Weight: 5-15 kg

Item
TG50 Customize
TG50 Customize
Voltage
DC24V/48V
DC 24V/48V
Power
300W
800W
Stroke
50~800mm
50~800mm
Push force
 2.5T
2.5T
Pull force
1.5T
1.5T
Max speed
5-6mm/s
10-12mm/s
Temperature
-20-60℃
-20-60℃
Frequency
 4min/each time
4min/each time
waterproof
IP6X
IP6X

Applications:
Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to:

Lifting Platforms
Industrial Automation Equipment
Heavy Machinery
Construction Equipment
Agricultural Machinery
Medical Devices
Why Choose Our Hydraulic Linear Actuator?
Our hydraulic linear actuators provide a powerful, reliable, and easy-to-install solution for your lifting and automation needs. With high force capabilities, integrated protection mechanisms, and customizable options, they are designed to meet the specific demands of your projects. Whether you need to lift, push, or pull, our actuators offer the performance and durability you need to get the job done efficiently.

Enhance your systems with our high-force hydraulic linear actuators and experience superior performance and reliability. Contact us today to learn more about how our actuators can meet your specific application requirements.
