SLA-NH32S actionneur linéaire hydro-électrique 12000N

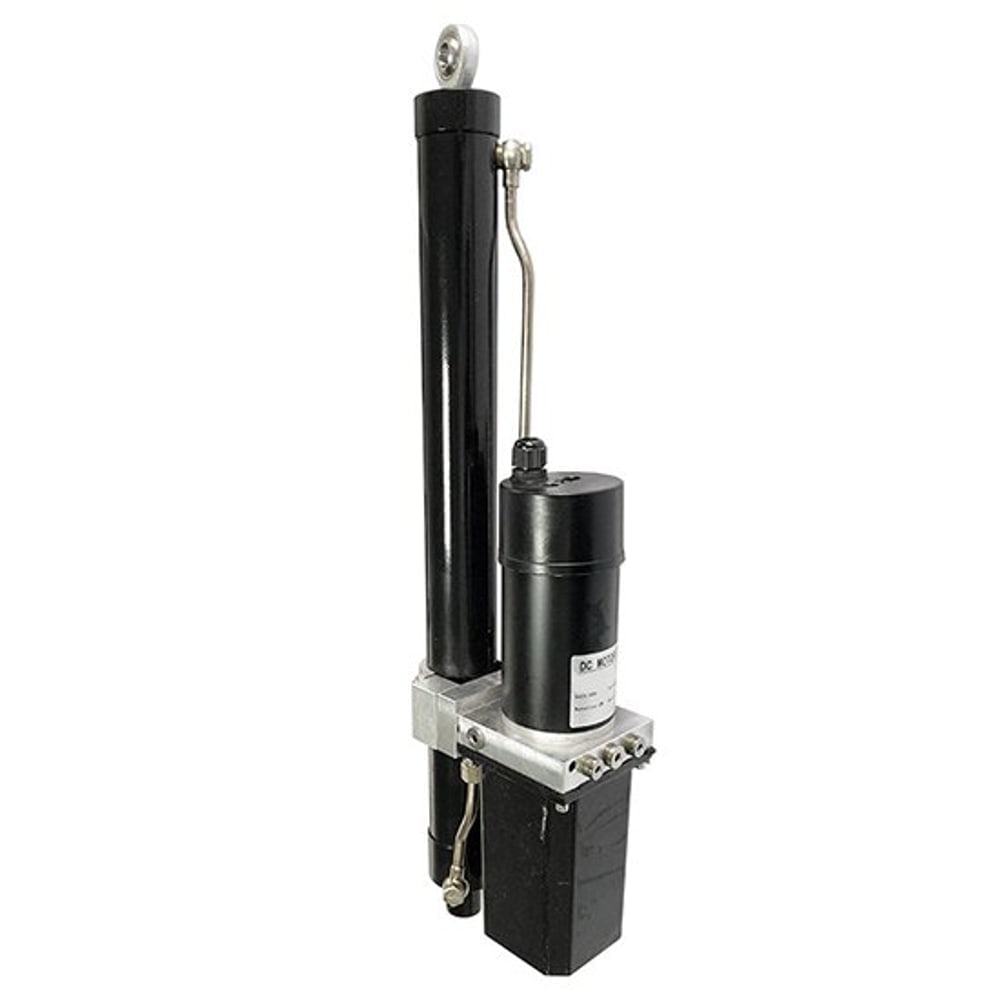

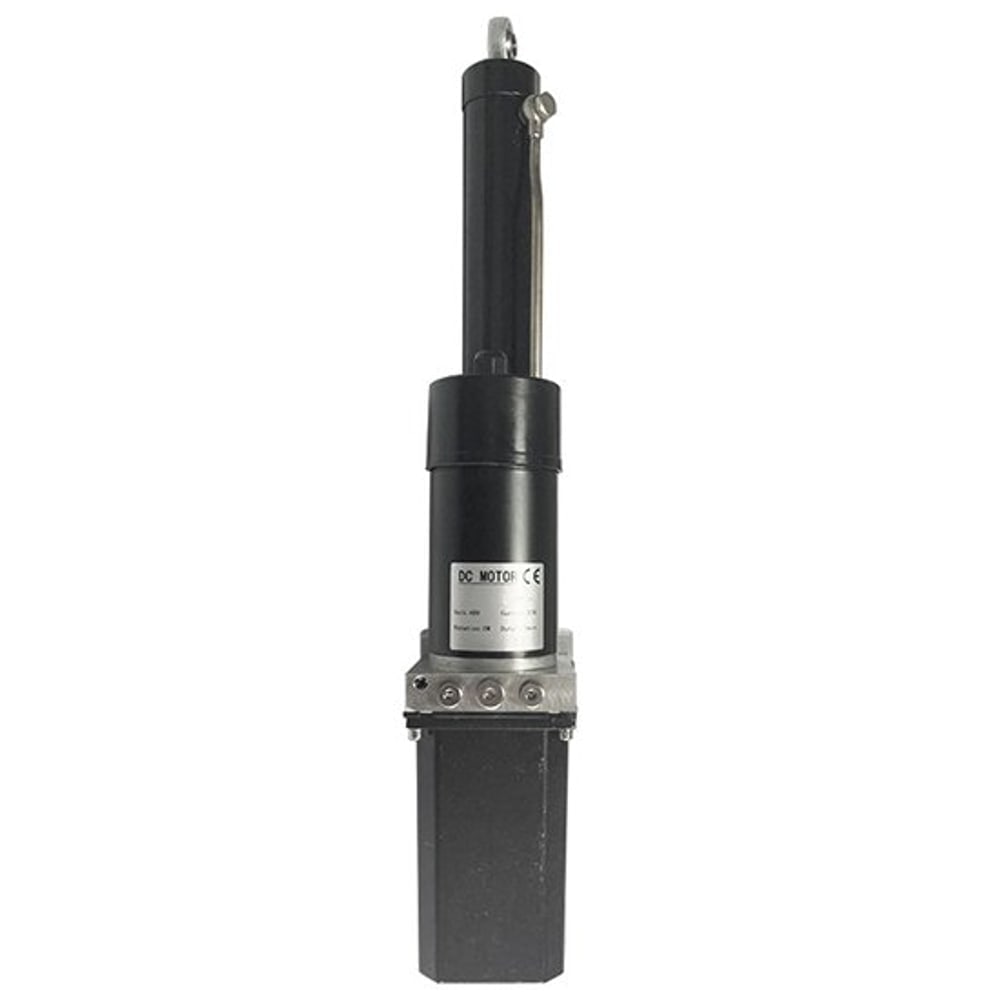

High-Performance Hydraulic Linear Actuator: SLA-NH-32S
Introducing the SLA-NH-32S high-performance hydraulic linear actuator, designed to deliver exceptional power and reliability in various industrial applications. With a jacking force of 1.2T and a retracting force of 0.7T, this actuator operates at speeds of 25-26mm/s, 39-40mm/s, and 55-56mm/s, and is compatible with 24V/48V DC input voltage. The stroke length can be customized from 50mm to 1000mm to suit your specific needs. This small hydraulic linear actuator features a compact structure, high-quality construction, and CE certification, ensuring excellent performance in lifting platforms and ship systems.

Key Features:
High Force Capability: Provides 1.2T jacking force and 0.7T retracting force, ideal for demanding applications.
Integrated Protection Mechanisms: Includes over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components.
Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements.
Wide Application Range: Suitable for electric tricycles, sanitation vehicles, lifting platforms, assembly lines, industrial robots, agricultural machinery, and industrial automation equipment.
Specifications:
Model: SLA-NH-32S
Input Voltage: 24V / 48V DC
Power: 800W
Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm (Customizable within 50mm-1000mm range)
Jacking Force: 1.2T
Retracting Force: 0.7T
Speed: 25-26mm/s, 39-40mm/s, 55-56mm/s
Protection Grade: IPx6
Operating Temperature: -30°C to +70°C
Duty Cycle: Long-term continuous use, up to 6 minutes at a time
Certification: CE
Warranty: 1 year
Weight: 5-20 kg

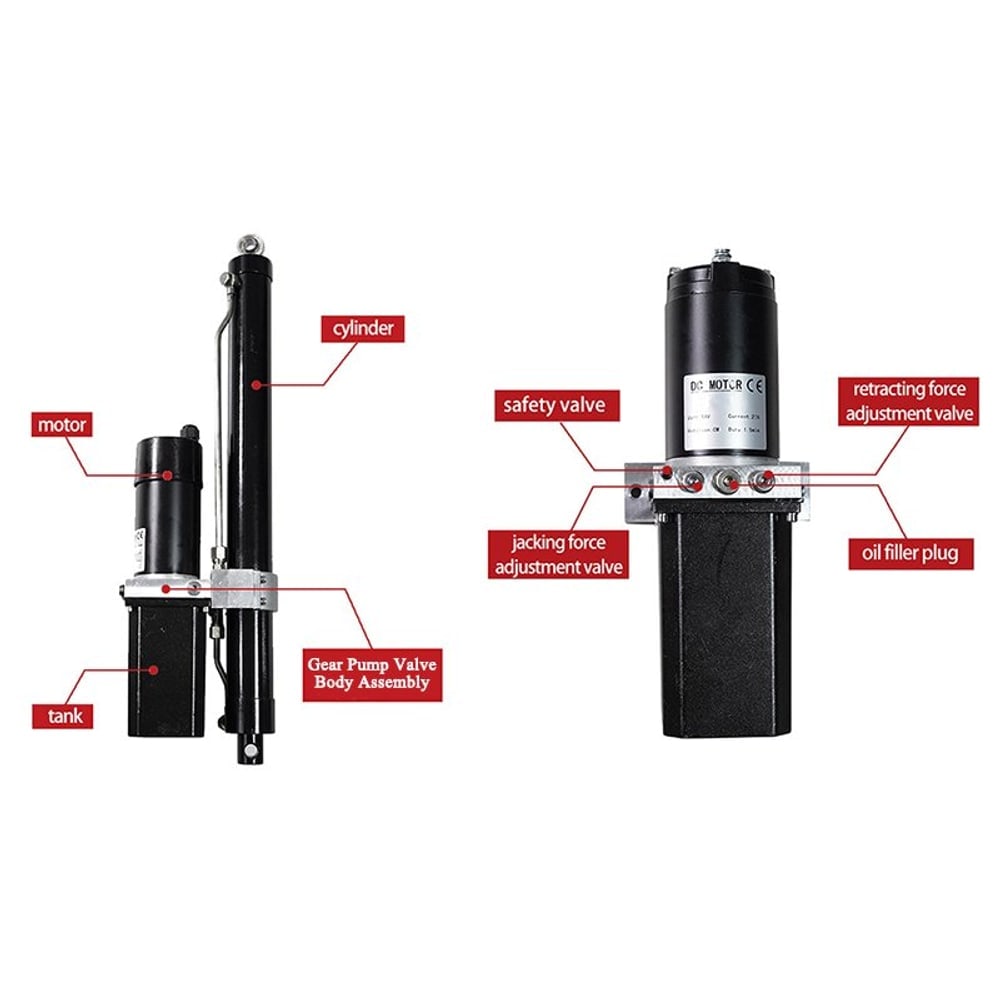

* Oil filler plug: The oil is added or replaced from the plug.

Applications:
Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to:

Electric Tricycles
Sanitation Vehicles
Lifting Platforms
Assembly Lines
Industrial Robots
Agricultural Machinery
Industrial Automation Equipment
Why Choose Our Hydraulic Linear Actuator?
Our hydraulic linear actuators provide a powerful, reliable, and easy-to-install solution for your lifting and automation needs. With high force capabilities, integrated protection mechanisms, and customizable options, they are designed to meet the specific demands of your projects. Whether you need to lift, push, or pull, our actuators offer the performance and durability you need to get the job done efficiently.

Enhance your systems with our high-force hydraulic linear actuators and experience superior performance and reliability. Contact us today to learn more about how our actuators can meet your specific application requirements.
