Actuador lineal
Modelo SLA52M
12 V DC 24 V DC SLA52M 6,000 N IP68 waterproof tubular linear actuator for skylights, smoke vents and yacht automation
12V 24V SLA52M 6000N IP68 waterproof tubular linear actuator for skylights, smoke vents and yacht automation from Elerover.
Especificaciones clave
- Carga máxima
- 6000 N / 600 kg / 1349 lbs
- Carrera
- 20–500 mm
- Velocidad
- 88 mm/s
- Tensión
- 12 V / 24 V DC
Descripción del producto
12V 24V SLA52M 6000N IP68 waterproof tubular linear actuator for skylights, smoke vents and yacht automation from Elerover.
- Carga máxima
- 6000 N / 600 kg / 1349 lbs
- Carrera
- 20–500 mm
- Velocidad
- 88 mm/s
- Tensión
- 12 V / 24 V DC
- Grado IP
- IP66 / IP67M
- Ciclo de trabajo
- S2 ≈ 2 min / 18 min
Aplicaciones
- Skylight systems
- Smoke vent systems
- Yacht automation
- Agricultural machinery
Ventajas
- Φ52mm in-line tubular waterproof linear actuator
- Max dynamic force up to 6000N / 600 kg / 1349 lbs
- Voltage: 12V / 24V DC
- Protection: IP66 / IP67M (IP68-class tubular family)
- Stroke: 20–500mm
- 316 stainless steel piston rod (typical)
- Optional Hall / over-current / limit signal feedback
- Primary focus: skylights, smoke vents and yacht automation
Especificaciones técnicas
| Carga máxima | 6000 N / 600 kg / 1349 lbs |
|---|---|
| Carrera | 20–500 mm |
| Velocidad | 88 mm/s |
| Tensión | 12 V / 24 V DC |
| Grado IP | IP66 / IP67M |
| Ciclo de trabajo | S2 ≈ 2 min / 18 min |

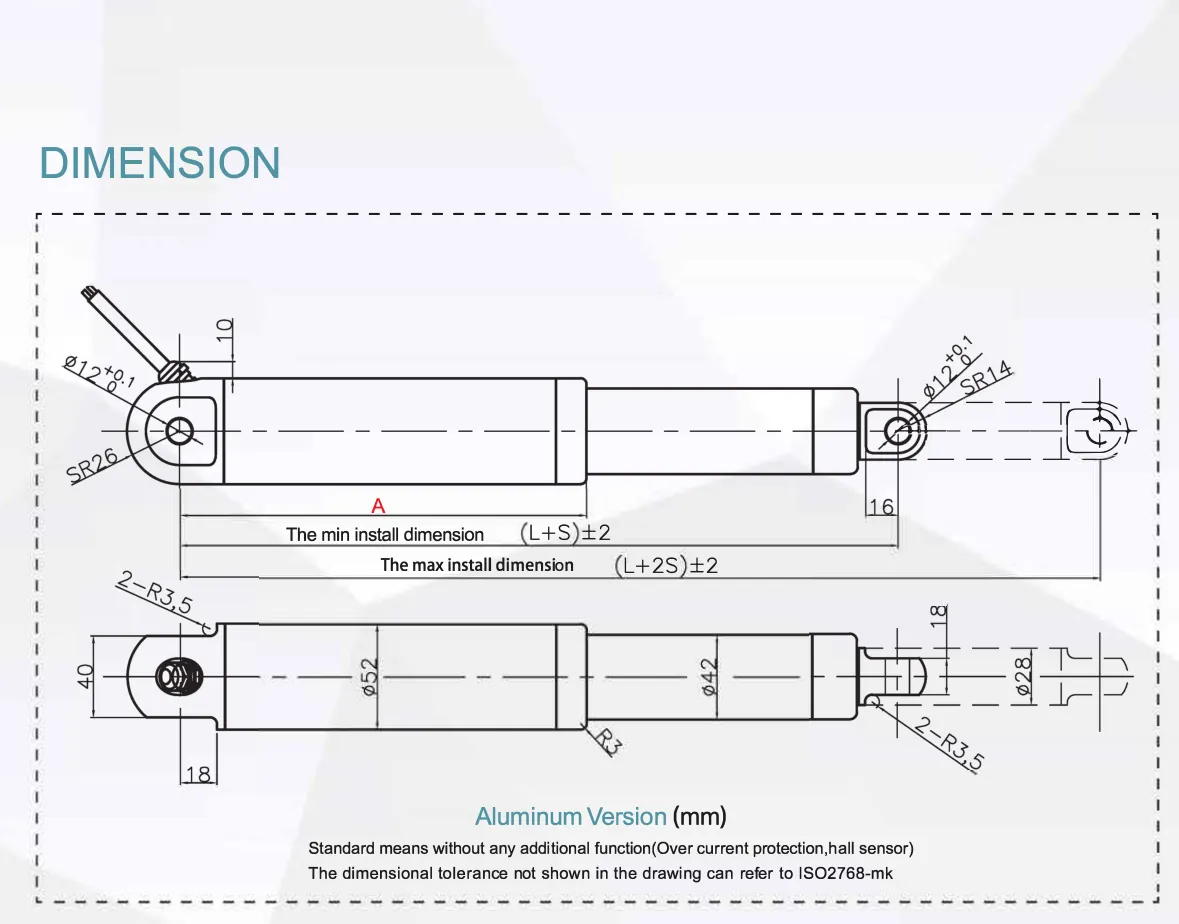

| Retracted length | L + stroke (retracted); +20 mm for IP67M/IP69K |
Performance matrix
| No-load speed | Full-load speed | Thrust | Self-locking force |
|---|---|---|---|
| 4.8 mm/s | 3.3 mm/s | 5000 N | 7500 N |
| 6.4 mm/s | 4.5 mm/s | 4500 N | 8000 N |
| 9.6 mm/s | 6 mm/s | 3000 N | 6000 N |
| 16 mm/s | 10 mm/s | 1800 N | 3600 N |
| 24 mm/s | 15 mm/s | 1200 N | 2400 N |
| 88 mm/s | 55 mm/s | 300 N | 600 N |
