Actuador lineal

SLA08 10000N actuador lineal

Actuador lineal 12V/24V CC con potenciómetro integrado. Extensión 50/100/200/800 mm y carga máxima 1000 kg (10000 N). El SL...

Manufactured and supplied by Elerover — Actuador lineal manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Parámetros clave

Model
SLA08
voltage
12V/24V/36V/48VDC
Protection Class
IP54 / IP65
Installation Length
L = S + 250mm
Built-in Limit Switch
Yes
limit switch
Built-in
controller
Can be equipped with wire or wireless remote control
No-load speed
maximum 80mm/s
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Descripción general del producto

item SLA08 linear actuator Maximum push/pull force 800kg/8000N voltage 12V/24V/36V/48VDC Standard stroke S = (50, 100, 150,200,300,400, 600,800,1000) mm, can be customized according to customer requirements. The shortest installation distance (the distance between the centers of the front and rear holes when the inner tube is fully retracted) L=S (stroke) + 250mm the center distance between the front and rear holes when the inner tube is fully extended 2*S (stroke) + 250mm No-load speed maximum 80mm/s Rated load rate 5mm/s (800KG) -80mm/s (50KG) Ambient temperature -26℃~65℃ Standard protection level IP54/IP65 limit switch Built-in Low noise design the noise level is 60dB controller Can be equipped with wire or wireless remote control Certifications CE

Características clave

  • Heavy-duty SLA08 industrial electric linear actuator
  • Up to 8000N (800 kg) push/pull force
  • 12V / 24V / 36V / 48V DC voltage options
  • IP54 / IP65 protection options

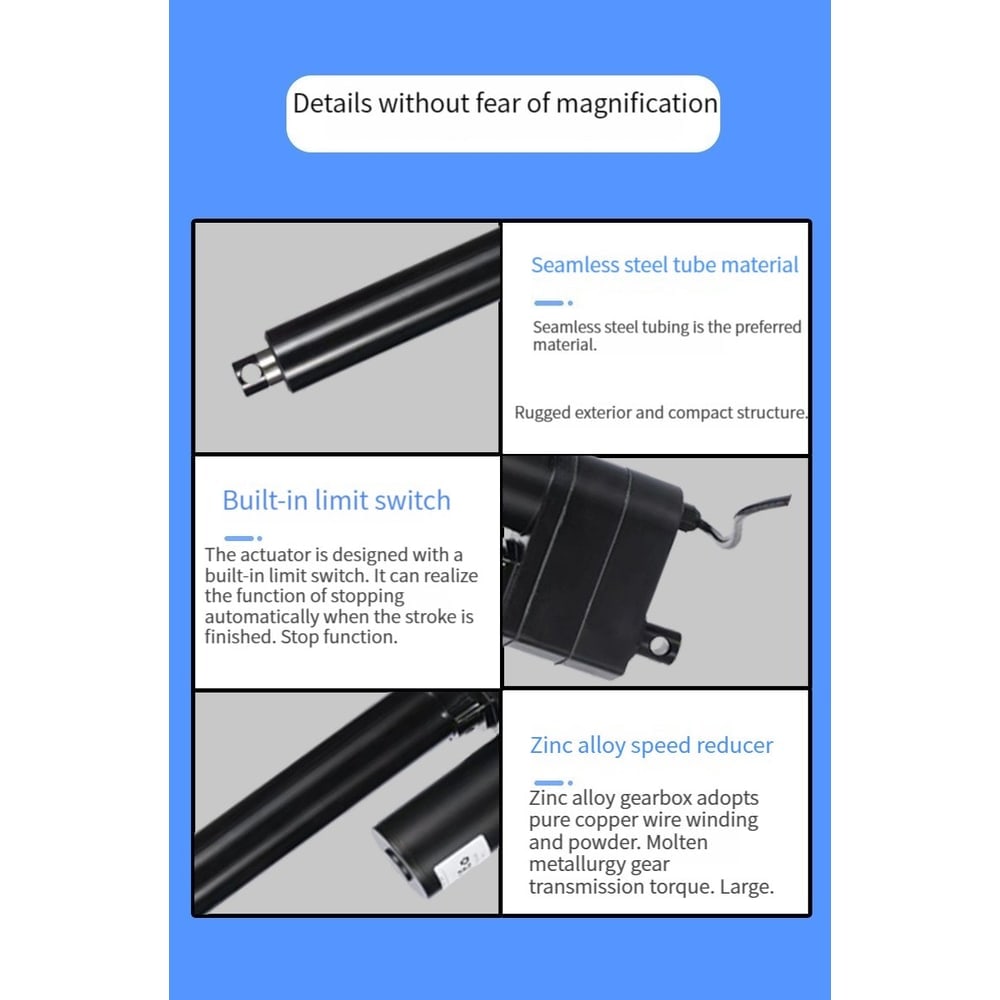

  • Built-in limit switches; optional Hall feedback
  • Retracted install length L = stroke + 250mm

Especificaciones técnicas

item SLA08 linear actuator
Maximum push/pull force 800kg/8000N
voltage 12V/24V/36V/48VDC
Standard stroke S = (50, 100, 150,200,300,400, 600,800,1000) mm, can be customized according to customer requirements.
The shortest installation distance (the distance between the centers of the front and rear holes when the inner tube is fully retracted) L=S (stroke) + 250mm
the center distance between the front and rear holes when the inner tube is fully extended 2*S (stroke) + 250mm
No-load speed maximum 80mm/s
Rated load rate 5mm/s (800KG) -80mm/s (50KG)
Ambient temperature -26℃~65℃
Standard protection level IP54/IP65
limit switch Built-in
Low noise design the noise level is 60dB
controller Can be equipped with wire or wireless remote control
Certifications CE
Model SLA08
Max Push/Pull 8000N / 800 kg
Voltage 12V / 24V / 36V / 48V DC
Standard Stroke 50–1000mm (customizable)
Installation Length L = S + 250mm
Protection Class IP54 / IP65
Built-in Limit Switch Yes
Ambient Temperature -26°C to +65°C

Aplicaciones

  • Lifting platforms
  • Construction machinery
  • Heavy industry equipment
  • Solar tracking

Detalles adicionales

Linear Actuator - SLA08 10000N linear actuator - Detail view 1

Linear Actuator

SLA08 10000N linear actuator

item SLA08 linear actuator Maximum push/pull force 800kg/8000N voltage 12V/24V/36V/48VDC Standard stroke S = (50, 100, 150,200,300,400, 600,800,1000) mm, can be customized according to customer requirements. The shortest installation distance (the distance between the centers of the front and rear holes when the inner tube is fully retracted) L=S (stroke) + 250mm the center distance between the front and rear holes when the inner tube is fully extended 2*S (stroke) + 250mm No-load speed maximum

Need a Custom Configuration?

Contact Elerover for voltage, stroke, speed, feedback, cable length and connector customization. Messages go to [email protected].
