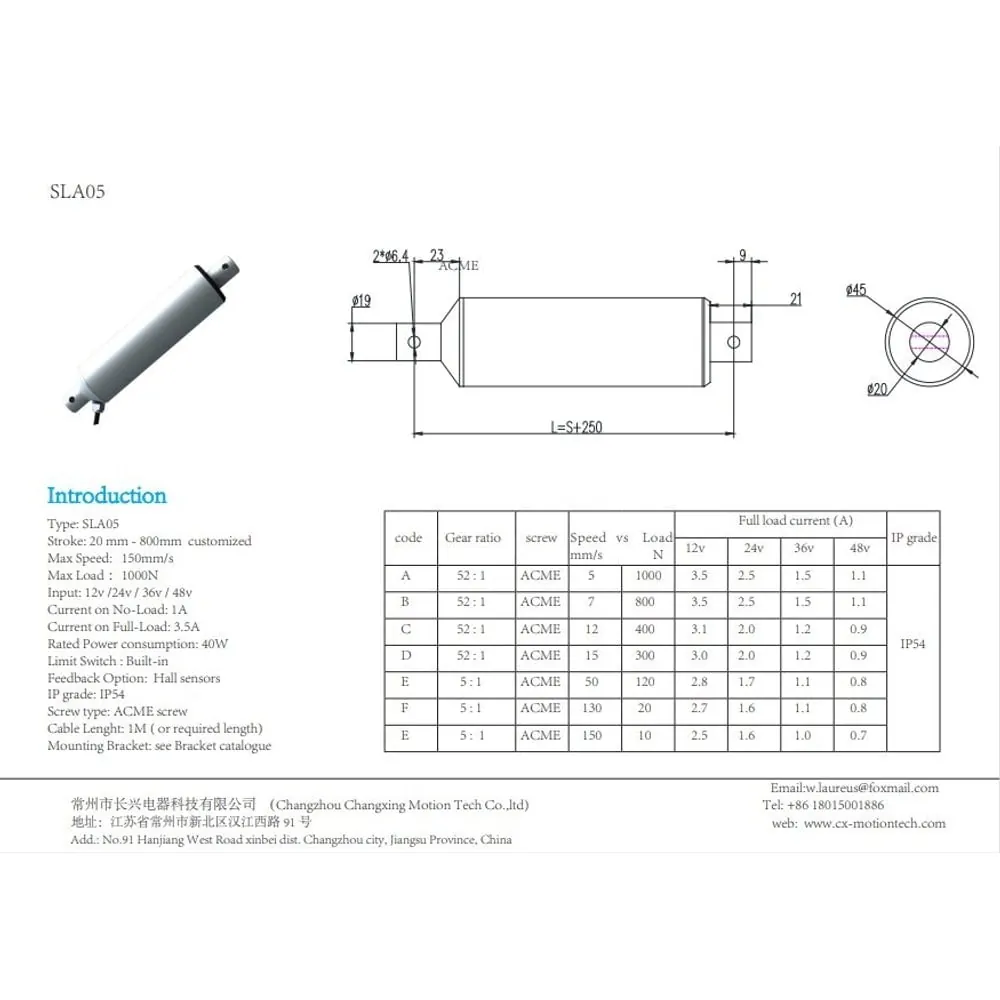

SLA05 1500N actuador lineal

High-Performance Permanent Magnetic DC Electric Push Rods

Discover the ultimate in precision and durability with our Permanent Magnetic DC Electric Push Rods. Engineered for a broad range of applications, these push rods deliver exceptional performance and reliability in demanding environments. Whether for industrial, medical, or residential use, our push rods are designed to meet and exceed your expectations.

• Voltage: DC 12V/24V
• Rated Load Coefficient: 0.2 inches (5 mm) / s (1500N)
• Mechanical Properties:
  • Operating Temperature: -4°F to 145°F (-26°C to 65°C)
  • Material: Aluminum alloy shell and aluminum alloy extension rod
• Available Voltages: 12 or 24 VDC
• Motor: High Speed Motor
• Built-in Limit Switch: Ensures precise control

Performance Specifications:

• No-load Rate: High efficiency at various loads
• Maximum Thrust: 1500N
• Operating Frequency: 20%
• Maximum Self-locking Power: 2000N
• Maximum Load: 1500N (equivalent to 150kg)
• Speed Range:
  • 5mm/s (1500N)
  • 30mm/s (250N)
• Duty Cycle: 25% at high speed, 10%
• Construction: Innovative Aluminum Alloy
• IP Class: IP54 / IP65

Our Permanent Magnetic DC Electric Push Rods are versatile and suitable for a wide range of applications, including:

• Medical Use: Medical beds, care beds, massage chairs
• Fitness Equipment: Electric foot sofas
• Home and Industrial Use: Electric furniture, household machinery
• Industrial Applications: Metallurgy, mining, petroleum, chemical industry, transportation, construction
• Specialized Equipment: Food processing, stage equipment, textile machinery, sewer processing
• Automotive and Military: Ventilation systems, military equipment

Important Notes:

To ensure the longevity and optimal performance of our push rods, please observe the following guidelines:

• Avoid Direct AC Connection: Connecting directly to an AC power supply can cause serious damage.
• Voltage Compliance: Use only in standard voltage environments specified for the product.
• Load Limits: Do not exceed the maximum push/pull values indicated.
• Stroke Management: Avoid unnecessary power consumption when the stroke has not ended.

Factors Affecting Product Life:

Certain conditions may shorten the product’s lifespan, such as:

• High Frequency Operation: Frequent usage can wear down components.
• High Temperature: Operating in high-temperature environments can affect performance.

Why Choose Our Push Rods?

Our Permanent Magnetic DC Electric Push Rods are designed with high-quality materials and advanced technology to ensure they meet the rigorous demands of various industries. With features like built-in limit switches, high thrust capabilities, and robust aluminum alloy construction, they are ideal for applications requiring precision, durability, and reliability.

Upgrade your systems with our high-performance push rods and experience the benefits of superior engineering and design. Whether you need to move, push, pull, or lift, our push rods deliver the power and precision you need for your projects.
