SLA04 200N actuador lineal

High-Quality Linear Actuators for Various Applications

Enhance your projects with our premium linear actuators designed for versatility, reliability, and high performance in demanding environments. These actuators are built to deliver exceptional functionality and durability, making them ideal for a wide range of applications.

• High-Quality Products and Services: We offer top-tier actuators along with exceptional customer support.
• Durable Metal Housing: Engineered to operate in extremely harsh environments.
• Wear-Resistant Gear: High-strength design for long-lasting performance.
• Corrosion-Resistant Construction: Made with aluminum alloy telescopic and outer tubes.
• Strong Thrust: Provides up to 200N / 20 Kgs / 40 lbs of force.

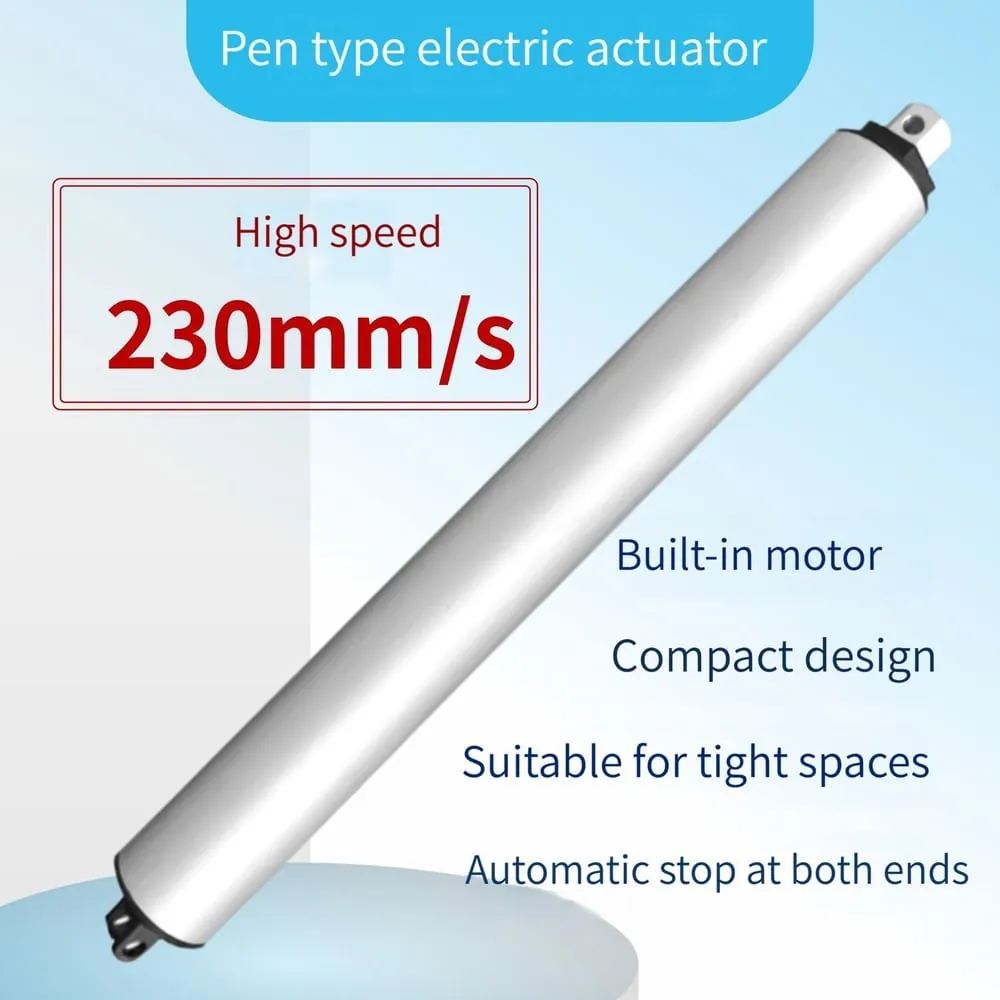

• Customizable Speed Options: Speed ranges from 45 mm/second to 230 mm/second.

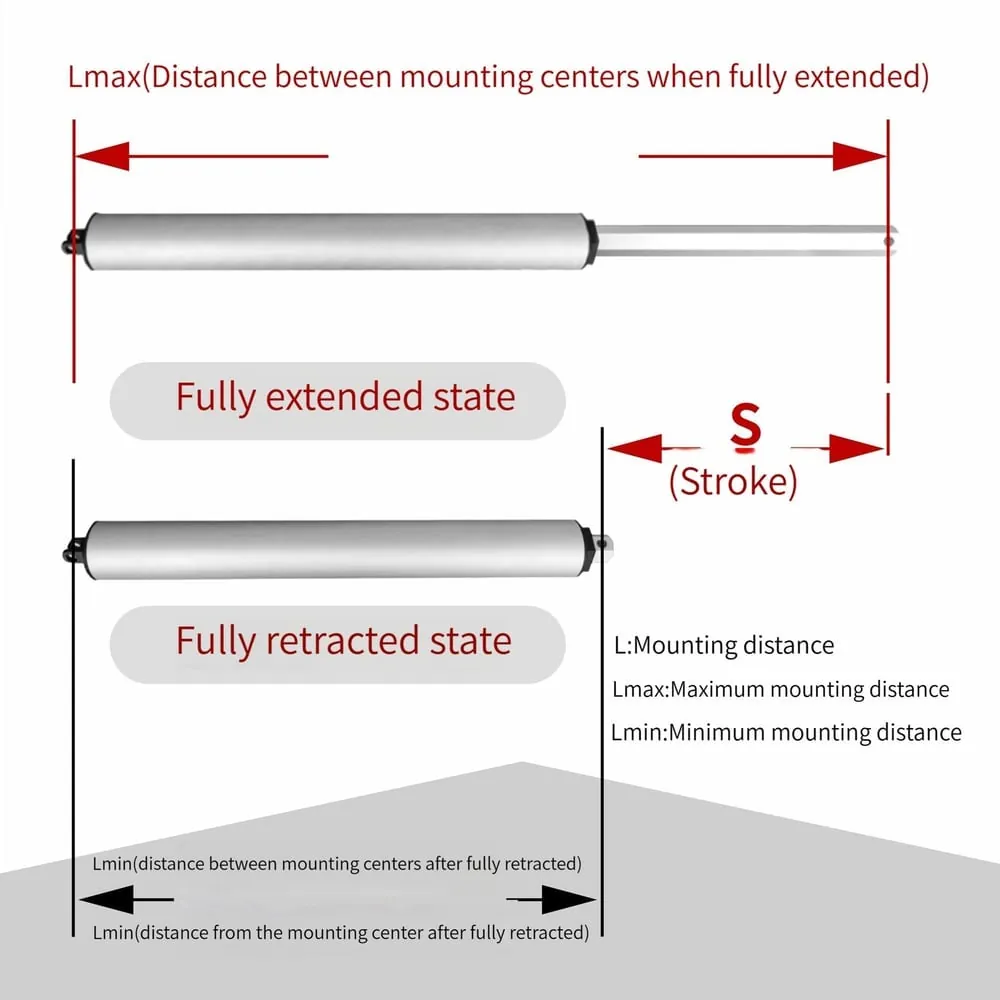

• Customizable Stroke Options: Stroke lengths from 50 mm to 600 mm, with custom lengths available.
• Waterproof and Dustproof: Advanced technology ensures reliable operation.
• Low Power Consumption and Noise: Designed for efficient and quiet operation.

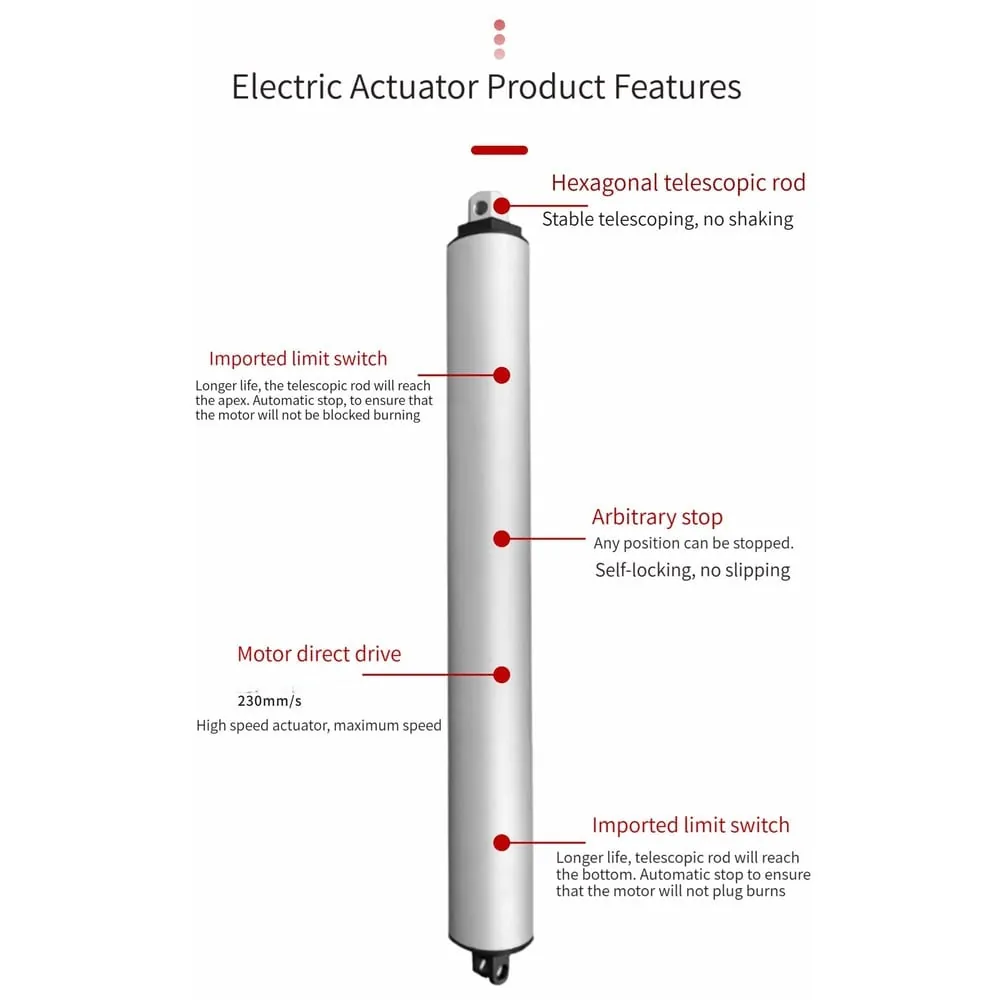

• Built-in Limit Switches: Automatically stops when the stroke rod reaches the limit position.
• Automatic Locking: Locks in place after stopping without requiring power.
• Maintenance-Free: Designed for long-term, hassle-free use.

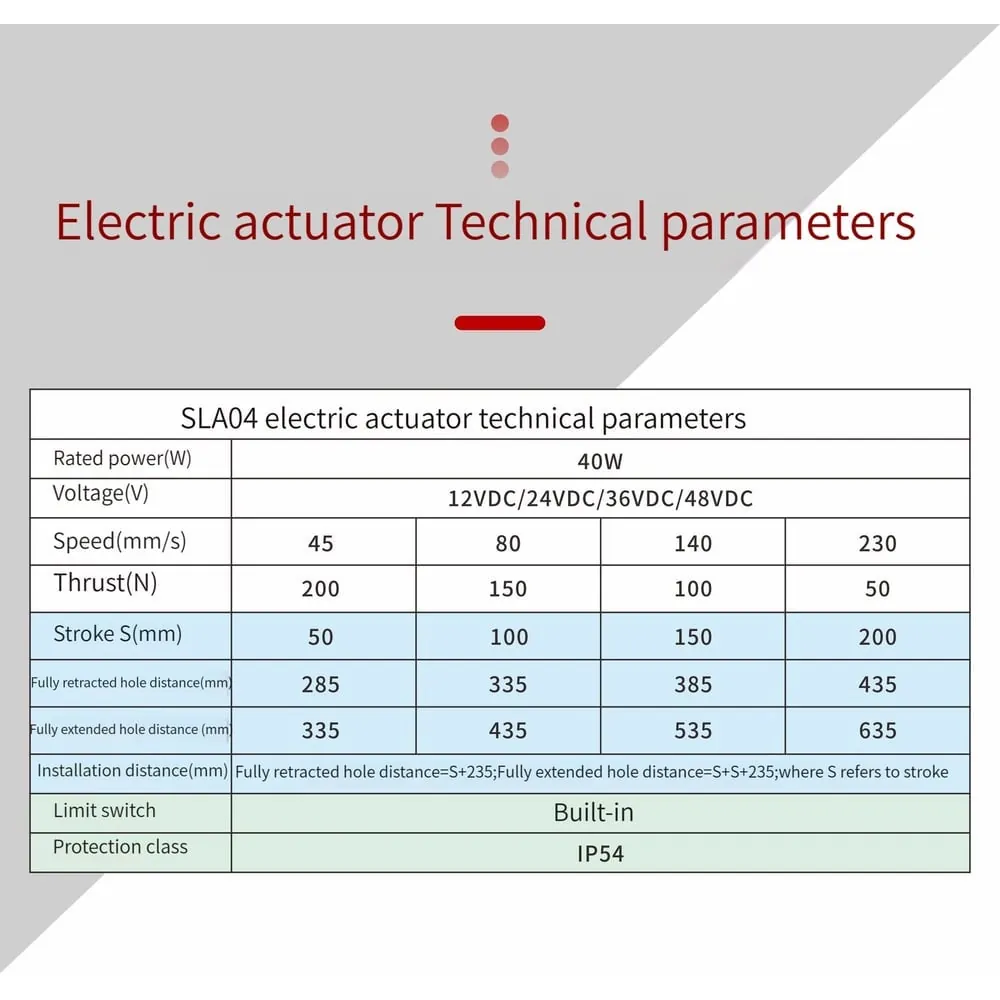

• Working Voltage Options: DC 12V or DC 24V (24V recommended for optimal performance)
• Customizable Stroke Range: 50 mm to 800 mm
• Speed Options:
  • 45mm±5mm/s
  • 80mm±10mm/s
  • 140mm±15mm/s
  • 230mm±25mm/s
• Max Load Capacity: 200N / 20 Kgs / 40 lbs at 45mm/s
• No-load Current: Approx. 1.5A
• Max Load Current: Approx. 3-6A
• Recommended Power Supply:
  • Single actuator: 12V/10A or 24V/5A
  • Two actuators: 12V/20A or 24V/10A
  • Four actuators: 12V/50A or 24V/25A
• Outer Tube Diameter: 55mm
• Shaft Diameter: 28mm
• Mounting Holes Diameter: 8mm
• Material:
  • Housing: Aluminum Alloy
  • Stroke Rod: Aluminum Alloy
  • Gear: Polymer Plastic
• Motor Type: Brushed DC Motor
• Duty Cycle: 20%, Max 2 mins continuous use
• Plug Standard: Ordinary Two-core Wire
• Certifications: CE
• Operating Temperature: -26℃ to 85℃
• Operating Noise: Approx. 46dB~52dB
• IP Rating: IP54

Fixed Bracket:

• This linear actuator does not include fixed mounting brackets. Please contact us if you need them.
• Each actuator requires two mounting brackets for installation.

Operation:

• Extension: Connect to DC power supply to extend the stroke rod.
• Retraction: Reverse the power supply polarity to retract the stroke rod.
• Direction Control: Switch the polarity of the DC power supply to change the direction of movement.

Our linear actuators are ideal for various applications, including:

• Doors and Windows
• Cellars and Trapdoors
• Solar Tracking Systems
• Medical Devices
• Agricultural Machinery
• Vehicles and Ships
• Elevator Platforms and Lifting Tables
• TV Lifts
• Robots
• Cabinetries
• Massage Sofas and Electric Beds
• Medical Chairs and other Electrical Equipment

These actuators can perform multiple functions such as opening, closing, pushing, pulling, lifting, and descending devices. They are a superior alternative to hydraulic and pneumatic products, offering efficient power consumption and reliable performance.

Upgrade your systems with our high-quality linear actuators and experience enhanced functionality, efficiency, and durability.
