The SLA-17K 17000N industrial linear actuator is a heavy-duty 12V/24V electric actuator for construction machinery, agriculture, solar tracking, automation and OEM systems. IP67 rated with ball-screw or ACME options, optional Hall/analog feedback and manual override.
Actuador lineal

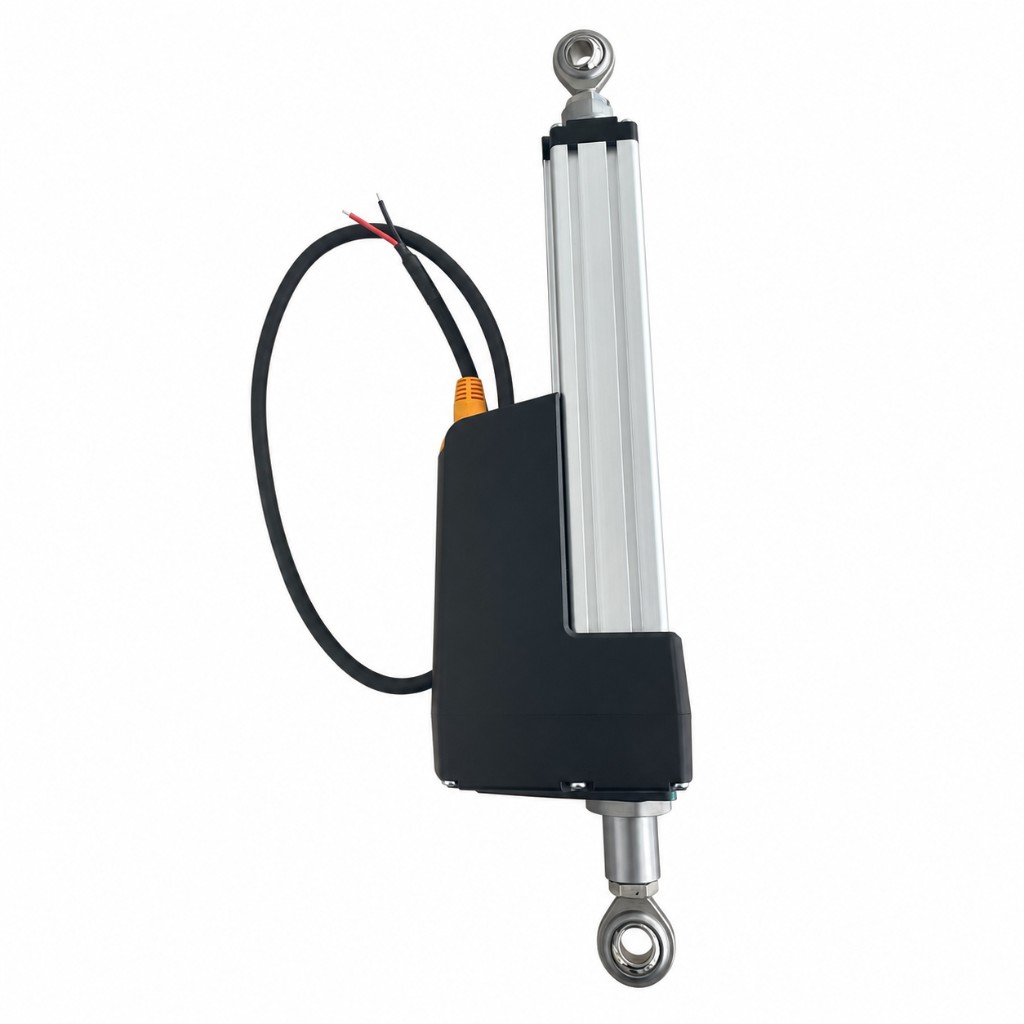

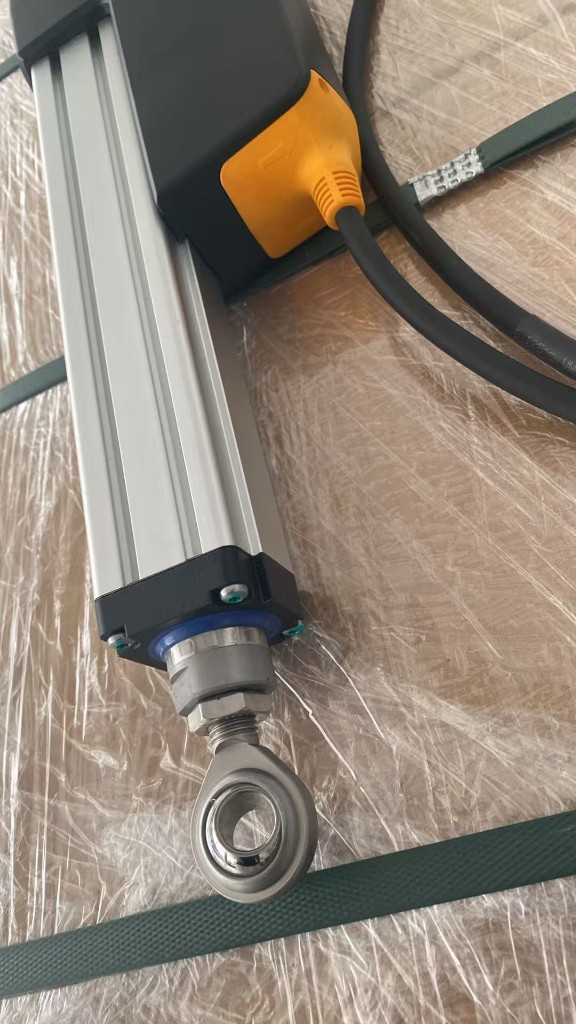

12V 24V SLA-17K 17000N industrial linear actuator
12V/24V/36V/48V heavy-duty industrial electric linear actuator with up to 17000N dynamic force, IP67 protection, ball/ACME screw options, Ø20mm spherical mounts and standard manual override.
Manufactured and supplied by Elerover — Actuador lineal manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Parámetros clave
- Model
- SLA-17K
- Working Voltage
- 12V / 24V / 36V / 48V DC
- Stroke Range
- 50–1000mm (customizable)
- Protection Class
- IP67
- Motor Type
- Brushed DC
- Duty Cycle
- 20–35% (by transmission code)
- Mounting Hole
- Ø20mm spherical rod ends
- Lead Screw
- Ball screw or ACME screw
Descripción general del producto
Características clave
- Heavy-duty industrial electric linear actuator up to 17000N dynamic force
- Working voltage: 12V / 24V / 36V / 48V DC
- IP67 weather protection for outdoor and harsh environments
- Ball screw and ACME screw transmission options (codes A–J)
- Stroke range 50–1000mm (customizable)
- Spherical rod-end mounts with Ø20mm mounting holes
- Aluminum alloy housing with stainless steel piston rod
- Standard manual override for emergency operation without power
- Optional Hall sensor, potentiometer, end-stop signal and magnetic switches
- Operating noise ≤65dB; duty cycle 20–35% depending on transmission
- Electronic overload protection and replaceable weatherproof cable module
Especificaciones técnicas
| Model | SLA-17K |
|---|---|
| Working Voltage | 12V / 24V / 36V / 48V DC |
| Stroke Range | 50–1000mm (customizable) |
| Max Dynamic Load | 17000N / 1700 kg / 3800 lbs |
| Self-locking Force | Up to 20000N (Code A) |
| Duty Cycle | 20–35% (by transmission code) |
| Protection Class | IP67 |
| Mounting Hole | Ø20mm spherical rod ends |
| Motor Type | Brushed DC |
| Lead Screw | Ball screw or ACME screw |
| Manual Override | Yes (standard) |
| Operating Noise | ≤65dB |
| Position Feedback | Optional Hall / potentiometer / end-stop / magnetic / analog |
Aplicaciones
- Construction vehicles and machinery
- Agricultural machinery
- Industrial automation
- PV solar and CSP plants
- Outdoor power equipment
- Medical bed and accessibility equipment
- Ventilation and animal husbandry
Detalles adicionales
SLA-17K 17000N Industrial Linear Actuator
12V 24V SLA-17K 17000N industrial linear actuator
The SLA-17K is a heavy-duty 12V/24V industrial electric linear actuator with up to 17000N dynamic force, IP67 protection, ball-screw or ACME-screw options, and standard manual override for emergency motion without power.
Model
SLA-17K
SLA-17K
Max Dynamic Force
17000N / 1700 kg / 3800 lbs
17000N / 1700 kg / 3800 lbs
Voltage
12V / 24V / 36V / 48V DC
12V / 24V / 36V / 48V DC
Stroke
50–1000mm
50–1000mm
Protection
IP67
IP67
Product Structure

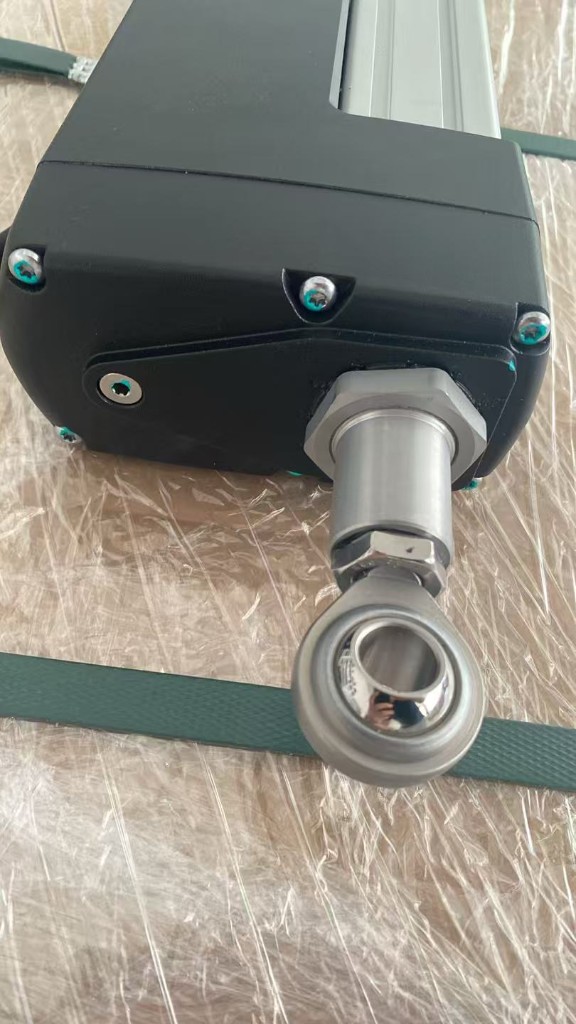

- A — Stainless steel piston rod — extends and retracts to deliver linear motion
- B — Zi-Ni coated mounting ends — spherical rod ends for flexible installation
- C — Aluminum alloy enclosure top cap — seals the outer tube end
- D — Aluminum alloy housing — main structural enclosure
- E — Cable module — weatherproof, replaceable power / signal exit
- F — Manual override — emergency hand operation without power
Operation
Connect the red and black leads to a matching DC supply. One polarity extends the piston rod; reversing polarity retracts it. Built-in end protection and electronic overload protection help protect the drive under demanding loads. When power is unavailable, use the manual override port with the appropriate tool to extend or retract the actuator.
External Dimensions
- Motor / gear housing footprint: approx. 250mm length × 76mm width × 149mm height
- Piston rod housing width: approx. 57mm
- Front and rear mounting hole diameter: Ø20mm
- Front mount offset (retracted): approx. 25mm from tube end to hole center
- Mount orientation options: 0° or 90°

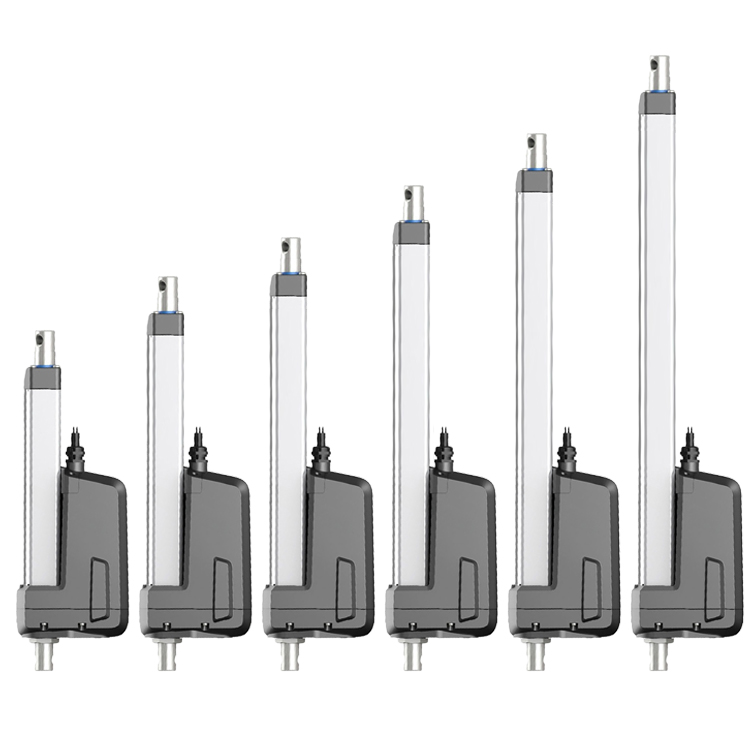

- Retracted installation size (L) and stroke (S) are customizable for the application
Piston Rod Diameter
| Transmission Code | Stroke 50–600mm | Stroke 601–1000mm |
|---|---|---|
| A, B | Ø35mm | Ø35mm |
| C–E | Ø30mm* | Ø35mm |
| F–J | Ø30mm* | Ø30mm* |
* Ø35mm can be selected when a higher safety factor is required.
Speed vs Load
Select the transmission code that matches your required force, speed and duty cycle. Free-load and full-load speeds are listed for each option.
Ball Screw Configurations
| Code | Duty Cycle | Max Dynamic Force | Self-locking | Pitch | Free-load Speed | Full-load Speed | Max Stroke at Full Capacity |
|---|---|---|---|---|---|---|---|
| A | 20% | 17000 N | 20000 N | 5mm | 6.5mm/s | 5mm/s | 600mm |
| B | 35% | 13500 N | 15000 N | 5mm | 9mm/s | 6.5mm/s | 1000mm |
| C | 35% | 10000 N | 12000 N | 5mm | 14mm/s | 9mm/s | 1000mm |
| D | 35% | 7500 N | 10000 N | 10mm | 18mm/s | 13mm/s | 1000mm |
| E | 35% | 5000 N | 8000 N | 10mm | 28mm/s | 20mm/s | 1000mm |
ACME Screw Configurations
| Code | Duty Cycle | Max Dynamic Force | Self-locking | Pitch | Free-load Speed | Full-load Speed | Max Stroke at Full Capacity |
|---|---|---|---|---|---|---|---|
| F | 20% | 12000 N | 15000 N | 4mm | 7mm/s | 5mm/s | 1000mm |
| G | 20% | 10000 N | 12000 N | 8mm | 10mm/s | 7mm/s | 1000mm |
| H | 20% | 7500 N | 10000 N | 8mm | 14mm/s | 8mm/s | 1000mm |
| I | 20% | 5000 N | 8000 N | 8mm | 23mm/s | 13mm/s | 1000mm |
| J | 20% | 3500 N | 5000 N | 12mm | 35mm/s | 23mm/s | 1000mm |
Speed & Load Notes:
- Measurements are based on a stable DC power supply at about 20°C ambient temperature. Speeds are ±10%.
- Code A supports up to 17000N at strokes up to 600mm. For 601–1000mm stroke, Code A can still be used with a reduced maximum force of about 14500N.
- Example: for an actual load near 9000N, Code C or G is suitable; Code A, B or F provides a larger safety margin and longer service life.
- Higher free-load speed means lower maximum dynamic force. Select code by both travel time and required thrust.
- Duty cycle varies with transmission code (20% or 35%). Continuous operation at maximum load is not recommended.
Manual Override
SLA-17K includes a standard manual operation feature so the actuator can still extend or retract during a power outage or emergency. Use the dedicated override port with the specified tool instead of electric control when needed.
Cable Module
- Excellent weatherproof capability for outdoor and wash-down environments
- Simplified cable replacement for service and OEM customization
- Optional cable lengths and connector styles for project integration
Need a Custom Configuration?
Contact Elerover for voltage, stroke, transmission code, feedback, cable length, connector and mounting orientation customization. Messages go to [email protected].
Productos similares

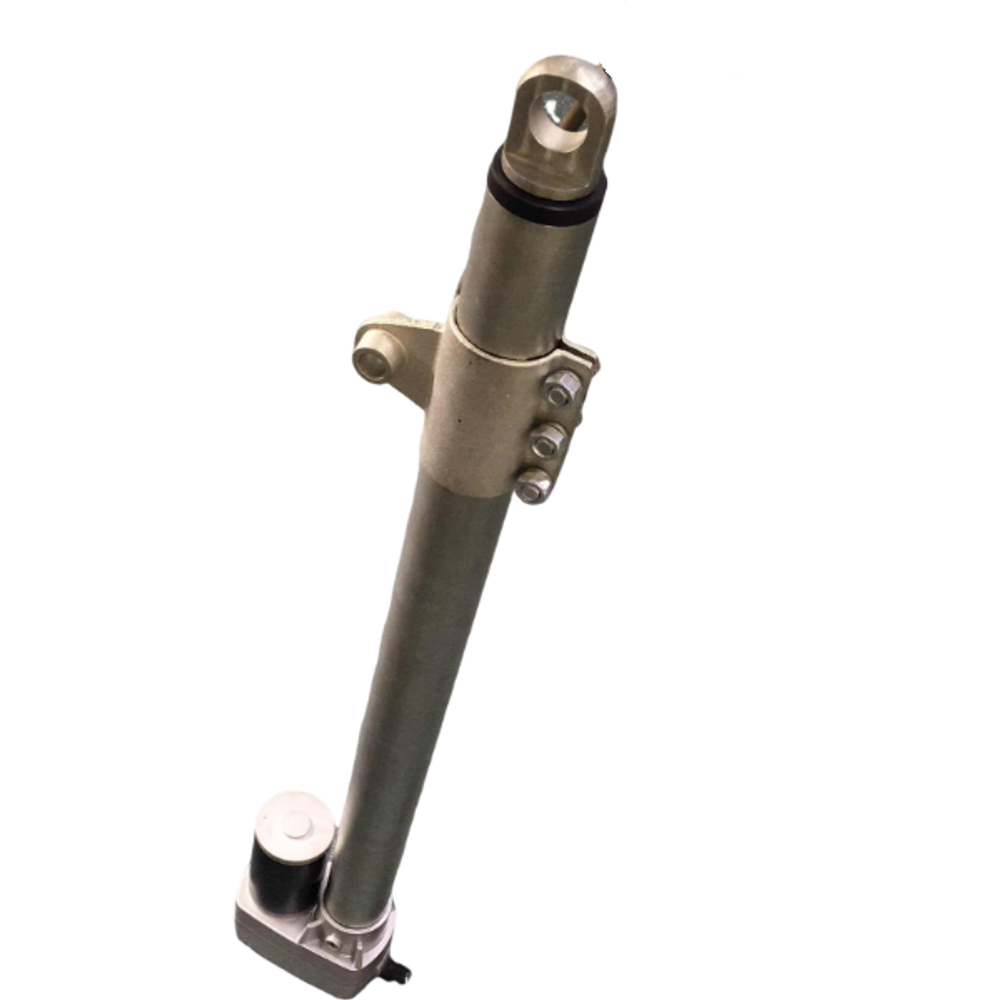

SLA-15K 15000N actuador lineal para seguidor solar
Modelo: SLA-15K. Tensión: 12V/24V/36V/48V CC. Velocidad vacío: 6,5 mm/s. Velocidad con carga: 2,5-3 mm/s. Carga máx.: 10000N (1000 kg) o 15000N (1500k...
Ver detalles →

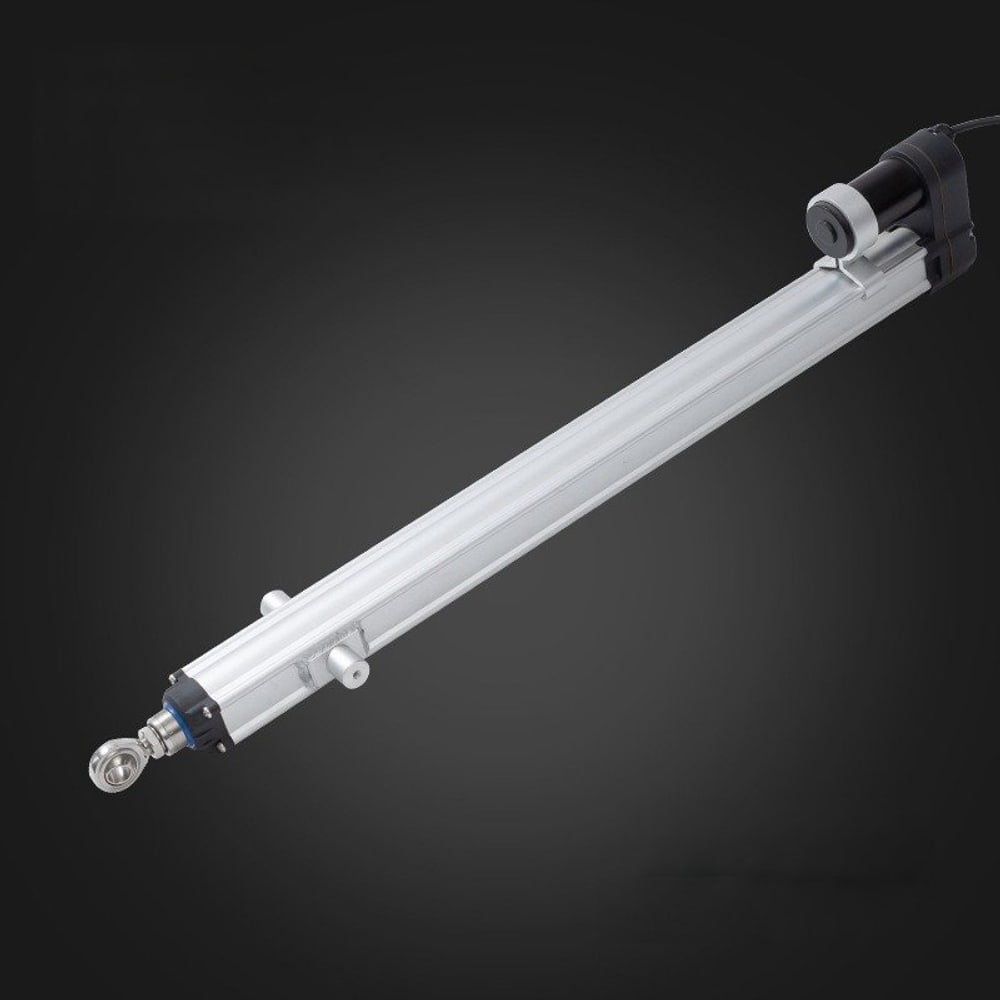

SLA-15KB 15000N actuador lineal para seguidor solar
