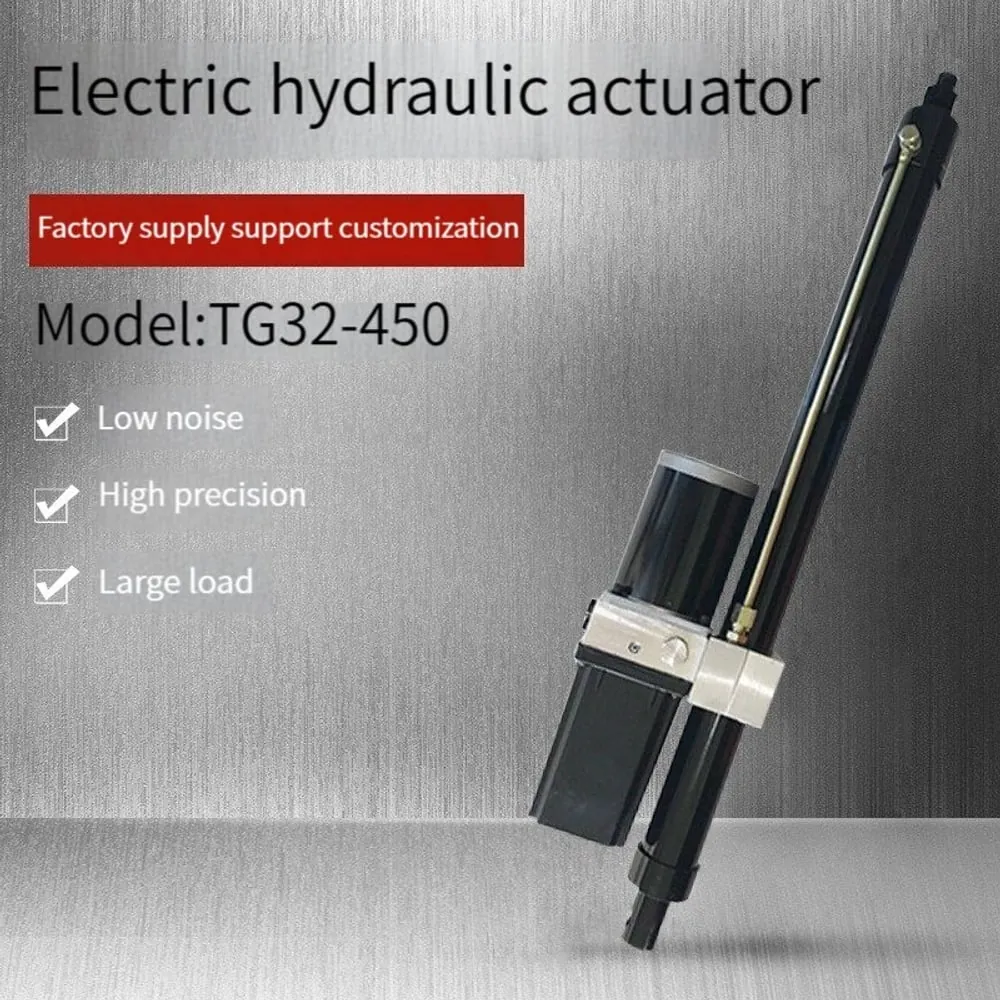

SLA-TG32S 10000N actuador hidroeléctrico

High-Force Small Hydraulic Linear Actuator for Industrial Applications
Introducing the SLA-TG-32S small hydraulic linear actuator, engineered to deliver high performance and reliability in various industrial settings. With a jacking force of 1T and a retracting force of 0.5T, this actuator is perfect for lifting platforms and industrial automation equipment. Equipped with a 12V/24V/48V DC motor and offering optional stroke lengths from 50mm to 800mm, our hydraulic linear actuator combines power, stability, and convenience at a competitive price.

Key Features:
High Force Capability: Provides a robust 1T jacking force and 0.5T retracting force, ideal for heavy-duty applications.
Integrated Protection Mechanisms: Comes with over-current, overload, and overheat protection, along with a hydraulic cylinder two-way pressure self-locking system.
High Stability and Performance: Features a self-locking valve, reversing valve, and over-pressure valve for enhanced stability.
Ease of Use: Ready to use upon connection to a power supply, with no need for additional hydraulic components.
Customizable Options: Pressure output interface and mounting dimensions can be tailored to specific requirements.

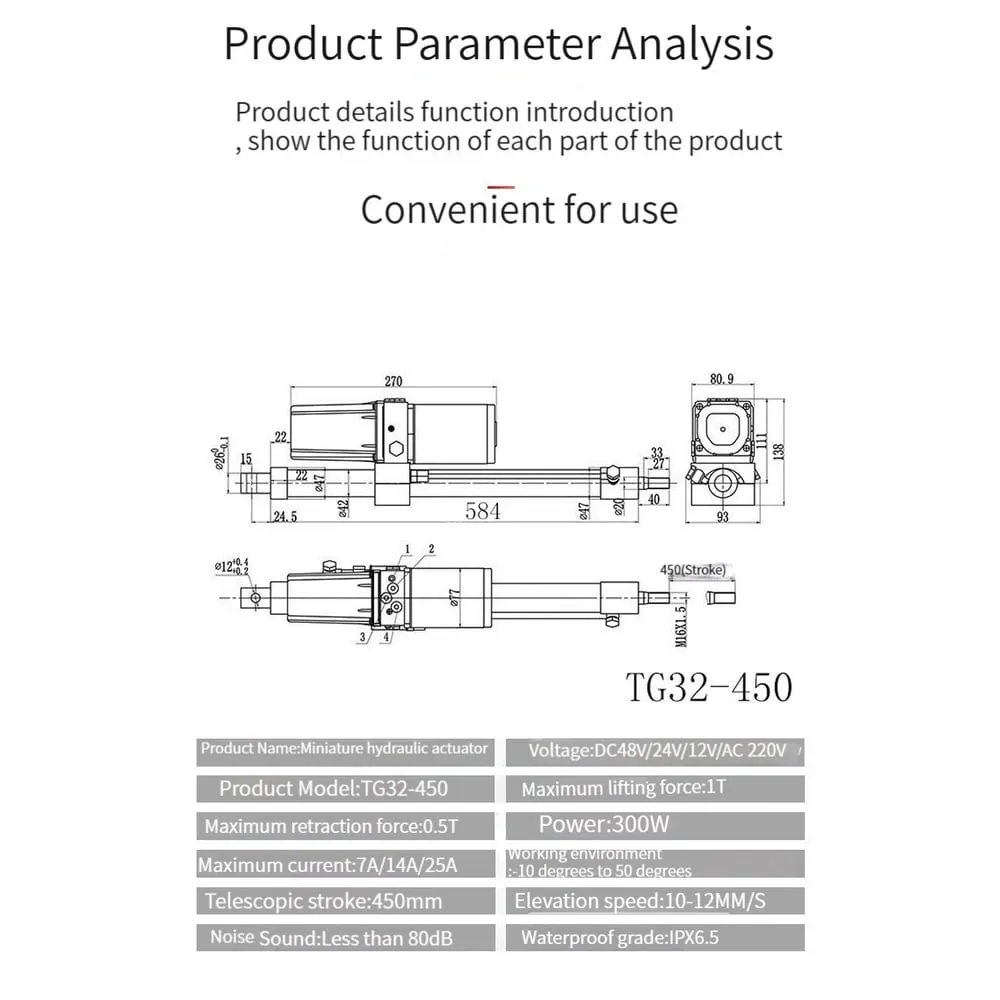

Specifications:
Model: SLA-TG-32S
Input Voltage: 12V / 24V / 48V DC
Power: 300W / 800W
Stroke Length: Optional 50mm, 100mm, 150mm, 200mm, 250mm, 300mm, 400mm, 800mm (Customizable within 50mm-800mm range)
Jacking Force: 1T
Retracting Force: 0.5T
Speed: 10-12mm/s, 20-25mm/s
Protection Grade: IPx6
Operating Temperature: -30°C to +70°C
Duty Cycle: Long-term continuous use, up to 6 minutes at a time
Weight: 5-15 kg

* Oil filler plug: The oil is added or replaced from the plug.

Applications:
Our hydraulic linear actuators are ideal for a variety of applications, including but not limited to:

Lifting Platforms
Industrial Automation Equipment
Heavy Machinery
Construction Equipment
Agricultural Machinery
Medical Devices
Why Choose Our Hydraulic Linear Actuator?
Our hydraulic linear actuators provide a powerful, reliable, and easy-to-install solution for your lifting and automation needs. With high force capabilities, integrated protection mechanisms, and customizable options, they are designed to meet the specific demands of your projects. Whether you need to lift, push, or pull, our actuators offer the performance and durability you need to get the job done efficiently.

Enhance your systems with our high-force hydraulic linear actuators and experience superior performance and reliability. Contact us today to learn more about how our actuators can meet your specific application requirements.
