Controlador

SLA-CX04 mando a distancia

SLA-CX04 mando a distancia is supplied by Elerover as a controlador for OEM and industrial motion projects. Request OEM customization for voltage, stroke, feedback and connectors.

Manufactured and supplied by Elerover — Controlador manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Parámetros clave

Handle
Extend Actuators
Motor Plug
2-core plug 🔌 Power Plug
rol Options
Wired Control
Reset Button
Quickly reset the system for easy adjustments. Specifications ⚡ Input Voltage
Working Cycle
10% (2 minutes of work followed by 18 minutes of rest) Control Modes Lock Mode
Maximum Output Power
120W 🔧 Control Mode
Synchronous Operation
Ensures two electric linear actuators run completely synchronously. 🎮 Dual Cont
Maximum Output Voltage
12V/24V/29V DC ⚡ Maximum Output Current
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Descripción general del producto

Synchronous Control System for Two Linear Actuators with Advanced Specifications Introducing our Synchronous Control System for Two Linear Actuators , an advanced solution designed to provide precise, simultaneous control of two electric linear actuators. This system is perfect for applications requiring synchronized movement, offering both wired and wireless control options for maximum flexibility. Key Features 🔄 Synchronous Operation : Ensures two electric linear actuators run completely synchronously. 🎮 Dual Control Options : Wired Control : Via an intuitive control handle. Wireless Control : Via a convenient remote control. 🔘 Simple Functionality : Equipped with two function buttons for Up and Down movements. 🔄 Reset Button : Quickly reset the system for easy adjustments. Specifications ⚡ Input Voltage : AC 110V / 220V 50Hz/60Hz ⚡ Maximum Output Voltage : 12V/24V/29V DC ⚡ Maximum Output Current : 5A ⚡ Maximum Output Power : 120W 🔧 Control Mode : Lock/Non-lock (Standard) 🔌 Motor Plug : 2-core plug 🔌 Power Plug : 2-core 8-shaped plug 🔄 Working Cycle : 10% (2 minutes of work followed by 18 minutes of rest) Control Modes Lock Mode : Press the key once, and the electric push rod will operate through the complete cycle. Non-lock Mode : Press and hold the key for continuous operation; release the key to stop. Connection Instructions Power Connection : Connect the positive pole of the DC power supply to terminal + of the controller. Connect the negative pole of the DC power supply to terminal – of the controller. Actuator Connection : Connect the red and black power cables of the two linear actuators to the linear actuator terminals of the controller. Connect the hall signal cables of the two linear actuators to the hall signal terminals of the controller. Control Handle : Plug the control handle into the controller. Operation Instructions Via Control Handle : Extend Actuators : Press the ▲ button to extend both actuators simultaneously. They will reach the maxi

Características clave

  • 🔄 Synchronous Operation : Ensures two electric linear actuators run completely synchronously.
  • 🎮 Dual Control Options : Control cableado: mediante mango de control intuitivo.
  • Control inalámbrico : Mediante mando a distancia conveniente.
  • 🔘 Simple Functionality : Equipado con dos botones de función para movimientos arriba y abajo.
  • 🔄 Reset Button : Quickly reset the system for easy adjustments.
  • ⚡ Input Voltage : AC 110V / 220V 50Hz/60Hz
  • ⚡ Maximum Output Voltage : 12V/24V/29V DC
  • ⚡ Maximum Output Current : 5A
  • ⚡ Maximum Output Power : 120W
  • 🔧 Control Mode : Lock/Non-lock (Standard)
  • 🔌 Motor Plug : 2-core plug
  • 🔌 Power Plug : 2-core 8-shaped plug

Especificaciones técnicas

Synchronous Operation Ensures two electric linear actuators run completely synchronously. 🎮 Dual Cont
rol Options Wired Control
Reset Button Quickly reset the system for easy adjustments. Specifications ⚡ Input Voltage
Maximum Output Voltage 12V/24V/29V DC ⚡ Maximum Output Current
Maximum Output Power 120W 🔧 Control Mode
Motor Plug 2-core plug 🔌 Power Plug
Working Cycle 10% (2 minutes of work followed by 18 minutes of rest) Control Modes Lock Mode
of the controller. Actuator Connection Connect the red and black power cables of the two linear actuators to the linear
Handle Extend Actuators
stop both actuators. Via Remote Control Extend Actuators
including but not limited to 🏥 Medical Devices 🏡 Home Automation Systems 🚪 Automotive Applications 🏢 Indu

Aplicaciones

  • 🏥 Dispositivos médicos
  • 🏡 Sistemas de domótica
  • 🚪 Aplicaciones de automoción
  • 🏢 Equipos industriales
  • 🖥️ Automatización de oficina
  • 🛠️ Proyectos DIY

Detalles adicionales

Synchronous Control System for Two Linear Actuators with Advanced Specifications

Introducing our Synchronous Control System for Two Linear Actuators, an advanced solution designed to provide precise, simultaneous control of two electric linear actuators. This system is perfect for applications requiring synchronized movement, offering both wired and wireless control options for maximum flexibility.

  • 🔄 Synchronous Operation: Ensures two electric linear actuators run completely synchronously.

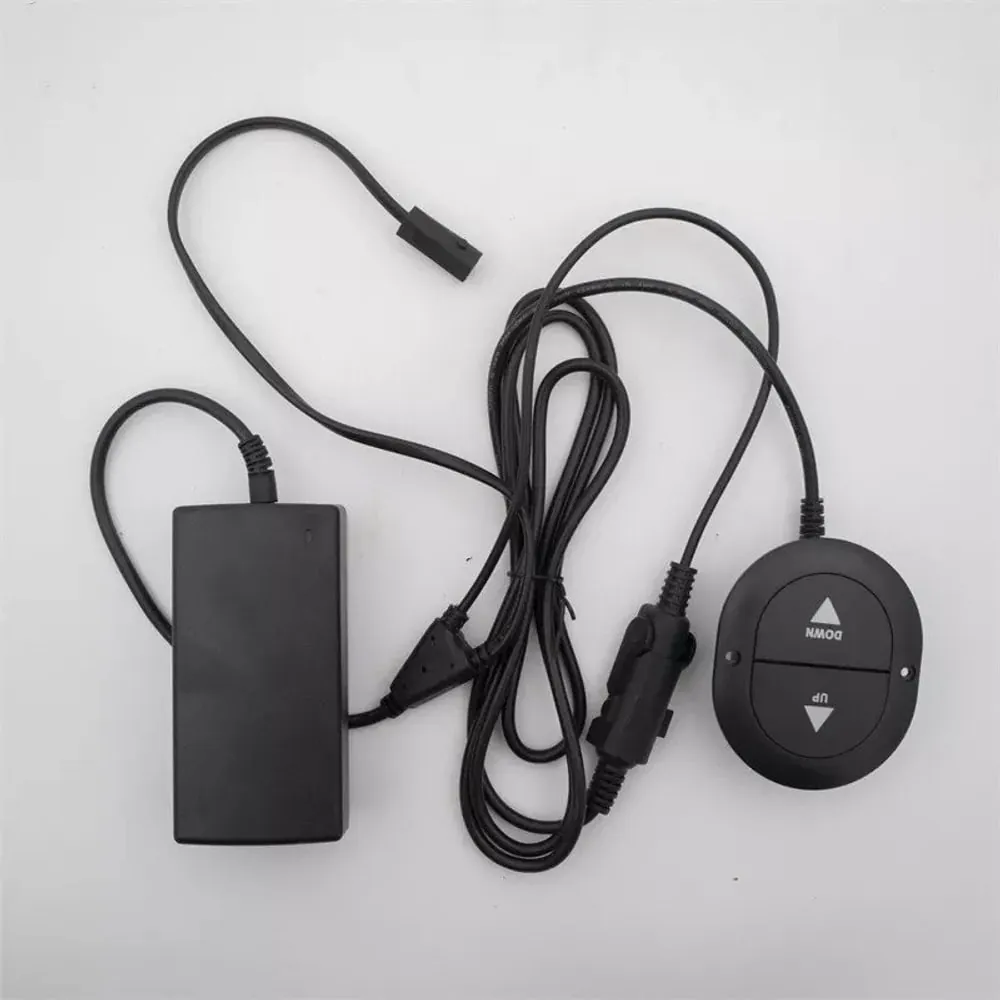

  • 🎮 Dual Control Options:
    • Wired Control: Via an intuitive control handle.
    • Wireless Control: Via a convenient remote control.
  • 🔘 Simple Functionality: Equipped with two function buttons for Up and Down movements.
  • 🔄 Reset Button: Quickly reset the system for easy adjustments.
  • ⚡ Input Voltage: AC 110V / 220V 50Hz/60Hz
  • ⚡ Maximum Output Voltage: 12V/24V/29V DC
  • ⚡ Maximum Output Current: 5A
  • ⚡ Maximum Output Power: 120W
  • 🔧 Control Mode: Lock/Non-lock (Standard)
  • 🔌 Motor Plug: 2-core plug
  • 🔌 Power Plug: 2-core 8-shaped plug
  • 🔄 Working Cycle: 10% (2 minutes of work followed by 18 minutes of rest)

Control Modes

  • Lock Mode: Press the key once, and the electric push rod will operate through the complete cycle.
  • Non-lock Mode: Press and hold the key for continuous operation; release the key to stop.

Connection Instructions

  1. Power Connection:
    • Connect the positive pole of the DC power supply to terminal + of the controller.
    • Connect the negative pole of the DC power supply to terminal – of the controller.
  2. Actuator Connection:
    • Connect the red and black power cables of the two linear actuators to the linear actuator terminals of the controller.
    • Connect the hall signal cables of the two linear actuators to the hall signal terminals of the controller.
  3. Control Handle:
    • Plug the control handle into the controller.

Operation Instructions

Via Control Handle:

  1. Extend Actuators:
    • Press the ▲ button to extend both actuators simultaneously. They will reach the maximum stroke and stop automatically.
    • Press the ▼ button at any time to stop both actuators.
  2. Retract Actuators:
    • Press the ▼ button to retract both actuators simultaneously. They will fully retract and stop automatically.
    • Press the ▲ button at any time to stop both actuators.

Via Remote Control:

  1. Extend Actuators:
    • Press the ▲ button on the remote to extend both actuators simultaneously. They will reach the maximum stroke and stop automatically.
    • Press the ▼ button at any time to stop both actuators.
  2. Retract Actuators:
    • Press the ▼ button on the remote to retract both actuators simultaneously. They will fully retract and stop automatically.
    • Press the ▲ button at any time to stop both actuators.

Ideal for a variety of uses, including but not limited to:

  • 🏥 Medical Devices
  • 🏡 Home Automation Systems
  • 🚪 Automotive Applications
  • 🏢 Industrial Equipment
  • 🖥️ Office Automation
  • 🛠️ DIY Projects

Enhance your automation projects with our Synchronous Control System for Two Linear Actuators. Enjoy precise, simultaneous control with both wired and wireless options, ensuring flexibility and ease of use.
