Slewing Drive for Motion Control SC3-62B-RC-24H3033 Slewing Drive A compact electric slewing drive designed for low-speed, high-torque rotary motion applications. The SC3-62B-RC-24H3033 integrates a slewing bearing, worm gear transmission and 24VDC planetary reducer motor, making it suitable for industrial automation, positioning systems, light machinery and customized motion control equipment. Request a Quote Contact Engineering Team Key Specifications Rated Output Speed 0.05 rpm Output Torque 818 N·m Holding Torque 2200 N·m Motor Voltage 24 VDC Approx. Weight 15 kg Rated Output Speed 0.05 rpm Output Torque 818 N·m Holding Torque 2200 N·m Motor Voltage 24 VDC Product Overview Compact Rotary Drive for Controlled Slewing Motion The SC3-62B-RC-24H3033 slewing drive is engineered for applications requiring precise rotary positioning, stable load holding and compact installation. This slewing drive combines a worm gear slewing mechanism with a 24VDC planetary reducer motor. It provides reliable torque output, self-locking holding capability and smooth low-speed rotation. The integrated structure helps reduce installation complexity compared with separated bearing, gearbox and motor assemblies. With a rated output speed of 0.05 rpm, output torque of 818 N·m and holding torque of 2200 N·m, this model is suitable for slow rotary platforms, mechanical positioning devices, tracking systems and customized automated equipment. Product Highlights Integrated slewing bearing and worm gear transmission. Compact design for space-limited rotary motion applications. 24VDC planetary reducer motor for controlled low-speed operation. High holding torque for stable position retention. IP65 motor protection class for demanding working environments. Suitable for customized mounting and motion control systems. Key Features Engineered for Stable Rotation and Reliable Load Support Designed for industrial motion systems where compact structure, torque output and positioning stability are requi
Schwenkantrieb
SC3 Schwenkantrieb mit 24VDC-Motor | Kompakter Schneckengetriebe-Drehantrieb
SC3 Schwenkantrieb mit 24VDC-Motor. Der SC3-Schwenkantrieb ist ein kompakter Schneckengetriebe-Drehantrieb mit integriertem 24VDC-Planetengetriebemotor. Er ist ausgelegt...
Manufactured and supplied by Elerover — Schwenkantrieb manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Wichtige Parameter
- Motor Type
- 24VDC Planetary Reducer Motor
- Rated Current
- < 1.9 A
- Pin
- Wire Color
- Pin 1
- Black
- Pin 2
- Red
- Pin 3
- Yellow
- Pin 4
- Brown
- Pin 5
- Blue
Produktübersicht
Wesentliche Merkmale
- Integriertes Drehkranzlager und Schneckengetriebe.
- Kompaktes Design für drehbare Anwendungen mit begrenztem Bauraum.
- 24VDC-Planetengetriebemotor für kontrollierten Niedriggeschwindigkeitsbetrieb.
- Hohes Haltemoment für stabile Positionsbeibehaltung.
- Motorschutzart IP65 für anspruchsvolle Arbeitsumgebungen.
- Geeignet für kundenspezifische Montage und Bewegungssteuerungssysteme.
Technische Spezifikationen
| Parameter | Metric Value |
|---|---|
| Rated Output Speed | 3 rpm |
| Output Torque | 818 N·m |
| Tilting Moment | 1100 N·m |
| Holding Torque | 2200 N·m |
| Static Axial Rating | 30 kN |
| Static Radial Rating | 15 kN |
| Dynamic Axial Rating | 9.6 kN |
| Dynamic Radial Rating | 8.4 kN |
| Gear Ratio | 575:1 |
| Precision | ≤ 0.17° |
| Rated Output Torque | 33 N·m |
| IP Class | IP65 |
| Rated Current | < 1.9 A |
| Product Model | SC3-62B-RC-24H3033 |
| Drive Type | Electric Slewing Drive |
| Motor Type | 24VDC Planetary Reducer Motor |
| Cable Length | 1 m |
| Approx. Weight | 15 kg |
| Item | Unit |
| Output Type | – |
| Pull-up Resistor | – |
| Output Signal | – |
| Phase Quadrature | – |
| Impulses per Revolution | ppr |
| Operating Voltage | VDC |
| Operating Current | mA |
| Deviation of Pulse Width | – |
| Deviation of Phase Shift | – |
| Output Voltage, Low Level | VDC |
| Signal Rise Time | ns |
| Signal Decay Time | ns |
| Operation Temperature | °C |
| Pin | Wire Color |
| Pin 1 | Black |
| Pin 2 | Red |
| Pin 3 | Yellow |
| Pin 4 | Brown |
| Pin 5 | Blue |
| Pin 6 | Green |
| Pin E | Grey |
Anwendungen
- Industrieautomation
- Solartracking
- Landwirtschaft
Zusätzliche Details

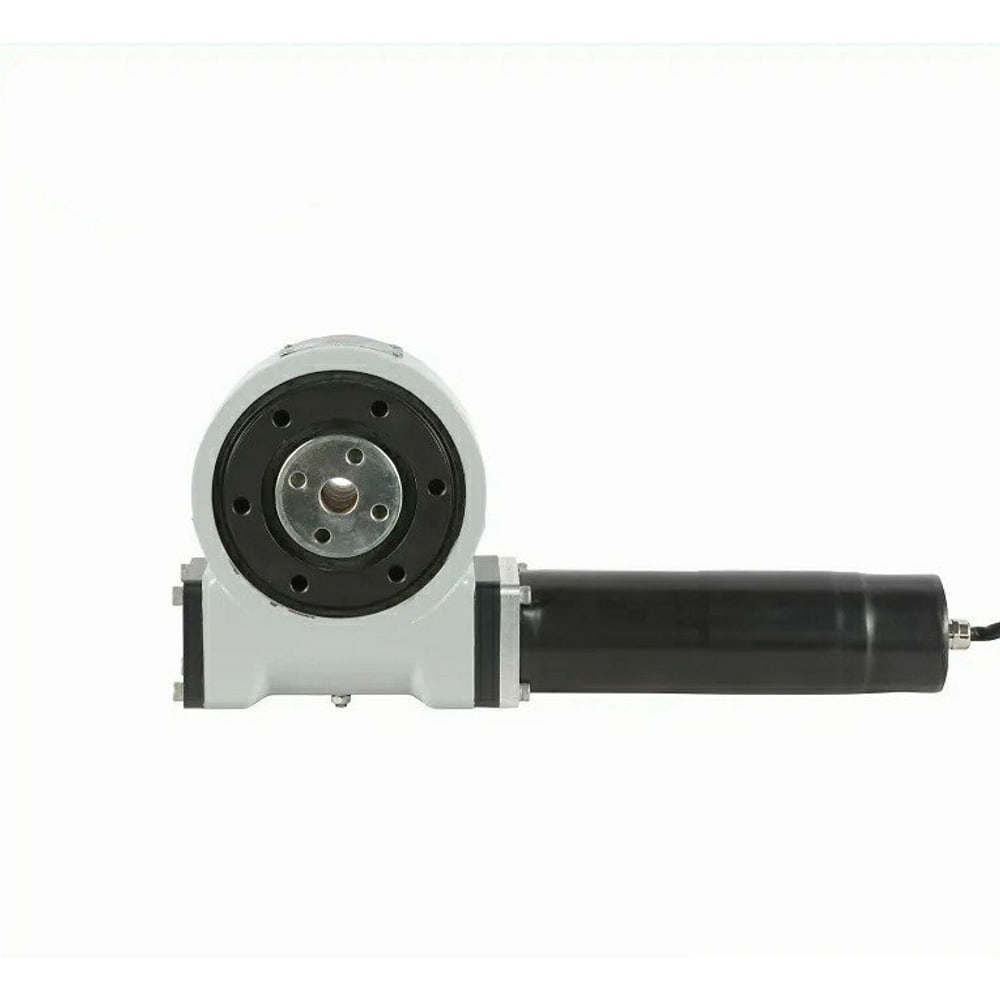

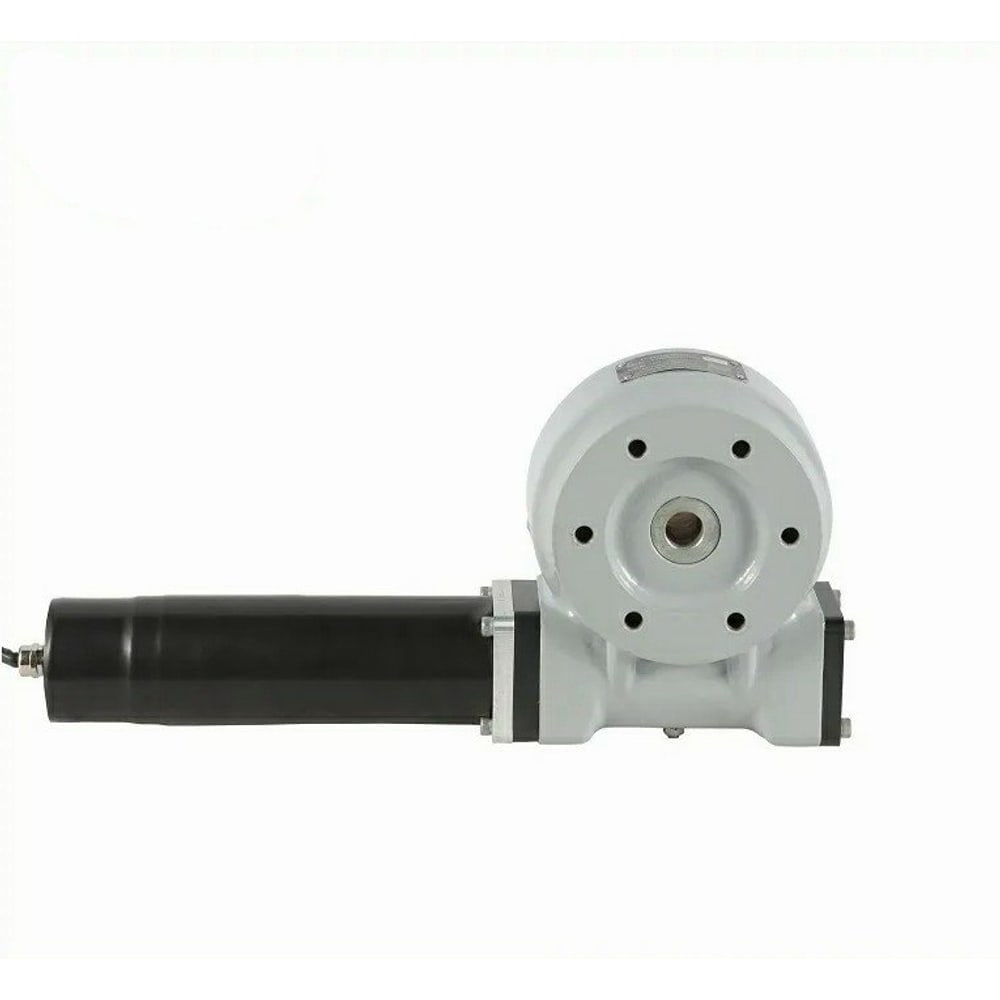

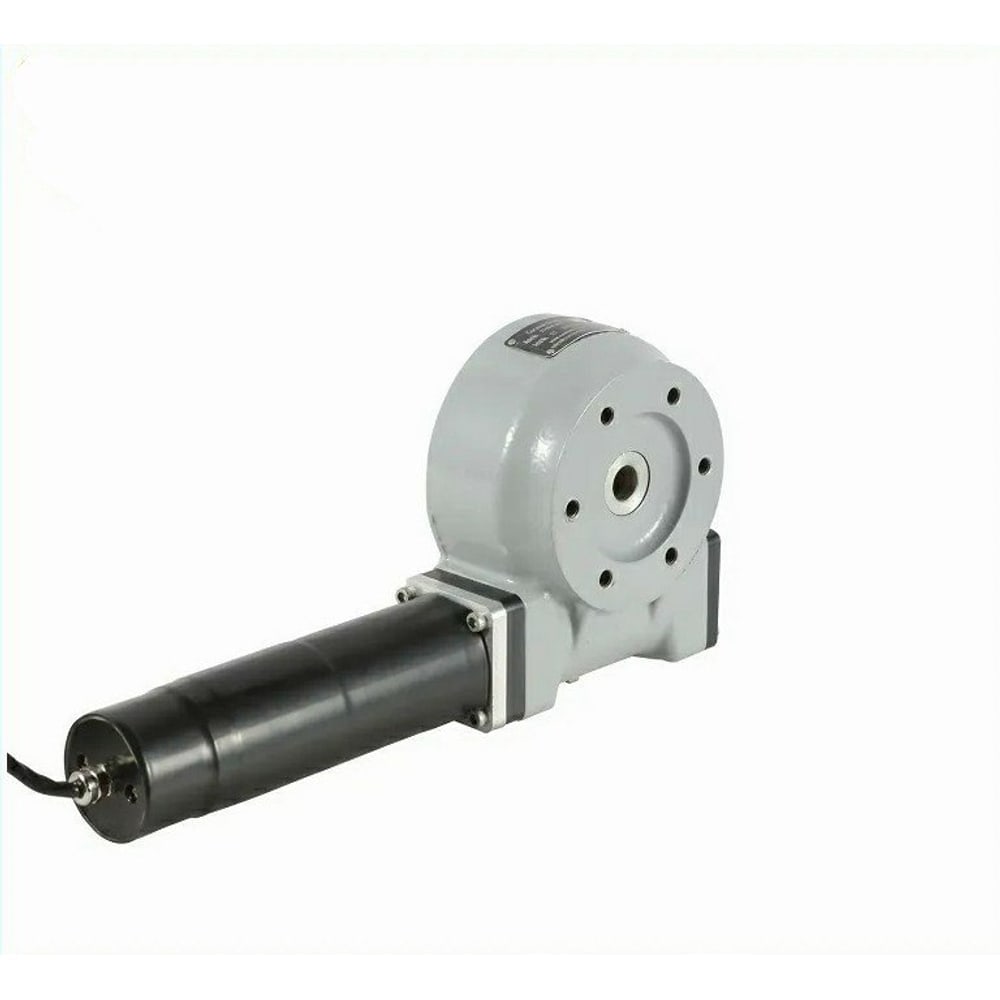

SC3-62B-RC-24H3033 Slewing Drive
A compact electric slewing drive designed for low-speed, high-torque rotary motion applications.
The SC3-62B-RC-24H3033 integrates a slewing bearing, worm gear transmission and 24VDC planetary reducer motor,
making it suitable for industrial automation, positioning systems, light machinery and customized motion control equipment.
0.05 rpm
818 N·m
2200 N·m
24 VDC
15 kg
0.05 rpm
818 N·m
2200 N·m
24 VDC
Compact Rotary Drive for Controlled Slewing Motion
The SC3-62B-RC-24H3033 slewing drive is engineered for applications requiring precise rotary positioning,
stable load holding and compact installation.
This slewing drive combines a worm gear slewing mechanism with a 24VDC planetary reducer motor.
It provides reliable torque output, self-locking holding capability and smooth low-speed rotation.
The integrated structure helps reduce installation complexity compared with separated bearing,
gearbox and motor assemblies.
With a rated output speed of 0.05 rpm, output torque of 818 N·m and holding torque of 2200 N·m,
this model is suitable for slow rotary platforms, mechanical positioning devices, tracking systems
and customized automated equipment.
Product Highlights
- Integrated slewing bearing and worm gear transmission.
- Compact design for space-limited rotary motion applications.
- 24VDC planetary reducer motor for controlled low-speed operation.
- High holding torque for stable position retention.
- IP65 motor protection class for demanding working environments.
- Suitable for customized mounting and motion control systems.
Engineered for Stable Rotation and Reliable Load Support
Designed for industrial motion systems where compact structure, torque output and positioning stability are required.
High Holding Capability
The worm gear structure provides strong holding performance, helping maintain position under load when the system is stopped.
Low-Speed Rotary Motion
Rated output speed of 0.05 rpm supports controlled, smooth and slow slewing movement for precise positioning equipment.
Compact Integrated Design
Integrated bearing, worm drive and motor configuration simplifies mechanical design and reduces assembly space.
24VDC Motor Drive
Equipped with a 24VDC planetary reducer motor, suitable for DC-powered machines, mobile equipment and automation systems.
IP65 Protection
Motor protection class IP65 helps improve reliability in industrial and outdoor-related environments.
Customizable Integration
Mounting, wiring and control requirements can be discussed according to your application and equipment structure.
Slewing Drive Performance Parameters

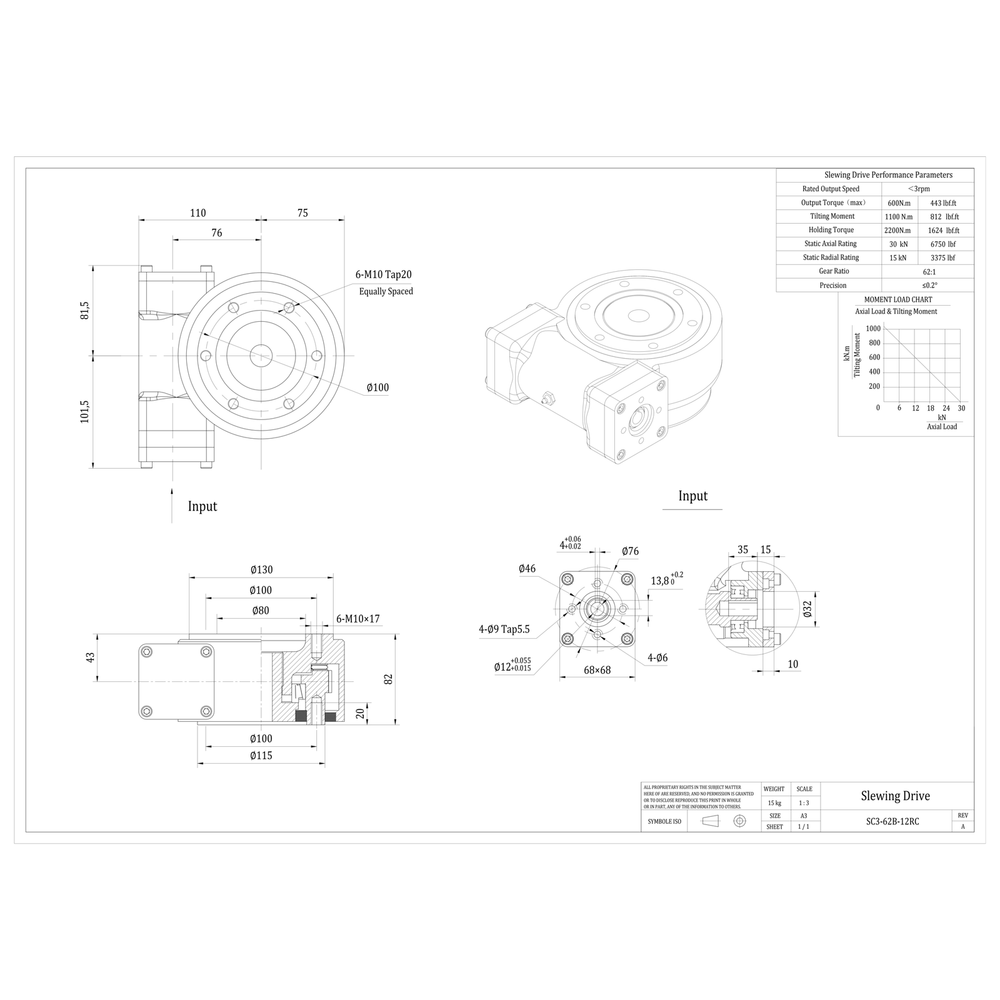

Main performance data based on the supplied technical drawing for model SC3-62B-RC-24H3033.
| Parameter | Metric Value | Imperial Value |
|---|---|---|
| Rated Output Speed | 0.05 rpm | – |
| Output Torque | 818 N·m | 603 lbf·ft |
| Tilting Moment | 1100 N·m | 812 lbf·ft |
| Holding Torque | 2200 N·m | 1624 lbf·ft |
| Static Axial Rating | 30 kN | 6750 lbf |
| Static Radial Rating | 15 kN | 3375 lbf |
| Dynamic Axial Rating | 9.6 kN | 2160 lbf |
| Dynamic Radial Rating | 8.4 kN | 1890 lbf |
| Gear Ratio | 62:1 | – |
| Precision | ≤ 0.17° | – |
Note: Values are provided for product selection reference. Final specifications can be confirmed according to application requirements.
24VDC Planetary Reducer Motor Performance
Integrated DC motor reducer data for the SC3-62B-RC-24H3033 slewing drive assembly.
Reducer Motor Parameters
| Rated Output Torque | 33 N·m |
| Rated Output Speed | 3 rpm |
| IP Class | IP65 |
| Gear Ratio | 575:1 |
| Rated Current | < 1.9 A |
Basic Interface Information
| Product Model | SC3-62B-RC-24H3033 |
| Drive Type | Electric Slewing Drive |
| Motor Type | 24VDC Planetary Reducer Motor |
| Cable Length | 1 m |
| Approx. Weight | 15 kg |
Magnetic Pulse Generator Data
Optional signal feedback data for speed or position-related control requirements.
| Item | Unit | Value / Description |
|---|---|---|
| Output Type | – | Voltage output |
| Pull-up Resistor | – | Yes |
| Output Signal | – | 2 square wave signals |
| Phase Quadrature | – | 90° |
| Impulses per Revolution | ppr | 2 channels A and B |
| Operating Voltage | VDC | DC 5-24 |
| Operating Current | mA | Max. 12 |
| Deviation of Pulse Width | – | Max. 15° |
| Deviation of Phase Shift | – | Max. 15° |
| Output Voltage, Low Level | VDC | Max. 0.4 V, 20 mA |
| Signal Rise Time | ns | 85 |
| Signal Decay Time | ns | 60 |
| Operation Temperature | °C | -40 to +85 |
Wire Definition
Wiring information for motor and Hall signal connection. Please confirm the final wiring diagram before installation.
| Pin | Wire Color | Function |
|---|---|---|
| Pin 1 | Black | Motor – |
| Pin 2 | Red | Motor + |
| Pin 3 | Yellow | Hall GND |
| Pin 4 | Brown | Hall +5~12V |
| Pin 5 | Blue | Hall A |
| Pin 6 | Green | Hall B |
| Pin E | Grey | Ground |
Typical Application Areas
This compact slewing drive can be used in customized rotary platforms and low-speed positioning systems.
How to Confirm the Right Slewing Drive
To help us recommend the correct model or customization, please provide basic application conditions.
Confirm Load Conditions
Provide axial load, radial load, tilting moment and the working position of the load.
Confirm Motion Requirements
Share required output speed, rotation angle, duty cycle, positioning accuracy and operating frequency.
Confirm Electrical Interface
Confirm voltage, current limit, control method, feedback signal, wiring and environmental requirements.
Can this slewing drive be customized?
Yes. Mounting interface, cable length, motor configuration, feedback signal and control requirements can be discussed according to your project.
Is this model suitable for outdoor equipment?
The integrated motor data indicates IP65 protection. For outdoor applications, please confirm sealing, corrosion protection, operating temperature and duty cycle requirements.
What information is needed for selection?
Please provide load data, speed requirement, installation direction, working environment, voltage, control method and expected lifetime.
Can you provide matching actuator or control system solutions?
Changxing Motiontech can support customized electric motion control solutions, including actuators, slewing drives, motors and related control integration.
Need a Custom Slewing Drive Solution?
Send us your load, speed, voltage and installation requirements. Our engineering team will help evaluate the suitable slewing drive configuration for your application.
