The SLA01-WP is a compact IP69 waterproof electric linear actuator with a parallel-motor layout. It offers custom stroke from 10–1000mm, speeds up to 80mm/s and force options up to the 1200N class for doors, windows, trapdoors, solar tracking, medical equipment and outdoor OEM automation.
Linearantrieb
SLA01-WP IP68 Linearantrieb
Heavy-Duty elektrischer Linearantrieb: Aluminiumlegierung, Schub/Zug bis 1200N. Geräuscharmes Design, reduzierter Geräuschpegel...
Manufactured and supplied by Elerover — Linearantrieb manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
Wichtige Parameter
- Model
- SLA01-WP
- Working Voltage
- 12V / 24V / 36V / 48V DC
- Stroke
- 10–1000mm (custom)
- Protection Class
- IP69
- Max Speed
- Up to 80mm/s
- Limit Switch
- Built-in
- Feedback
- Potentiometer (10K / 5K) or encoder (optional)
- Duty Focus
- Outdoor / wash-down OEM motion
Produktübersicht
Wesentliche Merkmale
- IP69 waterproof rating with rubber cover accessory
- Compact parallel-motor design
- Stroke 10–1000mm custom; L = S + 105mm
- Speed / load options from 50N@80mm/s to 900N@5mm/s
- 12V / 24V / 36V / 48V DC
- Built-in limit switches; optional potentiometer or encoder
- Low noise, maintenance-free sealed construction
Technische Spezifikationen
| Model | SLA01-WP |
|---|---|
| Working Voltage | 12V / 24V / 36V / 48V DC |
| Stroke | 10–1000mm (custom) |
| Max Speed | Up to 80mm/s |
| Max Dynamic Load | Up to 1200N class |
| Protection Class | IP69 |
| Install Length | L = S + 105mm (retracted) |
| Mounting Holes | 2 × Ø6.4mm |
| Limit Switch | Built-in |
| Feedback | Potentiometer (10K / 5K) or encoder (optional) |
| Cable Length | 1m standard (custom available) |
| Rated Power | About 30W |
| Duty Focus | Outdoor / wash-down OEM motion |
Anwendungen
- Solartracking
- Landwirtschaft
- Heben
Zusätzliche Details
Waterproof Linear Actuator
12V 24V SLA01-WP IP69 waterproof linear actuator for doors, windows and outdoor OEM motion
Compact parallel-motor electric linear actuator with IP69 sealing, up to 1200N class force options, speeds up to 80mm/s, and custom stroke from 10–1000mm for outdoor and wet-duty automation.
Model
SLA01-WP
SLA01-WP
Max Load
Up to 1200N
Up to 1200N
Max Speed
80mm/s
80mm/s
Voltage
12 / 24 / 36 / 48V DC
12 / 24 / 36 / 48V DC
Stroke
10–1000mm
10–1000mm
Protection
IP69
IP69

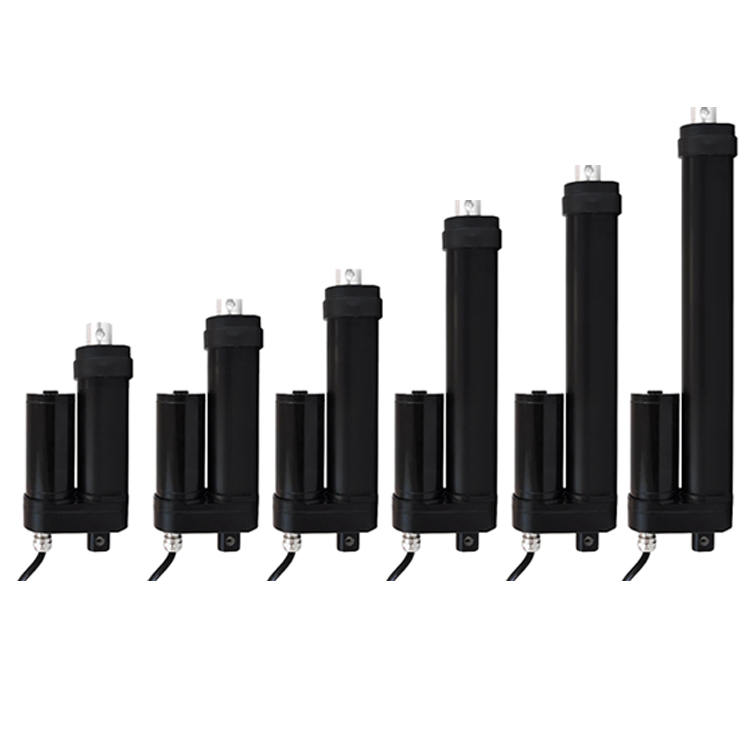

Stroke Options
Multiple stroke lengths share the same motor / gearbox package. Choose the stroke that matches your travel; overall retracted length follows L = S + 105mm.

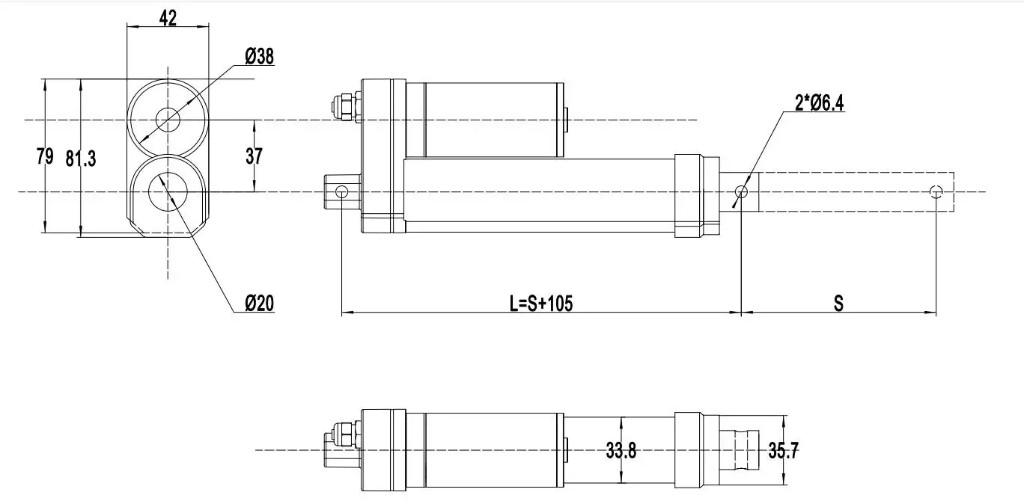

External Dimensions
Dimensional drawing for the SLA01-WP. Mounting hole diameter is Ø6.4mm at both ends. Retracted center-to-center length L = stroke (S) + 105mm.
- Overall envelope (end view): about 42mm wide × 81.3mm high
- Motor tube Ø38mm; actuator tube about Ø33.8mm
- Center distance between motor and tube axes: 37mm
- Mounting holes: 2 × Ø6.4mm
- Install length: L = S + 105mm (retracted)
Speed vs Load

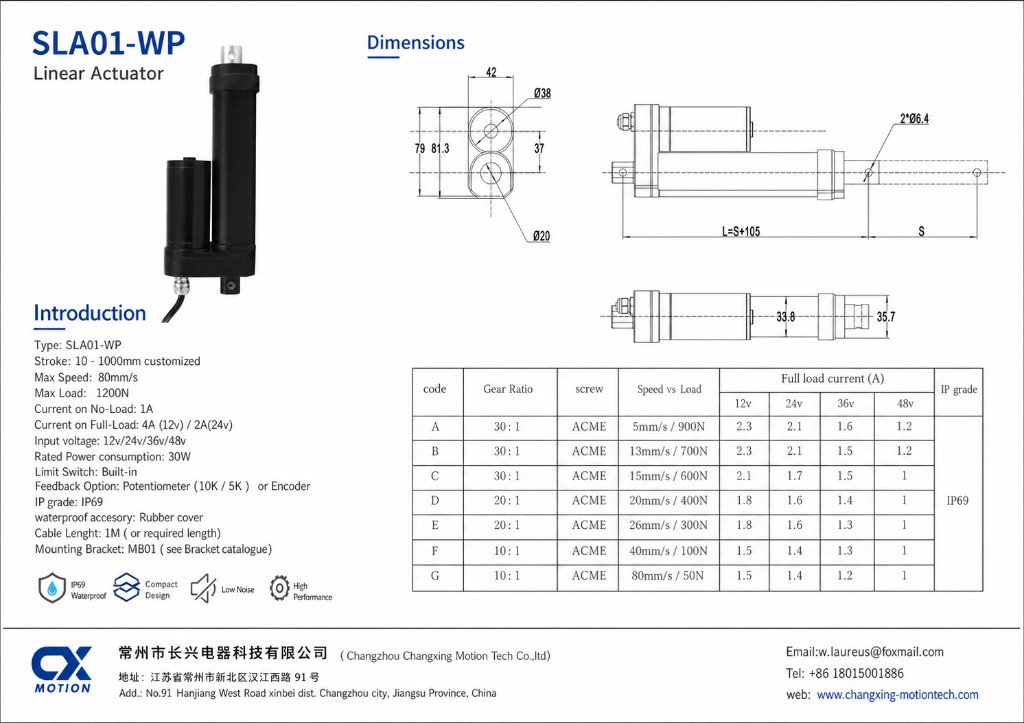

Select the gear / screw option that matches your duty. Speeds are typical values at the stated load from the SLA01-WP catalogue.
| Code | Gear Ratio | Screw | Speed / Load | Full-load Current @12V | @24V | @36V | @48V | IP |
|---|---|---|---|---|---|---|---|---|
| A | 30:1 | ACME | 5mm/s / 900N | 2.3A | 2.1A | 1.6A | 1.2A | IP69 |
| B | 30:1 | ACME | 13mm/s / 700N | 2.3A | 2.1A | 1.5A | 1.2A | IP69 |
| C | 30:1 | ACME | 15mm/s / 600N | 2.1A | 1.7A | 1.5A | 1.0A | IP69 |
| D | 20:1 | ACME | 20mm/s / 400N | 1.8A | 1.6A | 1.4A | 1.0A | IP69 |
| E | 20:1 | ACME | 26mm/s / 300N | 1.8A | 1.6A | 1.3A | 1.0A | IP69 |
| F | 10:1 | ACME | 40mm/s / 100N | 1.5A | 1.4A | 1.3A | 1.0A | IP69 |
| G | 10:1 | ACME | 80mm/s / 50N | 1.5A | 1.4A | 1.2A | 1.0A | IP69 |
Notes: Actual speed decreases as load increases. Confirm push/pull direction, duty cycle and power supply sizing before ordering. Custom stroke, cable length and feedback options are available.
Need a Custom Configuration?
Contact Elerover for stroke, force/speed code, voltage, feedback, cable length and bracket options. Messages go to [email protected].
