SLA02 Linearantrieb 1500N

1 / 5

Linearantrieb

SLA02 Linearantrieb 1500N

BREITE ANWENDUNG: Automobil, Medizinprodukte, Technikindustrie, Landmaschinen, industrielle elektrische Hubsysteme, Medizintechnik...

Manufactured and supplied by Elerover — Linearantrieb manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

Wichtige Parameter

Metal Voltage
DC 12V/24V/36V/48VDC Maximum push/pull
Silver Weight
723g(50mm), 846g(100mm), 947g(150mm), 1136g(250mm), 1215g(300mm)
Specifications
Material
IP54 Built-in stroke switch
Yes Color
Request OEM Quote WhatsApp
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

Produktübersicht

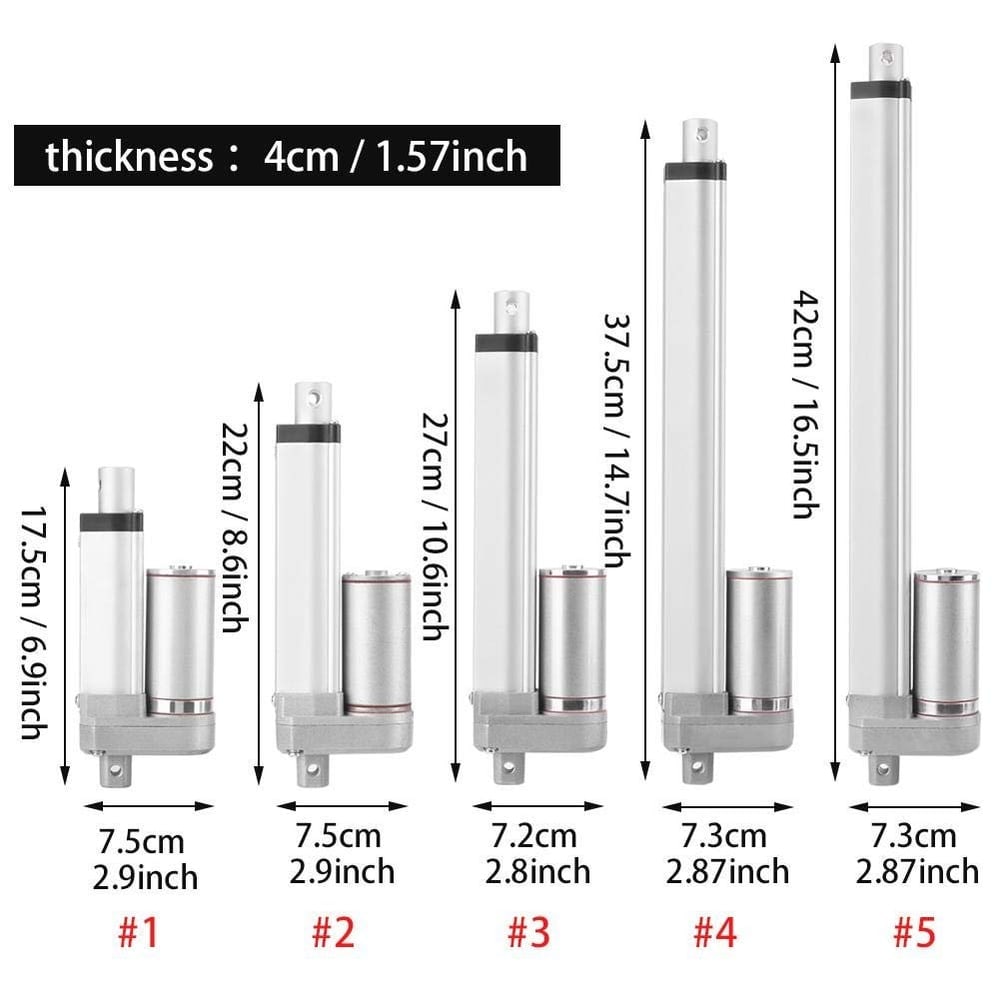

Specifications: Material: Metal Voltage: DC 12V/24V/36V/48VDC Maximum push/pull: Approx. 150kg/140kg Stroke length(Optional): Approx. 50mm / 1.97inch, 100mm / 3.94inch, 150mm / 5.91inch, 250mm / 9.84inch, 300mm / 11.81inch No-load speed: 6mm/s Relationship of speed and pull: 5mm/s(kg)-/ 50s(50kg) Environment temperature: -26°C to +50°C Standard protection level: IP54 Built-in stroke switch: Yes Color: Silver Weight: 723g(50mm), 846g(100mm), 947g(150mm), 1136g(250mm), 1215g(300mm)

Wesentliche Merkmale

  • Reliable Linear Actuator solution for OEM projects
  • Robust mechanical design for continuous duty
  • Flexible voltage and mounting options
  • Custom configurations available on request

Technische Spezifikationen

Specifications Material
Metal Voltage DC 12V/24V/36V/48VDC Maximum push/pull
mm / 11.81inch No-load speed 6mm/s Relationship of speed and pull
IP54 Built-in stroke switch Yes Color
Silver Weight 723g(50mm), 846g(100mm), 947g(150mm), 1136g(250mm), 1215g(300mm)

Anwendungen

  • Industrial automation
  • OEM equipment
  • Medical and care systems

Zusätzliche Details

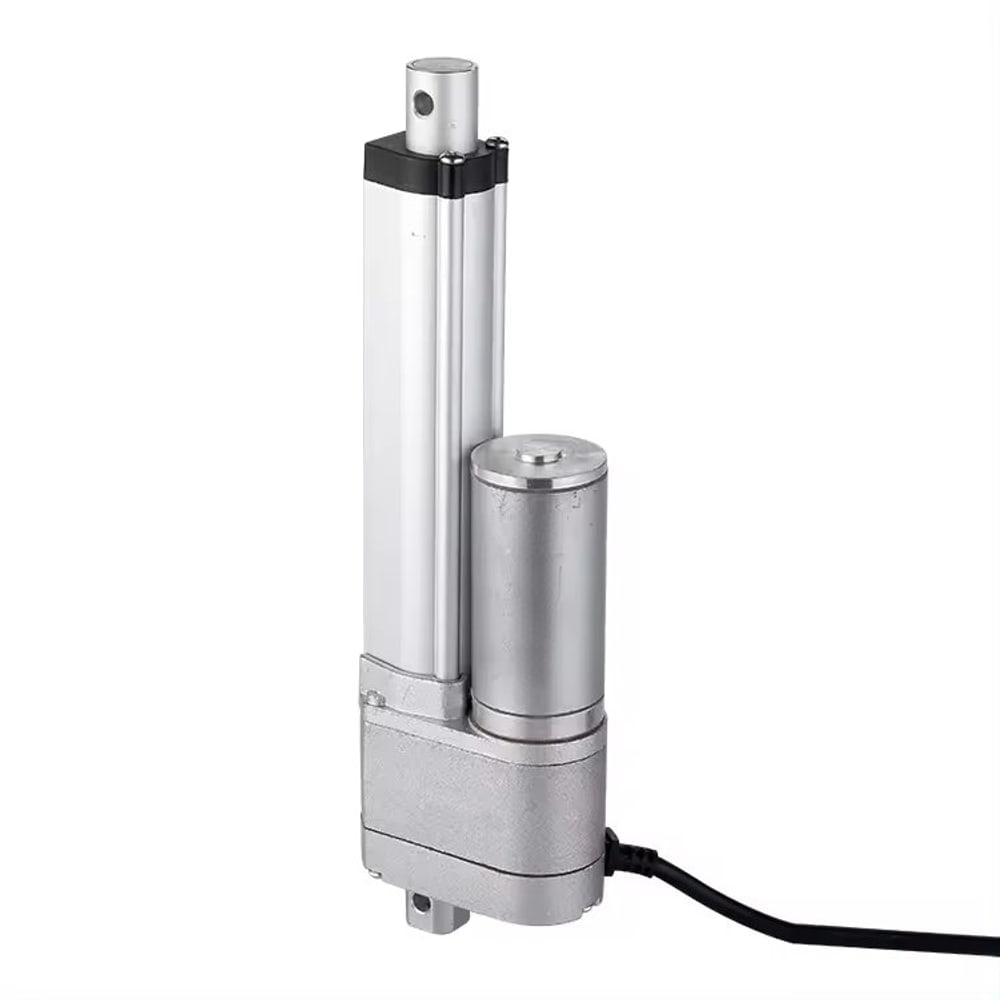

Linear Actuator - SLA02 1500N linear actuator - Detail view 1

Linear Actuator

SLA02 1500N linear actuator

Specifications: Material: Metal Voltage: DC 12V/24V/36V/48VDC Maximum push/pull: Approx. 150kg/140kg Stroke length(Optional): Approx. 50mm / 1.97inch, 100mm / 3.94inch, 150mm / 5.91inch, 250mm / 9.84inch, 300mm / 11.81inch No-load speed: 6mm/s Relationship of speed and pull: 5mm/s(kg)-/ 50s(50kg) Environment temperature: -26°C to +50°C Standard protection level: IP54 Built-in stroke switch: Yes Color: Silver Weight: 723g(50mm), 846g(100mm), 947g(150mm), 1136g(250mm), 1215g(300mm)

Need a Custom Configuration?

Contact Elerover for voltage, stroke, speed, feedback, cable length and connector customization. Messages go to [email protected].

Installation Guidance

Mount on a rigid structure, avoid side load, and confirm electrical polarity before first motion. Protect cables from abrasion and leave service access for inspection.
