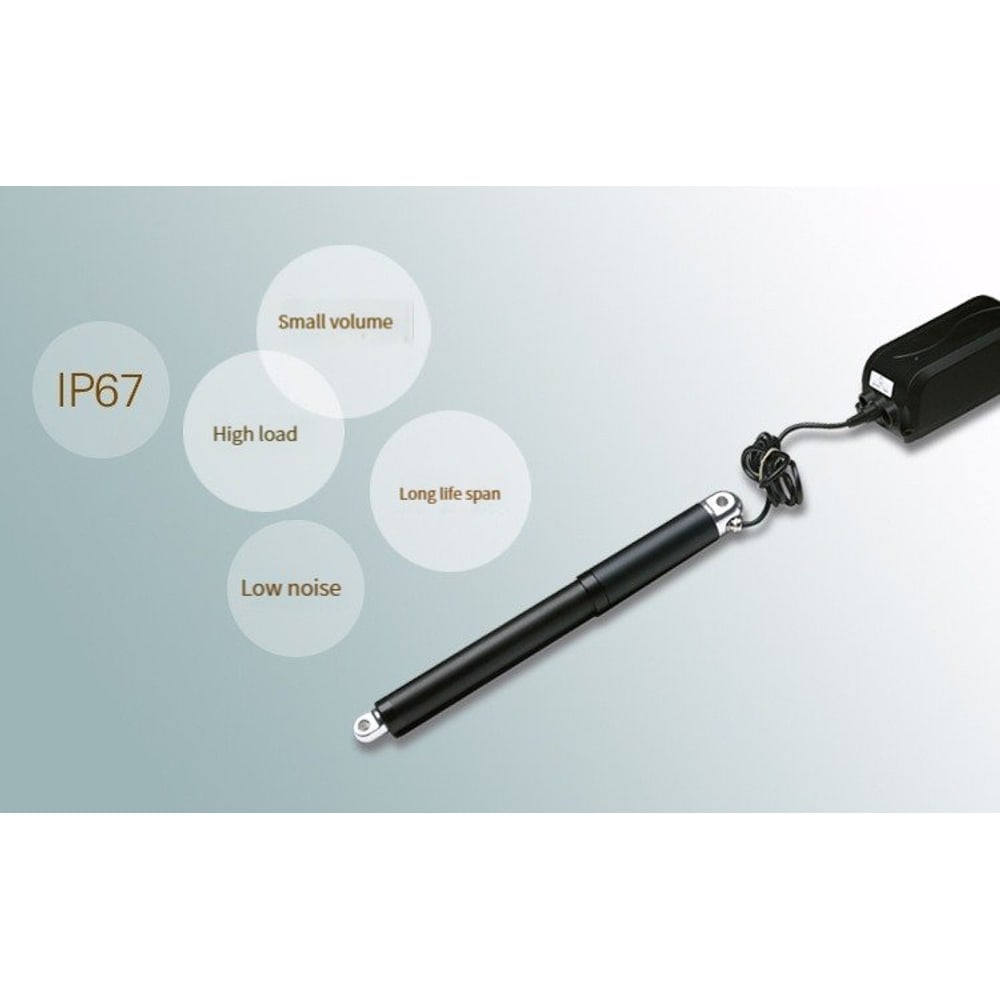

SLA-T52 6000N مشغل خطي مقاوم للماء IP68

Load(N) 300 1200 1800 3000 4500 5000 6000 Self-locking Force(N) 600 2400 3600 6000 8000 7500 8000 No-load Speed(mm/s) 88 24 16 9.6 6.4 4.8 4.8 Load Speed(mm/s) 55 15 10 6 4.5 3.3 3 Stroke(mm) 50 100 150 200 250 300 350 400 Weight(kg) 1.8 1.9 2 2.1 2.2 2.3 2.4 2.5 Push only function is optional. Output limit switches wires is optional. The max load of SLA-T52 12V is 5000N. Customized stroke lengths are available. The min stroke:20mm ,the max stroke:500mm. The stroke’s precision is ±2 mm. The SLA-T52 is a high-performance linear actuator boasting an exceptional IP67M protection rating, making it one of the most robust in its class. This rating signifies its ability to operate even when fully submerged in water for short periods, ensuring reliable performance in demanding environments. Resistant to dust, water, and other harsh conditions, the SLA-T52 is a versatile solution for various industries, including agriculture, industrial applications, and especially marine environments. Its exceptional durability and waterproof design make it ideal for demanding tasks where reliability is paramount. Diameter 52mm 52mm Rated Force 6000N 3000N Speed No-load 5mm/s 10mm/s Input Voltage 12V/24V 12V/24V No-load Current 2.5A/1.5A 2.5A/1.5A Rated Current 13.0A/9.0A 13.0A/9.0A Stroke 50-1000mm 50-1000mm Hall Sensor Option Option Duty Cycle 10% 10% IP Rating IP67 IP67 Operational Temperature -25°C/65°C -25°C/65°C Operating Noise ＜60dB ＜60dB Limit Switch Built-in, non-adjustable Built-in, non-adjustable Housing Material Aluminum alloy Aluminum alloy Stroke Rod Material Stainless steel Stainless steel
