12V 24V SLA-17K 17000N industrial linear actuator

12V/24V/36V/48V heavy-duty industrial electric linear actuator with up to 17000N dynamic force, IP67 protection, ball/ACME screw options, Ø20mm spherical mounts and standard manual override.

Manufactured and supplied by Elerover — مشغل خطي manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

المعلمات الرئيسية

Model
SLA-17K
Working Voltage
12V / 24V / 36V / 48V DC
Stroke Range
50–1000mm (customizable)
Protection Class
IP67
Motor Type
Brushed DC
Duty Cycle
20–35% (by transmission code)
Mounting Hole
Ø20mm spherical rod ends
Lead Screw
Ball screw or ACME screw
Request OEM Quote واتساب
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

نظرة عامة على المنتج

The SLA-17K 17000N industrial linear actuator is a heavy-duty 12V/24V electric actuator for construction machinery, agriculture, solar tracking, automation and OEM systems. IP67 rated with ball-screw or ACME options, optional Hall/analog feedback and manual override.

الميزات الرئيسية

  • Heavy-duty industrial electric linear actuator up to 17000N dynamic force
  • Working voltage: 12V / 24V / 36V / 48V DC
  • IP67 weather protection for outdoor and harsh environments
  • Ball screw and ACME screw transmission options (codes A–J)
  • Stroke range 50–1000mm (customizable)
  • Spherical rod-end mounts with Ø20mm mounting holes
  • Aluminum alloy housing with stainless steel piston rod
  • Standard manual override for emergency operation without power
  • Optional Hall sensor, potentiometer, end-stop signal and magnetic switches
  • Operating noise ≤65dB; duty cycle 20–35% depending on transmission
  • Electronic overload protection and replaceable weatherproof cable module

المواصفات الفنية

Model SLA-17K
Working Voltage 12V / 24V / 36V / 48V DC
Stroke Range 50–1000mm (customizable)
Max Dynamic Load 17000N / 1700 kg / 3800 lbs
Self-locking Force Up to 20000N (Code A)
Duty Cycle 20–35% (by transmission code)
Protection Class IP67
Mounting Hole Ø20mm spherical rod ends
Motor Type Brushed DC
Lead Screw Ball screw or ACME screw
Manual Override Yes (standard)
Operating Noise ≤65dB
Position Feedback Optional Hall / potentiometer / end-stop / magnetic / analog

التطبيقات

  • Construction vehicles and machinery
  • Agricultural machinery
  • Industrial automation
  • PV solar and CSP plants
  • Outdoor power equipment
  • Medical bed and accessibility equipment
  • Ventilation and animal husbandry

تفاصيل إضافية

SLA-17K 17000N Industrial Linear Actuator

12V 24V SLA-17K 17000N industrial linear actuator

The SLA-17K is a heavy-duty 12V/24V industrial electric linear actuator with up to 17000N dynamic force, IP67 protection, ball-screw or ACME-screw options, and standard manual override for emergency motion without power.

Model
SLA-17K
Max Dynamic Force
17000N / 1700 kg / 3800 lbs
Voltage
12V / 24V / 36V / 48V DC
Stroke
50–1000mm
Protection
IP67

Product Structure

  • A — Stainless steel piston rod — extends and retracts to deliver linear motion
  • B — Zi-Ni coated mounting ends — spherical rod ends for flexible installation
  • C — Aluminum alloy enclosure top cap — seals the outer tube end
  • D — Aluminum alloy housing — main structural enclosure
  • E — Cable module — weatherproof, replaceable power / signal exit
  • F — Manual override — emergency hand operation without power

Operation

Connect the red and black leads to a matching DC supply. One polarity extends the piston rod; reversing polarity retracts it. Built-in end protection and electronic overload protection help protect the drive under demanding loads. When power is unavailable, use the manual override port with the appropriate tool to extend or retract the actuator.

External Dimensions

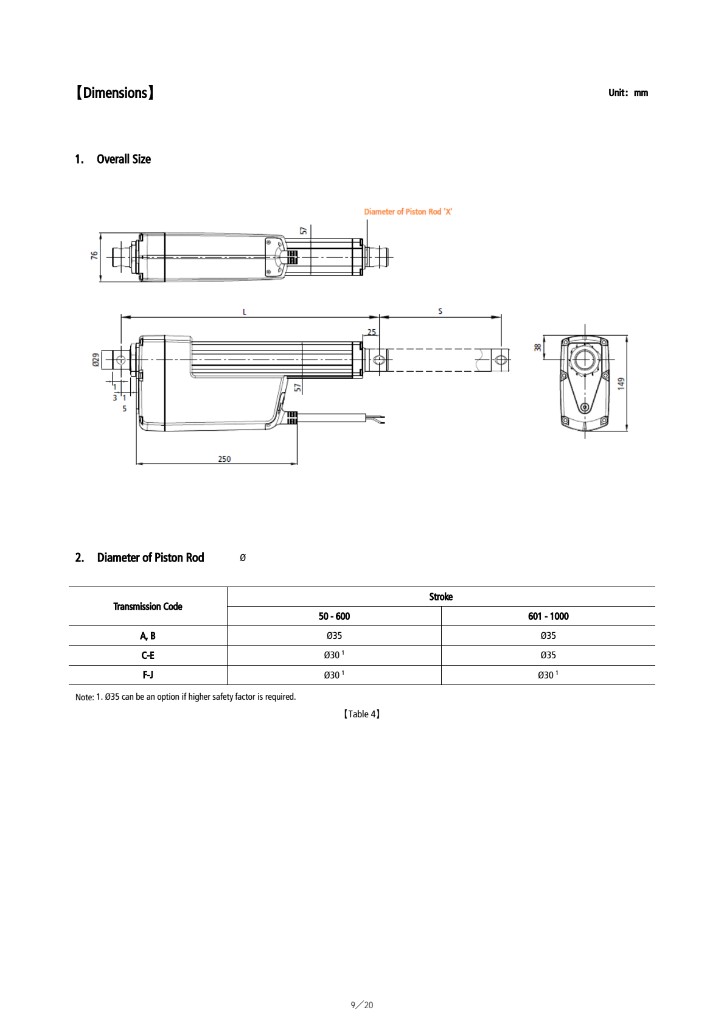

SLA-17K linear actuator dimensions drawing — overall size and piston rod diameter

  • Motor / gear housing footprint: approx. 250mm length × 76mm width × 149mm height
  • Piston rod housing width: approx. 57mm
  • Front and rear mounting hole diameter: Ø20mm
  • Front mount offset (retracted): approx. 25mm from tube end to hole center
  • Mount orientation options: 0° or 90°
  • Retracted installation size (L) and stroke (S) are customizable for the application

Piston Rod Diameter

Transmission Code Stroke 50–600mm Stroke 601–1000mm
A, BØ35mmØ35mm
C–EØ30mm*Ø35mm
F–JØ30mm*Ø30mm*

* Ø35mm can be selected when a higher safety factor is required.

Speed vs Load

Select the transmission code that matches your required force, speed and duty cycle. Free-load and full-load speeds are listed for each option.

Ball Screw Configurations

Code Duty Cycle Max Dynamic Force Self-locking Pitch Free-load Speed Full-load Speed Max Stroke at Full Capacity
A20%17000 N20000 N5mm6.5mm/s5mm/s600mm
B35%13500 N15000 N5mm9mm/s6.5mm/s1000mm
C35%10000 N12000 N5mm14mm/s9mm/s1000mm
D35%7500 N10000 N10mm18mm/s13mm/s1000mm
E35%5000 N8000 N10mm28mm/s20mm/s1000mm

ACME Screw Configurations

Code Duty Cycle Max Dynamic Force Self-locking Pitch Free-load Speed Full-load Speed Max Stroke at Full Capacity
F20%12000 N15000 N4mm7mm/s5mm/s1000mm
G20%10000 N12000 N8mm10mm/s7mm/s1000mm
H20%7500 N10000 N8mm14mm/s8mm/s1000mm
I20%5000 N8000 N8mm23mm/s13mm/s1000mm
J20%3500 N5000 N12mm35mm/s23mm/s1000mm

Speed & Load Notes:

  • Measurements are based on a stable DC power supply at about 20°C ambient temperature. Speeds are ±10%.
  • Code A supports up to 17000N at strokes up to 600mm. For 601–1000mm stroke, Code A can still be used with a reduced maximum force of about 14500N.
  • Example: for an actual load near 9000N, Code C or G is suitable; Code A, B or F provides a larger safety margin and longer service life.
  • Higher free-load speed means lower maximum dynamic force. Select code by both travel time and required thrust.
  • Duty cycle varies with transmission code (20% or 35%). Continuous operation at maximum load is not recommended.

Manual Override

SLA-17K includes a standard manual operation feature so the actuator can still extend or retract during a power outage or emergency. Use the dedicated override port with the specified tool instead of electric control when needed.

Cable Module

  • Excellent weatherproof capability for outdoor and wash-down environments
  • Simplified cable replacement for service and OEM customization
  • Optional cable lengths and connector styles for project integration

Need a Custom Configuration?

Contact Elerover for voltage, stroke, transmission code, feedback, cable length, connector and mounting orientation customization. Messages go to [email protected].
