SLA-15KB 15000N مشغل خطي لمتتبع شمسي

1 / 5

مشغل خطي

SLA-15KB 15000N مشغل خطي لمتتبع شمسي

هيكل ألومنيوم عالي القوة: مثالي للبيئات القاسية مع متانة وعمر طويل. فرملة شاملة وقفل ذاتي قوي: يتميز بـ a...

Manufactured and supplied by Elerover — مشغل خطي manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.

المعلمات الرئيسية

Model
SLA-15KB
IP Rating
IP66 for outdoor use (dynamic)
Noise
56dB DS/EN IS08746
Static Load
45000N
Design Life
25 years
Cable Length
Standard: 500-800mm, cable length can also be customized.
Load Capacity
10000/ 12000/ 15000N (Optional and other loads can be customized)
Travel Speed*
1.4mm/s, 2.0mm/s, 3.0mm/s
Request OEM Quote واتساب
  • Custom stroke
  • Custom voltage
  • Custom connector
  • OEM / private-label inquiry

نظرة عامة على المنتج

High-Performance Solar Tracker Linear Actuator Overview Introducing our new style solar tracker linear actuator, designed for superior performance and reliability in solar tracking systems. Available in 12V and 24V DC voltage options, this actuator offers various travel speeds (1.4mm/s, 2.0mm/s, and 3.0mm/s) and load capacities ranging from 10KN to 15KN. With stroke lengths between 50mm and 1200mm and customizable options, our linear actuator meets diverse application requirements. Key Features High-Strength Aluminum Housing: Ideal for harsh environments, ensuring durability and longevity. Comprehensive Braking & Strong Self-Locking: Features a non-rotating piston rod eye, perfect for precise solar angle adjustments. DC Permanent Magnet Motor: Compact, sturdy, and easy to install, providing consistent performance. Customizable Options: Choose from various stroke lengths (50mm to 1200mm) and travel speeds (1.4mm/s, 2.0mm/s, 3.0mm/s) to meet your specific needs. Signal Feedback Hall Sensor: Supported for enhanced control and monitoring. Limit Switch Options: Available with built-in or external magnetic limit switches for flexible installation. High and Stable Quality: Passed over 500 hours of salt spray, waterproof, high/low temperature, ultraviolet light, and impact tests, ensuring long service life. Specifications Voltage: 12V/24V DC Travel Speed: 1.4mm/s, 2.0mm/s, 3.0mm/s Load Capacity: 10KN, 12KN, 15KN Stroke Length: 50mm to 1200mm (customizable) Protection Class: IP66 Screw Type: Highly efficient trapezoidal screw Optional Features: Signal feedback hall sensor, built-in or external magnetic limit switch Model SLA-15KB Input Voltage* 12V/24VDC Load Capacity 10000/ 12000/ 15000N (Optional and other loads can be customized) Static Load 45000N Dynamic Wind Stress 15000N, push/pull 80000 times Travel Speed* 1.4mm/s, 2.0mm/s, 3.0mm/s Stroke Length 50/100/150/200/250/300/350/400/450/500/550/600/650/700/750/800/850/900/950/1200mm (Optional) Limited Switch* Built-in limit

الميزات الرئيسية

  • هيكل ألومنيوم عالي القوة: مثالي للبيئات القاسية مع متانة وعمر طويل.

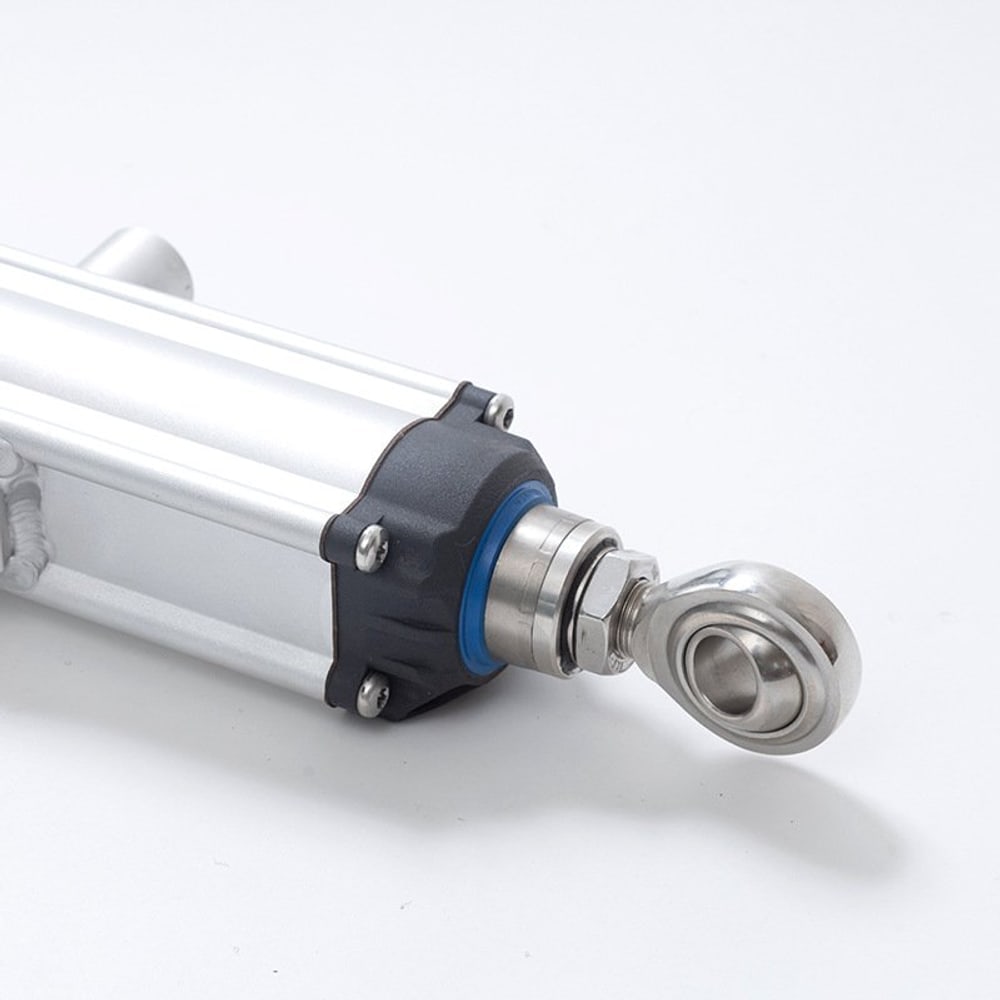

  • فرملة شاملة وقفل ذاتي قوي: عين قضيب مكبس غير دوّارة، مثالية لضبط زاوية الشمس بدقة.
  • محرك مغناطيس دائم تيار مستمر: Compact, sturdy, and easy to install, providing consistent performance.
  • خيارات قابلة للتخصيص: Choose from various stroke lengths (50mm to 1200mm) and travel speeds (1.4mm/s, 2.0mm/s, 3.0mm/s) to meet your specific needs.
  • تغذية راجعة بمستشعر Hall: مدعوم لتحسين التحكم والمراقبة.
  • خيارات مفتاح الحد: متاح بمفاتيح حد مغناطيسية مدمجة أو خارجية لتركيب مرن.
  • جودة عالية ومستقرة: Passed over 500 hours of salt spray, waterproof, high/low temperature, ultraviolet light, and impact tests, ensuring long service life.
  • الجهد: 12V/24V DC
  • سرعة الحركة: 1.4mm/s, 2.0mm/s, 3.0mm/s
  • سعة التحميل: 10KN, 12KN, 15KN
  • طول الشوط: 50mm to 1200mm (customizable)
  • درجة الحماية: IP66

المواصفات الفنية

Model SLA-15KB
Input Voltage* 12V/24VDC
Load Capacity 10000/ 12000/ 15000N (Optional and other loads can be customized)
Static Load 45000N
Dynamic Wind Stress 15000N, push/pull 80000 times
Travel Speed* 1.4mm/s, 2.0mm/s, 3.0mm/s
Stroke Length 50/100/150/200/250/300/350/400/450/500/550/600/650/700/750/800/850/900/950/1200mm (Optional)
Limited Switch* Built-in limit switch or external magnetic limit switch
IP Rating IP66 for outdoor use (dynamic)
Signal Feedback* Hall sensor
Working Frequency at the Max. Load 12%
Cable Length Standard: 500-800mm, cable length can also be customized.
Operating Temperature at 15KN -30°C~+70°C
Noise 56dB DS/EN IS08746
Design Life 25 years
Certification CE
Weight 8 -20kg

التطبيقات

  • هيكل ألومنيوم عالي القوة: مثالي للبيئات القاسية مع متانة وعمر طويل.
  • فرملة شاملة وقفل ذاتي قوي: عين قضيب مكبس غير دوّارة، مثالية لضبط زاوية الشمس بدقة.
  • محرك مغناطيس دائم تيار مستمر: مدمج ومتين وسهل التركيب بأداء ثابت.
  • خيارات قابلة للتخصيص: أطوال شوط (50–1200 مم) وسرعات (1.4 / 2.0 / 3.0 مم/ث) حسب الحاجة.
  • تغذية راجعة بإشارة مستشعر Hall: مدعومة لتحسين التحكم والمراقبة.
  • خيارات مفتاح الحد: مفاتيح حد مغناطيسية مدمجة أو خارجية لتركيب مرن.

تفاصيل إضافية

High-Performance Solar Tracker Linear Actuator

Introducing our new style solar tracker linear actuator, designed for superior performance and reliability in solar tracking systems. Available in 12V and 24V DC voltage options, this actuator offers various travel speeds (1.4mm/s, 2.0mm/s, and 3.0mm/s) and load capacities ranging from 10KN to 15KN. With stroke lengths between 50mm and 1200mm and customizable options, our linear actuator meets diverse application requirements.

  • High-Strength Aluminum Housing: Ideal for harsh environments, ensuring durability and longevity.
  • Comprehensive Braking & Strong Self-Locking: Features a non-rotating piston rod eye, perfect for precise solar angle adjustments.
  • DC Permanent Magnet Motor: Compact, sturdy, and easy to install, providing consistent performance.
  • Customizable Options: Choose from various stroke lengths (50mm to 1200mm) and travel speeds (1.4mm/s, 2.0mm/s, 3.0mm/s) to meet your specific needs.
  • Signal Feedback Hall Sensor: Supported for enhanced control and monitoring.
  • Limit Switch Options: Available with built-in or external magnetic limit switches for flexible installation.
  • High and Stable Quality: Passed over 500 hours of salt spray, waterproof, high/low temperature, ultraviolet light, and impact tests, ensuring long service life.
  • Voltage: 12V/24V DC
  • Travel Speed: 1.4mm/s, 2.0mm/s, 3.0mm/s
  • Load Capacity: 10KN, 12KN, 15KN
  • Stroke Length: 50mm to 1200mm (customizable)
  • Protection Class: IP66
  • Screw Type: Highly efficient trapezoidal screw
  • Optional Features: Signal feedback hall sensor, built-in or external magnetic limit switch
Model SLA-15KB
Input Voltage* 12V/24VDC
Load Capacity 10000/ 12000/ 15000N (Optional and other loads can be customized)
Static Load 45000N
Dynamic Wind Stress 15000N, push/pull 80000 times
Travel Speed* 1.4mm/s, 2.0mm/s, 3.0mm/s
Stroke Length 50/100/150/200/250/300/350/400/450/500/550/600/650/700/750/800/850/900/950/1200mm (Optional)
Limited Switch* Built-in limit switch or external magnetic limit switch
IP Rating IP66 for outdoor use (dynamic)
Signal Feedback* Hall sensor
Working Frequency at the Max. Load 12%
Cable Length Standard: 500-800mm, cable length can also be customized.
Operating Temperature at 15KN -30°C~+70°C
Noise 56dB DS/EN IS08746
Design Life 25 years
Certification CE
Weight 8 -20kg

Our solar tracker linear actuator is the ideal choice for solar tracking systems, providing precise and reliable solar angle adjustments. It is suitable for:

  • Solar Panel Positioning: Ensuring optimal sun exposure for maximum energy generation.
  • Renewable Energy Systems: Enhancing efficiency in both residential and commercial solar installations.
  • Harsh Environment Operations: Withstanding extreme conditions, making it perfect for outdoor use.

Benefits

  • Enhanced Durability: High-strength aluminum housing and robust design ensure long-lasting performance.
  • Precision Control: Strong self-locking and comprehensive braking capabilities provide accurate positioning.
  • Customizable Solutions: Tailored stroke lengths and speeds to match specific application needs.
  • Reliable Operation: Proven to withstand rigorous testing, ensuring dependable performance in various environments.

Contact Us

For more information about our high-performance solar tracker linear actuator and how it can enhance your solar tracking system, please contact us.
