High-Performance Slewing Drives for Solar Tracking Systems Overview Our range of slewing drives is specifically designed to meet the diverse needs of solar tracking systems. Available in 10 different sizes from 3″ to 25″, our more than 60 models cater to both regular and precise tracking requirements across various PV systems, including oblique tracking systems, flat single tracking systems, CPV, and solar thermal power tracking fields. Our slewing drives deliver higher output torque and holding moment torque, ensuring excellent tracking precision. Additionally, they feature anti-corrosion coating, anti-UV sealing, and IP66 protection class, making them ideal for use in PV, CPV, and CSP systems. Quality Assurance We maintain a strict quality control system in our own factory, ensuring every product meets high standards. Our products have passed the ISO9001-2008 quality system certification and comply with national engineering and machinery standards. Applications Dual-Axis Solar Tracking System Our slewing drives are ideal for dual-axis solar tracking systems, which track the sun in both altitude and azimuth to maximize solar energy capture. These systems can increase power generation by 25% to 40% compared to optimal inclination angle power generation systems. Dual-axis trackers are particularly suitable for middle-high latitude areas and can be used in residential, commercial, industrial, or utility-scale solar power generation sectors. The high precision of our slewing drives ensures fully automatic tracking, achieving approximately 45% more power output than fixed mounting systems. Additionally, our slewing drives are easy to install, handle, and maintain. Key Features High Output Torque: Enhanced performance for more challenging applications. Excellent Tracking Precision: Superior accuracy for maximum efficiency. Anti-Corrosion Coating: Prolongs the lifespan of the slewing drive. Anti-UV Sealing: Protects against UV radiation damage. IP66 Protection
선회 드라이브

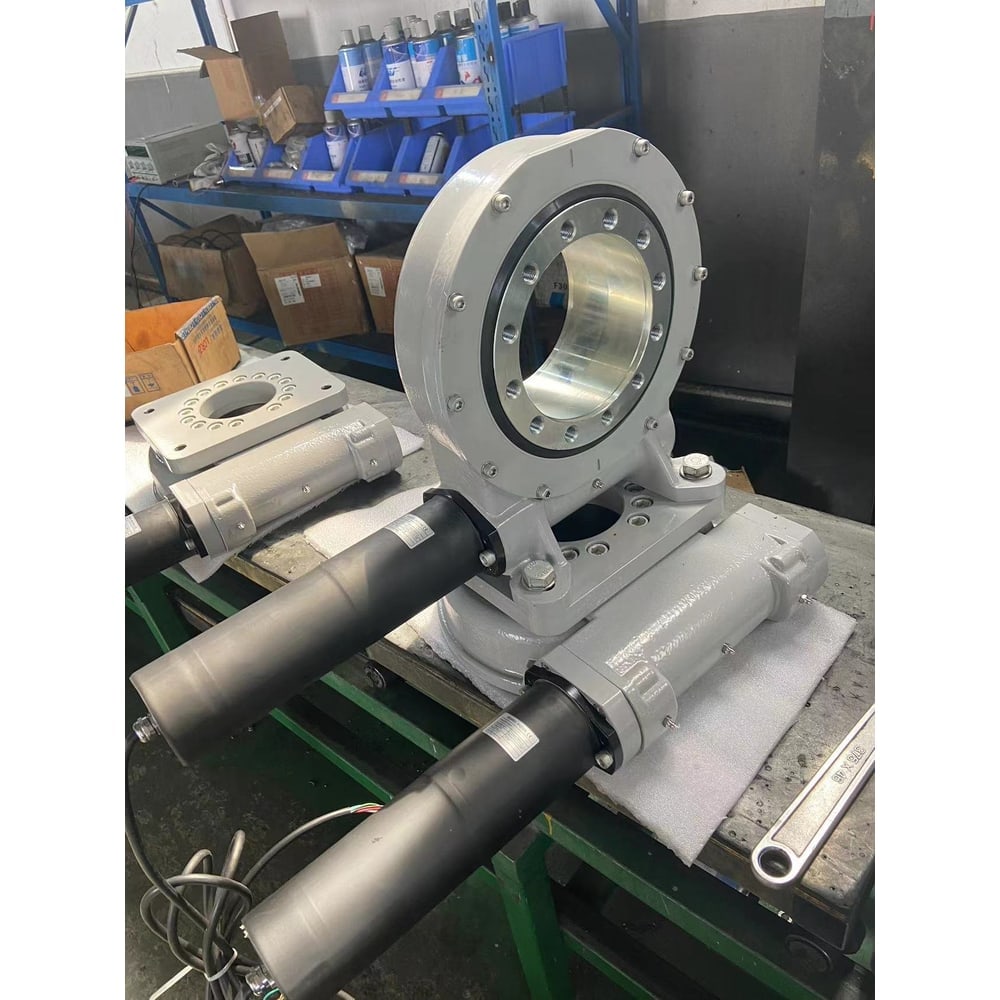

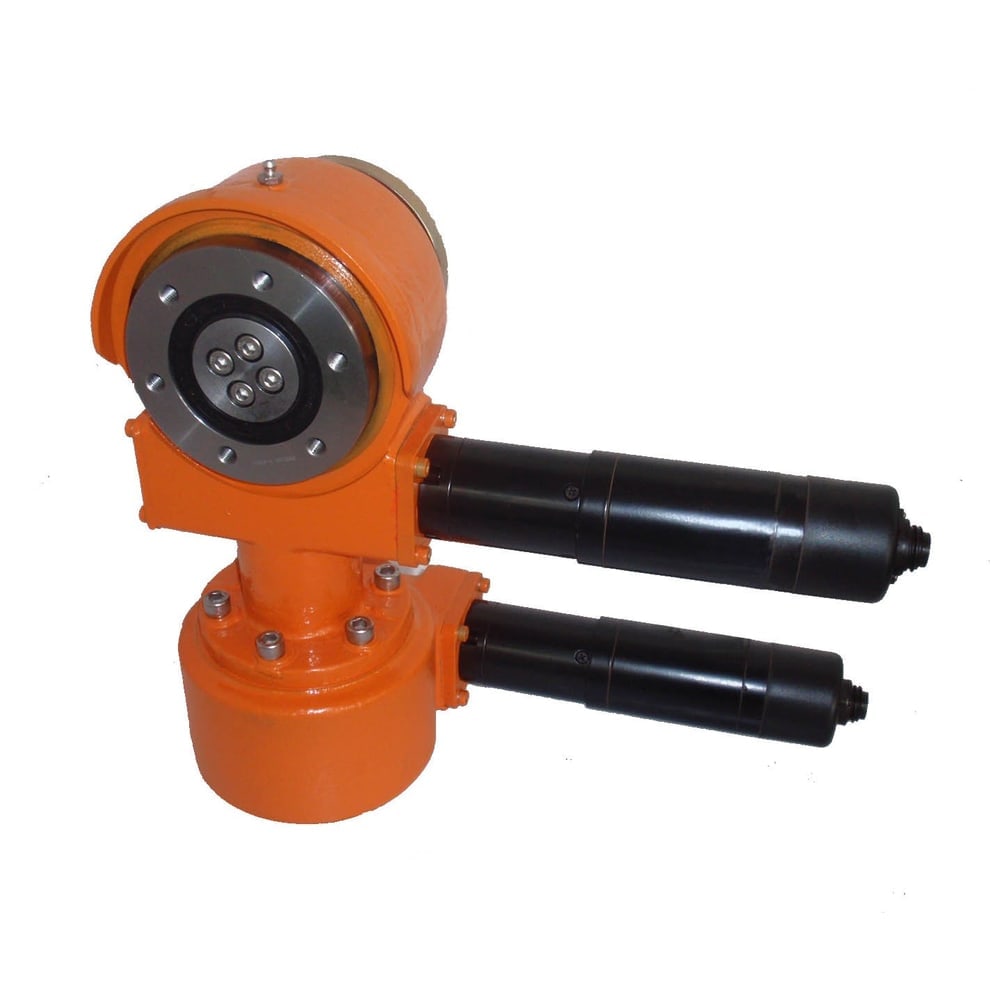

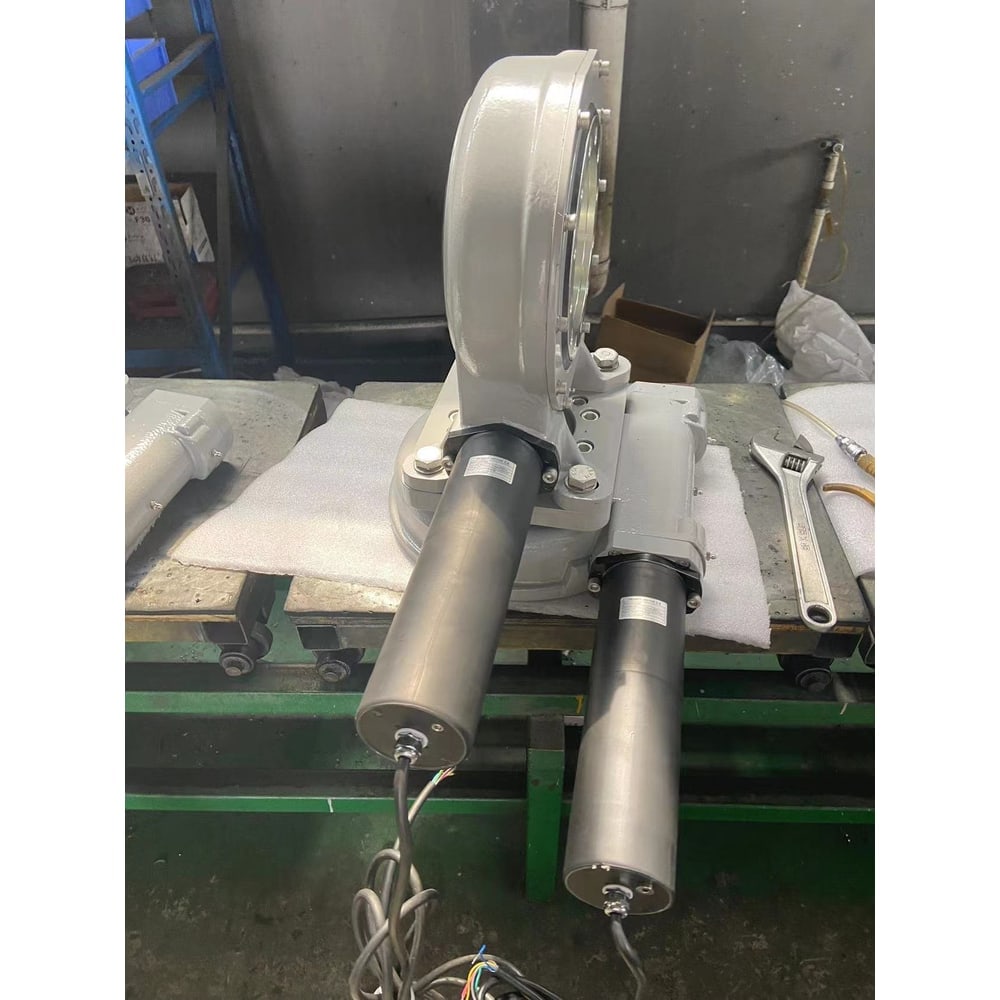

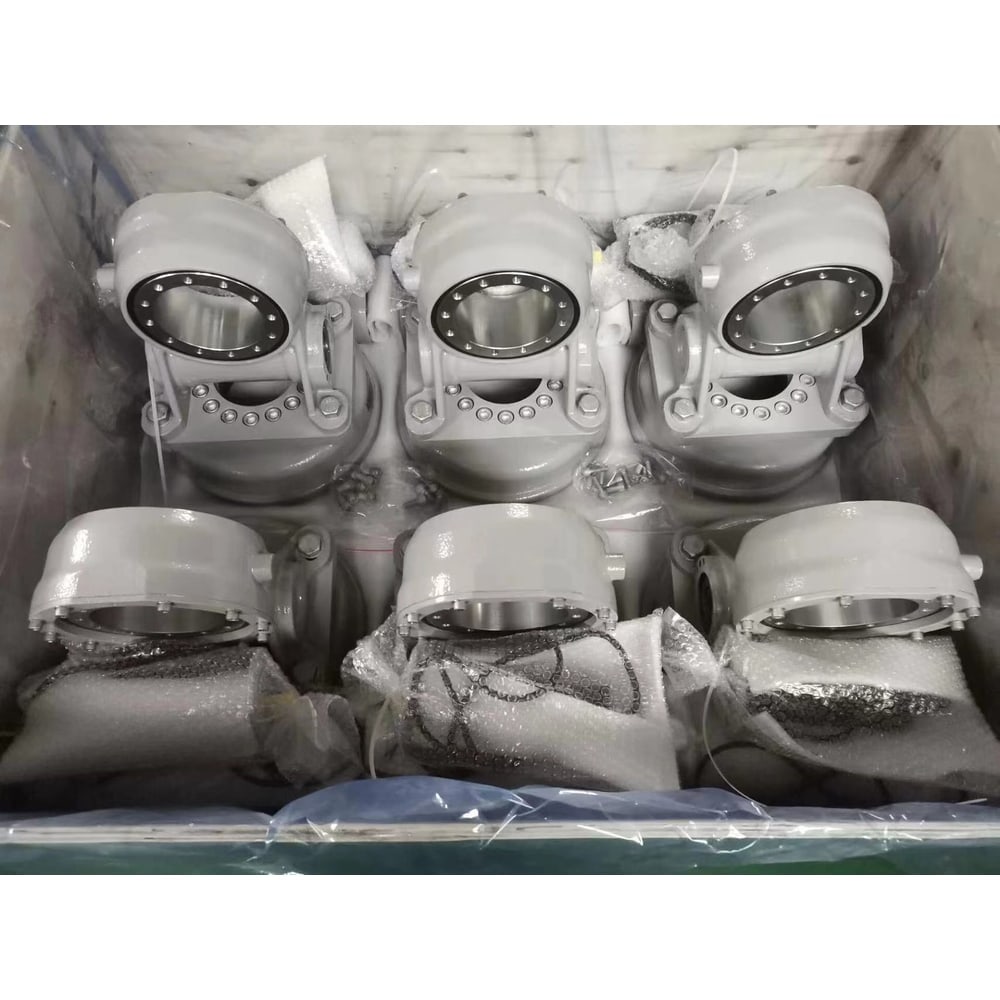

SDE3/SDE7/SDE14 2축 선회 드라이브
고출력 토크: 고난도 응용을 위한 향상된 성능. 우수한 추적 정밀도: 최대 효율을 위한 뛰어난 정확도. 내...
Manufactured and supplied by Elerover — 선회 드라이브 manufacturer and OEM partner for industrial, medical, furniture and solar motion systems.
주요 사양
- Model
- Rated Output Torque (N.m)
- SDE1
- ＜5 ㎡
- SDE3
- ＜15 ㎡
- SDE5
- ＜20 ㎡
- SDE7
- ＜30 ㎡
- SDE9
- ＜40 ㎡
- SDE12
- ＜50 ㎡
- SDE17
- ＜60 ㎡
제품 개요
주요 특징
- 고출력 토크: 고난도 응용을 위한 향상된 성능.
- 뛰어난 추적 정밀도: 최대 효율을 위한 우수한 정확도.
- 방식 코팅: 선회 드라이브 수명 연장.
- UV 차단 실링: 자외선 손상 방지.
- IP66 보호 등급: 먼지·침수 저항 보장.
- 넓은 적용: PV, CPV, CSP 시스템에 적합.
기술 사양
| slewing drive model | square meters of solar panels can bear(max) |
|---|---|
| SDE1 | ＜5 ㎡ |
| SDE3 | ＜15 ㎡ |
| SDE5 | ＜20 ㎡ |
| SDE7 | ＜30 ㎡ |
| SDE9 | ＜40 ㎡ |
| SDE12 | ＜50 ㎡ |
| SDE17 | ＜60 ㎡ |
| Model | Rated Output Torque (N.m) |
| 3″ | 600 |
| 5″ | 800 |
| 7″ | 2000 |
| 9″ | 4300 |
| 12″ | 5800 |
| 14″ | 6750 |
| 17″ | 9460 |
| 21″ | 16000 |
| 25″ | 21450 |
적용 분야
- 태양광 추적
추가 세부 정보
High-Performance Slewing Drives for Solar Tracking Systems
Our range of slewing drives is specifically designed to meet the diverse needs of solar tracking systems. Available in 10 different sizes from 3″ to 25″, our more than 60 models cater to both regular and precise tracking requirements across various PV systems, including oblique tracking systems, flat single tracking systems, CPV, and solar thermal power tracking fields. Our slewing drives deliver higher output torque and holding moment torque, ensuring excellent tracking precision. Additionally, they feature anti-corrosion coating, anti-UV sealing, and IP66 protection class, making them ideal for use in PV, CPV, and CSP systems.
Quality Assurance
We maintain a strict quality control system in our own factory, ensuring every product meets high standards. Our products have passed the ISO9001-2008 quality system certification and comply with national engineering and machinery standards.
Dual-Axis Solar Tracking System
Our slewing drives are ideal for dual-axis solar tracking systems, which track the sun in both altitude and azimuth to maximize solar energy capture. These systems can increase power generation by 25% to 40% compared to optimal inclination angle power generation systems. Dual-axis trackers are particularly suitable for middle-high latitude areas and can be used in residential, commercial, industrial, or utility-scale solar power generation sectors. The high precision of our slewing drives ensures fully automatic tracking, achieving approximately 45% more power output than fixed mounting systems. Additionally, our slewing drives are easy to install, handle, and maintain.
- High Output Torque: Enhanced performance for more challenging applications.
- Excellent Tracking Precision: Superior accuracy for maximum efficiency.
- Anti-Corrosion Coating: Prolongs the lifespan of the slewing drive.
- Anti-UV Sealing: Protects against UV radiation damage.
- IP66 Protection Class: Ensures resistance to dust and water ingress.
- Wide Application: Suitable for PV, CPV, and CSP systems.
Get in Touch
For more information about our slewing drives and how they can benefit your solar tracking system, please contact us.
| slewing drive model | square meters of solar panels can bear(max) |
| SDE1 | ＜5 ㎡ |
| SDE3 | ＜15 ㎡ |
| SDE5 | ＜20 ㎡ |
| SDE7 | ＜30 ㎡ |
| SDE9 | ＜40 ㎡ |
| SDE12 | ＜50 ㎡ |
| SDE17 | ＜60 ㎡ |
| SDE Model Performance Parameters | ||||||||||||
| Model | Rated Output Torque (N.m) | Tilting Torque
(kN.m) |
Holding Torque (kN.m) | Axial Load (kN) | Radial Load (kN) | Ratio | Efficiency | Precision
(degree) |
IP | Working Tep
(℃) |
Self-locking | Weight (kg) |
| 3″ | 600 | 1.5 | 5.8 | 10 | 15 | 31:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 25kg |
| 5″ | 800 | 6 | 9.2 | 16 | 27 | 37:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 34kg |
| 7″ | 2000 | 7.5 | 13.2 | 34 | 58 | 57:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 56kg |
| 9″ | 4300 | 16 | 27.2 | 60 | 130 | 61:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 92kg |
| 12″ | 5800 | 25 | 41 | 77 | 190 | 78:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 160kg |
| 14″ | 6750 | 48 | 45 | 110 | 230 | 85:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 224kg |
| 17″ | 9460 | 67 | 54 | 142 | 390 | 102:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 320kg |
| 21″ | 16000 | 89 | 65 | 337 | 640 | 125:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 492kg |
| 25″ | 21450 | 112 | 89 | 476 | 950 | 150:1 | 40% | ≤0.15 | 66 | -40～+80 | Yes | 705kg |
유사 제품

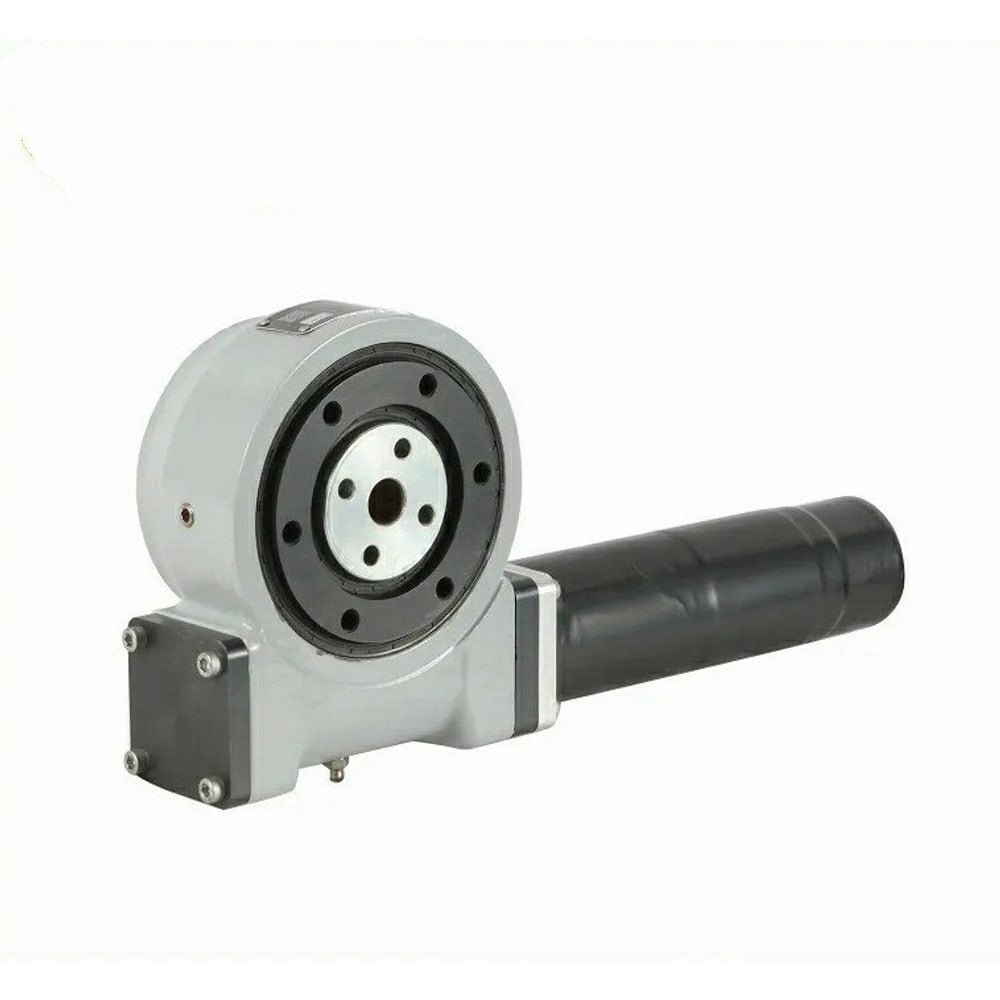

SC3 24VDC 모터 선회 드라이브 | 컴팩트 웜기어 로터리 액추에이터
24VDC 모터 SC3 선회 드라이브. SC3 선회 드라이브는 24VDC 플래네터리 기어 모터가 통합된 컴팩트 웜기어 로터리 액추에이터입니다. 설계...
상세 보기 →

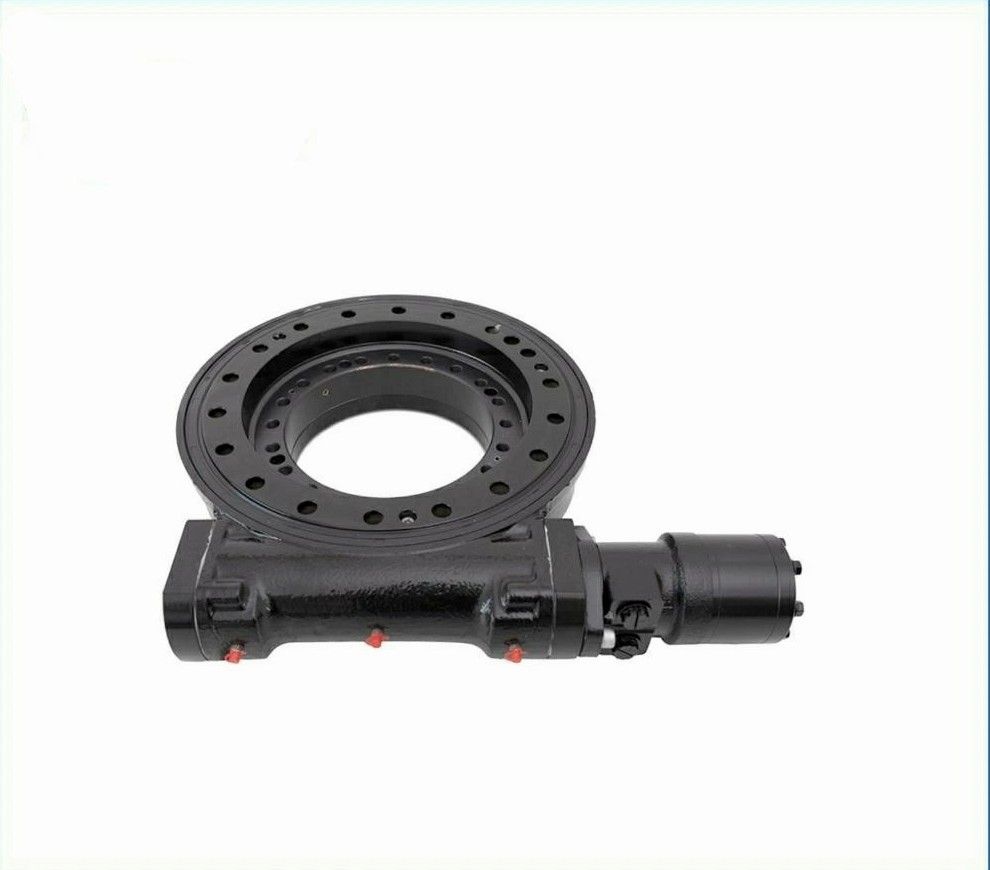

SC12 12-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC12 12-inch slewing drive with 24VDC motor. 3120 N·m output torque, 43 kN·m holding torque, 54.3 kN·m tilting moment, 78:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
상세 보기 →

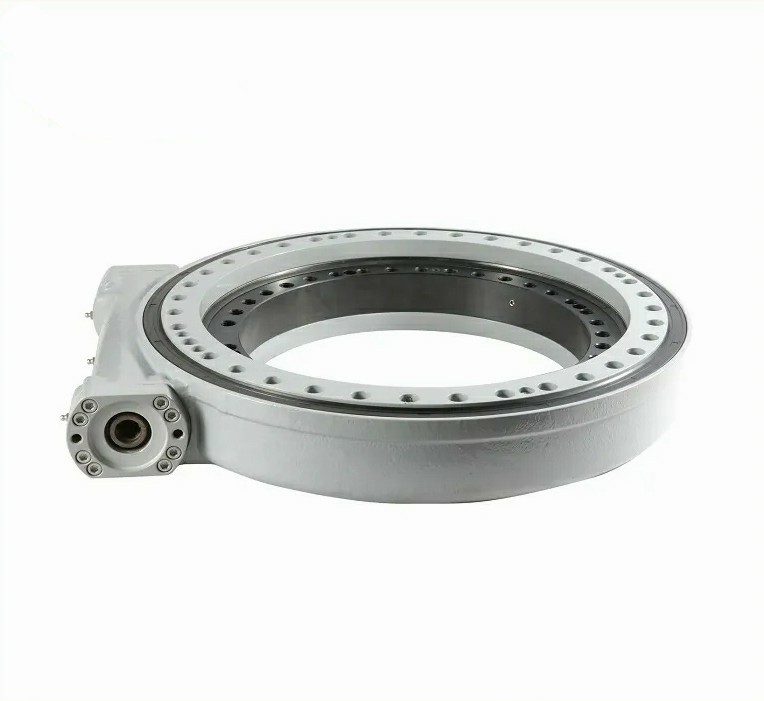

SC14 14-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Solar Tracker
SC14 14-inch slewing drive with 24VDC IP65 motor. 10.2 kN·m output torque, 48 kN·m holding torque, 67.8 kN·m tilting moment, 85:1 ratio, ≤0.17° precision for large solar trackers and rotary platforms.
상세 보기 →

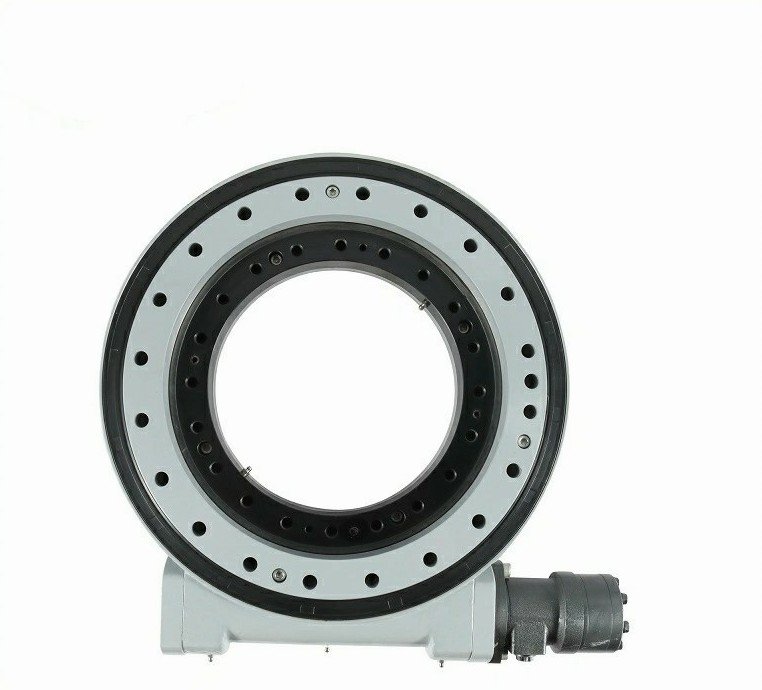

SC17 17-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Heavy Loads
SC17 17-inch slewing drive with 24VDC IP65 motor. 12.24 kN·m output torque, 72.3 kN·m holding torque, 135.6 kN·m tilting moment, 102:1 ratio, ≤0.17° precision for large solar trackers and heavy machinery.
상세 보기 →

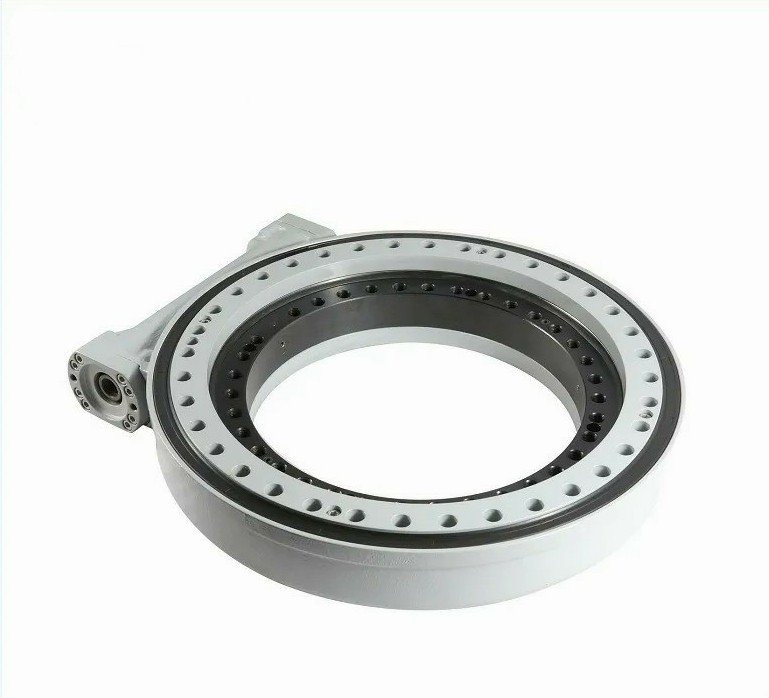

SC21 21-Inch Slewing Drive | 24VDC Worm Gear Rotary Actuator for Heavy Loads
SC21 21-inch slewing drive with 24VDC IP65 motor. 15 kN·m output torque, 105.8 kN·m holding torque, 203 kN·m tilting moment, 125:1 ratio, ≤0.15° precision for large solar trackers and heavy machinery.
상세 보기 →

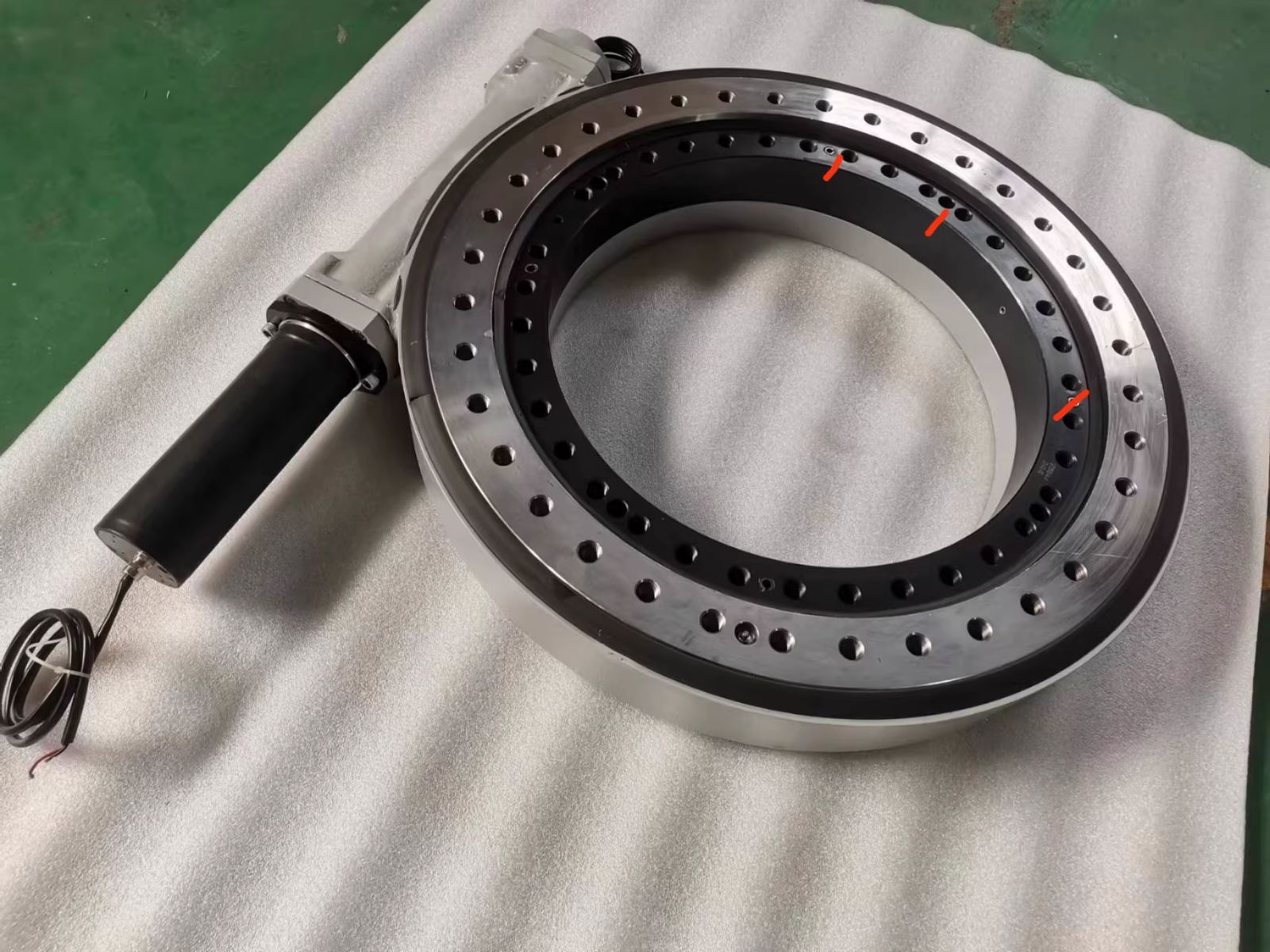

SC32 32-Inch Slewing Drive | Heavy-Duty Worm Gear Rotary Drive for Solar & Machinery
